Festool Special application dust extractor B1 / 583282 Spare Parts

Festool Special application dust extractor B1 / 583282 Spare Parts
Home Details Reviews Delivery

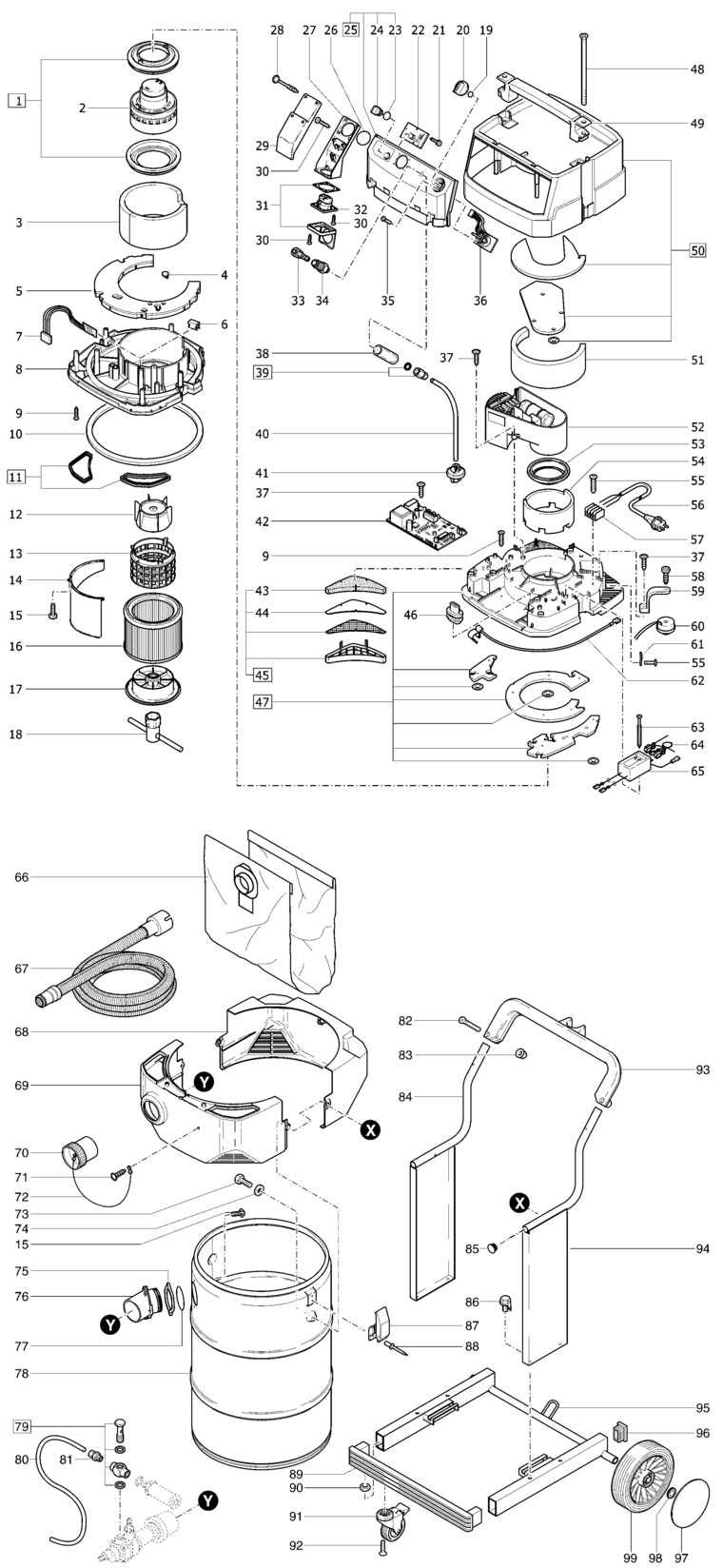

An exploded diagram and spare parts listing for the Festool Special application dust extractor B1 / 583282
Ex VAT Inc VAT
1 - MOTOR BEARING RING FSP-490668.A24 490668 £29.53 £35.44
2 - MOTOR 230V FSP-489085.A3 489085 £805.79 £966.95
3 - NO LONGER AVAILABLE FSP-00000.A4908 00000 -
4 - NO LONGER AVAILABLE FSP-00000.A4909 00000 -
5 - NO LONGER AVAILABLE FSP-00000.A4910 00000 -
6 - NO LONGER AVAILABLE FSP-00000.A4911 00000 -
7 - NO LONGER AVAILABLE FSP-00000.A4912 00000 -
8 - NO LONGER AVAILABLE FSP-00000.A4913 00000 -
9 - FLAT HEAD SCREW FSP-412054.A93 412054 £1.63 £1.96
10 - SEALING RING FSP-412039.A8 412039 £60.31 £72.37
12 - NO LONGER AVAILABLE FSP-00000.A4902 00000 -
13 - NO LONGER AVAILABLE FSP-00000.A4903 00000 -
14 - NO LONGER AVAILABLE FSP-00000.A4904 00000 -
15 - NO LONGER AVAILABLE FSP-00000.A4905 00000 -
16 - NO LONGER AVAILABLE FSP-00000.A4906 00000 -
17 - NO LONGER AVAILABLE FSP-00000.A4907 00000 -
18 - HIQ SOCKET SPANNER FSP-453015.A3 453015 £19.24 £23.09
19 - O-RING FSP-625308.A27 625308 £8.48 £10.18
20 - NO LONGER AVAILABLE FSP-00000.A4877 00000 -
21 - NO LONGER AVAILABLE FSP-00000.A4878 00000 -
22 - NO LONGER AVAILABLE FSP-00000.A4879 00000 -
23 - O-RING FSP-222037.A42 222037 -
24 - ROTARY KNOB FSP-445241.A20 445241 £9.76 £11.71
25 - NO LONGER AVAILABLE FSP-00000.A4880 00000 -
26 - NO LONGER AVAILABLE FSP-00000.A4881 00000 -
27 - HOUSING FSP-200367.A2 200367 £62.98 £75.57
28 - NO LONGER AVAILABLE FSP-00000.A4885 00000 -
29 - HOUSING FSP-200367.A3 200367 £62.98 £75.57
30 - NO LONGER AVAILABLE FSP-00000.A4884 00000 -
31 - COVER FSP-200504.A24 200504 £12.85 £15.42
32 - SOCKET EU FSP-445235.A25 445235 £40.08 £48.10
33 - NO LONGER AVAILABLE FSP-00000.A4882 00000 -
34 - NO LONGER AVAILABLE FSP-00000.A4883 00000 -
35 - FLAT HEAD SCREW M4 X 12 FSP-228555.A36 228555 £2.00 £2.40
36 - ROTARY SWITCH FSP-450752.A2 450752 £175.33 £210.40
37 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-412063.A13 412063 £5.31 £6.37
38 - NO LONGER AVAILABLE FSP-00000.A4872 00000 -
39 - NO LONGER AVAILABLE FSP-00000.A4873 00000 -
40 - HOSE FSP-626534.A22 626534 £11.68 £14.01
41 - PRESSURE SWITCH FSP-436877.A5 436877 £46.34 £55.61
42 - FLOW SENSOR ELECTRONICS FSP-450751.A28 450751 £240.36 £288.43
43 - FILTER INSERT FSP-447221.A0 447221 £27.86 £33.43
44 - NO LONGER AVAILABLE FSP-00000.A4874 00000 -
45 - NO LONGER AVAILABLE FSP-00000.A4875 00000 -
46 - NO LONGER AVAILABLE FSP-00000.A4876 00000 -
47 - PLATE FSP-487119.A1 487119 £158.57 £190.28
48 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A41 445248 £3.56 £4.27
49 - NO LONGER AVAILABLE FSP-00000.A4869 00000 -
50 - NO LONGER AVAILABLE FSP-00000.A4870 00000 -
51 - NO LONGER AVAILABLE FSP-00000.A4871 00000 -
52 - ELECTRONIC FSP-487295.A0 487295 £647.73 £777.28
53 - NO LONGER AVAILABLE FSP-00000.A4921 00000 -
54 - NO LONGER AVAILABLE FSP-00000.A4922 00000 -
55 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A12 412094 £1.63 £1.96
56 - CABLE 7.5 M EU FSP-452078.A41 452078 £64.02 £76.83
57 - NO LONGER AVAILABLE FSP-00000.A4923 00000 -
58 - SCREW 4.2 X 13 MM FSP-447136.A24 447136 £1.63 £1.96
59 - NO LONGER AVAILABLE FSP-00000.A4925 00000 -
60 - PIEZO BEEPER FSP-763572.A25 763572 £40.80 £48.96
61 - NO LONGER AVAILABLE FSP-00000.A4918 00000 -
62 - NO LONGER AVAILABLE FSP-00000.A4919 00000 -
63 - NO LONGER AVAILABLE FSP-00000.A4920 00000 -
65 - INTERFERENCE FILTER FSP-445942.A0 445942 £128.20 £153.84
67 - NO LONGER AVAILABLE FSP-00000.A4926 00000 -
68 - NO LONGER AVAILABLE FSP-00000.A4927 00000 -
69 - NO LONGER AVAILABLE FSP-00000.A4928 00000 -
70 - BLANKING PLUG FSP-452899.A135 452899 £12.72 £15.27
71 - NO LONGER AVAILABLE FSP-00000.A4924 00000 -
72 - BLANKING PLUG FSP-452899.A136 452899 £12.72 £15.27
73 - SCREW M6 X 20 FSP-453472.A2 453472 £2.00 £2.40
74 - WASHER 6.4 MM FSP-200578.A125 200578 £2.00 £2.40
75 - NO LONGER AVAILABLE FSP-00000.A4930 00000 -
76 - NO LONGER AVAILABLE FSP-00000.A4931 00000 -
77 - NO LONGER AVAILABLE FSP-00000.A4932 00000 -
78 - NO LONGER AVAILABLE FSP-00000.A4933 00000 -
79 - T-PIECE FSP-4951.A26 4951 £42.57 £51.08
80 - HOSE FSP-10014024.A27 10014024 -
81 - NO LONGER AVAILABLE FSP-00000.A4929 00000 -
82 - FLAT HEAD SCREW M6 X 40 FSP-400326.A1 400326 £6.09 £7.31
83 - NO LONGER AVAILABLE FSP-00000.A4948 00000 -
84 - NO LONGER AVAILABLE FSP-00000.A4949 00000 -
85 - NO LONGER AVAILABLE FSP-00000.A4950 00000 -
86 - NO LONGER AVAILABLE FSP-00000.A4951 00000 -
87 - FLAP FSP-438702.A50 438702 £36.57 £43.88
88 - NO LONGER AVAILABLE FSP-00000.A4946 00000 -
89 - NO LONGER AVAILABLE FSP-00000.A4947 00000 -
90 - HEXAGON NUT M8 FSP-200719.A122 200719 £2.00 £2.40
91 - NO LONGER AVAILABLE FSP-00000.A4934 00000 -
92 - NO LONGER AVAILABLE FSP-00000.A4935 00000 -
93 - NO LONGER AVAILABLE FSP-00000.A4936 00000 -
94 - NO LONGER AVAILABLE FSP-00000.A4937 00000 -
95 - NO LONGER AVAILABLE FSP-00000.A4938 00000 -
96 - NO LONGER AVAILABLE FSP-00000.A4939 00000 -
97 - NO LONGER AVAILABLE FSP-00000.A4940 00000 -
98 - CLAMPING RING FSP-448717.A9 448717 £4.75 £5.70
99 - NO LONGER AVAILABLE FSP-00000.A4944 00000 -
