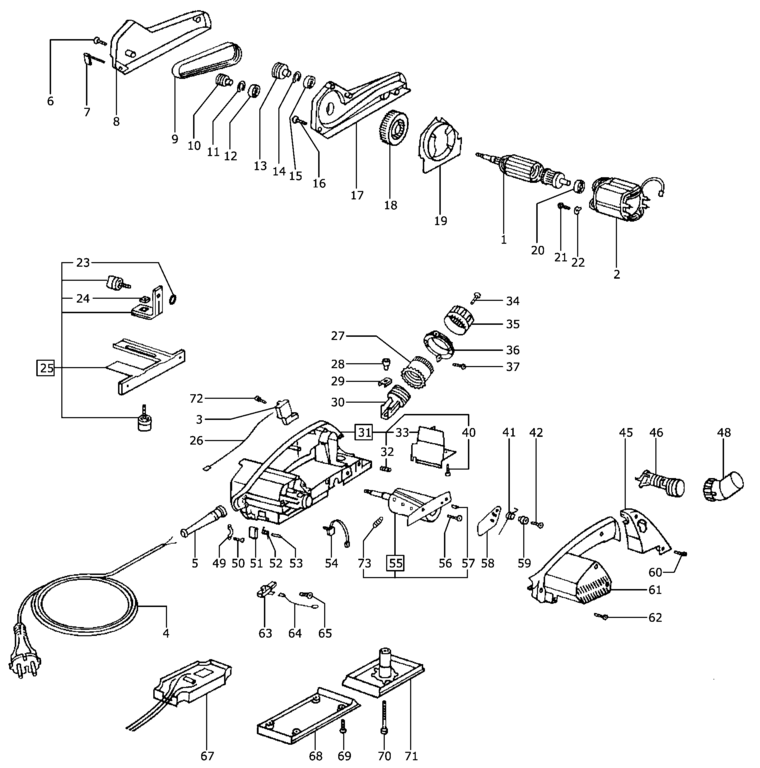

An exploded diagram and spare parts listing for the Festool EHL 65 E GB 110V / 493267
Ex VAT Inc VAT
1 - ARMATURE FSP-499608.A0 499608 £78.53 £94.24
2 - FIELD ASSEMBLY 100V FSP-495163.A0 495163 £42.65 £51.18
3 - CONVERSION KIT FSP-490839.A0 490839 £17.32 £20.79
4 - CABLE WITH PLUG GB 110V FSP-467715.A0 467715 £25.08 £30.09
5 - CABLE GROMMET FSP-445738.A5 445738 £2.00 £2.40
6 - RAISED-HEAD SCREW M3 X 8 FSP-228743.A4 228743 £2.00 £2.40
7 - PIN KEY FSP-439803.A10 439803 £5.05 £6.06
8 - COVER FSP-488506.A0 488506 £11.18 £13.41
9 - V-RIBBED BELT FSP-448235.A3 448235 £21.87 £26.24
10 - BELT DISC FSP-448927.A4 448927 £11.01 £13.21
13 - BELT DISC FSP-448928.A4 448928 £16.89 £20.27
14 - SNAP RING FSP-204471.A1 204471 £2.00 £2.40
15 - BALL BEARING FSP-400225.A10 400225 £6.29 £7.55
17 - BEARING COVER FSP-444863.A2 444863 £32.44 £38.93
18 - FAN FSP-444869.A3 444869 £3.14 £3.77
19 - AIR GUIDE WASHER FSP-444870.A5 444870 £2.64 £3.17
20 - BALL BEARING FSP-400230.A2 400230 £6.72 £8.07
21 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A38 219069 £2.00 £2.40
22 - SHEET METAL FSP-444865.A1 444865 £2.00 £2.40
23 - O-RING FSP-447299.A2 447299 £2.00 £2.40
24 - SQUARE NUT M6 FSP-228566.A111 228566 £2.00 £2.40
25 - PARALLEL SIDE FENCE PA - EHL FSP-488544.A3 488544 £13.64 £16.37
26 - FLEXIBLE LEAD FSP-450074.A2 450074 £2.00 £2.40
27 - ADJUSTING KNOB FSP-444887.A2 444887 £3.14 £3.77
28 - NUT FSP-446297.A2 446297 £6.34 £7.61
29 - PLATE SPRING FSP-446295.A2 446295 £2.00 £2.40
30 - SEGMENT FSP-444885.A1 444885 £2.00 £2.40
31 - HOUSING FSP-488932.A2 488932 £55.89 £67.07
32 - QUICKSERT FSP-448930.A4 448930 £3.78 £4.53
33 - AIR DUCT FSP-446299.A5 446299 £2.79 £3.35
35 - SCALE RING FSP-446294.A1 446294 £6.39 £7.67
36 - BEARING RING FSP-446293.A2 446293 £2.00 £2.40
41 - LEG SPRING FSP-444878.A2 444878 £2.00 £2.40
45 - HOUSING COVER FSP-444881.A1 444881 £5.24 £6.29
46 - CHIP EJECTION FSP-444883.A2 444883 £4.28 £5.14
48 - ANGLE PIECE FSP-448785.A1 448785 £3.72 £4.47
51 - SUPPORT FSP-447306.A0 447306 £2.00 £2.40
52 - TORSION SPRING FSP-715033.A5 715033 £2.00 £2.40
53 - CYLINDER PIN 4 X 26 MM FSP-770080.A2 770080 £2.00 £2.40
54 - SPEED INDICATOR FSP-487923.A3 487923 £10.32 £12.39
55 - PLANING HEAD FSP-10009233.A3 10009233 £118.40 £142.08
57 - DOWEL PIN FSP-400482.A1 400482 £2.00 £2.40
58 - SHEET METAL FSP-444880.A2 444880 £3.68 £4.42
59 - SLEEVE FSP-444879.A1 444879 £4.32 £5.19
61 - COVER FSP-444859.A1 444859 £11.15 £13.38
62 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A64 400468 £2.00 £2.40
63 - BRUSH (PAIR) 230V FSP-488505.A1 488505 £10.48 £12.58
64 - FLEXIBLE LEAD FSP-450072.A1 450072 £3.00 £3.60
65 - RAISED-HEAD SCREW 3.0 X 10 MM FSP-400231.A1 400231 £2.00 £2.40
67 - ELECTRONIC 110V FSP-493195.A0 493195 £59.78 £71.74
68 - PLANER FOOT FSP-447290.A1 447290 £26.08 £31.30
69 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A133 228713 £2.00 £2.40
70 - CHEESE HEAD SCREW M4 X 40 FSP-446296.A1 446296 £2.00 £2.40
71 - ADJUSTING TABLE FSP-446302.A2 446302 £31.20 £37.44
72 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A34 228718 £2.00 £2.40
73 - THREADED PIN M4 X 12 FSP-462187.A7 462187 £3.07 £3.68
