Festool HL 850 EB GB 110V / 205173 Spare Parts

Home Details Reviews Delivery

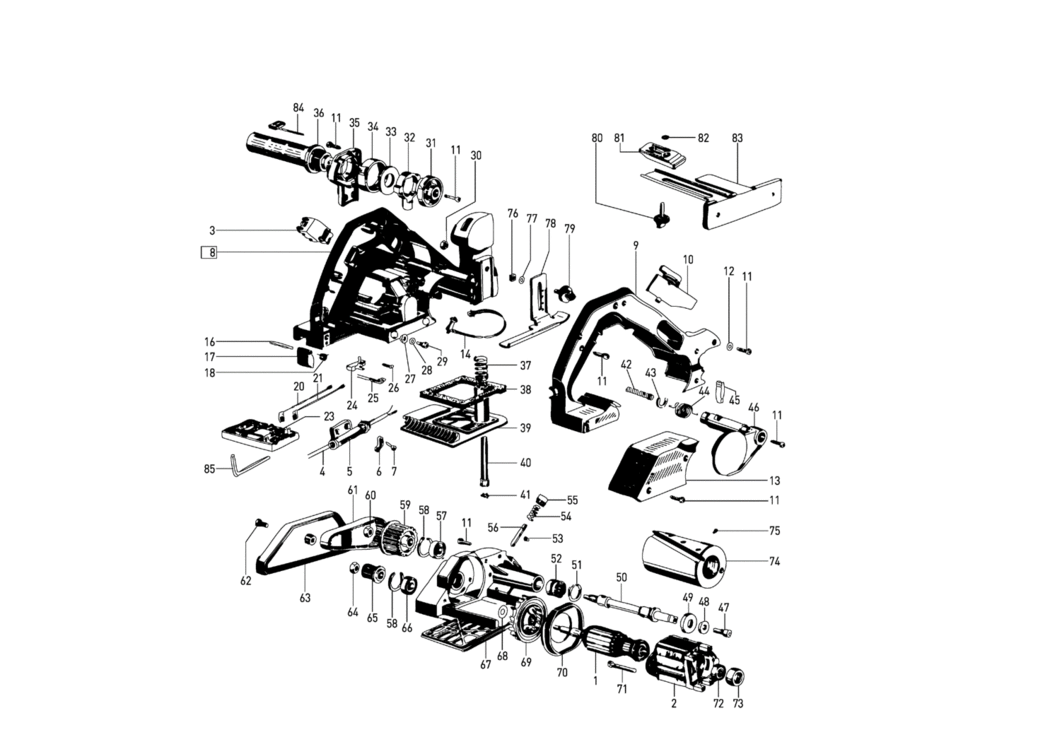

An exploded diagram and spare parts listing for the Festool HL 850 EB GB 110V / 205173

	Ex VAT	Inc VAT
1 - ARMATURE 120V FSP-492303.A6 492303	£121.34	£145.61
2 - FIELD ASSEMBLY 120V FSP-492304.A0 492304	£75.82	£90.99
3 - SWITCH 230 V FSP-457611.A3 457611	£19.83	£23.80
4 - CABLE USA FSP-450270.A0 450270	£44.22	£53.06
5 - CABLE GROMMET FSP-437024.A3 437024	£2.00	£2.40
6 - CABLE CLAMP FSP-439288.A99 439288	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A209 228663	£2.00	£2.40
8 - MOTOR HOUSING FSP-485889.A3 485889	£118.15	£141.78
9 - COVER FSP-715176.A3 715176	£16.48	£19.77
10 - ROCKER FSP-715039.A0 715039	£3.14	£3.77
11 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A55 228567	£2.00	£2.40
12 - SPRING DISC FSP-200762.A18 200762	£2.00	£2.40
13 - MOTOR COVER FSP-455589.A0 455589	£4.81	£5.77
14 - COIL SHELL FSP-612012.A3 612012	£15.41	£18.49
16 - CYLINDER PIN FSP-228651.A0 228651	£2.00	£2.40
17 - SUPPORT FSP-715030.A9 715030	£2.00	£2.40
18 - TORSION SPRING FSP-715033.A0 715033	£2.00	£2.40
20 - FLEXIBLE LEAD 120V FSP-451178.A0 451178	£3.32	£3.98
24 - BRUSH HOLDER (PAAR) 110-120V FSP-488916.A10 488916	£26.84	£32.21
25 - PLUG-IN BRACKET FSP-443331.A84 443331	£2.00	£2.40
26 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A151 219031	£2.00	£2.40
27 - RING FSP-715166.A6 715166	£4.06	£4.87
28 - WASHER 5.3 MM FSP-200577.A15 200577	£2.00	£2.40
29 - RAISED-HEAD SCREW FSP-476787.A23 476787	£2.00	£2.40
30 - HEXAGON NUT M6 FSP-228689.A48 228689	£2.00	£2.40
31 - CAM FSP-10019345.A1 10019345	£8.25	£9.90
32 - HEAD PIECE FSP-715055.A6 715055	£11.05	£13.26
33 - WASHER FSP-715037.A0 715037	£2.00	£2.40
34 - CLAMPING RING FSP-715054.A3 715054	£2.66	£3.19
35 - COVER FSP-715051.A6 715051	£2.82	£3.39
36 - GRIP FSP-715052.A3 715052	£10.92	£13.10
37 - PRESSURE SPRING FSP-715029.A0 715029	£2.00	£2.40
38 - NEOPRENE SEAL FSP-715022.A9 715022	£3.81	£4.57
39 - ADJUSTING TABLE FSP-487656.A5 487656	£40.21	£48.25
40 - CHEESE HEAD SCREW FSP-400040.A4 400040	£2.00	£2.40
41 - TOOTH RING FSP-213646.A4 213646	£2.00	£2.40
42 - PRESSURE SPRING FSP-715038.A9 715038	£2.00	£2.40
43 - CIRCLIP FSP-228656.A9 228656	£2.00	£2.40
44 - TORSION SPRING FSP-715020.A9 715020	£3.68	£4.42
45 - PUSHER FSP-715049.A5 715049	£2.00	£2.40
46 - HOOD FSP-715048.A4 715048	£4.69	£5.63
47 - CHEESE HEAD SCREW M6 X 16 FSP-200685.A24 200685	£2.00	£2.40
48 - WASHER FSP-402935.A87 402935	£2.00	£2.40
49 - CLAMPING FLANGE FSP-715036.A9 715036	£2.00	£2.40
50 - PLANING SHAFT FSP-715015.A9 715015	£37.00	£44.40
51 - SNAP RING FSP-202930.A12 202930	£2.00	£2.40
52 - NEEDLE BEARING FSP-788849.A4 788849	£29.92	£35.91
53 - CIRCLIP FSP-229597.A4 229597	£2.00	£2.40
54 - PRESSURE SPRING FSP-715027.A12 715027	£2.00	£2.40
55 - CAP FSP-715050.A4 715050	£2.00	£2.40
56 - BOLT FSP-715021.A0 715021	£4.24	£5.09
57 - BALL BEARING FSP-400583.A4 400583	£6.64	£7.97
58 - SNAP RING FSP-209608.A10 209608	£2.00	£2.40
59 - TOOTH DISC FSP-715034.A9 715034	£15.97	£19.16
60 - HEXAGON NUT M6 FSP-228689.A49 228689	£2.00	£2.40
61 - TOOTHED BELT FSP-714043.A4 714043	£12.98	£15.57
62 - RAISED-HEAD SCREW FSP-476787.A24 476787	£2.00	£2.40
63 - GEAR COVER FSP-455585.A9 455585	£6.09	£7.31
64 - HEXAGON NUT M6 FSP-772997.A9 772997	£2.00	£2.40
65 - TOOTH DISC FSP-715035.A0 715035	£4.92	£5.91
66 - BALL BEARING FSP-789575.A30 789575	£5.99	£7.19
67 - BEARING FLANGE FSP-487655.A4 487655	£98.03	£117.64
68 - SHIM RING FSP-428817.A1 428817	£2.00	£2.40
69 - FAN FSP-715024.A0 715024	£2.00	£2.40
70 - AIR GUIDE WASHER FSP-451175.A3 451175	£2.73	£3.28
71 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A36 228707	£2.00	£2.40
72 - BALL BEARING FSP-228559.A104 228559	£4.06	£4.87
73 - BEARING RING FSP-438613.A20 438613	£2.00	£2.40
74 - PLANING HEAD FSP-484520.A9 484520	£108.26	£129.91
75 - THREADED PIN M4 X 8 FSP-715102.A5 715102	£2.00	£2.40
76 - SQUARE NUT M6 FSP-228566.A95 228566	£2.00	£2.40
77 - O-RING FSP-200052.A58 200052	£2.00	£2.40
78 - REBATE STOP FSP-10019349.A0 10019349	£8.36	£10.03
79 - ROTARY KNOB FSP-436195.A43 436195	£2.00	£2.40
80 - ROTARY KNOB M6 X 28 FSP-436420.A8 436420	£2.00	£2.40
81 - SLIP PIECE FSP-715156.A7 715156	£9.43	£11.32
82 - O-RING FSP-200052.A57 200052	£2.00	£2.40
83 - STOP FSP-715056.A4 715056	£22.96	£27.55
84 - PIN KEY FSP-439803.A4 439803	£5.05	£6.06
85 - SCREWDRIVER FSP-202752.A19 202752	£2.00	£2.40

Attribute Name	Value
Brand	Festool
