Festool AP 85 E 220V / 489559 Spare Parts

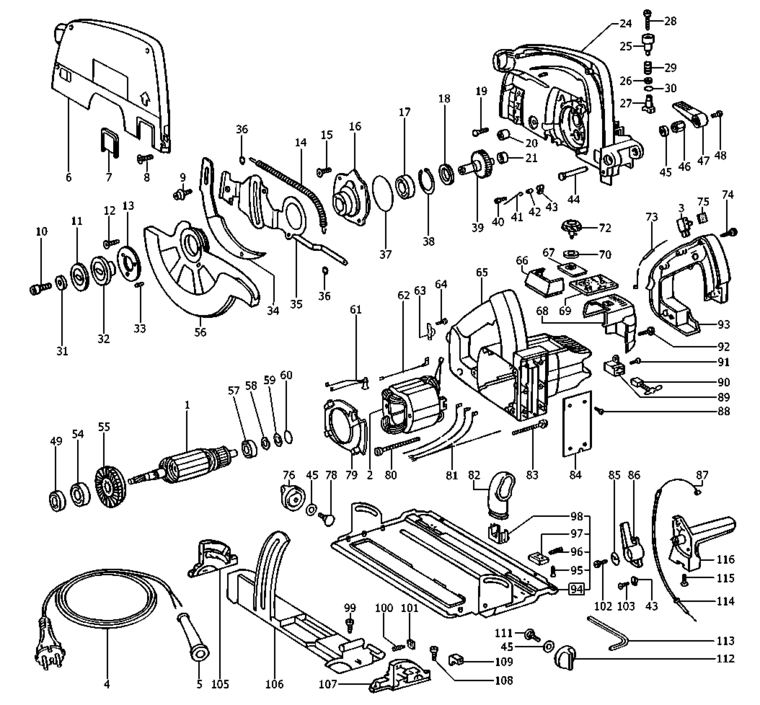

An exploded diagram and spare parts listing for the Festool AP 85 E 220V / 489559

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493791.A4 493791	£162.98	£195.58
2 - FIELD ASSEMBLY FSP-495626.A0 495626	£115.87	£139.04
3 - SWITCH 230 V FSP-457611.A6 457611	£19.83	£23.80
4 - POWER CABLE. AUS FSP-637685.A12 637685	£22.71	£27.25
5 - CABLE CONDUIT FSP-432436.A64 432436	£2.00	£2.40
6 - COVER FSP-638721.A15 638721	£41.54	£49.85
7 - LENS FSP-438943.A41 438943	£3.50	£4.20
8 - FLAT HEAD SCREW M4 X 16 FSP-228732.A0 228732	£2.00	£2.40
9 - CHEESE HEAD SCREW M6 X 9 FSP-440506.A20 440506	£8.48	£10.18
10 - CHEESE HEAD SCREW M8 X 25 FSP-200693.A8 200693	£2.00	£2.40
11 - COUNTER FLANGE FSP-441732.A10 441732	£15.78	£18.93
12 - FLAT HEAD SCREW M4 X 8 FSP-219043.A65 219043	£2.00	£2.40
13 - WASHER FSP-435057.A13 435057	£8.18	£9.81
14 - DRAW SPRING FSP-442275.A17 442275	£8.68	£10.42
15 - FLAT HEAD SCREW M4 X 12 FSP-219053.A28 219053	£2.00	£2.40
16 - BEARING COVER FSP-439907.A8 439907	£30.82	£36.98
17 - BALL BEARING FSP-789775.A20 789775	£9.65	£11.58
18 - SHAFT SEAL RING FSP-440009.A8 440009	£16.98	£20.37
19 - SCREW M8 X 25 FSP-400553.A13 400553	£2.00	£2.40
20 - BUFFER FSP-714434.A10 714434	£4.24	£5.09
21 - NEEDLE BUSHING FSP-410229.A19 410229	£9.24	£11.09
24 - NO LONGER AVAILABLE FSP-00000.A854 00000	-
25 - KNOB FSP-440441.A43 440441	£2.87	£3.44
26 - FELT WASHER FSP-440546.A2 440546	£2.00	£2.40
27 - BOLT FSP-440085.A4 440085	£16.28	£19.53
28 - RAISED-HEAD SCREW M4 X 35 FSP-228660.A9 228660	£2.00	£2.40
29 - PRESSURE SPRING FSP-440729.A2 440729	£2.00	£2.40
30 - O-RING FSP-400013.A7 400013	£2.00	£2.40
31 - WASHER 8.4 MM FSP-228527.A19 228527	£2.00	£2.40
32 - FLANGE FSP-441733.A14 441733	-
33 - THREADED PIN M4 X 6 FSP-224954.A14 224954	£2.00	£2.40
34 - SPACER WEDGE FSP-439887.A3 439887	£55.18	£66.22
35 - NO LONGER AVAILABLE FSP-00000.A855 00000	-
36 - TOOTH RING FSP-234883.A15 234883	£2.00	£2.40
37 - O-RING FSP-200973.A15 200973	£2.00	£2.40
38 - SNAP RING FSP-205454.A1 205454	£2.48	£2.97
39 - GEAR SHAFT FSP-445440.A12 445440	£58.01	£69.61
40 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A116 219075	£2.00	£2.40
41 - STRIPPER FSP-441218.A8 441218	£4.82	£5.78
42 - RING FSP-441219.A10 441219	£6.39	£7.67
43 - CLIP FSP-440685.A7 440685	£4.18	£5.02
44 - BOLT FSP-439903.A8 439903	£7.95	£9.54
45 - WASHER 8.4 MM FSP-219049.A7 219049	£2.00	£2.40
46 - NUT FSP-439911.A7 439911	£5.12	£6.15
47 - LEVER FSP-439922.A7 439922	£2.00	£2.40
48 - FLAT HEAD SCREW M5 X 10 FSP-219044.A1 219044	£2.00	£2.40
49 - BALL BEARING FSP-228559.A71 228559	£4.06	£4.87
54 - BALL BEARING FSP-400065.A31 400065	£8.56	£10.27
55 - FAN FSP-483808.A16 483808	£23.53	£28.24
56 - PENDULUM GUARD FSP-442276.A0 442276	£73.57	£88.28
57 - BALL BEARING FSP-789573.A22 789573	£7.76	£9.31
58 - SPRING DISC FSP-411613.A16 411613	£2.00	£2.40
59 - SHIM RING FSP-434608.A20 434608	£2.00	£2.40
60 - COVER FSP-441327.A7 441327	£2.00	£2.40
61 - COIL SHELL FSP-486780.A7 486780	£42.13	£50.56
62 - NO LONGER AVAILABLE FSP-00000.A857 00000	-
63 - CABLE CLAMP FSP-431899.A26 431899	£2.00	£2.40
64 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A122 228663	£2.00	£2.40
65 - MOTOR HOUSING FSP-637525.A7 637525	£41.96	£50.35
66 - COVER FSP-637528.A7 637528	£7.99	£9.59
67 - LENS FSP-438198.A12 438198	£2.00	£2.40
68 - CAP FSP-438172.A10 438172	£6.98	£8.38
69 - NO LONGER AVAILABLE FSP-00000.A856 00000	-
70 - SEALING RING FSP-438509.A35 438509	£2.00	£2.40
72 - ADJUSTING KNOB FSP-440991.A37 440991	£5.24	£6.29
74 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A84 228580	£2.00	£2.40
75 - PLATE FSP-410394.A0 410394	£2.00	£2.40
76 - ROTARY KNOB M8 FSP-483162.A2 483162	£5.30	£6.36
78 - ROUND-HEAD SCREW M8 X 35 FSP-215007.A3 215007	£2.00	£2.40
79 - AIR GUIDE WASHER FSP-438048.A1 438048	£2.82	£3.39
80 - RAISED-HEAD SCREW 5.0 X 70 MM FSP-228709.A3 228709	£2.00	£2.40
81 - NO LONGER AVAILABLE FSP-00000.A859 00000	-
82 - CHIP DEFLECTOR FSP-439696.A3 439696	£8.94	£10.73
83 - CHEESE HEAD SCREW FSP-203780.A36 203780	£2.00	£2.40
84 - COVER FSP-440010.A8 440010	£4.81	£5.77
85 - WASHER FSP-440675.A7 440675	£2.00	£2.40
86 - NO LONGER AVAILABLE FSP-00000.A858 00000	-
87 - CABLE FSP-440690.A8 440690	£5.64	£6.77
88 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A12 219071	£2.00	£2.40
89 - BRUSH HOLDER FSP-482182.A3 482182	£17.85	£21.42
90 - BRUSH (PAIR) 230V FSP-488920.A9 488920	£18.09	£21.71
91 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A24 228567	£2.00	£2.40
92 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A87 228580	£2.00	£2.40
93 - NO LONGER AVAILABLE FSP-00000.A848 00000	-
94 - TABLE FOR HAND-HELD CIRCULAR SAWS FSP-637735.A3 637735	£66.68	£80.01
100 - THREADED PIN M4 X 8 FSP-229949.A20 229949	£2.00	£2.40
101 - SQUARE NUT M4 FSP-773030.A11 773030	£2.00	£2.40
102 - RAISED-HEAD SCREW 5.0 X 18 MM FSP-228694.A20 228694	£2.00	£2.40
103 - RAISED-HEAD SCREW 4.0 X 10 MM FSP-228729.A18 228729	£2.00	£2.40
105 - NO LONGER AVAILABLE FSP-00000.A850 00000	-
106 - SUPPORT FSP-439892.A7 439892	£48.82	£58.58
107 - NO LONGER AVAILABLE FSP-00000.A849 00000	-
108 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A83 228733	£2.00	£2.40
109 - CLAMPING ELEMENT FSP-439899.A10 439899	£6.93	£8.32
111 - ROUND-HEAD SCREW M8 X 50 FSP-771800.A11 771800	£2.00	£2.40
112 - ROTARY KNOB M8 FSP-483162.A7 483162	£5.30	£6.36
113 - PIN KEY FSP-439274.A7 439274	£3.56	£4.27
114 - COVER FSP-440691.A9 440691	£15.72	£18.87
115 - FLAT HEAD SCREW 5.0 X 16 MM FSP-439494.A5 439494	£2.00	£2.40
116 - HANDLE FSP-440686.A8 440686	-
