Festool AT 65 E / 487249 Spare Parts

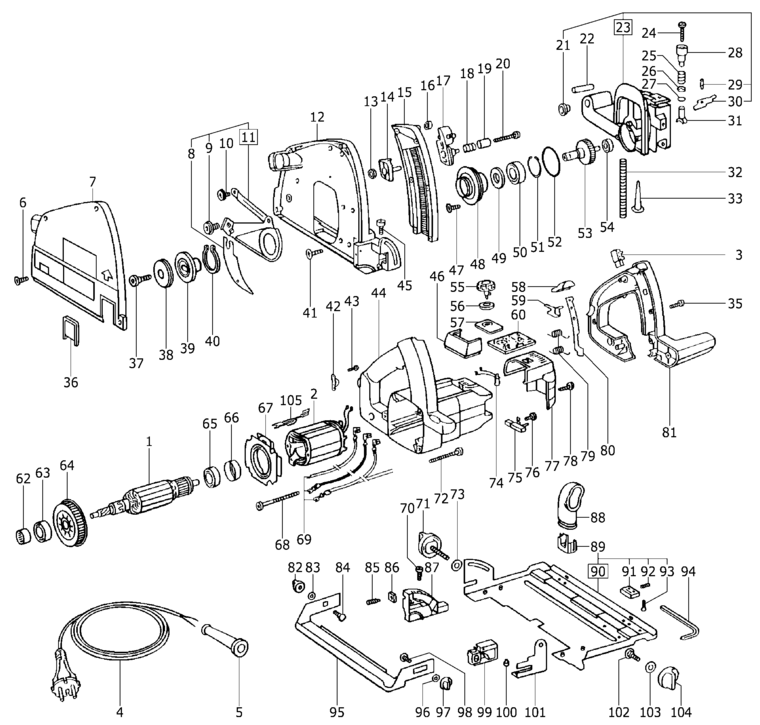

An exploded diagram and spare parts listing for the Festool AT 65 E / 487249

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE FSP-00000.A3436 00000	-
2 - NO LONGER AVAILABLE FSP-00000.A3437 00000	-
3 - SWITCH FSP-490651.A2 490651	£19.83	£23.80
5 - CABLE CONDUIT FSP-432436.A49 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 12 FSP-219053.A8 219053	£2.00	£2.40
7 - NO LONGER AVAILABLE FSP-00000.A3438 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A3439 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A3440 00000	-
10 - NO LONGER AVAILABLE FSP-00000.A3441 00000	-
11 - HOLDER FSP-485488.A3 485488	£36.81	£44.17
12 - NO LONGER AVAILABLE FSP-00000.A3434 00000	-
13 - HEXAGON NUT M5 FSP-200717.A31 200717	£2.00	£2.40
14 - NO LONGER AVAILABLE FSP-00000.A3442 00000	-
15 - NO LONGER AVAILABLE FSP-00000.A3443 00000	-
16 - NO LONGER AVAILABLE FSP-00000.A3444 00000	-
17 - DEPTH STOP FSP-445503.A5 445503	£2.00	£2.40
19 - KNOB FSP-439956.A10 439956	-
20 - RAISED-HEAD SCREW M5 X 40 FSP-203740.A10 203740	£2.00	£2.40
21 - FLANGE BUSHING FSP-439331.A5 439331	£2.00	£2.40
22 - CYLINDER PIN FSP-443877.A11 443877	£1.75	£2.10
23 - GEAR HOUSING FSP-485486.A5 485486	£68.36	£82.03
24 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A11 228591	£2.00	£2.40
25 - PRESSURE SPRING FSP-201134.A68 201134	£2.00	£2.40
26 - SUPPORTING RING FSP-444142.A25 444142	£2.00	£2.40
27 - O-RING FSP-444234.A25 444234	£2.00	£2.40
28 - KNOB FSP-440441.A46 440441	£2.87	£3.44
29 - SLEEVE 5 X 12 MM FSP-228692.A5 228692	£2.00	£2.40
31 - BOLT FSP-444114.A6 444114	£8.56	£10.27
36 - LENS FSP-438943.A44 438943	£3.50	£4.20
37 - CHEESE HEAD SCREW M8 X 15 FSP-443318.A7 443318	£5.05	£6.06
38 - COUNTER FLANGE FSP-486688.A3 486688	£50.70	£60.84
39 - FLANGE FSP-486687.A5 486687	-
40 - NO LONGER AVAILABLE FSP-00000.A57 00000	-
41 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A51 219102	£2.00	£2.40
43 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A110 228663	£2.00	£2.40
44 - MOTOR HOUSING FSP-446283.A5 446283	-
45 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A42 228617	£2.00	£2.40
46 - COVER FSP-438607.A17 438607	£3.68	£4.42
47 - FLAT HEAD SCREW M4 X 10 FSP-228736.A29 228736	£2.00	£2.40
49 - SPRING WASHER FSP-444235.A12 444235	£2.00	£2.40
50 - BALL BEARING FSP-789595.A36 789595	£8.79	£10.55
51 - NO LONGER AVAILABLE FSP-00000.A56 00000	-
52 - O-RING FSP-442413.A4 442413	£2.00	£2.40
53 - GEAR SHAFT FSP-441035.A15 441035	£51.77	£62.12
54 - BALL BEARING FSP-228715.A33 228715	£4.72	£5.66
55 - ADJUSTING KNOB FSP-440991.A40 440991	£5.24	£6.29
56 - SEALING RING FSP-438509.A29 438509	£2.00	£2.40
57 - LENS FSP-438198.A22 438198	£2.00	£2.40
58 - KNOB FSP-434341.A6 434341	£2.82	£3.39
62 - NEEDLE SLEEVE FSP-469074.A0 469074	£3.88	£4.65
63 - BALL BEARING FSP-228798.A47 228798	£5.38	£6.45
64 - FAN FSP-445205.A17 445205	£9.73	£11.68
65 - BALL BEARING FSP-228559.A52 228559	£4.06	£4.87
66 - BEARING RING FSP-438613.A21 438613	£2.00	£2.40
67 - AIR GUIDE WASHER FSP-457657.A6 457657	£2.00	£2.40
68 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A52 442415	£2.00	£2.40
69 - NO LONGER AVAILABLE FSP-00000.A58 00000	-
70 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A97 228733	£2.00	£2.40
71 - ROTARY KNOB FSP-482098.A5 482098	£2.00	£2.40
72 - CHEESE HEAD SCREW FSP-203780.A32 203780	£2.00	£2.40
73 - WASHER 6.4 MM FSP-228546.A55 228546	£2.00	£2.40
74 - COIL SHELL FSP-486744.A28 486744	£16.95	£20.34
75 - BRUSH HOLDER (PAAR) 110-120V FSP-488916.A13 488916	£26.84	£32.21
76 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A103 219047	£2.00	£2.40
77 - CAP FSP-439824.A25 439824	£8.68	£10.42
78 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A108 228580	£2.00	£2.40
79 - TORSION SPRING FSP-439973.A6 439973	£2.00	£2.40
80 - LEVER FSP-439890.A10 439890	£3.45	£4.14
81 - COVER FSP-440102.A4 440102	£24.26	£29.11
85 - THREADED PIN M4 X 12 FSP-203387.A19 203387	£2.00	£2.40
86 - SQUARE NUT M4 FSP-773030.A8 773030	£2.00	£2.40
87 - SWIVELING SEGMENT FSP-442067.A10 442067	£5.31	£6.37
88 - CHIP DEFLECTOR FSP-439696.A0 439696	£8.94	£10.73
89 - ADJUSTING PIECE FSP-442809.A50 442809	£2.00	£2.40
90 - PLATE FSP-486636.A4 486636	£79.82	£95.79
91 - ADJUSTING PIECE FSP-443971.A20 443971	£2.00	£2.40
92 - THREADED PIN M6 X 12 FSP-442597.A21 442597	£2.00	£2.40
93 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A43 400014	£2.00	£2.40
94 - PIN KEY FSP-439274.A16 439274	£3.56	£4.27
95 - EXTENSION TABLE FSP-441841.A10 441841	£18.84	£22.61
96 - WASHER FSP-402935.A58 402935	£2.00	£2.40
97 - ROTARY KNOB M6 FSP-440712.A36 440712	£2.00	£2.40
98 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A36 228592	£2.00	£2.40
99 - SWIVELING SEGMENT FSP-442066.A5 442066	£5.68	£6.82
100 - FLANGE BUSHING FSP-442068.A5 442068	-
101 - FLAP FSP-442284.A15 442284	£7.87	£9.44
102 - ROUND-HEAD SCREW FSP-444362.A0 444362	£2.00	£2.40
104 - ROTARY KNOB FSP-440713.A24 440713	£2.64	£3.17
105 - PLUG-IN BRACKET FSP-443331.A33 443331	£2.00	£2.40

Attribute Name	Value
Brand	Festool
