Festool PS 2 E / 485717 Spare Parts

Festool PS 2 E / 485717 Spare Parts
Home Details Reviews Delivery

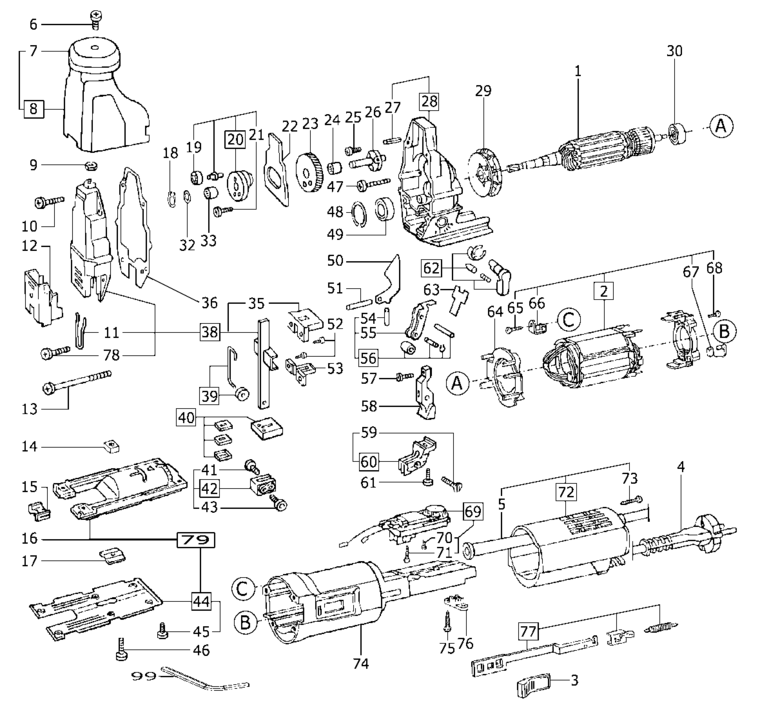

An exploded diagram and spare parts listing for the Festool PS 2 E / 485717
Ex VAT Inc VAT
1 - ARMATURE WHITE 230V FSP-486618.A1 486618 £156.32 £187.59
1 - ARMATURE GREEN 230V FSP-487759.A0 487759 £110.12 £132.14
2 - FELD GREEN 230V FSP-487840.A4 487840 £56.02 £67.23
2 - NO LONGER AVAILABLE FSP-00000.A5854 00000 -
3 - SLIDE SWITCH FSP-446002.A28 446002 £2.00 £2.40
4 - MAINS CABLE GB 240V FSP-441749.A73 441749 £25.08 £30.09
4 - CABLE EU FSP-457410.A14 457410 £25.08 £30.09
5 - CABLE GROMMET FSP-445738.A31 445738 £2.00 £2.40
6 - RAISED-HEAD SCREW M4 X 8 FSP-203806.A16 203806 £2.00 £2.40
7 - CAP FSP-442506.A2 442506 £3.19 £3.83
8 - CAP FSP-487849.A0 487849 £36.05 £43.26
9 - HEXAGON NUT M4 FSP-200715.A87 200715 £2.00 £2.40
10 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A28 228509 £2.00 £2.40
11 - BRACKET FSP-449929.A7 449929 £2.00 £2.40
12 - CHIP GUARD FSP-448596.A5 448596 £17.60 £21.12
13 - RAISED-HEAD SCREW 3.5 X 50 MM FSP-400005.A8 400005 £2.00 £2.40
14 - SQUARE NUT M5 FSP-228520.A13 228520 £2.00 £2.40
15 - SPLINTER GUARD FSP-483372.A6 483372 -
16 - BASE FSP-445421.A2 445421 £18.59 £22.31
17 - LUG SUPPORT FSP-442507.A5 442507 £2.00 £2.40
18 - SNAP RING FSP-200617.A13 200617 £2.00 £2.40
19 - BALL BEARING FSP-400004.A2 400004 £11.01 £13.21
20 - CAM FSP-487842.A7 487842 £60.35 £72.42
21 - CHEESE HEAD SCREW M4 X 16 FSP-400096.A5 400096 £2.00 £2.40
22 - WEIGHT FSP-442494.A2 442494 £18.22 £21.87
23 - GEAR FSP-444805.A5 444805 £42.10 £50.52
24 - NEEDLE SLEEVE FSP-400008.A13 400008 £3.58 £4.29
25 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A9 228582 £2.00 £2.40
26 - FLANGE FSP-442496.A5 442496 £24.21 £29.05
27 - NO LONGER AVAILABLE FSP-00000.A5853 00000 -
28 - GEAR HOUSING FSP-487851.A7 487851 £60.56 £72.67
29 - FAN FSP-485108.A29 485108 £4.37 £5.24
30 - BALL BEARING FSP-228672.A40 228672 £4.41 £5.29
32 - SUPPORTING RING FSP-400009.A13 400009 £2.00 £2.40
33 - NEEDLE SLEEVE FSP-400008.A14 400008 £3.58 £4.29
35 - BEARING FSP-453072.A5 453072 £11.55 £13.86
36 - GASKET FSP-442557.A2 442557 £2.00 £2.40
38 - GEAR COVER FSP-489230.A3 489230 £73.91 £88.69
39 - ROLLER FSP-487844.A0 487844 £20.72 £24.86
40 - NO LONGER AVAILABLE FSP-00000.A5851 00000 -
41 - CHEESE HEAD SCREW M5 X 12 FSP-400095.A4 400095 £2.00 £2.40
42 - CLAMP SHOE FSP-487845.A7 487845 £40.52 £48.63
43 - CHEESE HEAD SCREW M5 X 8 FSP-204482.A4 204482 £2.00 £2.40
44 - SOLE FSP-487841.A0 487841 £17.35 £20.82
45 - CHEESE HEAD SCREW M4 X 7 FSP-400062.A2 400062 £2.00 £2.40
46 - CHEESE HEAD SCREW M5 X 16 FSP-228643.A9 228643 £2.00 £2.40
47 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A78 228663 £2.00 £2.40
48 - SNAP RING FSP-204471.A42 204471 £2.00 £2.40
49 - BALL BEARING FSP-228559.A30 228559 £4.06 £4.87
50 - PENDULUM DRIVE FSP-442493.A5 442493 £3.32 £3.98
51 - CYLINDER PIN FSP-203748.A0 203748 £2.00 £2.40
52 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A25 228509 £2.00 £2.40
53 - BEARING FSP-448475.A7 448475 £13.86 £16.63
54 - CYLINDER PIN FSP-200757.A5 200757 £1.75 £2.10
55 - HOLDER FSP-442500.A2 442500 £9.32 £11.19
56 - NO LONGER AVAILABLE FSP-00000.A5852 00000 -
57 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A26 228509 £2.00 £2.40
58 - HOLDER FSP-442501.A5 442501 £4.92 £5.91
59 - CHEESE-HEAD COUNTERSUNK SCREW M3 X 8 FSP-400077.A0 400077 £2.00 £2.40
60 - HARD METAL HOLDER FSP-487847.A0 487847 £44.81 £53.77
61 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A27 228509 £2.00 £2.40
62 - PENDULUM CONTROL LEVER FSP-487848.A7 487848 £35.31 £42.37
63 - NO LONGER AVAILABLE FSP-00000.A5850 00000 -
64 - AIR GUIDE WASHER FSP-442901.A6 442901 £4.18 £5.02
65 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-228717.A13 228717 £2.00 £2.40
66 - CLAMP LEVER FSP-439918.A9 439918 £2.00 £2.40
67 - BRUSH (PAIR) 230V FSP-487530.A6 487530 £28.61 £34.33
67 - BRUSH (PAAR) GRN 230V FSP-487878.A1 487878 £14.26 £17.11
68 - RAISED-HEAD SCREW 1.8 X 10 MM FSP-447573.A0 447573 £2.00 £2.40
69 - CONTROL ELECTRONICS 230V FSP-487752.A3 487752 £54.32 £65.19
70 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A39 228718 £2.00 £2.40
71 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A208 228663 £2.00 £2.40
72 - CAP FSP-487674.A10 487674 £23.70 £28.44
73 - RAISED-HEAD SCREW 3.5 X 20 MM FSP-445743.A3 445743 £2.00 £2.40
74 - MOTOR HOUSING FSP-487146.A9 487146 £16.72 £20.06
75 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A207 228663 £2.00 £2.40
76 - CABLE CLAMP FSP-439662.A13 439662 £2.00 £2.40
77 - SWITCH LINKAGE FSP-487794.A17 487794 £14.72 £17.67
78 - RAISED-HEAD SCREW M4 X 4 FSP-400440.A2 400440 £2.00 £2.40
79 - BASE FSP-487085.A0 487085 £40.29 £48.35
99 - SCREWDRIVER SW 4 FSP-202751.A9 202751 £2.00 £2.40
