Festool PS 2 E / 488951 Spare Parts

Home Details Reviews Delivery

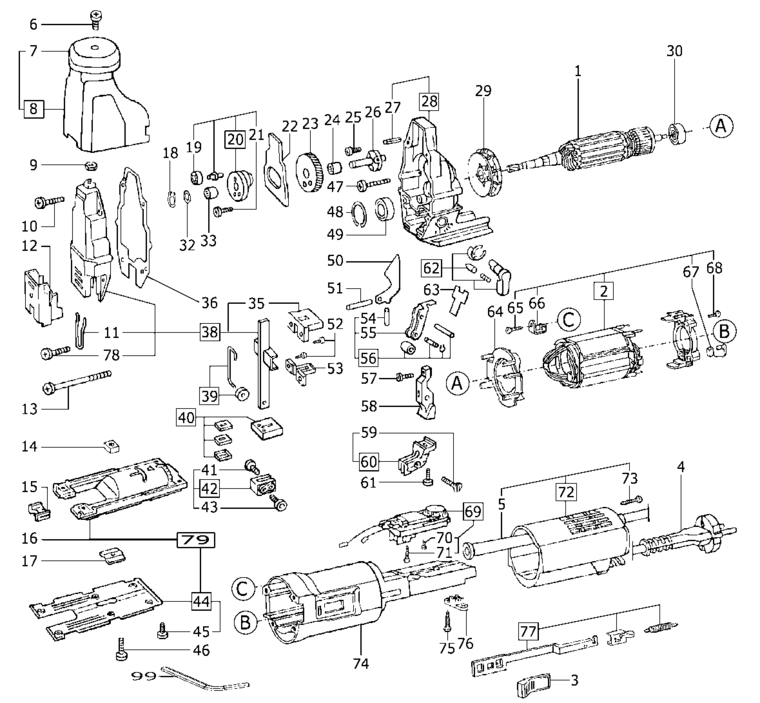

An exploded diagram and spare parts listing for the Festool PS 2 E / 488951

	Ex VAT	Inc VAT
1 - ARMATURE WHITE 230V FSP-486618.A0 486618	£156.32	£187.59
1 - ARMATURE GREEN 230V FSP-487759.A3 487759	£110.12	£132.14
2 - FELD GREEN 230V FSP-487840.A0 487840	£56.02	£67.23
2 - NO LONGER AVAILABLE FSP-00000.A2749 00000	-
3 - SLIDE SWITCH FSP-446002.A13 446002	£2.00	£2.40
4 - MAINS CABLE GB 240V FSP-441749.A27 441749	£25.08	£30.09
4 - CABLE EU FSP-457410.A50 457410	£25.08	£30.09
5 - CABLE GROMMET FSP-445738.A22 445738	£2.00	£2.40
6 - RAISED-HEAD SCREW M4 X 8 FSP-203806.A21 203806	£2.00	£2.40
7 - CAP FSP-442506.A7 442506	£3.19	£3.83
8 - CAP FSP-487849.A7 487849	£36.05	£43.26
9 - HEXAGON NUT M4 FSP-200715.A16 200715	£2.00	£2.40
10 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A47 228509	£2.00	£2.40
11 - BRACKET FSP-449929.A1 449929	£2.00	£2.40
12 - CHIP GUARD FSP-448596.A3 448596	£17.60	£21.12
13 - RAISED-HEAD SCREW 3.5 X 50 MM FSP-400005.A3 400005	£2.00	£2.40
14 - SQUARE NUT M5 FSP-228520.A4 228520	£2.00	£2.40
15 - SPLINTER GUARD FSP-483372.A1 483372	-
16 - BASE FSP-445421.A4 445421	£18.59	£22.31
17 - LUG SUPPORT FSP-442507.A0 442507	£2.00	£2.40
18 - SNAP RING FSP-200617.A35 200617	£2.00	£2.40
19 - BALL BEARING FSP-400004.A4 400004	£11.01	£13.21
20 - CAM FSP-487842.A4 487842	£60.35	£72.42
21 - CHEESE HEAD SCREW M4 X 16 FSP-400096.A3 400096	£2.00	£2.40
22 - WEIGHT FSP-442494.A7 442494	£18.22	£21.87
23 - GEAR FSP-444805.A3 444805	£42.10	£50.52
24 - NEEDLE SLEEVE FSP-400008.A20 400008	£3.58	£4.29
25 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A36 228582	£2.00	£2.40
26 - FLANGE FSP-442496.A0 442496	£24.21	£29.05
27 - NO LONGER AVAILABLE FSP-00000.A2751 00000	-
28 - GEAR HOUSING FSP-487851.A0 487851	£60.56	£72.67
29 - FAN FSP-485108.A14 485108	£4.37	£5.24
30 - BALL BEARING FSP-228672.A114 228672	£4.41	£5.29
32 - SUPPORTING RING FSP-400009.A3 400009	£2.00	£2.40
33 - NEEDLE SLEEVE FSP-400008.A21 400008	£3.58	£4.29
35 - BEARING FSP-453072.A1 453072	£11.55	£13.86
36 - GASKET FSP-442557.A7 442557	£2.00	£2.40
38 - GEAR COVER FSP-489230.A0 489230	£73.91	£88.69
39 - ROLLER FSP-487844.A3 487844	£20.72	£24.86
40 - NO LONGER AVAILABLE FSP-00000.A2750 00000	-
41 - CHEESE HEAD SCREW M5 X 12 FSP-400095.A9 400095	£2.00	£2.40
42 - CLAMP SHOE FSP-487845.A2 487845	£40.52	£48.63
43 - CHEESE HEAD SCREW M5 X 8 FSP-204482.A10 204482	£2.00	£2.40
44 - SOLE FSP-487841.A6 487841	£17.35	£20.82
45 - CHEESE HEAD SCREW M4 X 7 FSP-400062.A17 400062	£2.00	£2.40
46 - CHEESE HEAD SCREW M5 X 16 FSP-228643.A4 228643	£2.00	£2.40
47 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A204 228663	£2.00	£2.40
48 - SNAP RING FSP-204471.A25 204471	£2.00	£2.40
49 - BALL BEARING FSP-228559.A96 228559	£4.06	£4.87
50 - PENDULUM DRIVE FSP-442493.A3 442493	£3.32	£3.98
51 - CYLINDER PIN FSP-203748.A6 203748	£2.00	£2.40
52 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A48 228509	£2.00	£2.40
53 - BEARING FSP-448475.A3 448475	£13.86	£16.63
54 - CYLINDER PIN FSP-200757.A1 200757	£1.75	£2.10
55 - HOLDER FSP-442500.A4 442500	£9.32	£11.19
56 - NO LONGER AVAILABLE FSP-00000.A2870 00000	-
57 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A49 228509	£2.00	£2.40
58 - HOLDER FSP-442501.A3 442501	£4.92	£5.91
59 - CHEESE-HEAD COUNTERSUNK SCREW M3 X 8 FSP-400077.A3 400077	£2.00	£2.40
60 - HARD METAL HOLDER FSP-487847.A5 487847	£44.81	£53.77
61 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A50 228509	£2.00	£2.40
62 - PENDULUM CONTROL LEVER FSP-487848.A2 487848	£35.31	£42.37
63 - NO LONGER AVAILABLE FSP-00000.A2869 00000	-
64 - AIR GUIDE WASHER FSP-442901.A30 442901	£4.18	£5.02
65 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-228717.A3 228717	£2.00	£2.40
66 - CLAMP LEVER FSP-439918.A0 439918	£2.00	£2.40
67 - BRUSH (PAIR) 230V FSP-487530.A0 487530	£28.61	£34.33
67 - BRUSH (PAAR) GRN 230V FSP-487878.A0 487878	£14.26	£17.11
68 - RAISED-HEAD SCREW 1.8 X 10 MM FSP-447573.A4 447573	£2.00	£2.40
69 - CONTROL ELECTRONICS 230V FSP-487752.A2 487752	£54.32	£65.19
70 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A36 228718	£2.00	£2.40
71 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A205 228663	£2.00	£2.40
72 - CAP FSP-487674.A11 487674	£23.70	£28.44
73 - RAISED-HEAD SCREW 3.5 X 20 MM FSP-445743.A5 445743	£2.00	£2.40
74 - MOTOR HOUSING FSP-487146.A5 487146	£16.72	£20.06
75 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A206 228663	£2.00	£2.40
76 - CABLE CLAMP FSP-439662.A12 439662	£2.00	£2.40
77 - SWITCH LINKAGE FSP-487794.A18 487794	£14.72	£17.67
78 - RAISED-HEAD SCREW M4 X 4 FSP-400440.A6 400440	£2.00	£2.40
79 - BASE FSP-487085.A1 487085	£40.29	£48.35
99 - SCREWDRIVER SW 4 FSP-202751.A12 202751	£2.00	£2.40
