Festool PSB 400 EBQ 230V / 496057 Spare Parts

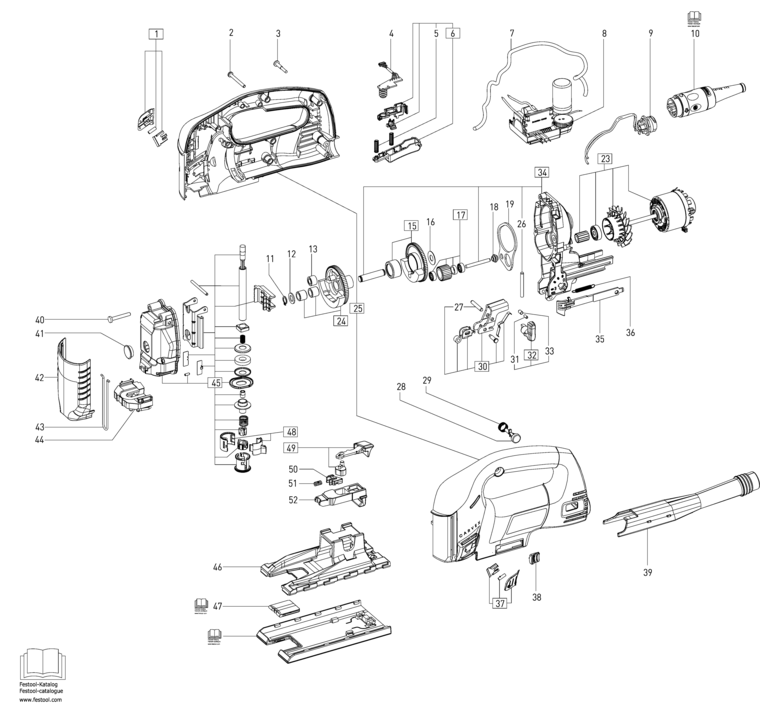

An exploded diagram and spare parts listing for the Festool PSB 400 EBQ 230V / 496057

	Ex VAT	Inc VAT
1 - SWITCH FSP-499756.A24 499756	£20.72	£24.86
2 - RAISED-HEAD SCREW FSP-477002.A2 477002	£2.00	£2.40
3 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A52 400174	£2.00	£2.40
4 - ELECTRONIC FSP-497464.A1 497464	£45.77	£54.92
5 - PRESSURE SPRING FSP-478022.A1 478022	£2.00	£2.40
6 - SWITCH FSP-497604.A1 497604	£17.72	£21.27
7 - TRAILING CABLE FSP-477288.A1 477288	£25.58	£30.69
8 - ELECTRONIC 230V FSP-499402.A4 499402	£106.58	£127.89
9 - SOCKET HOUSING FSP-717609.A2 717609	£11.61	£13.93
10 - PLUG IT-CABLE FSP-203914.A20 203914	-
11 - SNAP RING FSP-200617.A19 200617	£2.00	£2.40
12 - SUPPORTING RING FSP-400009.A34 400009	£2.00	£2.40
13 - BEARING FSP-704311.A22 704311	£15.96	£19.15
15 - BALANCING DEVICE FSP-497571.A0 497571	£37.42	£44.91
16 - WASHER FSP-457043.A19 457043	£2.00	£2.40
17 - INTERMEDIATE WHEEL FSP-497607.A13 497607	£31.57	£37.88
18 - SLEEVE FSP-478209.A17 478209	£4.81	£5.77
19 - PENDULUM DRIVE FSP-475474.A3 475474	£3.68	£4.42
23 - MOTOR FSP-497579.A2 497579	£146.24	£175.49
24 - DRIVE GEAR/WHEEL FSP-497573.A8 497573	£39.78	£47.74
25 - HOUSING FSP-499575.A1 499575	£39.45	£47.34
26 - CYLINDER PIN FSP-475546.A9 475546	£2.00	£2.40
27 - PIN FSP-400670.A5 400670	£2.00	£2.40
28 - LOCKING BUTTON FSP-499713.A9 499713	£20.59	£24.71
29 - LOCKING BUTTON FSP-499713.A10 499713	£20.59	£24.71
30 - ROLLER SUPPORT FSP-497574.A1 497574	£43.31	£51.97
31 - PRESSURE SPRING FSP-444127.A6 444127	£2.00	£2.40
32 - PENDULUM CONTROL LEVER FSP-497575.A7 497575	£25.96	£31.15
33 - PRESSURE PIECE FSP-444126.A5 444126	£2.00	£2.40
34 - GEAR HOUSING FSP-498788.A4 498788	£76.04	£91.25
35 - SLIDE FSP-499658.A19 499658	£18.84	£22.61
36 - SLIDE FSP-499658.A20 499658	£18.84	£22.61
37 - SWITCH FSP-499756.A13 499756	£20.72	£24.86
38 - SLIDE SWITCH FSP-475607.A4 475607	£2.00	£2.40
39 - EXTRACTOR CONNECTOR FSP-10027687.A17 10027687	£3.93	£4.72
40 - RAISED-HEAD SCREW FSP-401047.A4 401047	£2.00	£2.40
41 - COVER CAP FSP-475688.A4 475688	£2.00	£2.40
42 - CHIP GUARD FSP-477081.A0 477081	£3.88	£4.65
43 - BRACKET FSP-477100.A5 477100	£2.00	£2.40
44 - ELECTRONIC FSP-497461.A7 497461	£42.78	£51.34
45 - NO LONGER AVAILABLE FSP-00000.A5848 00000	-
46 - BASE FSP-10029367.A12 10029367	£16.60	£19.92
47 - SPLINTER GUARD FSP-490120.A9 490120	£6.18	£7.41
48 - CLAMPING SLEEVE FSP-497578.A14 497578	£15.60	£18.72
49 - HANDLE FSP-497572.A0 497572	£28.95	£34.74
50 - WEDGE FSP-477371.A0 477371	£2.00	£2.40
51 - PRESSURE SPRING FSP-700035.A5 700035	£2.00	£2.40
52 - DOG FSP-475588.A1 475588	£7.31	£8.77
