Festool KS 88 E GB 110V / 10037852 Spare Parts

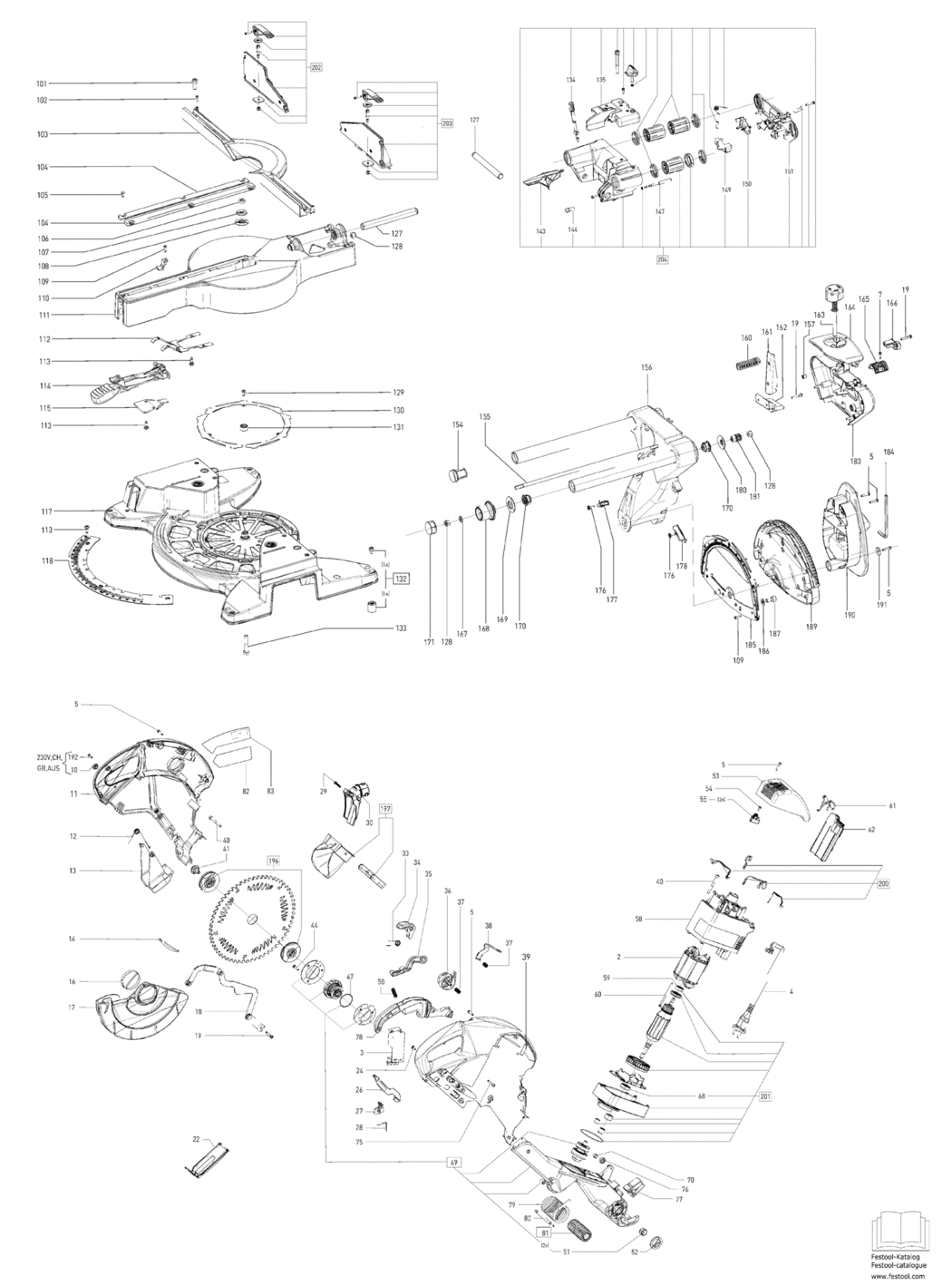

An exploded diagram and spare parts listing for the Festool KS 88 E GB 110V / 10037852

	Ex VAT	Inc VAT
2 - FIELD ASSEMBLY 110V FSP-496995.A1 496995	£78.99	£94.79
3 - SWITCH MODUL FSP-496861.A0 496861	£48.34	£58.01
4 - MAINS CABLE GB 110V FSP-471529.A1 471529	£25.08	£30.09
5 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A169 228567	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A39 400468	£2.00	£2.40
10 - COVER FSP-471820.A10 471820	£2.00	£2.40
11 - PISTOL STOCK FSP-10801592.A22 10801592	£24.83	£29.80
12 - LEG SPRING FSP-470772.A13 470772	£2.64	£3.17
13 - DUST EXTRACTION ATTACHMENT FSP-10037680.A6 10037680	£6.91	£8.29
14 - DRAW SPRING FSP-709050.A17 709050	£2.38	£2.86
16 - BAND FSP-473432.A9 473432	£2.00	£2.40
17 - PROTECTIVE COVER FSP-10037697.A17 10037697	£17.18	£20.61
18 - SWIVEL LEVER FSP-497504.A6 497504	£22.83	£27.40
19 - RAISED-HEAD SCREW M4 X 25 FSP-400928.A24 400928	£2.00	£2.40
22 - LENS FSP-470717.A13 470717	£2.86	£3.43
24 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A34 228738	£2.00	£2.40
26 - BRACKET FSP-470647.A0 470647	£2.66	£3.19
27 - CATCH FSP-473479.A23 473479	£2.00	£2.40
28 - PLATE SPRING FSP-473480.A0 473480	£2.00	£2.40
29 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A54 400695	£2.00	£2.40
30 - EXTRACTOR CONNECTOR FSP-203889.A7 203889	£12.98	£15.57
33 - TORSION SPRING FSP-470762.A13 470762	£2.00	£2.40
34 - LOCK-OUT MECHANISM FSP-470646.A23 470646	£2.00	£2.40
35 - LEVER FSP-471448.A10 471448	£2.00	£2.40
36 - ROTARY KNOB FSP-470648.A23 470648	£2.00	£2.40
37 - PRESSURE SPRING FSP-470978.A23 470978	£2.00	£2.40
38 - DETENT LEVER FSP-470767.A10 470767	£8.42	£10.11
39 - PISTOL STOCK FSP-10801593.A10 10801593	£20.89	£25.07
40 - CHEESE HEAD SCREW M5 X 50 FSP-219057.A25 219057	£2.00	£2.40
41 - SPECIAL SCREW FSP-10015550.A5 10015550	£13.60	£16.32
44 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A72 228569	£2.00	£2.40
47 - O-RING FSP-470760.A10 470760	£2.00	£2.40
49 - GEAR FSP-205177.A5 205177	£164.42	£197.30
50 - PRESSURE SPRING FSP-474284.A13 474284	£2.00	£2.40
51 - BUSH FSP-400994.A29 400994	£2.00	£2.40
52 - CLAMP FSP-475620.A17 475620	£2.00	£2.40
53 - CAP FSP-470652.A1 470652	£7.95	£9.54
54 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A52 219047	£2.00	£2.40
55 - BRUSH HOLDER WITH BRUSHES (PAIR) FSP-494785.A4 494785	£25.96	£31.15
58 - MOTOR HOUSING FSP-470650.A22 470650	£18.95	£22.74
59 - BALL BEARING FSP-401525.A49 401525	£4.72	£5.66
60 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A16 442415	£2.00	£2.40
61 - PUSHER FSP-478895.A8 478895	£2.00	£2.40
62 - ELECTRONIC FSP-494267.A1 494267	£117.06	£140.47
65 - SOLENOID RING FSP-488965.A26 488965	£3.38	£4.05
68 - BALL BEARING FSP-789575.A36 789575	£5.99	£7.19
70 - BEARING SLEEVE FSP-478302.A4 478302	£2.88	£3.46
75 - RAISED-HEAD SCREW 3.5 X 12 MM FSP-454296.A8 454296	£2.00	£2.40
76 - ROLLER FSP-10018118.A15 10018118	£5.00	£6.00
77 - BUFFER FSP-470776.A8 470776	£2.00	£2.40
78 - PUSHER FSP-470645.A0 470645	£5.17	£6.20
79 - LEG SPRING FSP-10009631.A15 10009631	-
80 - BOLT FSP-471428.A13 471428	£3.45	£4.14
81 - DISTANCE BUSH FSP-200001.A11 200001	£23.21	£27.85
82 - LABEL FSP-478902.A1 478902	£3.00	£3.60
83 - LABEL FSP-478894.A1 478894	£5.09	£6.11
101 - CHEESE HEAD SCREW M8 X 20 FSP-774347.A4 774347	£2.00	£2.40
102 - CHEESE HEAD SCREW M3 X 10 FSP-400934.A12 400934	£2.00	£2.40
103 - STOP FSP-10030558.A22 10030558	£60.04	£72.05
104 - TABLE TOP INSERT FSP-470657.A23 470657	£4.75	£5.70
105 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A37 228733	£2.00	£2.40
106 - HEXAGON NUT M8 FSP-200719.A108 200719	£2.00	£2.40
108 - SPRING WASHER FSP-479669.A10 479669	£2.00	£2.40
109 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A77 228584	£2.00	£2.40
110 - INDICATOR FSP-470660.A0 470660	£2.00	£2.40
111 - BASE FSP-494968.A15 494968	£189.85	£227.82
112 - CATCH FSP-470664.A13 470664	£15.97	£19.16
113 - SCREW FSP-400709.A24 400709	£2.00	£2.40
114 - LEVER FSP-10607946.A15 10607946	£17.89	£21.47
115 - SPRING PLATE FSP-470665.A10 470665	£8.93	£10.72
117 - FRAME FSP-10027727.A1 10027727	£181.97	£218.36
118 - SCALE FSP-470663.A10 470663	£36.32	£43.59
127 - BOLT FSP-10016971.A1 10016971	£14.22	£17.07
128 - HEXAGON NUT M8 FSP-200735.A23 200735	£2.00	£2.40
129 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A29 400691	£2.00	£2.40
130 - GLIDE PLATE FSP-470662.A13 470662	£2.66	£3.19
131 - BUSH FSP-473215.A5 473215	£2.00	£2.40
132 - BUFFER (4 PCS.) FSP-494780.A18 494780	£38.18	£45.81
133 - HEXAGON SCREW M8 X 45 FSP-400937.A1 400937	£2.00	£2.40
134 - DEPTH STOP FSP-495266.A14 495266	£16.48	£19.78
135 - CLAMPING PLATE FSP-470640.A22 470640	£3.93	£4.72
143 - END STOP FSP-473656.A6 473656	£3.45	£4.14
144 - KNOB FSP-470639.A1 470639	£2.00	£2.40
147 - PIN FSP-470514.A14 470514	£6.39	£7.67
149 - DEPTH STOP FSP-470509.A9 470509	£6.68	£8.01
151 - COVER FSP-470630.A6 470630	£6.64	£7.97
154 - PLUG FSP-501549.A9 501549	£2.00	£2.40
155 - THREADED ROD FSP-470561.A8 470561	£13.42	£16.11
156 - SWIVEL ARM FSP-495778.A0 495778	£164.72	£197.67
157 - PRESSURE CLAMPING ELEMENT FSP-400287.A24 400287	£4.89	£5.87
160 - PRESSURE SPRING FSP-471024.A18 471024	£2.00	£2.40
161 - BRAKE LEVER FSP-470508.A13 470508	£5.43	£6.52
162 - BEARING SHEET FSP-470510.A13 470510	£4.37	£5.24
163 - ROTARY KNOB FSP-494172.A6 494172	£15.67	£18.80
164 - CLAMPING LEVER FSP-470634.A22 470634	£7.94	£9.53
165 - CABLE CLAMP FSP-470641.A1 470641	£2.00	£2.40
166 - HOLDER FSP-470636.A22 470636	£3.53	£4.24
167 - WASHER FSP-471193.A5 471193	£2.00	£2.40
168 - HOLDER FSP-478905.A5 478905	£2.00	£2.40
169 - SPRING WASHER FSP-469785.A9 469785	£2.00	£2.40
170 - BUSH FSP-470560.A14 470560	£2.00	£2.40
171 - CAP FSP-479473.A3 479473	£2.90	£3.48
176 - ROUND-HEAD SCREW 3.5 X 14 MM FSP-400981.A22 400981	£2.00	£2.40
177 - INDICATOR FSP-470627.A6 470627	£2.00	£2.40
178 - INDICATOR FSP-470628.A17 470628	£2.00	£2.40
180 - SPRING WASHER FSP-761692.A23 761692	£2.00	£2.40
181 - PINION FSP-470885.A14 470885	£6.39	£7.67
183 - COVER FSP-470635.A1 470635	£11.01	£13.21
184 - PIN KEY FSP-439274.A41 439274	£3.56	£4.27
185 - BRAKE DISK FSP-495758.A7 495758	£47.05	£56.46
186 - WASHER 8.4 MM FSP-228601.A29 228601	£2.00	£2.40
187 - CHEESE HEAD SCREW M8 X 16 FSP-200201.A14 200201	£2.00	£2.40
189 - BRACKET FSP-494170.A1 494170	£25.45	£30.54
190 - CABLE HOLDER FSP-470642.A22 470642	£22.02	£26.42
191 - WASHER FSP-400929.A1 400929	£2.00	£2.40
196 - FLANGE FSP-200210.A13 200210	£72.49	£86.99
197 - APRON FSP-200215.A4 200215	£24.21	£29.05
200 - FLEXIBLE LEAD FSP-200203.A9 200203	£38.82	£46.58
201 - END SHIELD FSP-202928.A1 202928	£156.29	£187.55
202 - STOP FSP-204073.A15 204073	£59.67	£71.60
203 - STOP FSP-204074.A12 204074	£53.04	£63.65
204 - CART FSP-200199.A10 200199	£148.52	£178.22

Attribute Name	Value
Brand	Festool
