Festool KS 88 E GB 110V / 496871 Spare Parts

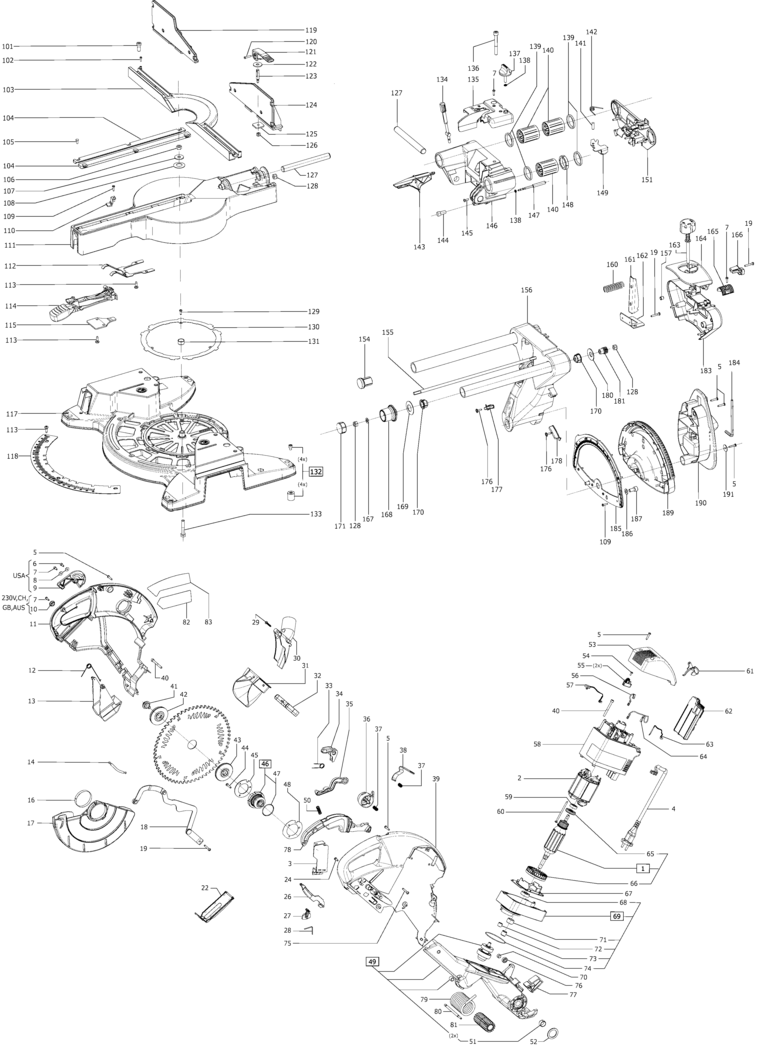

An exploded diagram and spare parts listing for the Festool KS 88 E GB 110V / 496871

	Ex VAT	Inc VAT
2 - FIELD ASSEMBLY 110V FSP-496995.A0 496995	£78.99	£94.79
3 - SWITCH MODUL FSP-496861.A1 496861	£48.34	£58.01
4 - MAINS CABLE GB 110V FSP-471529.A2 471529	£25.08	£30.09
5 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A168 228567	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A38 400468	£2.00	£2.40
10 - COVER FSP-471820.A9 471820	£2.00	£2.40
11 - PISTOL STOCK FSP-10801592.A23 10801592	£24.83	£29.80
12 - LEG SPRING FSP-470772.A14 470772	£2.64	£3.17
13 - DUST EXTRACTION ATTACHMENT FSP-10037680.A11 10037680	£6.91	£8.29
14 - DRAW SPRING FSP-709050.A11 709050	£2.38	£2.86
16 - BAND FSP-473432.A18 473432	£2.00	£2.40
17 - PROTECTIVE COVER FSP-10037697.A12 10037697	£17.18	£20.61
18 - SWIVEL LEVER FSP-497504.A10 497504	£22.83	£27.40
19 - RAISED-HEAD SCREW M4 X 25 FSP-400928.A15 400928	£2.00	£2.40
22 - LENS FSP-470717.A2 470717	£2.86	£3.43
24 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A57 228738	£2.00	£2.40
26 - BRACKET FSP-470647.A10 470647	£2.66	£3.19
27 - CATCH FSP-473479.A15 473479	£2.00	£2.40
28 - PLATE SPRING FSP-473480.A8 473480	£2.00	£2.40
29 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A71 400695	£2.00	£2.40
30 - EXTRACTOR CONNECTOR FSP-494307.A9 494307	£9.65	£11.58
33 - TORSION SPRING FSP-470762.A3 470762	£2.00	£2.40
34 - LOCK-OUT MECHANISM FSP-470646.A13 470646	£2.00	£2.40
35 - LEVER FSP-471448.A22 471448	£2.00	£2.40
36 - ROTARY KNOB FSP-470648.A13 470648	£2.00	£2.40
37 - PRESSURE SPRING FSP-470978.A12 470978	£2.00	£2.40
38 - DETENT LEVER FSP-470767.A20 470767	£8.42	£10.11
39 - PISTOL STOCK FSP-10801593.A19 10801593	£20.89	£25.07
40 - CHEESE HEAD SCREW M5 X 50 FSP-219057.A16 219057	£2.00	£2.40
41 - SPECIAL SCREW FSP-10015550.A8 10015550	£13.60	£16.32
44 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A56 228569	£2.00	£2.40
46 - SHAFT FSP-495627.A2 495627	-
47 - O-RING FSP-470760.A20 470760	£2.00	£2.40
49 - GEAR HOUSING FSP-205177.A16 205177	£164.42	£197.30
50 - PRESSURE SPRING FSP-474284.A3 474284	£2.00	£2.40
51 - BUSH FSP-400994.A45 400994	£2.00	£2.40
52 - CLAMP FSP-475620.A9 475620	£2.00	£2.40
53 - CAP FSP-470652.A9 470652	£7.95	£9.54
54 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A4 219047	£2.00	£2.40
55 - BRUSH HOLDER WITH BRUSHES (PAIR) FSP-494785.A6 494785	£25.96	£31.15
58 - MOTOR HOUSING FSP-470650.A14 470650	£18.95	£22.74
59 - BALL BEARING FSP-401525.A13 401525	£4.72	£5.66
60 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A29 442415	£2.00	£2.40
61 - PUSHER FSP-478895.A3 478895	£2.00	£2.40
62 - ELECTRONIC FSP-494267.A5 494267	£117.06	£140.47
65 - SOLENOID RING FSP-488965.A11 488965	£3.38	£4.05
68 - BALL BEARING FSP-789575.A59 789575	£5.99	£7.19
70 - BEARING SLEEVE FSP-478302.A8 478302	£2.88	£3.46
75 - RAISED-HEAD SCREW 3.5 X 12 MM FSP-454296.A6 454296	£2.00	£2.40
76 - ROLLER FSP-10018118.A19 10018118	£5.00	£6.00
77 - BUFFER FSP-470776.A5 470776	£2.00	£2.40
78 - PUSHER FSP-470645.A11 470645	£5.17	£6.20
79 - LEG SPRING FSP-10009631.A20 10009631	-
80 - BOLT FSP-471428.A1 471428	£3.45	£4.14
81 - DISTANCE BUSH FSP-200001.A20 200001	£23.21	£27.85
82 - LABEL FSP-478902.A5 478902	£3.00	£3.60
83 - LABEL FSP-478894.A5 478894	£5.09	£6.11
101 - CHEESE HEAD SCREW M8 X 20 FSP-774347.A9 774347	£2.00	£2.40
102 - CHEESE HEAD SCREW M3 X 10 FSP-400934.A5 400934	£2.00	£2.40
103 - STOP FSP-10030558.A14 10030558	£60.04	£72.05
104 - TABLE TOP INSERT FSP-470657.A13 470657	£4.75	£5.70
105 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A17 228733	£2.00	£2.40
106 - HEXAGON NUT M8 FSP-200719.A155 200719	£2.00	£2.40
108 - SPRING WASHER FSP-479669.A16 479669	£2.00	£2.40
109 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A101 228584	£2.00	£2.40
110 - INDICATOR FSP-470660.A10 470660	£2.00	£2.40
111 - BASE FSP-494968.A19 494968	£189.85	£227.82
112 - CATCH FSP-470664.A3 470664	£15.97	£19.16
113 - SCREW FSP-400709.A29 400709	£2.00	£2.40
114 - LEVER FSP-10607946.A19 10607946	£17.89	£21.47
115 - SPRING PLATE FSP-470665.A20 470665	£8.93	£10.72
117 - FRAME FSP-10027727.A8 10027727	£181.97	£218.36
118 - SCALE FSP-470663.A20 470663	£36.32	£43.59
127 - BOLT FSP-10016971.A11 10016971	£14.22	£17.07
128 - HEXAGON NUT M8 FSP-200735.A1 200735	£2.00	£2.40
129 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A34 400691	£2.00	£2.40
130 - GLIDE PLATE FSP-470662.A3 470662	£2.66	£3.19
131 - BUSH FSP-473215.A10 473215	£2.00	£2.40
132 - BUFFER (4 PCS.) FSP-494780.A15 494780	£38.18	£45.81
133 - HEXAGON SCREW M8 X 45 FSP-400937.A9 400937	£2.00	£2.40
134 - DEPTH STOP FSP-495266.A20 495266	£16.48	£19.78
135 - CLAMPING PLATE FSP-470640.A13 470640	£3.93	£4.72
143 - END STOP FSP-473656.A11 473656	£3.45	£4.14
144 - KNOB FSP-470639.A11 470639	£2.00	£2.40
147 - PIN FSP-470514.A18 470514	£6.39	£7.67
149 - DEPTH STOP FSP-470509.A20 470509	£6.68	£8.01
151 - COVER FSP-470630.A8 470630	£6.64	£7.97
154 - PLUG FSP-501549.A23 501549	£2.00	£2.40
155 - THREADED ROD FSP-470561.A22 470561	£13.42	£16.11
156 - SWIVEL ARM FSP-495778.A8 495778	£164.72	£197.67
157 - PRESSURE CLAMPING ELEMENT FSP-400287.A12 400287	£4.89	£5.87
160 - PRESSURE SPRING FSP-471024.A13 471024	£2.00	£2.40
161 - BRAKE LEVER FSP-470508.A2 470508	£5.43	£6.52
162 - BEARING SHEET FSP-470510.A2 470510	£4.37	£5.24
163 - ROTARY KNOB FSP-494172.A10 494172	£15.67	£18.80
164 - CLAMPING LEVER FSP-470634.A13 470634	£7.94	£9.53
165 - CABLE CLAMP FSP-470641.A10 470641	£2.00	£2.40
166 - HOLDER FSP-470636.A13 470636	£3.53	£4.24
167 - WASHER FSP-471193.A7 471193	£2.00	£2.40
168 - HOLDER FSP-478905.A0 478905	£2.00	£2.40
169 - SPRING WASHER FSP-469785.A21 469785	£2.00	£2.40
170 - BUSH FSP-470560.A0 470560	£2.00	£2.40
171 - CAP FSP-479473.A8 479473	£2.90	£3.48
176 - ROUND-HEAD SCREW 3.5 X 14 MM FSP-400981.A13 400981	£2.00	£2.40
177 - INDICATOR FSP-470627.A8 470627	£2.00	£2.40
178 - INDICATOR FSP-470628.A15 470628	£2.00	£2.40
180 - SPRING WASHER FSP-761692.A15 761692	£2.00	£2.40
181 - PINION FSP-470885.A3 470885	£6.39	£7.67
183 - COVER FSP-470635.A11 470635	£11.01	£13.21
184 - PIN KEY FSP-439274.A61 439274	£3.56	£4.27
185 - BRAKE DISK FSP-495758.A10 495758	£47.05	£56.46
186 - WASHER 8.4 MM FSP-228601.A39 228601	£2.00	£2.40
187 - CHEESE HEAD SCREW M8 X 16 FSP-200201.A1 200201	£2.00	£2.40
189 - BRACKET FSP-494170.A7 494170	£25.45	£30.54
190 - CABLE HOLDER FSP-470642.A11 470642	£22.02	£26.42
191 - WASHER FSP-400929.A10 400929	£2.00	£2.40
196 - FLANGE FSP-200210.A10 200210	£72.49	£86.99
197 - APRON FSP-200215.A7 200215	£24.21	£29.05
200 - FLEXIBLE LEAD FSP-200203.A1 200203	£38.82	£46.58
201 - END SHIELD FSP-202928.A0 202928	£156.29	£187.55
202 - STOP FSP-204073.A10 204073	£59.67	£71.60
203 - STOP FSP-204074.A17 204074	£53.04	£63.65
204 - CART FSP-200199.A2 200199	£148.52	£178.22
