Festool IS 330 EB / 768661 Spare Parts

Home Details Reviews Delivery

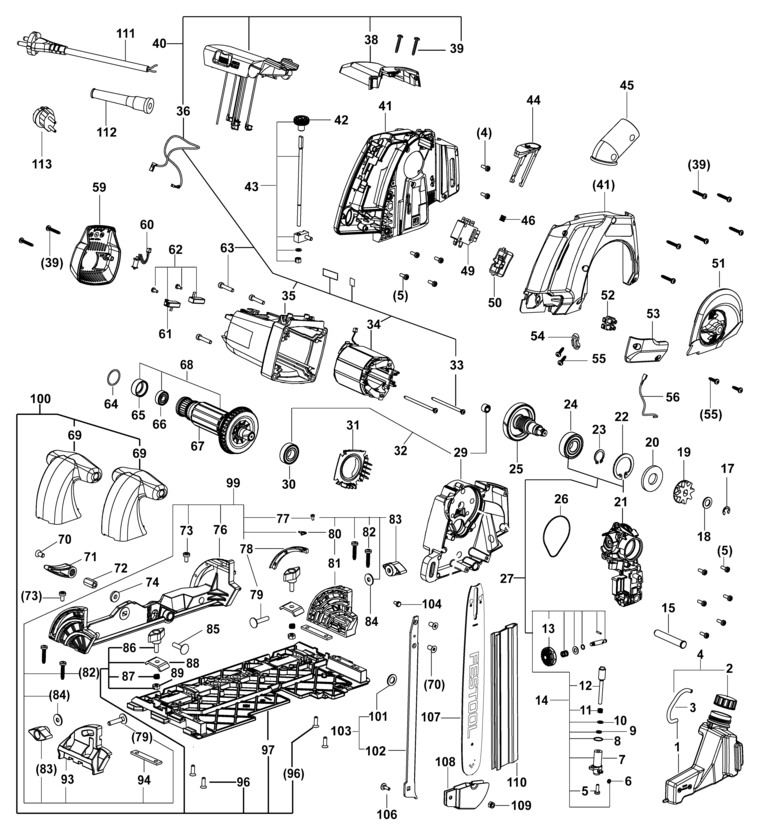

An exploded diagram and spare parts listing for the Festool IS 330 EB / 768661

	Ex VAT	Inc VAT
1 - CONTAINER FSP-637891.A4 637891	£8.55	£10.26
2 - FILLER CAP FSP-768423.A4 768423	£7.56	£9.07
3 - HOSE FSP-778912.A4 778912	£2.00	£2.40
4 - TANK FSP-769403.A0 769403	£16.72	£20.06
5 - SCREW FSP-614456.A0 614456	£2.00	£2.40
6 - O-RING FSP-638584.A1 638584	£2.00	£2.40
7 - PUMP BODY FSP-638581.A1 638581	£14.10	£16.92
8 - O-RING FSP-638582.A4 638582	£2.00	£2.40
9 - O-RING FSP-779056.A1 779056	£2.00	£2.40
10 - WASHER FSP-638580.A4 638580	£2.00	£2.40
11 - SPRING FSP-637956.A5 637956	£2.00	£2.40
12 - SHAFT FSP-637789.A4 637789	£32.47	£38.96
13 - WHEEL FSP-768398.A1 768398	£2.00	£2.40
14 - PUMP FSP-769397.A5 769397	£52.19	£62.63
15 - TENONS FSP-637900.A1 637900	£4.08	£4.90
17 - SNAP RING FSP-615478.A3 615478	£2.00	£2.40
18 - WASHER FSP-832610.A3 832610	£2.00	£2.40
19 - CHAIN WHEEL FSP-765374.A1 765374	£7.06	£8.47
20 - SEALING RING FSP-638590.A4 638590	£2.00	£2.40
21 - BEARING COVER FSP-768424.A1 768424	£106.36	£127.63
22 - SNAP RING FSP-623941.A1 623941	£11.08	£13.30
23 - SNAP RING FSP-614796.A5 614796	£2.00	£2.40
24 - BEARING FSP-632815.A4 632815	£6.39	£7.67
25 - SPINDLE FSP-638577.A1 638577	£61.31	£73.57
26 - O-RING FSP-200973.A2 200973	£2.00	£2.40
27 - GEAR HOUSING FSP-769398.A2 769398	£82.49	£98.99
29 - GEAR HOUSING FSP-768422.A1 768422	£82.83	£99.40
30 - BEARING FSP-638956.A2 638956	£11.01	£13.21
31 - AIR DUCT FSP-768399.A4 768399	£4.59	£5.51
32 - GEAR HOUSING FSP-769396.A1 769396	£57.74	£69.29
33 - SCREW 4.0 X 70 MM FSP-614777.A1 614777	£2.00	£2.40
34 - FIELD ASSEMBLY FSP-628174.A4 628174	£65.07	£78.08
35 - MOTOR HOUSING FSP-10164929.A2 10164929	£15.34	£18.41
36 - CABLE CONDUIT FSP-10167584.A4 10167584	-
38 - HOUSING COVER FSP-768403.A1 768403	£8.51	£10.21
39 - SCREW 4.0 X 25 MM FSP-614772.A20 614772	£2.00	£2.40
40 - MOTOR HOUSING FSP-769393.A0 769393	£120.88	£145.06
41 - GRIP FSP-768659.A0 768659	£52.12	£62.54
42 - WHEEL FSP-768397.A4 768397	£2.00	£2.40
43 - TENSIONER FSP-769392.A2 769392	£21.21	£25.45
44 - KEY FSP-768388.A2 768388	£2.00	£2.40
45 - EXTRACTION ADAPTER FSP-768816.A3 768816	£5.90	£7.08
46 - PRESSURE SPRING FSP-654035.A2 654035	£2.00	£2.40
49 - BRAKE SWITCH FSP-463970.A7 463970	£19.83	£23.80
50 - SWITCH BUTTON FSP-768389.A0 768389	£2.00	£2.40
51 - COVER FSP-768431.A1 768431	£35.36	£42.43
52 - TERMINAL FSP-621139.A2 621139	£6.39	£7.67
53 - HANDLE COVER FSP-768387.A0 768387	£5.24	£6.29
54 - CLIP FSP-619112.A1 619112	£2.00	£2.40
55 - SCREW 4 X 16 MM FSP-625697.A15 625697	£2.00	£2.40
56 - HOOK-UP WIRE FSP-638678.A2 638678	£3.20	£3.84
59 - CAP FSP-768418.A0 768418	£6.39	£7.67
60 - COIL SHELL FSP-10130169.A1 10130169	£5.87	£7.04
61 - CARBON SET FSP-627044.A4 627044	£37.32	£44.78
62 - BRUSH HOLDER WITH BRUSHES (PAIR) FSP-769394.A1 769394	£35.31	£42.37
63 - SCREW M5 X 25 FSP-614860.A11 614860	£2.00	£2.40
64 - O-RING FSP-614992.A11 614992	£2.00	£2.40
65 - BEARING RING FSP-438613.A2 438613	£2.00	£2.40
66 - BALL BEARING FSP-779129.A1 779129	£3.20	£3.84
67 - ARMATURE FSP-638683.A0 638683	£105.82	£126.99
68 - ARMATURE SET FSP-10553610.A4 10553610	£105.82	£126.99
69 - AUXILIARY HANDLE FSP-768392.A3 768392	£16.37	£19.64
70 - SCREW M6 X 12 FSP-614327.A2 614327	£2.00	£2.40
71 - LEVER FSP-768220.A1 768220	£2.00	£2.40
72 - NUT FSP-638597.A4 638597	£2.00	£2.40
73 - SCREW M5 X 10 FSP-614858.A6 614858	£2.00	£2.40
74 - WASHER FSP-614475.A1 614475	£2.00	£2.40
76 - SUPPORT FSP-768426.A4 768426	£58.60	£70.32
77 - SCREW FSP-637849.A2 637849	£2.00	£2.40
78 - SCALE FSP-768395.A1 768395	£4.58	£5.49
79 - SCREW FSP-60403776.A0 60403776	-
80 - INDICATOR FSP-777824.A6 777824	£2.00	£2.40
81 - SWIVELING SEGMENT FSP-768393.A1 768393	£7.70	£9.24
82 - RAISED-HEAD SCREW 5.0 X 25 MM FSP-400686.A2 400686	£2.00	£2.40
83 - WING NUT FSP-768439.A3 768439	£2.00	£2.40
84 - WASHER FSP-625662.A1 625662	£2.00	£2.40
85 - SCREW M6 X 25 FSP-614405.A0 614405	£2.00	£2.40
86 - BUTTERFLY SCREW FSP-768233.A7 768233	£2.00	£2.40
87 - PRESSURE SPRING FSP-595478.A3 595478	£2.00	£2.40
88 - LUG SUPPORT FSP-633016.A0 633016	£5.38	£6.45
89 - NUT M6 FSP-614469.A0 614469	£2.00	£2.40
93 - SWIVELING SEGMENT FSP-768394.A4 768394	£7.70	£9.24
94 - LAMELLA FSP-637331.A1 637331	£2.00	£2.40
96 - FLAT HEAD SCREW M5X25 DIN 2043 FSP-401171.A0 401171	£2.00	£2.40
97 - TABLE FOR HAND-HELD CIRCULAR SAWS FSP-768450.A5 768450	£70.73	£84.88
99 - SUPPORT. COMPLETE FSP-769399.A4 769399	£62.50	£75.00
100 - SLIDE. COMPL. FSP-769400.A1 769400	£72.10	£86.52
103 - PROTECTION STRIP FSP-769401.A0 769401	£42.92	£51.51
104 - SCREW 4.0 X 80 MM FSP-615391.A0 615391	£2.00	£2.40
106 - SCREW FSP-619056.A0 619056	£7.99	£9.59
108 - COVER FSP-619023.A0 619023	£40.92	£49.10
109 - NUT FSP-619046.A1 619046	£2.00	£2.40
110 - PROTECTIVE COVER FSP-768657.A0 768657	£28.45	£34.14
111 - MAINS CABLE FSP-638677.A1 638677	£50.00	£60.00
112 - NOZZLE AGAINST BENDING FSP-630328.A6 630328	£5.38	£6.45
113 - ADAPTER PLUG FSP-767469.A5 767469	-
