Festool CS 50 EB 230V / 493749 Spare Parts

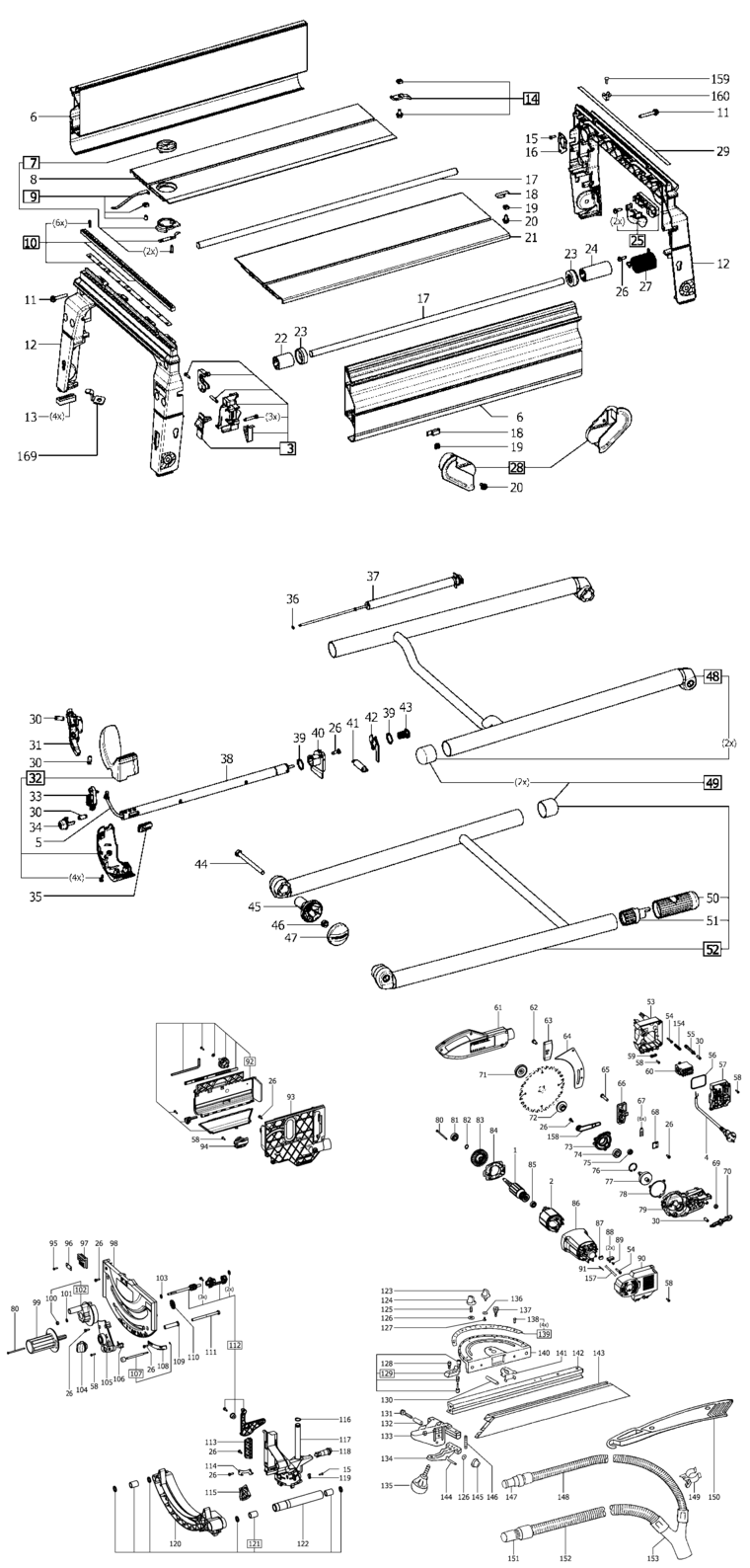

An exploded diagram and spare parts listing for the Festool CS 50 EB 230V / 493749

	Ex VAT	Inc VAT
1 - ARMATURE FSP-205200.A6 205200	£108.95	£130.74
2 - FIELD ASSEMBLY 230V EQ / EBQ FSP-491713.A8 491713	£58.13	£69.76
3 - SWITCH FSP-492254.A5 492254	£49.76	£59.71
4 - CABLE WITH PLUG FSP-463682.A0 463682	£22.02	£26.42
5 - TRAILING CABLE FSP-464736.A1 464736	£25.08	£30.09
6 - SIDE WALL FSP-463205.A2 463205	£87.80	£105.36
7 - TURN LOCK FASTENER FSP-492257.A0 492257	£20.34	£24.41
8 - TABLE TOP INSERT FSP-463169.A5 463169	£64.02	£76.83
9 - SPRING FSP-492259.A0 492259	£15.91	£19.09
10 - SCALE FSP-492256.A9 492256	£29.84	£35.81
11 - RAISED-HEAD SCREW FSP-401137.A17 401137	£2.00	£2.40
12 - PORTAL FSP-463162.A0 463162	£107.97	£129.56
13 - RUBBER FOOT (4 PCS.) FSP-492255.A0 492255	£17.98	£21.57
14 - SPRING FSP-492258.A9 492258	£15.78	£18.93
15 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A2 400691	£2.00	£2.40
16 - BEARING SHEET FSP-448236.A37 448236	£2.00	£2.40
17 - AXLE FSP-705620.A2 705620	£44.10	£52.92
18 - SPRING FSP-447262.A27 447262	£2.00	£2.40
19 - SQUARE NUT M6 FSP-228566.A126 228566	£2.00	£2.40
20 - SCREW M6 X 12 FSP-449888.A23 449888	£2.00	£2.40
21 - PLATE FSP-10007882.A4 10007882	£59.78	£71.73
22 - SLEEVE FSP-464027.A6 464027	£2.00	£2.40
23 - SHOCK ABSORBER FSP-465528.A1 465528	£2.00	£2.40
24 - SLEEVE FSP-464028.A3 464028	£2.00	£2.40
25 - CLAMPING FSP-492262.A1 492262	£16.63	£19.96
26 - SCREW FSP-400709.A53 400709	£2.00	£2.40
27 - DRAW SPRING FSP-465456.A8 465456	£11.52	£13.83
28 - CABLE HOLDER FSP-492260.A6 492260	£16.77	£20.12
29 - STICKER FSP-463724.A9 463724	£3.50	£4.20
30 - PRESSURE SPRING FSP-463590.A9 463590	£2.00	£2.40
31 - SWITCH MECHANISM FSP-492117.A6 492117	£6.46	£7.75
32 - GRIP FSP-492250.A0 492250	£17.12	£20.55
33 - SWITCH MODUL FSP-492274.A8 492274	£49.05	£58.86
34 - BUTTON FSP-463673.A9 463673	£2.00	£2.40
35 - CONNECTING MEMBER FSP-463918.A4 463918	£15.44	£18.53
36 - WASHER FSP-222490.A6 222490	£2.00	£2.40
37 - SHOCK ABSORBER FSP-491760.A9 491760	£35.90	£43.08
38 - PIPE FSP-463522.A2 463522	£51.99	£62.39
39 - SNAP RING FSP-200352.A8 200352	£2.00	£2.40
40 - FLANGE FSP-463260.A3 463260	£4.62	£5.54
41 - DRAW SPRING FSP-464031.A3 464031	£3.16	£3.79
42 - SHEET METAL FSP-464030.A6 464030	£2.00	£2.40
43 - PLUG FSP-463180.A5 463180	£2.66	£3.19
44 - HEXAGON SCREW FSP-464713.A6 464713	£2.00	£2.40
45 - LOWER SECTION OF PISTOL FSP-492148.A13 492148	£4.72	£5.66
46 - HEXAGON NUT M8 FSP-200735.A49 200735	£2.00	£2.40
47 - UPPER SECTION OF PISTOL FSP-447534.A47 447534	£2.00	£2.40
48 - FOLDAWAY LEG FSP-10195127.A1 10195127	£66.51	£79.81
49 - RUBBER FOOT FSP-465163.A17 465163	£3.12	£3.75
49 - RUBBER FOOT FSP-465163.A18 465163	£3.12	£3.75
50 - FOOT FSP-465883.A24 465883	£13.48	£16.18
51 - ADJUSTMENT FSP-448178.A27 448178	£2.00	£2.40
52 - FOLDAWAY LEG FSP-10198251.A1 10198251	£75.93	£91.12
53 - HOUSING FSP-470102.A5 470102	£11.63	£13.96
54 - SCREW FSP-401038.A9 401038	£2.00	£2.40
55 - TAPPET FSP-463934.A4 463934	£2.00	£2.40
56 - GASKET FSP-463933.A5 463933	£2.00	£2.40
57 - ELECTRONIC 230 V FSP-493787.A1 493787	£117.06	£140.47
58 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A116 228713	£2.00	£2.40
59 - CABLE CLAMP FSP-761618.A40 761618	£2.00	£2.40
60 - PROTECT SWITCH 230 V FSP-463936.A4 463936	£34.39	£41.27
61 - SAFETY DEVICE FSP-492132.A1 492132	£28.82	£34.59
62 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A2 774346	£2.00	£2.40
63 - SPACER WEDGE PLATE FSP-463751.A7 463751	£2.82	£3.38
64 - SPACER WEDGE FSP-463201.A5 463201	£28.38	£34.06
65 - CHEESE HEAD SCREW FSP-400735.A1 400735	£2.00	£2.40
66 - SPACER WEDGE HOLDER FSP-492010.A5 492010	£19.45	£23.34
67 - ADJUSTMENT BRACKET FSP-492307.A8 492307	£16.90	£20.28
68 - GLIDE PLATE FSP-463197.A2 463197	£2.00	£2.40
69 - HEXAGON NUT M8 FSP-200719.A65 200719	£2.00	£2.40
70 - LEVER FSP-470064.A2 470064	£2.00	£2.40
71 - CLAMPING NUT FSP-465326.A3 465326	£48.12	£57.74
72 - FLANGE FSP-463195.A7 463195	£7.68	£9.21
73 - GEAR COVER FSP-202487.A2 202487	£31.36	£37.63
74 - BALL BEARING FSP-789595.A34 789595	£8.79	£10.55
75 - BALL BEARING FSP-401518.A4 401518	£8.12	£9.74
76 - SNAP RING FSP-401246.A24 401246	£2.00	£2.40
77 - GEAR SHAFT FSP-465606.A8 465606	£53.77	£64.52
78 - GASKET FSP-463990.A3 463990	£2.00	£2.40
79 - GEAR HOUSING FSP-492321.A1 492321	£75.03	£90.04
80 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A51 442415	£2.00	£2.40
81 - BALL BEARING FSP-401576.A22 401576	£7.86	£9.43
82 - SNAP RING FSP-200619.A42 200619	£2.00	£2.40
83 - FAN FSP-463280.A2 463280	£4.41	£5.29
84 - AIR DUCT FSP-463512.A5 463512	£2.66	£3.19
85 - BALL BEARING FSP-400626.A5 400626	£5.98	£7.18
86 - MOTOR HOUSING FSP-463199.A7 463199	£12.54	£15.05
87 - SPEED INDICATOR FSP-493567.A5 493567	£18.18	£21.81
88 - BRUSH (PAIR) 230V FSP-491704.A7 491704	£17.85	£21.42
89 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A96 219047	£2.00	£2.40
90 - HOUSING COVER FSP-463200.A2 463200	£8.62	£10.34
91 - PTC RESISTOR FSP-491722.A9 491722	£20.22	£24.26
92 - COVER FSP-492249.A5 492249	£30.07	£36.08
93 - HOOD FSP-463190.A0 463190	£20.41	£24.49
94 - SLIDE FSP-463350.A2 463350	£3.19	£3.83
95 - RAISED-HEAD SCREW M4 X 14 FSP-445566.A0 445566	£2.00	£2.40
96 - SHEET METAL FSP-463299.A7 463299	£2.00	£2.40
97 - SUPPORTING BEARING FSP-465449.A1 465449	£8.81	£10.57
98 - SCREEN FSP-10023855.A7 10023855	£25.20	£30.24
99 - KNOB LEVER FSP-463178.A9 463178	£11.18	£13.42
100 - HEXAGON NUT M6 FSP-228541.A36 228541	£2.00	£2.40
101 - WASHER 6.4 MM FSP-200578.A46 200578	£2.00	£2.40
102 - CRANK FSP-488159.A20 488159	£18.49	£22.19
103 - WASHER FSP-447790.A4 447790	£2.00	£2.40
104 - ROTARY KNOB M8 FSP-483162.A12 483162	£5.30	£6.36
105 - COVER FSP-491925.A2 491925	£8.05	£9.66
106 - INDICATOR FSP-463181.A0 463181	£2.00	£2.40
107 - PUSHER FSP-492248.A0 492248	£23.65	£28.38
108 - END STOP FSP-463281.A7 463281	£4.06	£4.87
109 - SLEEVE FSP-463400.A4 463400	£9.86	£11.83
110 - GEAR FSP-463179.A0 463179	£6.75	£8.10
111 - HEXAGON SCREW M8 X 110 FSP-400734.A11 400734	£2.00	£2.40
112 - DEPTH ADJUSTER FSP-492253.A0 492253	£33.57	£40.28
113 - GUIDE RAIL FSP-463189.A9 463189	£2.00	£2.40
114 - CLAMPING PLATE FSP-463251.A6 463251	£2.00	£2.40
115 - NUTENSTEIN FSP-463176.A0 463176	£2.00	£2.40
116 - SNAP RING FSP-400788.A3 400788	£2.00	£2.40
117 - SWIVELING SEGMENT FSP-492322.A8 492322	£91.53	£109.84
118 - CLOSURE FSP-463725.A2 463725	£3.07	£3.68
119 - CLIP FSP-464456.A4 464456	£2.00	£2.40
120 - SUPPORT FSP-202485.A2 202485	£84.30	£101.16
121 - BEARING SLEEVE FSP-492251.A9 492251	£66.90	£80.28
122 - GUIDE TUBE FSP-202486.A7 202486	£39.50	£47.40
123 - ROTARY KNOB FSP-487755.A29 487755	£9.03	£10.84
124 - ROTARY KNOB FSP-440713.A29 440713	£2.64	£3.17
125 - STUD SCREW FSP-464525.A14 464525	£2.00	£2.40
126 - WASHER 6.4 MM FSP-228546.A52 228546	£2.00	£2.40
127 - FLAT HEAD SCREW M4 X 8 FSP-219043.A49 219043	£2.00	£2.40
128 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A0 200684	£2.00	£2.40
129 - SUPPORT FSP-489181.A6 489181	£30.82	£36.99
130 - SLEEVE 5 X 12 MM FSP-228692.A6 228692	£2.00	£2.40
131 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A31 228534	£2.00	£2.40
132 - SPACER BUSH FSP-448066.A11 448066	£9.59	£11.51
133 - CLAMPING ELEMENT FSP-488433.A13 488433	£43.88	£52.66
134 - CLAMP SUPPORT FSP-10031568.A37 10031568	£14.60	£17.52
135 - GRIP FSP-487893.A34 487893	£7.24	£8.69
136 - WASHER FSP-448471.A41 448471	£3.62	£4.34
137 - FLAT HEAD SCREW FSP-448065.A30 448065	£3.81	£4.57
138 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A31 400348	£2.00	£2.40
139 - SCALE FSP-488156.A33 488156	£25.04	£30.05
140 - SWIVELING SEGMENT FSP-448014.A41 448014	£34.26	£41.11
141 - CLAMPING PLATE FSP-10023711.A11 10023711	£4.44	£5.33
142 - PROFILE CS 50 FSP-464523.A3 464523	£30.68	£36.81
143 - STOP PROFILE CS 50 FSP-10711276.A5 10711276	£28.46	£34.15
144 - SLEEVE 6 X 36 MM FSP-400289.A27 400289	£2.00	£2.40
145 - ROTARY KNOB M6 FSP-483350.A62 483350	£6.30	£7.56
146 - PRESSURE SPRING FSP-448064.A11 448064	£2.00	£2.40
147 - CONNECTING SLEEVE FSP-577162.A36 577162	£16.25	£19.50
148 - HOSE 27 X 2 M FSP-459250.A15 459250	£38.39	£46.07
149 - CLAMP FSP-450158.A5 450158	£2.00	£2.40
150 - WORKPIECE HOLDER FSP-450199.A0 450199	£6.29	£7.55
151 - REDUCING SLEEVE. ANTISTATIC FSP-452358.A18 452358	£26.08	£31.30
152 - HOSE 36 X 1.5 M FSP-459251.A9 459251	£38.39	£46.07
153 - Y-PIECE FSP-450575.A10 450575	£25.45	£30.54
154 - CONTACT SPRING FSP-469925.A3 469925	£2.00	£2.40
155 - LABEL FSP-464373.A0 464373	£6.42	£7.71
158 - CONTACT SPRING FSP-466698.A1 466698	£2.00	£2.40
159 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A17 219071	£2.00	£2.40
160 - CLAMP SHOE FSP-467630.A3 467630	£2.00	£2.40

Attribute Name	Value
Brand	Festool
