Festool CS 70 E / 490193 Spare Parts

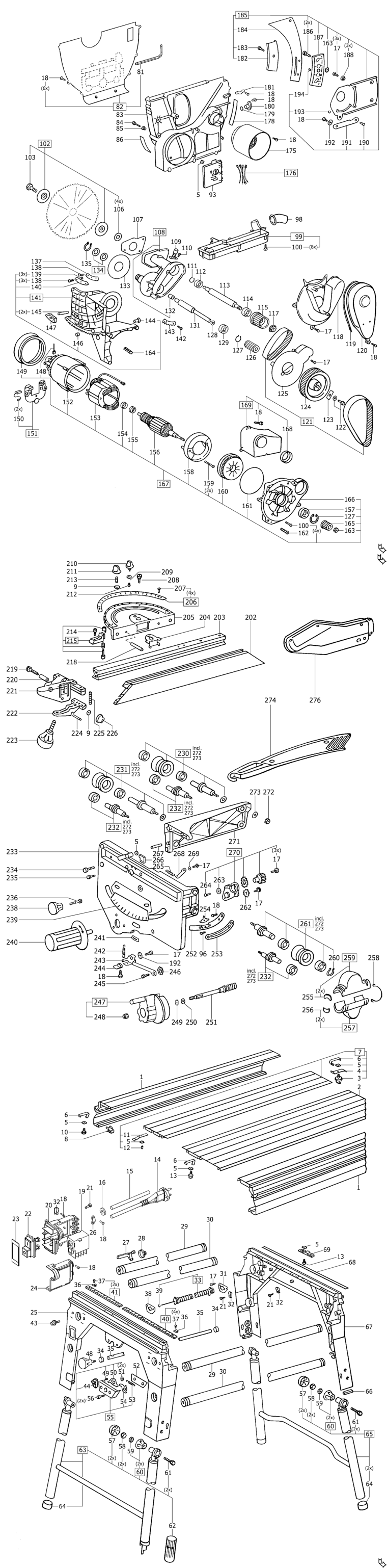

An exploded diagram and spare parts listing for the Festool CS 70 E / 490193

	Ex VAT	Inc VAT
1 - CORNER PROFILE FSP-445867.A1 445867	£64.76	£77.71
2 - FLAT PROFILE FSP-445866.A16 445866	£93.68	£112.41
3 - ROTARY KNOB FSP-482110.A35 482110	£2.32	£2.78
4 - CLAMPING SUPPORT FSP-448234.A13 448234	£4.13	£4.96
5 - SQUARE NUT M6 FSP-228566.A82 228566	£2.00	£2.40
6 - SPRING FSP-447262.A16 447262	£2.00	£2.40
7 - TABLE TOP INSERT FSP-488160.A3 488160	£70.28	£84.34
8 - CLAMP FSP-449080.A11 449080	£2.00	£2.40
9 - WASHER 6.4 MM FSP-228546.A12 228546	£2.00	£2.40
10 - SCREW M6 X 12 FSP-450682.A0 450682	£2.00	£2.40
11 - PLATE SPRING FSP-448233.A4 448233	£2.00	£2.40
12 - THREADED PIN M6 X 10 FSP-772405.A7 772405	£2.00	£2.40
13 - SCREW M6 X 12 FSP-449888.A35 449888	£2.00	£2.40
14 - CABLE EU FSP-458753.A2 458753	£25.58	£30.69
15 - TRAILING CABLE FSP-458756.A7 458756	£25.58	£30.69
16 - RUBBER RING FSP-458613.A14 458613	£2.00	£2.40
17 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A63 219075	£2.00	£2.40
18 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A55 228584	£2.00	£2.40
19 - CONTACTOR FSP-455695.A9 455695	£42.10	£50.52
20 - SWITCHING HOUSING FSP-447703.A7 447703	£8.42	£10.11
21 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A33 228509	£2.00	£2.40
22 - PUSHER FSP-490211.A3 490211	£9.62	£11.54
23 - GASKET FSP-447768.A14 447768	£2.00	£2.40
24 - SWITCH COVER FSP-447704.A8 447704	£4.75	£5.70
25 - PORTAL FSP-462419.A13 462419	£137.92	£165.51
26 - CABLE CLAMP FSP-439288.A73 439288	£2.00	£2.40
27 - CABLE HOLDER FSP-449273.A3 449273	£2.71	£3.25
28 - CLIP FSP-400428.A21 400428	£3.56	£4.27
29 - PIPE FSP-459286.A13 459286	£55.66	£66.79
30 - AXLE TUBE FSP-459287.A1 459287	£53.54	£64.25
31 - BEARING SHEET FSP-448236.A24 448236	£2.00	£2.40
32 - CLIP FSP-458614.A13 458614	£2.00	£2.40
33 - SHOCK ABSORBER FSP-488139.A3 488139	£39.74	£47.69
34 - BUFFER FSP-447528.A8 447528	£2.00	£2.40
35 - PULL ROD FSP-487568.A10 487568	£50.70	£60.84
36 - SHEET METAL NUT FSP-448477.A13 448477	£2.00	£2.40
37 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A3 400444	£2.00	£2.40
38 - BEARING SHEET FSP-448236.A23 448236	£2.00	£2.40
39 - WASHER FSP-222490.A1 222490	£2.00	£2.40
40 - SCALE FSP-488138.A14 488138	£19.35	£23.22
41 - SCALE FSP-488137.A3 488137	£15.60	£18.72
42 - ADJUSTMENT FSP-448178.A22 448178	£2.00	£2.40
43 - SCREW M8 X 25 FSP-450683.A21 450683	£2.00	£2.40
44 - GRIP FSP-446974.A6 446974	£2.00	£2.40
48 - GRIP FSP-487569.A2 487569	£12.60	£15.12
49 - PRESSURE CLAMPING ELEMENT FSP-400286.A2 400286	£4.56	£5.47
50 - LEVER FSP-446669.A2 446669	£3.78	£4.53
51 - SLEEVE FSP-449122.A2 449122	£2.00	£2.40
52 - HOLDING PLATE FSP-447789.A10 447789	£7.02	£8.43
53 - DRAW SPRING FSP-447263.A17 447263	£2.00	£2.40
54 - DETENT LEVER FSP-702066.A11 702066	£5.68	£6.82
55 - GUIDE FSP-488140.A13 488140	£34.68	£41.61
56 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A20 200128	£2.00	£2.40
57 - UPPER SECTION OF PISTOL FSP-447534.A23 447534	£2.00	£2.40
58 - HEXAGON NUT M8 FSP-200735.A87 200735	£2.00	£2.40
59 - HEXAGON NUT M8 FSP-200719.A0 200719	£2.00	£2.40
60 - LOWER SECTION OF PISTOL FSP-488523.A10 488523	£2.00	£2.40
61 - HEXAGON SCREW M8 X 75 FSP-400309.A24 400309	£2.00	£2.40
62 - FOOT FSP-465883.A5 465883	£13.48	£16.18
63 - FOLDAWAY LEG FSP-499888.A14 499888	£79.78	£95.74
64 - RUBBER FOOT FSP-465163.A28 465163	£3.12	£3.75
64 - RUBBER FOOT FSP-465163.A29 465163	£3.12	£3.75
65 - FOLDAWAY LEG FSP-499889.A11 499889	£72.20	£86.64
66 - RUBBER FOOT FSP-701230.A1 701230	£4.62	£5.54
67 - PORTAL FSP-462420.A1 462420	£137.92	£165.51
68 - STICKER FSP-448251.A7 448251	£7.37	£8.84
69 - STOP FSP-448118.A3 448118	£2.00	£2.40
81 - PIN KEY FSP-450935.A9 450935	£2.00	£2.40
82 - COVER FSP-488152.A11 488152	£49.29	£59.15
83 - PROTECTIVE COVER FSP-460737.A1 460737	£32.74	£39.29
84 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A28 228612	£2.00	£2.40
85 - FLANGE BUSHING FSP-449159.A15 449159	£3.44	£4.13
86 - SPLINTER GUARD FSP-448695.A16 448695	£2.00	£2.40
93 - ELECTRONIC 230 V FSP-488262.A3 488262	£117.06	£140.47
96 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A79 219031	£2.00	£2.40
98 - EXTRACTOR CONNECTOR FSP-446588.A0 446588	£2.66	£3.19
99 - NO LONGER AVAILABLE FSP-00000.A1928 00000	-
100 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A17 219068	£2.00	£2.40
102 - CLAMPING FLANGE FSP-488151.A4 488151	£60.72	£72.86
103 - FLANGE BOLT M8 X 15 FSP-446370.A14 446370	£9.99	£11.99
106 - SPRING WASHER FSP-444235.A5 444235	£2.00	£2.40
107 - GLIDE PLATE FSP-450055.A2 450055	£4.02	£4.82
108 - ROCKER FSP-488149.A4 488149	£109.49	£131.39
109 - SPINDLE STOP FSP-488150.A13 488150	£24.08	£28.90
110 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A27 228582	£2.00	£2.40
111 - CIRCLIP FSP-219855.A10 219855	£2.00	£2.40
112 - BALL BEARING FSP-789595.A26 789595	£8.79	£10.55
113 - SHAFT FSP-202845.A1 202845	£45.81	£54.97
114 - BALL BEARING FSP-400467.A3 400467	£22.55	£27.06
115 - TOOTHED BELT WHEEL FSP-445880.A17 445880	£37.13	£44.56
117 - NUT M10 FSP-451484.A7 451484	£2.00	£2.40
118 - AIR DUCT FSP-446473.A2 446473	£7.99	£9.59
119 - FELT STRIPE FSP-447962.A4 447962	£2.00	£2.40
120 - MOTOR COVER FSP-446469.A16 446469	£8.18	£9.81
121 - TOOTHED BELT FSP-488135.A4 488135	£46.72	£56.07
122 - SCREW FSP-401165.A23 401165	£2.00	£2.40
123 - DRIVING WASHER FSP-446937.A10 446937	£2.00	£2.40
124 - TOOTHED BELT WHEEL FSP-445878.A0 445878	£36.32	£43.59
125 - COVER FSP-447710.A10 447710	£6.64	£7.97
126 - GEAR FSP-491936.A0 491936	£31.83	£38.20
127 - SNAP RING FSP-771483.A46 771483	£2.00	£2.40
128 - WASHER FSP-449203.A11 449203	£2.00	£2.40
129 - BALL BEARING FSP-789775.A13 789775	£9.65	£11.58
131 - SHAFT FSP-202846.A16 202846	£41.41	£49.69
132 - NEEDLE BUSHING FSP-400254.A1 400254	£7.99	£9.59
133 - WASHER FSP-446474.A15 446474	£7.63	£9.16
134 - COMPENSATING WASHER FSP-488465.A11 488465	£12.99	£15.59
135 - SNAP RING FSP-200414.A2 200414	£2.00	£2.40
137 - SUPPORT PLATE FSP-446704.A14 446704	£7.99	£9.59
138 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A46 202824	£2.00	£2.40
139 - HEXAGON NUT M5 FSP-200717.A64 200717	£2.00	£2.40
140 - BOARD SEGMENT FSP-446147.A2 446147	£6.55	£7.86
141 - SWIVELING SEGMENT FSP-488148.A12 488148	£95.98	£115.17
142 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A61 219075	£2.00	£2.40
143 - TOOTH SEGMENT FSP-202847.A1 202847	£8.68	£10.42
144 - DU FLANGE BUSHING FSP-400253.A26 400253	£2.00	£2.40
145 - CYLINDER PIN FSP-400097.A10 400097	£2.00	£2.40
146 - DU FLANGE BUSHING FSP-400253.A25 400253	£2.00	£2.40
147 - CONNECTING MEMBER FSP-446146.A15 446146	£2.00	£2.40
148 - SPEED INDICATOR FSP-487467.A15 487467	£7.99	£9.59
149 - SEALING RING FSP-447750.A5 447750	£4.48	£5.38
150 - BRUSH (PAIR) 230V FSP-488134.A11 488134	£38.81	£46.57
151 - BRUSH HOLDER (PAIR) 230V FSP-488136.A10 488136	£42.10	£50.52
152 - MOTOR HOUSING FSP-446309.A2 446309	£17.97	£21.56
153 - FIELD ASSEMBLY 230 V FSP-493503.A7 493503	£77.86	£93.43
154 - BEARING RING FSP-438613.A5 438613	£2.00	£2.40
155 - BALL BEARING FSP-228559.A89 228559	£4.06	£4.87
156 - ARMATURE 230 V FSP-493504.A7 493504	£166.02	£199.23
157 - BALL BEARING FSP-219021.A10 219021	£11.22	£13.46
158 - AIR GUIDE WASHER FSP-469886.A4 469886	£2.00	£2.40
159 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A14 400264	£2.00	£2.40
160 - FAN FSP-486880.A17 486880	£6.90	£8.28
161 - O-RING FSP-400488.A4 400488	£2.00	£2.40
162 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A15 400255	£2.00	£2.40
163 - HEXAGON NUT M8 FSP-200719.A1 200719	£2.00	£2.40
164 - CLAMPING SLEEVE FSP-400259.A14 400259	£2.00	£2.40
165 - TOOTHED BELT WHEEL FSP-445877.A16 445877	£16.48	£19.77
166 - MOTOR FLANGE FSP-451454.A10 451454	£43.88	£52.66
167 - MOTOR 230 V FSP-488153.A1 488153	£341.10	£409.32
168 - LIP RING FSP-447968.A12 447968	£2.00	£2.40
169 - HOUSING FSP-488154.A14 488154	£21.42	£25.71
175 - PROTECTIVE CAP FSP-459077.A2 459077	£3.88	£4.65
176 - SET OF FLEXIBLE LEADS FSP-488440.A5 488440	£27.41	£32.89
178 - SPLINTER GUARD FSP-448694.A1 448694	£3.00	£3.60
179 - NO LONGER AVAILABLE FSP-00000.A1929 00000	-
180 - NO LONGER AVAILABLE FSP-00000.A1930 00000	-
181 - CABLE CLAMP FSP-431899.A6 431899	£2.00	£2.40
182 - SPACER WEDGE PLATE FSP-445927.A4 445927	£6.30	£7.56
183 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A13 774346	£2.00	£2.40
184 - SPACER WEDGE FSP-710662.A10 710662	£44.44	£53.33
185 - SPACER WEDGE HOLDER FSP-488158.A1 488158	£70.85	£85.02
186 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A14 209354	£2.00	£2.40
187 - SPACER WEDGE HOLDER FSP-445926.A13 445926	£16.90	£20.28
188 - FLANGE BUSHING FSP-447555.A5 447555	£2.00	£2.40
190 - BOLT FSP-447358.A2 447358	£2.48	£2.97
191 - CONNECTING ROD FSP-446528.A12 446528	£2.00	£2.40
192 - WASHER FSP-447702.A15 447702	£2.00	£2.40
193 - SNAP RING FSP-200615.A10 200615	£2.00	£2.40
194 - PRESSURE CLAMPING ELEMENT FSP-400287.A33 400287	£4.89	£5.87
202 - STOP PROFILE CS 70 FSP-448141.A21 448141	£31.42	£37.71
203 - PROFILE CS 70 FSP-465708.A24 465708	£33.70	£40.44
204 - CLAMPING PLATE FSP-10023711.A21 10023711	£4.44	£5.33
205 - SWIVELING SEGMENT FSP-448014.A26 448014	£34.26	£41.11
206 - SCALE FSP-488156.A36 488156	£25.04	£30.05
207 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A20 400348	£2.00	£2.40
208 - FLAT HEAD SCREW FSP-448065.A26 448065	£3.81	£4.57
209 - WASHER FSP-448471.A20 448471	£3.62	£4.34
210 - ROTARY KNOB FSP-487755.A24 487755	£9.03	£10.84
211 - ROTARY KNOB FSP-440713.A5 440713	£2.64	£3.17
212 - FLAT HEAD SCREW M4 X 8 FSP-219043.A37 219043	£2.00	£2.40
213 - STUD SCREW FSP-464525.A15 464525	£2.00	£2.40
214 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A29 200684	£2.00	£2.40
215 - SUPPORT FSP-489181.A0 489181	£30.82	£36.99
218 - SLEEVE 5 X 12 MM FSP-228692.A23 228692	£2.00	£2.40
219 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A27 228534	£2.00	£2.40
220 - SPACER BUSH FSP-448066.A15 448066	£9.59	£11.51
221 - CLAMPING ELEMENT FSP-488433.A2 488433	£43.88	£52.66
222 - CLAMP SUPPORT FSP-10031568.A18 10031568	£14.60	£17.52
223 - GRIP FSP-487893.A20 487893	£7.24	£8.69
224 - SLEEVE 6 X 36 MM FSP-400289.A20 400289	£2.00	£2.40
225 - PRESSURE SPRING FSP-448064.A16 448064	£2.00	£2.40
226 - ROTARY KNOB M6 FSP-483350.A36 483350	£6.30	£7.56
230 - ROLLER FSP-488868.A15 488868	£44.02	£52.82
231 - ROLLER FSP-488867.A2 488867	£41.96	£50.35
232 - CYLINDER ROLLER FSP-488870.A19 488870	£31.50	£37.80
233 - CAR FRONT FSP-497195.A17 497195	£65.54	£78.65
234 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A13 228653	£2.00	£2.40
235 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A2 400257	£2.00	£2.40
236 - HEXAGON SCREW M8 X 60 FSP-400382.A8 400382	£2.00	£2.40
238 - GRIP FSP-487555.A11 487555	£7.97	£9.57
239 - SCALE FSP-446467.A11 446467	£16.05	£19.26
240 - KNOB LEVER FSP-446063.A15 446063	£7.92	£9.51
242 - DRAW SPRING FSP-447263.A15 447263	£2.00	£2.40
243 - END STOP FSP-449868.A4 449868	£7.31	£8.77
244 - GRIP FSP-449869.A13 449869	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A47 202824	£2.00	£2.40
246 - ECCENTRIC NUT FSP-449928.A15 449928	£7.67	£9.20
247 - CRANK FSP-488159.A23 488159	£18.49	£22.19
248 - HEXAGON NUT M6 FSP-228541.A4 228541	£2.00	£2.40
249 - SPRING DISC FSP-200588.A9 200588	£2.00	£2.40
250 - SHIM RING FSP-400884.A1 400884	£2.00	£2.40
251 - SPINDLE FSP-488271.A12 488271	£37.69	£45.23
252 - BEARING FSP-446470.A1 446470	£4.88	£5.85
253 - WASHER FSP-446472.A16 446472	£2.87	£3.44
254 - INDICATOR FSP-446468.A1 446468	£2.00	£2.40
255 - FELT INSERT FSP-451917.A0 451917	£2.00	£2.40
256 - FELT INSERT FSP-451918.A17 451918	£2.00	£2.40
257 - STRIPPER FSP-496821.A14 496821	£19.81	£23.77
258 - LOCK WASHER FSP-447961.A14 447961	£2.00	£2.40
259 - STRIPPER FSP-496820.A3 496820	£14.02	£16.83
260 - SNAP RING FSP-200618.A10 200618	£2.00	£2.40
261 - ROLLER FSP-488869.A2 488869	£42.34	£50.81
262 - GEAR FSP-446072.A1 446072	£3.56	£4.27
263 - WASHER FSP-447702.A16 447702	£2.00	£2.40
264 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A60 228567	£2.00	£2.40
265 - DRAW SPRING FSP-447263.A14 447263	£2.00	£2.40
266 - SUPPORTING BEARING FSP-465449.A7 465449	£8.81	£10.57
267 - CYLINDER PIN FSP-400260.A1 400260	£2.00	£2.40
268 - LEVER FSP-446671.A14 446671	£2.00	£2.40
269 - WASHER 4.3 MM FSP-228542.A31 228542	£2.00	£2.40
270 - FLANGE FSP-488147.A4 488147	£28.07	£33.68
271 - SUPPORT FSP-497196.A0 497196	£45.40	£54.48
272 - HEXAGON NUT M8 FSP-200719.A2 200719	£2.00	£2.40
273 - WASHER 8.4 MM FSP-228601.A16 228601	£2.00	£2.40
274 - WORKPIECE HOLDER FSP-450199.A11 450199	£6.29	£7.55
276 - SAFETY DEVICE FSP-492132.A6 492132	£28.82	£34.59

Attribute Name	Value
Brand	Festool

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Festool CS 70 E / 490193 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here

Shopping Basket (0) £0.00

Festool CS 70 E / 490193 Spare Parts

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Festool Extension table / 488061 Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 70 E / 490193 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Festool Extension table / 488061 Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
