Festool CS 70 E GB 110V / 493474 Spare Parts

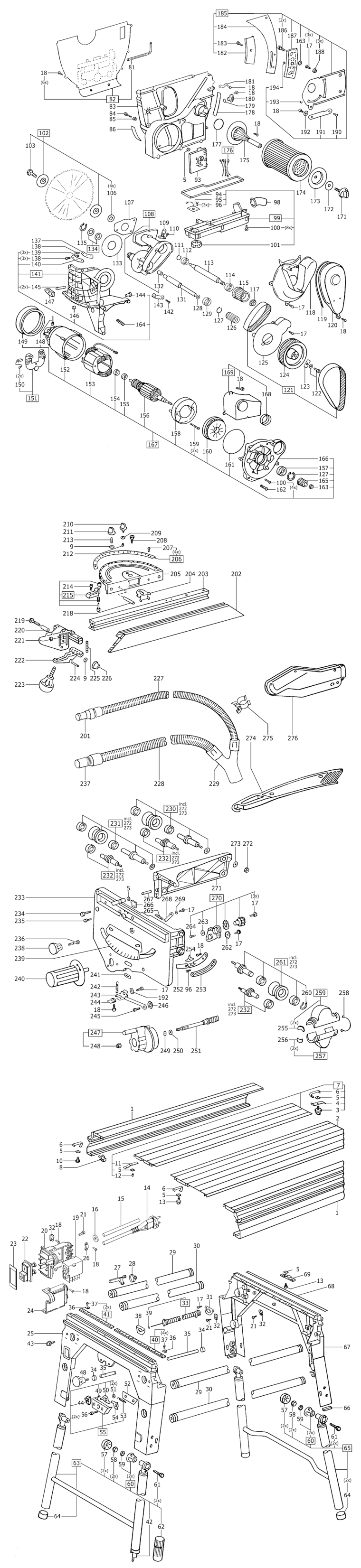

An exploded diagram and spare parts listing for the Festool CS 70 E GB 110V / 493474

	Ex VAT	Inc VAT
1 - CORNER PROFILE FSP-445867.A9 445867	£64.76	£77.71
2 - FLAT PROFILE FSP-445866.A8 445866	£93.68	£112.41
3 - ROTARY KNOB FSP-482110.A11 482110	£2.32	£2.78
4 - CLAMPING SUPPORT FSP-448234.A8 448234	£4.13	£4.96
5 - SQUARE NUT M6 FSP-228566.A57 228566	£2.00	£2.40
6 - SPRING FSP-447262.A2 447262	£2.00	£2.40
7 - TABLE TOP INSERT FSP-488160.A8 488160	£70.28	£84.34
8 - CLAMP FSP-449080.A1 449080	£2.00	£2.40
9 - WASHER 6.4 MM FSP-228546.A82 228546	£2.00	£2.40
10 - SCREW M6 X 12 FSP-450682.A9 450682	£2.00	£2.40
11 - PLATE SPRING FSP-448233.A9 448233	£2.00	£2.40
12 - THREADED PIN M6 X 10 FSP-772405.A16 772405	£2.00	£2.40
13 - SCREW M6 X 12 FSP-449888.A0 449888	£2.00	£2.40
14 - CABLE GB 110V FSP-493480.A0 493480	£25.58	£30.69
15 - TRAILING CABLE FSP-458756.A5 458756	£25.58	£30.69
16 - RUBBER RING FSP-458613.A11 458613	£2.00	£2.40
17 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A44 219075	£2.00	£2.40
18 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A82 228584	£2.00	£2.40
19 - PROTECT SWITCH FSP-466292.A0 466292	£41.16	£49.39
20 - SWITCHING HOUSING FSP-447703.A0 447703	£8.42	£10.11
21 - RAISED-HEAD SCREW M4 X 12 FSP-228509.A9 228509	£2.00	£2.40
22 - PUSHER FSP-490211.A0 490211	£9.62	£11.54
23 - GASKET FSP-447768.A6 447768	£2.00	£2.40
24 - SWITCH COVER FSP-447704.A15 447704	£4.75	£5.70
25 - PORTAL FSP-462419.A1 462419	£137.92	£165.51
26 - CABLE CLAMP FSP-439288.A54 439288	£2.00	£2.40
27 - CABLE HOLDER FSP-449273.A16 449273	£2.71	£3.25
28 - CLIP FSP-400428.A8 400428	£3.56	£4.27
29 - PIPE FSP-459286.A0 459286	£55.66	£66.79
30 - AXLE TUBE FSP-459287.A14 459287	£53.54	£64.25
32 - CLIP FSP-458614.A16 458614	£2.00	£2.40
33 - SHOCK ABSORBER FSP-488139.A9 488139	£39.74	£47.69
34 - BUFFER FSP-447528.A10 447528	£2.00	£2.40
35 - PULL ROD FSP-487568.A1 487568	£50.70	£60.84
36 - SHEET METAL NUT FSP-448477.A7 448477	£2.00	£2.40
37 - RAISED-HEAD SCREW 2.5 X 8 MM FSP-400444.A16 400444	£2.00	£2.40
38 - BEARING SHEET FSP-448236.A12 448236	£2.00	£2.40
39 - WASHER FSP-222490.A30 222490	£2.00	£2.40
40 - SCALE FSP-488138.A8 488138	£19.35	£23.22
41 - SCALE FSP-488137.A9 488137	£15.60	£18.72
42 - ADJUSTMENT FSP-448178.A13 448178	£2.00	£2.40
43 - SCREW M8 X 25 FSP-450683.A9 450683	£2.00	£2.40
44 - GRIP FSP-446974.A15 446974	£2.00	£2.40
48 - GRIP FSP-487569.A15 487569	£12.60	£15.12
49 - PRESSURE CLAMPING ELEMENT FSP-400286.A13 400286	£4.56	£5.47
50 - LEVER FSP-446669.A16 446669	£3.78	£4.53
51 - SLEEVE FSP-449122.A15 449122	£2.00	£2.40
52 - HOLDING PLATE FSP-447789.A7 447789	£7.02	£8.43
53 - DRAW SPRING FSP-447263.A45 447263	£2.00	£2.40
54 - DETENT LEVER FSP-702066.A8 702066	£5.68	£6.82
55 - GUIDE FSP-488140.A7 488140	£34.68	£41.61
56 - CHEESE HEAD SCREW M6 X 25 FSP-200128.A2 200128	£2.00	£2.40
57 - UPPER SECTION OF PISTOL FSP-447534.A10 447534	£2.00	£2.40
58 - HEXAGON NUT M8 FSP-200735.A31 200735	£2.00	£2.40
59 - HEXAGON NUT M8 FSP-200719.A87 200719	£2.00	£2.40
60 - LOWER SECTION OF PISTOL FSP-488523.A14 488523	£2.00	£2.40
61 - HEXAGON SCREW M8 X 75 FSP-400309.A6 400309	£2.00	£2.40
62 - FOOT FSP-465883.A32 465883	£13.48	£16.18
63 - FOLDAWAY LEG FSP-499888.A13 499888	£79.78	£95.74
64 - RUBBER FOOT FSP-465163.A41 465163	£3.12	£3.75
64 - RUBBER FOOT FSP-465163.A42 465163	£3.12	£3.75
65 - FOLDAWAY LEG FSP-499889.A7 499889	£72.20	£86.64
66 - RUBBER FOOT (4 PCS.) FSP-492255.A18 492255	£17.98	£21.57
67 - PORTAL FSP-462420.A13 462420	£137.92	£165.51
68 - STICKER FSP-448251.A9 448251	£7.37	£8.84
69 - STOP FSP-448118.A14 448118	£2.00	£2.40
81 - PIN KEY FSP-450935.A7 450935	£2.00	£2.40
82 - COVER FSP-488152.A4 488152	£49.29	£59.15
83 - PROTECTIVE COVER FSP-460737.A13 460737	£32.74	£39.29
84 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A5 228612	£2.00	£2.40
85 - FLANGE BUSHING FSP-449159.A3 449159	£3.44	£4.13
86 - SPLINTER GUARD FSP-448695.A0 448695	£2.00	£2.40
93 - ELECTRONIC 110V FSP-488408.A1 488408	£117.06	£140.47
94 - SEALING FRAME FSP-447584.A1 447584	£5.31	£6.37
95 - POTI FSP-487466.A6 487466	£12.72	£15.27
96 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A207 219031	£2.00	£2.40
98 - EXTRACTOR CONNECTOR FSP-446588.A15 446588	£2.66	£3.19
99 - COVER FSP-488155.A6 488155	£40.58	£48.70
100 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A22 219068	£2.00	£2.40
101 - ADJUSTING KNOB FSP-447115.A0 447115	£4.44	£5.33
102 - CLAMPING FLANGE FSP-488151.A12 488151	£60.72	£72.86
103 - FLANGE BOLT M8 X 15 FSP-446370.A7 446370	£9.99	£11.99
106 - SPRING WASHER FSP-444235.A25 444235	£2.00	£2.40
107 - GLIDE PLATE FSP-450055.A17 450055	£4.02	£4.82
108 - ROCKER FSP-488149.A12 488149	£109.49	£131.39
109 - SPINDLE STOP FSP-488150.A5 488150	£24.08	£28.90
110 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A15 228582	£2.00	£2.40
111 - CIRCLIP FSP-219855.A6 219855	£2.00	£2.40
112 - BALL BEARING FSP-789595.A19 789595	£8.79	£10.55
113 - SHAFT FSP-202845.A16 202845	£45.81	£54.97
114 - BALL BEARING FSP-400467.A12 400467	£22.55	£27.06
115 - TOOTHED BELT WHEEL FSP-445880.A7 445880	£37.13	£44.56
117 - NUT M10 FSP-451484.A13 451484	£2.00	£2.40
118 - AIR DUCT FSP-446473.A16 446473	£7.99	£9.59
119 - FELT STRIPE FSP-447962.A11 447962	£2.00	£2.40
120 - MOTOR COVER FSP-446469.A0 446469	£8.18	£9.81
121 - TOOTHED BELT FSP-488135.A11 488135	£46.72	£56.07
122 - SCREW FSP-401165.A21 401165	£2.00	£2.40
123 - DRIVING WASHER FSP-446937.A1 446937	£2.00	£2.40
124 - TOOTHED BELT WHEEL FSP-445878.A10 445878	£36.32	£43.59
125 - COVER FSP-447710.A2 447710	£6.64	£7.97
126 - GEAR FSP-491936.A12 491936	£31.83	£38.20
127 - SNAP RING FSP-771483.A18 771483	£2.00	£2.40
128 - WASHER FSP-449203.A1 449203	£2.00	£2.40
129 - BALL BEARING FSP-789775.A28 789775	£9.65	£11.58
131 - SHAFT FSP-202846.A1 202846	£41.41	£49.69
132 - NEEDLE BUSHING FSP-400254.A12 400254	£7.99	£9.59
133 - WASHER FSP-446474.A1 446474	£7.63	£9.16
134 - COMPENSATING WASHER FSP-488465.A1 488465	£12.99	£15.59
135 - SNAP RING FSP-200414.A17 200414	£2.00	£2.40
137 - SUPPORT PLATE FSP-446704.A7 446704	£7.99	£9.59
139 - HEXAGON NUT M5 FSP-200717.A27 200717	£2.00	£2.40
140 - BOARD SEGMENT FSP-446147.A12 446147	£6.55	£7.86
141 - SWIVELING SEGMENT FSP-488148.A5 488148	£95.98	£115.17
143 - TOOTH SEGMENT FSP-202847.A16 202847	£8.68	£10.42
144 - DU FLANGE BUSHING FSP-400253.A9 400253	£2.00	£2.40
145 - CYLINDER PIN FSP-400097.A6 400097	£2.00	£2.40
146 - DU BUSHING FSP-236477.A0 236477	£2.00	£2.40
147 - CONNECTING MEMBER FSP-446146.A5 446146	£2.00	£2.40
148 - SPEED INDICATOR FSP-487467.A5 487467	£7.99	£9.59
149 - SEALING RING FSP-447750.A10 447750	£4.48	£5.38
150 - BRUSH (PAIR) 110V FSP-493498.A0 493498	£43.07	£51.68
151 - BRUSH HOLDER (PAIR) 110V FSP-493499.A1 493499	£43.07	£51.68
152 - MOTOR HOUSING FSP-446309.A14 446309	£17.97	£21.56
153 - FIELD ASSEMBLY FSP-494009.A0 494009	£78.99	£94.79
154 - BEARING RING FSP-438613.A46 438613	£2.00	£2.40
155 - BALL BEARING FSP-228559.A2 228559	£4.06	£4.87
156 - ARMATURE 110V FSP-493501.A1 493501	£163.44	£196.13
157 - BALL BEARING FSP-219021.A23 219021	£11.22	£13.46
158 - AIR GUIDE WASHER FSP-469886.A12 469886	£2.00	£2.40
159 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-400264.A5 400264	£2.00	£2.40
160 - FAN FSP-486880.A8 486880	£6.90	£8.28
161 - O-RING FSP-400488.A10 400488	£2.00	£2.40
162 - RAISED-HEAD SCREW M5 X 40 FSP-400255.A5 400255	£2.00	£2.40
164 - CLAMPING SLEEVE FSP-400259.A5 400259	£2.00	£2.40
165 - TOOTHED BELT WHEEL FSP-445877.A7 445877	£16.48	£19.77
166 - MOTOR FLANGE FSP-451454.A6 451454	£43.88	£52.66
167 - MOTOR GB 110V FSP-493500.A0 493500	£346.15	£415.38
168 - LIP RING FSP-447968.A1 447968	£2.00	£2.40
169 - HOUSING FSP-488154.A7 488154	£21.42	£25.71
171 - ROTARY KNOB M6 X 22.5 FSP-10734068.A20 10734068	£2.00	£2.40
172 - SEALING RING FSP-449830.A0 449830	£2.00	£2.40
173 - COVER FSP-447997.A12 447997	£3.62	£4.35
174 - FILTER CARTRIDGE FSP-447995.A12 447995	£20.35	£24.42
175 - FILTER HOUSING FSP-447996.A0 447996	£7.86	£9.43
176 - SET OF FLEXIBLE LEADS FSP-488440.A17 488440	£27.41	£32.89
177 - O-RING FSP-442413.A28 442413	£2.00	£2.40
178 - SPLINTER GUARD FSP-448694.A17 448694	£3.00	£3.60
181 - CABLE CLAMP FSP-431899.A45 431899	£2.00	£2.40
182 - SPACER WEDGE PLATE FSP-445927.A10 445927	£6.30	£7.56
183 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A25 774346	£2.00	£2.40
184 - SPACER WEDGE FSP-710662.A5 710662	£44.44	£53.33
185 - SPACER WEDGE HOLDER FSP-488158.A6 488158	£70.85	£85.02
186 - CHEESE HEAD SCREW M6 X 14 FSP-209354.A0 209354	£2.00	£2.40
187 - SPACER WEDGE HOLDER FSP-445926.A7 445926	£16.90	£20.28
188 - FLANGE BUSHING FSP-447555.A8 447555	£2.00	£2.40
190 - BOLT FSP-447358.A10 447358	£2.48	£2.97
191 - CONNECTING ROD FSP-446528.A2 446528	£2.00	£2.40
193 - SNAP RING FSP-200615.A7 200615	£2.00	£2.40
194 - PRESSURE CLAMPING ELEMENT FSP-400287.A15 400287	£4.89	£5.87
201 - CONNECTING SLEEVE FSP-577162.A79 577162	£16.25	£19.50
202 - STOP PROFILE CS 70 FSP-448141.A1 448141	£31.42	£37.71
203 - PROFILE CS 70 FSP-465708.A12 465708	£33.70	£40.44
204 - CLAMPING PLATE FSP-10023711.A31 10023711	£4.44	£5.33
205 - SWIVELING SEGMENT FSP-448014.A0 448014	£34.26	£41.11
206 - SCALE FSP-488156.A10 488156	£25.04	£30.05
207 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A14 400348	£2.00	£2.40
208 - FLAT HEAD SCREW FSP-448065.A0 448065	£3.81	£4.57
209 - WASHER FSP-448471.A10 448471	£3.62	£4.34
210 - ROTARY KNOB FSP-487755.A10 487755	£9.03	£10.84
211 - ROTARY KNOB FSP-440713.A70 440713	£2.64	£3.17
212 - FLAT HEAD SCREW M4 X 8 FSP-219043.A25 219043	£2.00	£2.40
213 - STUD SCREW FSP-464525.A23 464525	£2.00	£2.40
214 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A68 200684	£2.00	£2.40
215 - SUPPORT FSP-489181.A30 489181	£30.82	£36.99
218 - SLEEVE 5 X 12 MM FSP-228692.A55 228692	£2.00	£2.40
219 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A16 228534	£2.00	£2.40
220 - SPACER BUSH FSP-448066.A41 448066	£9.59	£11.51
221 - CLAMPING ELEMENT FSP-488433.A17 488433	£43.88	£52.66
222 - CLAMP SUPPORT FSP-10031568.A10 10031568	£14.60	£17.52
223 - GRIP FSP-487893.A9 487893	£7.24	£8.69
224 - SLEEVE 6 X 36 MM FSP-400289.A10 400289	£2.00	£2.40
225 - PRESSURE SPRING FSP-448064.A38 448064	£2.00	£2.40
226 - ROTARY KNOB M6 FSP-483350.A29 483350	£6.30	£7.56
227 - HOSE 27 X 2 M FSP-459250.A3 459250	£38.39	£46.07
228 - HOSE 36 X 1.5 M FSP-459251.A21 459251	£38.39	£46.07
229 - Y-PIECE FSP-450575.A1 450575	£25.45	£30.54
230 - ROLLER FSP-488868.A8 488868	£44.02	£52.82
231 - ROLLER FSP-488867.A8 488867	£41.96	£50.35
232 - CYLINDER ROLLER FSP-488870.A10 488870	£31.50	£37.80
233 - CAR FRONT FSP-497195.A0 497195	£65.54	£78.65
234 - CHEESE HEAD SCREW M6 X 40 FSP-228653.A7 228653	£2.00	£2.40
235 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A28 400257	£2.00	£2.40
236 - HEXAGON SCREW M8 X 60 FSP-400382.A13 400382	£2.00	£2.40
237 - REDUCING SLEEVE. ANTISTATIC FSP-452358.A6 452358	£26.08	£31.30
238 - GRIP FSP-487555.A30 487555	£7.97	£9.57
239 - SCALE FSP-446467.A0 446467	£16.05	£19.26
240 - KNOB LEVER FSP-446063.A7 446063	£7.92	£9.51
241 - STICKER FSP-447577.A4 447577	£2.00	£2.40
243 - END STOP FSP-449868.A17 449868	£7.31	£8.77
244 - GRIP FSP-449869.A0 449869	£2.00	£2.40
245 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A2 202824	£2.00	£2.40
246 - ECCENTRIC NUT FSP-449928.A0 449928	£7.67	£9.20
247 - CRANK FSP-488159.A9 488159	£18.49	£22.19
248 - HEXAGON NUT M6 FSP-228541.A47 228541	£2.00	£2.40
249 - SPRING DISC FSP-200588.A36 200588	£2.00	£2.40
250 - WASHER 8.4 MM FSP-219049.A43 219049	£2.00	£2.40
251 - SPINDLE FSP-488271.A8 488271	£37.69	£45.23
252 - BEARING FSP-446470.A17 446470	£4.88	£5.85
253 - WASHER FSP-446472.A0 446472	£2.87	£3.44
255 - FELT INSERT FSP-451917.A16 451917	£2.00	£2.40
256 - FELT INSERT FSP-451918.A1 451918	£2.00	£2.40
257 - STRIPPER FSP-496821.A1 496821	£19.81	£23.77
258 - LOCK WASHER FSP-447961.A8 447961	£2.00	£2.40
259 - STRIPPER FSP-496820.A16 496820	£14.02	£16.83
260 - SNAP RING FSP-200618.A14 200618	£2.00	£2.40
261 - ROLLER FSP-488869.A9 488869	£42.34	£50.81
262 - GEAR FSP-446072.A9 446072	£3.56	£4.27
263 - WASHER FSP-447702.A36 447702	£2.00	£2.40
264 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A136 228567	£2.00	£2.40
266 - SUPPORTING BEARING FSP-465449.A17 465449	£8.81	£10.57
267 - CYLINDER PIN FSP-400260.A9 400260	£2.00	£2.40
268 - LEVER FSP-446671.A1 446671	£2.00	£2.40
269 - WASHER 4.3 MM FSP-228542.A17 228542	£2.00	£2.40
270 - FLANGE FSP-488147.A9 488147	£28.07	£33.68
271 - SUPPORT FSP-497196.A16 497196	£45.40	£54.48
273 - WASHER 8.4 MM FSP-228601.A32 228601	£2.00	£2.40
274 - WORKPIECE HOLDER FSP-450199.A23 450199	£6.29	£7.55
275 - CLAMP FSP-450158.A18 450158	£2.00	£2.40
276 - SAFETY DEVICE FSP-492132.A13 492132	£28.82	£34.59

Attribute Name	Value
Brand	Festool

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Festool CS 70 E GB 110V / 493474 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Festool CS 70 E GB 110V / 493474 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 70 E GB 110V / 493474 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
