Festool CS 70 KA / 488556 Spare Parts

Festool CS 70 KA / 488556 Spare Parts

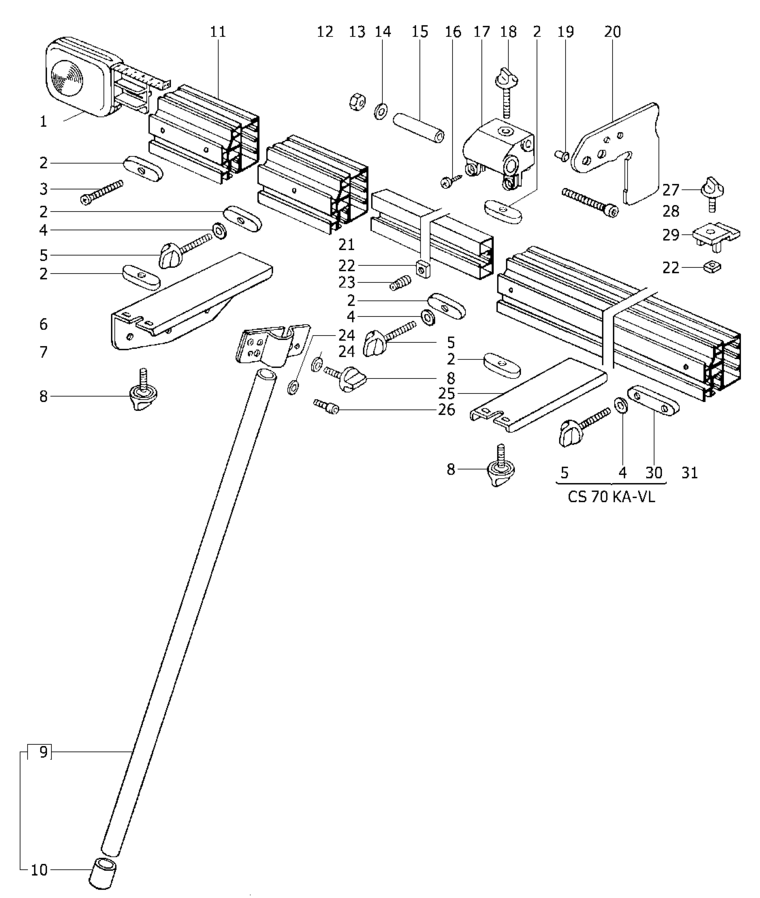

An exploded diagram and spare parts listing for the Festool CS 70 KA / 488556
Ex VAT Inc VAT
1 - TAPE MEASURE FSP-451126.A0 451126 £66.78 £80.14
2 - FEATHER KEY FSP-451630.A1 451630 £4.23 £5.08
3 - RAISED-HEAD SCREW M6 X 40 FSP-400523.A0 400523 £2.00 £2.40
4 - WASHER FSP-402935.A81 402935 £2.00 £2.40
5 - ROTARY KNOB M6 FSP-453067.A7 453067 £3.20 £3.84
6 - SHEET METAL FSP-437672.A0 437672 £37.42 £44.90
7 - PIPE CLAMP FSP-439771.A6 439771 £9.91 £11.89
8 - ROTARY KNOB FSP-482110.A33 482110 £2.32 £2.78
9 - PIPE FSP-489367.A0 489367 £25.92 £31.10
10 - RUBBER FOOT FSP-437674.A6 437674 £2.00 £2.40
11 - STOP PROFILE FSP-453064.A4 453064 £31.50 £37.80
12 - NO LONGER AVAILABLE FSP-00000.A1927 00000 -
13 - HEXAGON NUT M6 FSP-228541.A8 228541 £2.00 £2.40
14 - WASHER 6.4 MM FSP-200578.A17 200578 £2.00 £2.40
15 - AXLE FSP-451132.A0 451132 £7.23 £8.68
16 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A81 219031 £2.00 £2.40
17 - ADJUSTABLE STOP FSP-451130.A4 451130 £3.80 £4.56
18 - ROTARY KNOB M6 FSP-451659.A0 451659 £2.00 £2.40
19 - PRESSURE CLAMPING ELEMENT FSP-400287.A37 400287 £4.89 £5.87
20 - STOP FSP-451133.A4 451133 £8.68 £10.42
21 - PIPE FSP-453020.A0 453020 £48.12 £57.74
22 - SQUARE NUT M6 FSP-228566.A91 228566 £2.00 £2.40
23 - THREADED PIN M6 X 10 FSP-772405.A8 772405 £2.00 £2.40
24 - WASHER 6.4 MM FSP-228546.A14 228546 £2.00 £2.40
25 - SHEET METAL FSP-437671.A5 437671 £17.97 £21.56
26 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A23 200684 £2.00 £2.40
27 - ROTARY KNOB M6 FSP-438320.A20 438320 £10.02 £12.03
28 - CHEESE HEAD SCREW M6 X 55 FSP-400501.A0 400501 £2.00 £2.40
29 - MEASURING TAPE CLAMP FSP-451128.A0 451128 £2.00 £2.40
30 - FEATHER KEY FSP-448780.A2 448780 £8.42 £10.11
31 - STOP PROFILE FSP-453065.A0 453065 £91.08 £109.30
