Festool LEX 125/7/G / 692047 Spare Parts

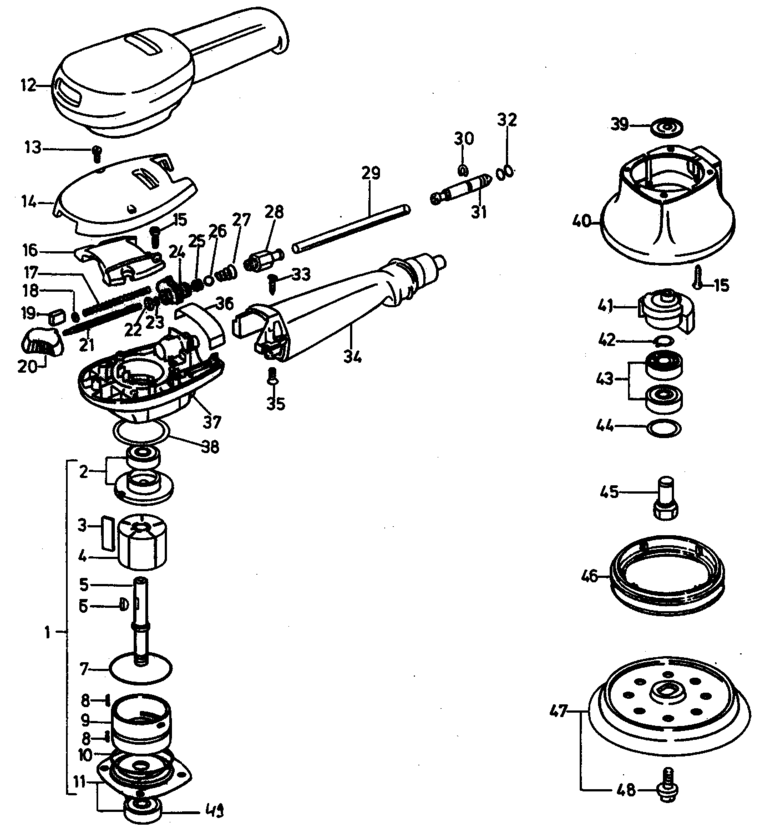

An exploded diagram and spare parts listing for the Festool LEX 125/7/G / 692047

	Ex VAT	Inc VAT
1 - MOTOR FSP-491592.A8 491592	£278.98	£334.78
2 - MOTOR COVER FSP-630103.A15 630103	£47.99	£57.59
3 - LAMELLA (5 SET) FSP-491615.A21 491615	£24.83	£29.80
4 - ROTOR FSP-491593.A9 491593	£42.02	£50.43
5 - SHAFT FSP-720089.A9 720089	£27.32	£32.79
6 - WOODRUFF KEY FSP-466338.A3 466338	£2.00	£2.40
7 - O-RING FSP-217178.A11 217178	£5.50	£6.60
8 - SLEEVE FSP-773627.A15 773627	£2.00	£2.40
9 - BUSH FSP-720418.A14 720418	£48.70	£58.44
10 - O-RING 60 X 1.5 MM FSP-233066.A19 233066	£3.19	£3.83
11 - HOUSING COVER FSP-630109.A17 630109	£59.02	£70.83
12 - CASING FSP-447175.A7 447175	£43.62	£52.35
13 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A86 228713	£2.00	£2.40
14 - CAP FSP-463536.A8 463536	£3.14	£3.77
15 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A108 228567	£2.00	£2.40
16 - WEIGHT FSP-462876.A18 462876	£13.98	£16.77
17 - PRESSURE SPRING FSP-720247.A11 720247	£2.00	£2.40
18 - NO LONGER AVAILABLE FSP-00000.A3209 00000	-
19 - SLIP PIECE FSP-720476.A10 720476	£2.00	£2.40
20 - ROTARY KNOB FSP-720477.A5 720477	£2.00	£2.40
21 - SWITCH LINKAGE FSP-720475.A5 720475	£2.87	£3.44
22 - WASHER FSP-720602.A13 720602	£2.00	£2.40
23 - O-RING FSP-200904.A13 200904	£2.00	£2.40
24 - PISTON FSP-720478.A7 720478	£2.00	£2.40
25 - O-RING FSP-206490.A7 206490	£2.00	£2.40
26 - BALL FSP-410290.A12 410290	£4.81	£5.77
27 - PRESSURE SPRING FSP-463317.A20 463317	£2.00	£2.40
28 - PIPE FSP-449396.A2 449396	£9.15	£10.98
29 - HOSE FSP-10014022.A5 10014022	£4.31	£5.17
30 - SNAP RING FSP-203270.A9 203270	£2.00	£2.40
31 - COMPRESSED AIR TUBE FSP-10014028.A3 10014028	£19.71	£23.65
32 - O-RING 6 X 1 MM PERBUNAN FSP-204118.A2 204118	£2.00	£2.40
33 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A87 228713	£2.00	£2.40
34 - NO LONGER AVAILABLE FSP-00000.A3208 00000	-
35 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A16 400014	£2.00	£2.40
36 - TRANSPARENCY FSP-720617.A6 720617	£2.00	£2.40
37 - HOUSING FSP-491566.A21 491566	£46.72	£56.07
38 - SEALING RING FSP-720246.A4 720246	£2.00	£2.40
39 - NILOS RING FSP-782082.A13 782082	£6.42	£7.71
40 - DUST EXTRACTION ATTACHMENT FSP-463326.A17 463326	£3.32	£3.98
41 - CAM FSP-467930.A1 467930	£54.01	£64.81
42 - SNAP RING FSP-200619.A24 200619	£2.00	£2.40
43 - BALL BEARING FSP-400048.A19 400048	£7.18	£8.62
44 - WASHER FSP-443660.A3 443660	£2.00	£2.40
45 - BEARING BOLT FSP-720438.A22 720438	£25.83	£31.00
46 - COLLAR FSP-703070.A18 703070	£10.48	£12.58
47 - SANDING PAD FSP-492284.A0 492284	£43.53	£52.24
48 - SCREW FSP-401165.A83 401165	£2.00	£2.40
49 - BALL BEARING FSP-401600.A2 401600	£11.18	£13.42
