Festool RAP 150 FE 230V / 494801 Spare Parts

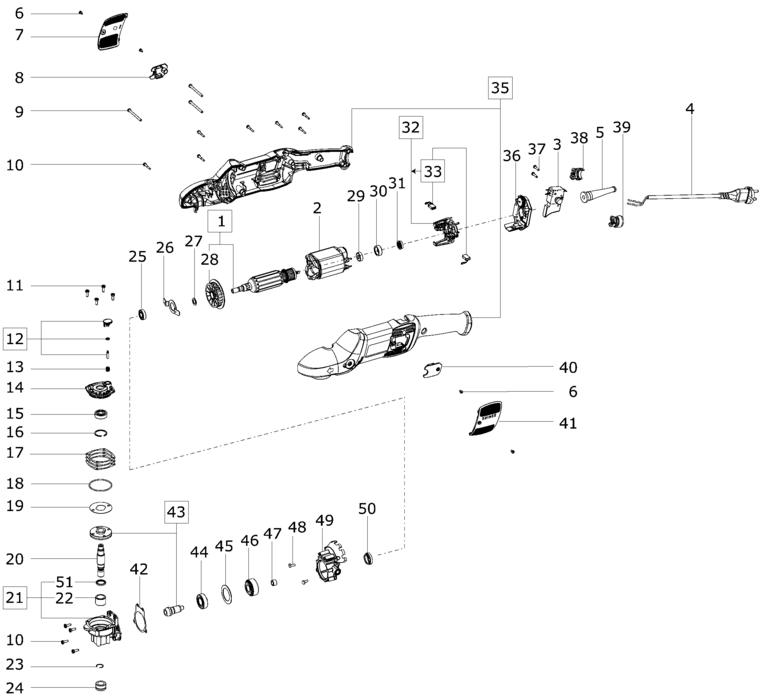

An exploded diagram and spare parts listing for the Festool RAP 150 FE 230V / 494801

	Ex VAT	Inc VAT
1 - ARMATURE 220-240V FSP-495142.A0 495142	£69.78	£83.74
2 - FIELD ASSEMBLY FSP-203202.A4 203202	£43.96	£52.75
3 - SWITCH FSP-473090.A1 473090	£24.83	£29.80
4 - CABLE WITH PLUG GB 240V FSP-477706.A0 477706	£41.54	£49.85
4 - CABLE WITH PLUG EU+ROK220V FSP-477705.A5 477705	£25.08	£30.09
5 - CABLE GROMMET FSP-445738.A24 445738	£2.00	£2.40
6 - RAISED-HEAD SCREW M 3 X 6 PZ SW DIN 7985 FSP-401026.A6 401026	£2.00	£2.40
7 - FILTER FSP-472999.A7 472999	£2.94	£3.53
8 - BRUSH CAP FSP-473001.A7 473001	£2.00	£2.40
9 - SLOTTED PAN HEAD SCREW FSP-401082.A1 401082	£2.00	£2.40
10 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A53 400174	£2.00	£2.40
11 - RAISED-HEAD SCREW FSP-400955.A2 400955	£2.00	£2.40
12 - SPINDLE STOP FSP-495143.A0 495143	£37.68	£45.21
13 - PRESSURE SPRING FSP-444754.A36 444754	£2.00	£2.40
14 - BEARING COVER FSP-496481.A2 496481	£48.12	£57.74
15 - BALL BEARING FSP-228798.A19 228798	£5.38	£6.45
16 - CIRCLIP FSP-400977.A7 400977	£2.00	£2.40
17 - SHIM RING FSP-472981.A1 472981	£2.00	£2.40
18 - O-RING FSP-400905.A0 400905	£2.00	£2.40
19 - STRIKE PLATE FSP-472982.A0 472982	£2.00	£2.40
20 - SPINDLE FSP-472987.A7 472987	£30.22	£36.26
21 - ANGLE HOUSING FSP-200358.A7 200358	£53.78	£64.54
22 - NEEDLE SLEEVE FSP-400980.A0 400980	£12.76	£15.31
23 - CIRCLIP FSP-400976.A0 400976	£2.00	£2.40
24 - LIMIT STOP WASHER FSP-472991.A0 472991	£18.63	£22.36
25 - BALL BEARING FSP-401018.A9 401018	£12.09	£14.51
26 - LOCKING PLATE FSP-472980.A1 472980	£5.58	£6.70
27 - SHIM RING FSP-782510.A12 782510	£2.00	£2.40
28 - FAN FSP-472994.A1 472994	£5.60	£6.72
29 - BALL BEARING FSP-228672.A13 228672	£4.41	£5.29
30 - BEARING SLEEVE FSP-628201.A6 628201	£2.00	£2.40
31 - SOLENOID RING FSP-444018.A52 444018	£2.00	£2.40
32 - BEARING BRIDGE FSP-10009198.A0 10009198	£29.57	£35.48
33 - BRUSH (PAIR) 230V FSP-495144.A4 495144	£10.18	£12.21
35 - HOUSING FSP-10021094.A2 10021094	£32.57	£39.08
36 - ELECTRONIC 220-240V FSP-496482.A0 496482	£48.44	£58.13
37 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A35 400584	£2.00	£2.40
38 - CLAMPING FSP-477964.A6 477964	£2.00	£2.40
39 - CLAMPING FSP-477962.A19 477962	£2.00	£2.40
40 - BRUSH CAP FSP-473000.A0 473000	£2.00	£2.40
41 - FILTER FSP-472998.A0 472998	£6.25	£7.50
42 - GASKET FSP-473584.A3 473584	£2.00	£2.40
43 - RING GEAR FSP-200364.A3 200364	£86.56	£103.87
44 - BALL BEARING FSP-401046.A1 401046	£7.04	£8.45
45 - SPRING WASHER FSP-400975.A0 400975	£8.62	£10.34
46 - RING GEAR FSP-200364.A4 200364	£86.56	£103.87
47 - NEEDLE BUSHING FSP-400969.A1 400969	£5.81	£6.97
48 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A31 228733	£2.00	£2.40
49 - GEAR HOUSING FSP-496484.A0 496484	£48.66	£58.39
50 - BEARING SLEEVE FSP-477394.A2 477394	£6.33	£7.60
51 - SEALING RING FSP-400886.A6 400886	£3.62	£4.35
52 - SHIM RING FSP-400884.A20 400884	£2.00	£2.40
