Festool BS 75 E / 490594 Spare Parts

Festool BS 75 E / 490594 Spare Parts
Home Details Reviews Delivery

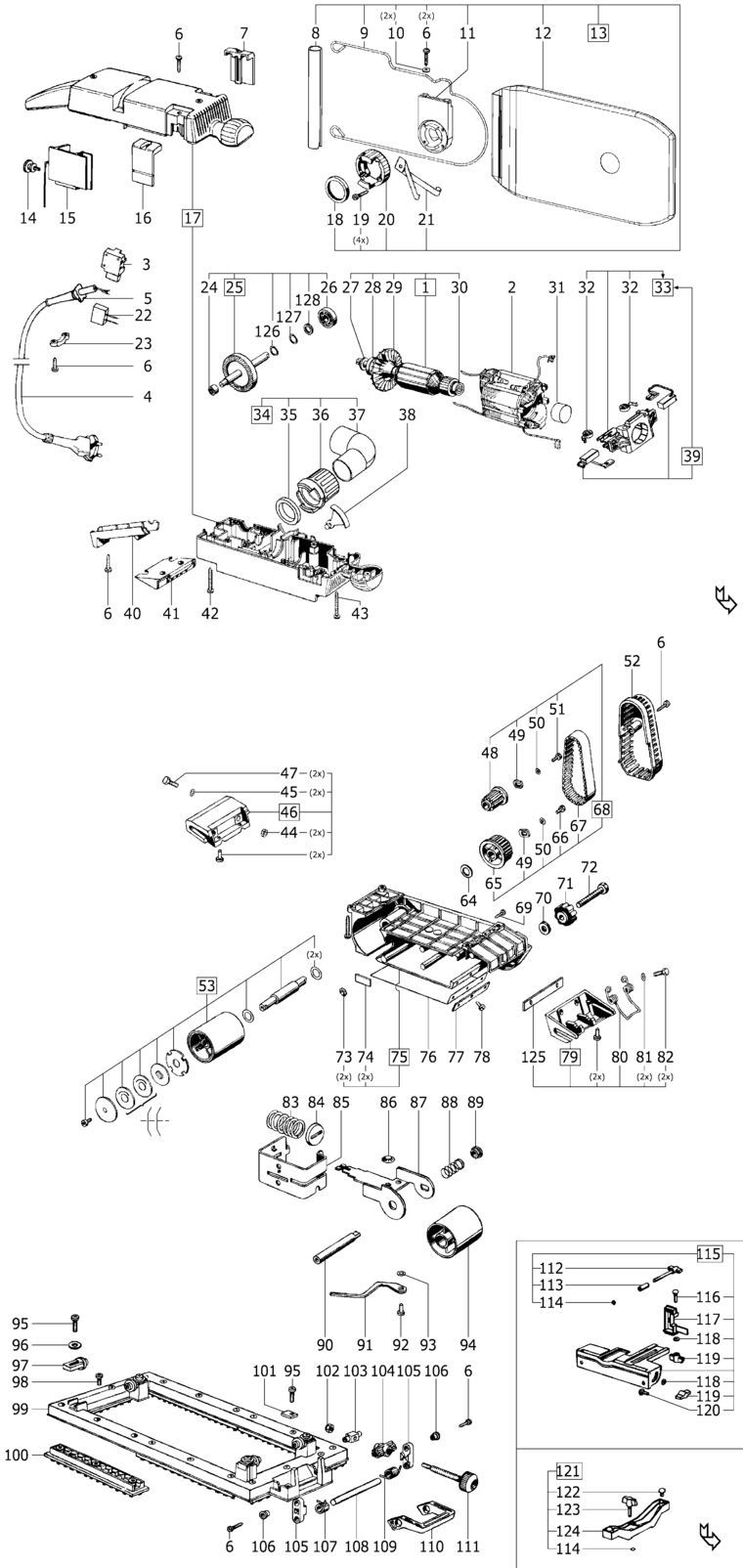

An exploded diagram and spare parts listing for the Festool BS 75 E / 490594
Ex VAT Inc VAT
1 - ARMATURE 230 V FSP-490724.A1 490724 £67.94 £81.53
2 - FIELD ASSEMBLY 230 V FSP-491213.A5 491213 £42.88 £51.45
3 - SWITCH 230 V FSP-492638.A9 492638 £24.46 £29.35
4 - MAINS CABLE EU FSP-460463.A15 460463 £25.08 £30.09
5 - CABLE GROMMET FSP-459847.A6 459847 £2.00 £2.40
6 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A67 228713 £2.00 £2.40
7 - COVER FSP-462003.A3 462003 £4.81 £5.77
8 - CLAMP FSP-460254.A12 460254 £6.39 £7.67
9 - BRACKET FSP-460218.A12 460218 £17.26 £20.71
10 - WASHER FSP-761519.A21 761519 £1.75 £2.10
11 - PRESSURE PIECE FSP-460302.A13 460302 £7.06 £8.47
12 - FILTER BAG FSP-460219.A5 460219 £25.78 £30.93
13 - DUST BAG FSP-490819.A4 490819 £28.79 £34.55
14 - ADJUSTING KNOB FSP-462298.A2 462298 £4.94 £5.93
15 - ELECTRONIC 220V FSP-492162.A5 492162 £47.80 £57.36
16 - COVER FSP-463003.A3 463003 £5.58 £6.70
17 - MOTOR HOUSING FSP-491512.A5 491512 £63.12 £75.75
18 - SEALING RING FSP-514020.A4 514020 £2.00 £2.40
19 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A116 228567 £2.00 £2.40
20 - ADAPTER FSP-460300.A4 460300 £9.32 £11.19
21 - PLATE SPRING FSP-518891.A9 518891 £9.17 £11.00
22 - CAPACITOR FSP-626066.A10 626066 £6.42 £7.71
23 - CABLE CLAMP FSP-761618.A20 761618 £2.00 £2.40
24 - NEEDLE SLEEVE FSP-415839.A3 415839 £4.72 £5.66
25 - GEAR SHAFT FSP-490864.A1 490864 £59.43 £71.32
26 - BALL BEARING FSP-789575.A23 789575 £5.99 £7.19
27 - CLAMPING RING FSP-462444.A7 462444 £5.24 £6.29
28 - BALL BEARING FSP-789575.A22 789575 £5.99 £7.19
29 - FAN FSP-761708.A9 761708 £3.62 £4.34
30 - BALL BEARING FSP-400680.A11 400680 £5.24 £6.29
31 - RUBBER RING FSP-450508.A14 450508 £2.00 £2.40
32 - TORSION SPRING FSP-460275.A0 460275 £5.12 £6.15
33 - BEARING BRIDGE FSP-490917.A7 490917 £30.27 £36.32
34 - EXTRACTION ADAPTER AA - BS 75 / 105 FSP-490818.A11 490818 £14.55 £17.46
35 - SEALING RING FSP-459873.A16 459873 £2.00 £2.40
36 - ADAPTER FSP-459852.A10 459852 £10.65 £12.78
37 - ANGLE PIECE FSP-459897.A10 459897 £4.41 £5.29
38 - AIR DUCT FSP-460159.A1 460159 £2.00 £2.40
39 - BRUSH (PAIR) 230V FSP-490918.A1 490918 £10.17 £12.20
40 - COVER FSP-463004.A5 463004 £4.81 £5.77
41 - GUIDE FSP-463001.A6 463001 £4.86 £5.83
42 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A50 400528 £2.00 £2.40
43 - SLOTTED PAN HEAD SCREW 3.9 X 50 MM FSP-432776.A2 432776 £2.00 £2.40
44 - SQUARE NUT M5 FSP-400701.A17 400701 £2.00 £2.40
45 - TOOTH DISC FSP-761542.A4 761542 £2.00 £2.40
46 - SUPPORT FSP-490914.A2 490914 £39.76 £47.71
47 - SCREW M5 X 14 FSP-400569.A8 400569 £2.00 £2.40
48 - CROWN GEAR FSP-731968.A7 731968 £8.99 £10.79
49 - DRIVER FSP-511935.A8 511935 £2.00 £2.40
50 - WASHER 4.3 MM FSP-228542.A42 228542 £2.00 £2.40
51 - HEXAGON SCREW M4 X 10 FSP-147117.A2 147117 £9.59 £11.51
52 - GEAR HOUSING FSP-460683.A6 460683 £4.58 £5.49
53 - DRIVING ROLLER FSP-490900.A8 490900 £61.68 £74.02
64 - SUPPORTING RING FSP-514527.A8 514527 £2.00 £2.40
65 - CROWN GEAR FSP-731967.A2 731967 £13.61 £16.33
66 - HEXAGON SCREW M4 X 10 LH FSP-421464.A3 421464 £9.28 £11.14
67 - FLAT TOOTH BELT FSP-729418.A6 729418 £20.27 £24.32
68 - BELT DRIVE FSP-490919.A8 490919 £39.24 £47.09
69 - SLOTTED PAN HEAD SCREW 3.9 X 13 MM FSP-203796.A7 203796 £2.00 £2.40
70 - RUBBER WASHER FSP-629057.A4 629057 £2.00 £2.40
71 - GRIP FSP-460129.A3 460129 £2.73 £3.28
72 - HEXAGON SCREW M6 X 40 FSP-228619.A3 228619 £2.00 £2.40
73 - WASHER FSP-459936.A7 459936 £2.00 £2.40
74 - GUIDE WASHER FSP-227668.A17 227668 £2.00 £2.40
75 - BELT CASING FSP-10245557.A6 10245557 £82.38 £98.86
76 - SANDING BASE FSP-490823.A7 490823 £13.16 £15.79
77 - STRIP FSP-228036.A6 228036 £2.00 £2.40
78 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A78 228570 £2.00 £2.40
79 - SUPPORT FSP-490913.A7 490913 £45.40 £54.48
80 - SPRING FSP-701424.A0 701424 £9.12 £10.94
81 - WASHER 5.3 MM FSP-761515.A3 761515 £2.00 £2.40
82 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A31 202824 £2.00 £2.40
83 - PRESSURE SPRING FSP-229792.A3 229792 £2.00 £2.40
84 - WASHER FSP-227552.A17 227552 £2.00 £2.40
85 - BRACKET FSP-512222.A1 512222 £14.15 £16.98
86 - WASHER FSP-459937.A12 459937 £2.00 £2.40
87 - BRACKET FSP-512230.A8 512230 £13.98 £16.77
88 - PRESSURE SPRING FSP-229784.A12 229784 £2.00 £2.40
89 - WASHER FSP-227641.A0 227641 £2.00 £2.40
90 - SHAFT FSP-649066.A3 649066 £16.32 £19.58
91 - LEVER FSP-227536.A14 227536 £5.58 £6.69
92 - TUBULAR RIVET FSP-413003.A10 413003 £2.00 £2.40
93 - SPRING DISC FSP-200588.A0 200588 £2.00 £2.40
94 - ADJUSTING ROLL FSP-490912.A3 490912 £35.94 £43.13
95 - RAISED-HEAD SCREW FSP-10016393.A11 10016393 £2.00 £2.40
96 - WASHER FSP-418269.A21 418269 £2.00 £2.40
97 - SHOULDER SCREW FSP-534471.A0 534471 £2.00 £2.40
98 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A41 219071 £2.00 £2.40
99 - SANDING FRAME FSP-10204901.A6 10204901 £37.21 £44.65
99 - SANDING FRAME FSP-460153.A2 460153 £44.02 £52.82
100 - CARBON BRUSH FSP-534358.A19 534358 £14.15 £16.98
101 - PLATE FSP-534420.A19 534420 £2.00 £2.40
102 - HEXAGON NUT M5 FSP-761511.A16 761511 £2.00 £2.40
103 - HINGE FSP-534463.A18 534463 £2.00 £2.40
104 - HINGE FSP-465015.A14 465015 £2.66 £3.19
105 - FLAP FSP-534382.A0 534382 £2.00 £2.40
106 - FLANGE BUSHING FSP-534439.A0 534439 £2.00 £2.40
107 - TORSION SPRING FSP-538841.A19 538841 £2.87 £3.44
108 - SHAFT FSP-460013.A16 460013 £4.18 £5.02
109 - TORSION SPRING FSP-534412.A1 534412 £2.00 £2.40
110 - ECCENTRIC OSCILLATING CRANK FSP-534390.A18 534390 £3.20 £3.84
111 - KNURLED SCREW FSP-460134.A15 460134 £15.97 £19.16
112 - BUTTERFLY SCREW M6 X 75 FSP-382590.A0 382590 £5.99 £7.19
113 - CLAMPING BRACKET FSP-541486.A0 541486 £4.69 £5.63
114 - O-RING FSP-200052.A45 200052 £2.00 £2.40
116 - ROUND-HEAD SCREW FSP-761486.A2 761486 £2.00 £2.40
117 - STOP ANGLE FSP-460006.A2 460006 £19.27 £23.12
118 - WASHER FSP-761516.A12 761516 £2.00 £2.40
119 - WING NUT M6 FSP-761601.A5 761601 £3.50 £4.20
120 - ROUND-HEAD SCREW M6 X 16 FSP-401463.A7 401463 £2.00 £2.40
122 - RUBBER PEDAL FSP-10004992.A4 10004992 £9.24 £11.09
123 - ROTARY KNOB M6 X 22.5 FSP-10734068.A43 10734068 £2.00 £2.40
124 - PEDAL FSP-10005040.A4 10005040 £26.08 £31.30
125 - STRIP FSP-637416.A11 637416 £4.81 £5.77
126 - SHIM RING FSP-782510.A1 782510 £2.00 £2.40
127 - WASHER FSP-761527.A9 761527 £2.00 £2.40
128 - WASHER FSP-761526.A6 761526 £2.00 £2.40
