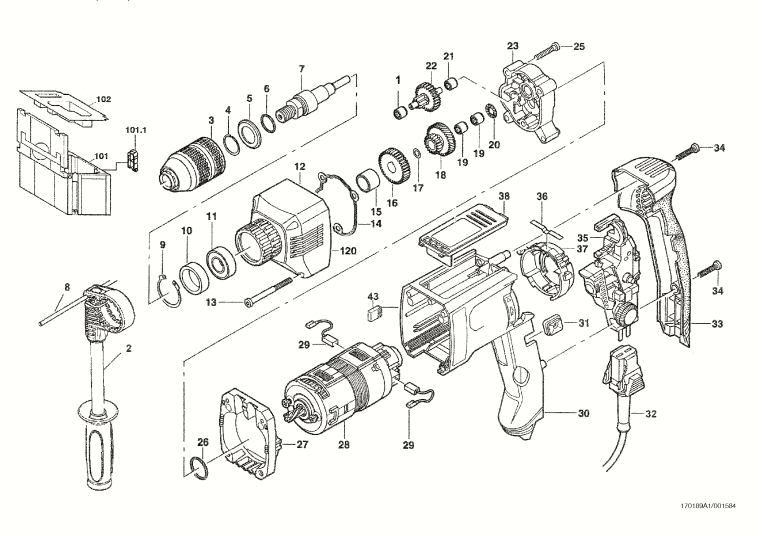

An exploded drawing and spare parts listing for the Mafell 917201 Drilling Machine HB 1 E in MAFELL-MAX

	Ex VAT	Inc VAT
1 - NEEDLE BEARING BUSH MAF-078307.A 078307	-
2 - ADDITIONAL HANDLE MAF-078308.A 078308	-
3 - QUICK-ACTION CHUCK MAF-078000.A0 078000	-
4 - RETAINING RING MAF-078009.A1 078009	-
5 - LID MAF-078309.A 078309	-
6 - SEALING RING MAF-078310.A 078310	-
7 - PART NAME NOT AVAILABLE MAF-078311.A 078311	-
8 - DEPTH STOP MAF-078312.A1 078312	-
9 - RETAINING RING MAF-078313.A 078313	-
10 - PART NAME NOT AVAILABLE MAF-078314.A 078314	-
11 - PART NAME NOT AVAILABLE MAF-078315.A 078315	-
12 - GEAR CASING MAF-078316.A 078316	-
13 - PART NAME NOT AVAILABLE MAF-078317.A 078317	-
14 - PART NAME NOT AVAILABLE MAF-078318.A 078318	-
15 - PART NAME NOT AVAILABLE MAF-078319.A 078319	-
16 - ROUE DENTÉE MAF-078320.A 078320	-
17 - SHIM RING MAF-078321.A 078321	-
18 - PART NAME NOT AVAILABLE MAF-078322.A 078322	-
19 - PART NAME NOT AVAILABLE MAF-078323.A 078323	-
20 - PART NAME NOT AVAILABLE MAF-078324.A 078324	-
21 - PART NAME NOT AVAILABLE MAF-078325.A 078325	-
22 - PART NAME NOT AVAILABLE MAF-078326.A 078326	-
23 - PART NAME NOT AVAILABLE MAF-078327.A 078327	-
25 - PART NAME NOT AVAILABLE MAF-078328.A 078328	-
26 - SEALING RING MAF-078034.A4 078034	-
27 - PART NAME NOT AVAILABLE MAF-078329.A 078329	-
28 - MAXXPOWERMOTOR MAF-078330.A 078330	-
29 - CARBON BRUSH MAF-076949.A7 076949	£7.09	£8.51
30 - MOTOR CASING MAF-078037.A3 078037	-
31 - LOCKING BUTTON ADAPTER MAF-078045.A3 078045	-
32 - PART NAME NOT AVAILABLE MAF-078044.A0 078044	-
33 - HANDLE COVER MAF-078042.A1 078042	-
34 - SCREW MAF-078043.A3 078043	-
35 - PART NAME NOT AVAILABLE MAF-078304.A1 078304	-
36 - CLICK SPRING MAF-078040.A1 078040	-
37 - CW/CCW REVERSING RING MAF-078039.A4 078039	-
38 - VENTILATION COVER MAF-078038.A0 078038	-
43 - SPACER MAF-078048.A2 078048	-
101 - CARRYING CASE MAFELL-MAX MAF-095041.A7 095041	£64.65	£77.58
101.1 - LATCH MAF-095074.A25 095074	-
102 - PLASTIC TRAY MAF-095048.A2 095048	-
120 - PART NAME NOT AVAILABLE MAF-078331.A 078331	-
