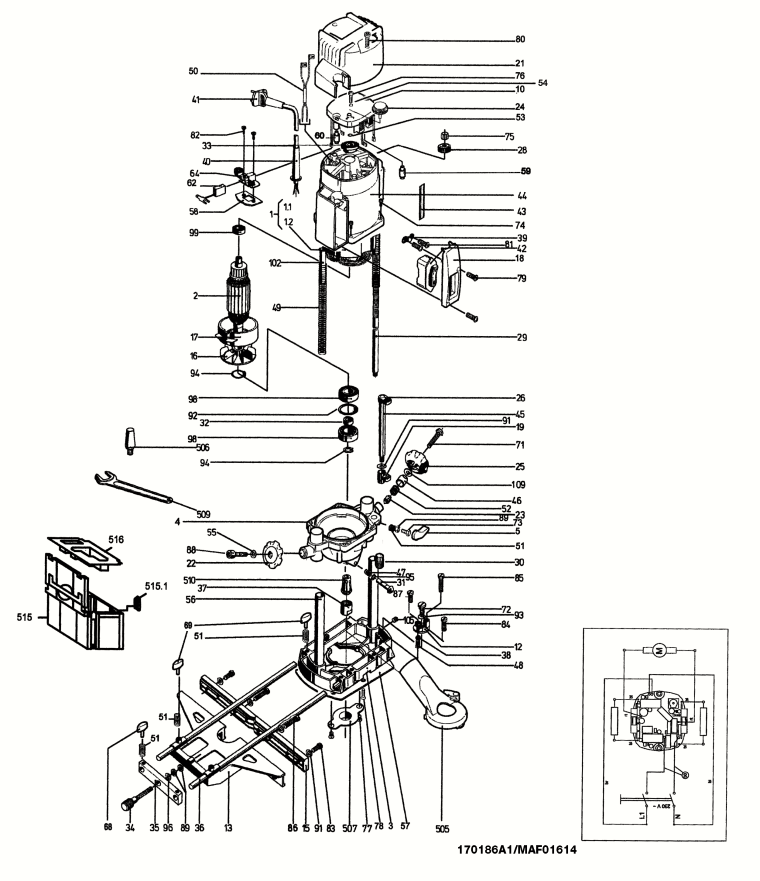

1 - MOTOR CASING WITH INDUCTOR 230 V
MAF-084626.A4
084626
|
-
|
|
|
|
1.1 - MOTOR CASING, EMPTY
MAF-204307.A2
204307
|
-
|
|
|
|
1.2 - INDUCTOR 230 V
MAF-084623.A2
084623
|
£157.31
|
£188.77
|
|
|
2 - ARMATURE BALANCED
MAF-088185.A7
088185
|
£268.63
|
£322.36
|
|
|
3 - BASE PLATE
MAF-204320.A6
204320
|
£185.69
|
£222.83
|
|
|
4 - FAN HOUSING
MAF-204319.A3
204319
|
£330.00
|
£396.00
|
|
|
5 - TENSIONING LEVER
MAF-203397.A0
203397
|
-
|
|
|
|
10 - CONTROL MODULE
MAF-077703.A1
077703
|
£206.25
|
£247.50
|
|
|
12 - REVOLVING DEPTH CONTROL TURRET
MAF-038967.A8
038967
|
-
|
|
|
|
13 - PARALLEL GUIDE FENCE
MAF-038980.A1
038980
|
-
|
|
|
|
15 - SLIDING BAR
MAF-038978.A3
038978
|
-
|
|
|
|
16 - FAN
MAF-201606.A8
201606
|
-
|
|
|
|
17 - AIR CONDUCTING RING
MAF-038968.A6
038968
|
-
|
|
|
|
18 - SWITCH COVER
MAF-204306.A4
204306
|
-
|
|
|
|
19 - INDICATOR
MAF-038951.A9
038951
|
-
|
|
|
|
21 - MOTOR COVER
MAF-204305.A
204305
|
-
|
|
|
|
22 - HANDLE
MAF-038970.A5
038970
|
£8.36
|
£10.03
|
|
|
23 - PRESSURE BOLT
MAF-038952.A1
038952
|
-
|
|
|
|
24 - SETTING WHEEL
MAF-204321.A3
204321
|
-
|
|
|
|
25 - HANDLE
MAF-039101.A3
039101
|
-
|
|
|
|
26 - HANDLE TAB
MAF-038962.A10
038962
|
-
|
|
|
|
28 - KNURLED NUT
MAF-038953.A1
038953
|
-
|
|
|
|
29 - STROKE LIMITER
MAF-200730.A0
200730
|
-
|
|
|
|
30 - SETTING NUT
MAF-204328.A2
204328
|
-
|
|
|
|
31 - INDEX BOLT
MAF-204304.A4
204304
|
£22.98
|
£27.57
|
|
|
32 - SPACER BUSHING
MAF-201603.A7
201603
|
-
|
|
|
|
33 - TACHOMETER CARRIER
MAF-038975.A5
038975
|
£20.14
|
£24.17
|
|
|
34 - KNURLED-HEAD SCREW
MAF-038977.A2
038977
|
-
|
|
|
|
35 - TRAVERSE
MAF-038976.A2
038976
|
-
|
|
|
|
36 - GUIDE BAR
MAF-039115.A8
039115
|
-
|
|
|
|
37 - COLLET NUT
MAF-201574.A2
201574
|
£34.61
|
£41.53
|
|
|
38 - STEEL BALL
MAF-062042.A8
062042
|
-
|
|
|
|
39 - CABLE CLAMP
MAF-029584.A13
029584
|
-
|
|
|
|
40 - CABLE PROTECTING SLEEVE
MAF-086064.A27
086064
|
£3.37
|
£4.04
|
|
|
41 - MAINS CABLE 4 M (13.1 FT)
MAF-087885.A4
087885
|
-
|
|
|
|
42 - 2-POLE SWITCH
MAF-087548.A0
087548
|
£82.22
|
£98.67
|
|
|
43 - DEPTH SCALE
MAF-077602.A3
077602
|
-
|
|
|
|
44 - SPEED DIAGRAM
MAF-077162.A3
077162
|
-
|
|
|
|
45 - DEPTH STOP
MAF-038963.A4
038963
|
-
|
|
|
|
46 - COLLET NUT
MAF-204324.A0
204324
|
-
|
|
|
|
47 - PRESSURE SPRING
MAF-066043.A30
066043
|
£3.04
|
£3.65
|
|
|
48 - PRESSURE SPRING
MAF-066051.A4
066051
|
-
|
|
|
|
49 - PRESSURE SPRING
MAF-066063.A1
066063
|
-
|
|
|
|
50 - LOOM OF CABLES
MAF-085181.A0
085181
|
-
|
|
|
|
51 - PRESSURE SPRING
MAF-066148.A7
066148
|
-
|
|
|
|
52 - PRESSURE SPRING
MAF-066089.A8
066089
|
-
|
|
|
|
53 - LOCKING WASHER
MAF-006184.A8
006184
|
£1.50
|
£1.80
|
|
|
54 - SEALING RING
MAF-065004.A6
065004
|
£1.63
|
£1.96
|
|
|
55 - LOCKING WASHER
MAF-006183.A10
006183
|
-
|
|
|
|
56 - GUIDE COLUMN
MAF-038972.A9
038972
|
£35.02
|
£42.03
|
|
|
57 - SLIDING SURFACE
MAF-204301.A2
204301
|
-
|
|
|
|
58 - PAD
MAF-201872.A14
201872
|
-
|
|
|
|
59 - PART NAME NOT AVAILABLE
MAF-204415.A
204415
|
-
|
|
|
|
60 - PART NAME NOT AVAILABLE
MAF-204416.A
204416
|
-
|
|
|
|
62 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063184.A0
063184
|
£16.74
|
£20.09
|
|
|
64 - BRUSH HOLDER
MAF-063182.A6
063182
|
-
|
|
|
|
68 - WING SCREW
MAF-079077.A15
079077
|
-
|
|
|
|
69 - WING SCREW
MAF-079080.A1
079080
|
£7.70
|
£9.24
|
|
|
71 - HEXAGON-HEAD SCREW
MAF-005699.A7
005699
|
-
|
|
|
|
72 - SHOULDER SCREW
MAF-055169.A4
055169
|
-
|
|
|
|
73 - HEXAGON-HEAD SCREW
MAF-005618.A4
005618
|
-
|
|
|
|
74 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055086.A1
055086
|
-
|
|
|
|
75 - CAP NUT
MAF-005950.A12
005950
|
-
|
|
|
|
76 - CYLINDER-HEAD SCREW
MAF-055108.A5
055108
|
£1.28
|
£1.54
|
|
|
77 - FLAT-HEAD SCREW
MAF-053006.A13
053006
|
-
|
|
|
|
78 - FLAT-HEAD SCREW
MAF-053031.A10
053031
|
£1.72
|
£2.07
|
|
|
79 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055139.A9
055139
|
-
|
|
|
|
80 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055243.A8
055243
|
-
|
|
|
|
81 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A28
055233
|
£1.71
|
£2.05
|
|
|
82 - COUNTER-SUNK OVAL-HEAD SCREW
MAF-053020.A16
053020
|
£2.01
|
£2.41
|
|
|
83 - CYLINDER-HEAD SCREW
MAF-005531.A2
005531
|
£2.76
|
£3.31
|
|
|
84 - CYLINDER-HEAD SCREW
MAF-055260.A3
055260
|
-
|
|
|
|
85 - CYLINDER-HEAD SCREW
MAF-055261.A5
055261
|
-
|
|
|
|
86 - CYLINDER-HEAD SCREW
MAF-005538.A12
005538
|
-
|
|
|
|
87 - CYLINDER-HEAD SCREW
MAF-055259.A6
055259
|
£3.86
|
£4.63
|
|
|
88 - CYLINDER-HEAD SCREW
MAF-055040.A3
055040
|
-
|
|
|
|
89 - HEXAGONAL NUT
MAF-005911.A0
005911
|
-
|
|
|
|
91 - WASHER
MAF-061119.A0
061119
|
-
|
|
|
|
92 - RETAINING RING
MAF-006165.A6
006165
|
-
|
|
|
|
93 - CUP SPRING
MAF-006660.A11
006660
|
-
|
|
|
|
94 - RETAINING RING
MAF-006176.A2
006176
|
-
|
|
|
|
95 - RETAINING RING
MAF-007102.A1
007102
|
£2.59
|
£3.11
|
|
|
96 - CUP SPRING
MAF-006663.A1
006663
|
-
|
|
|
|
98 - GROOVED BALL BEARING
MAF-006258.A5
006258
|
-
|
|
|
|
99 - GROOVED BALL BEARING
MAF-062073.A29
062073
|
£14.28
|
£17.14
|
|
|
102 - TUBULAR RIVET
MAF-058150.A9
058150
|
-
|
|
|
|
105 - THREADED PIN
MAF-005283.A4
005283
|
-
|
|
|
|
109 - WASHER
MAF-006130.A16
006130
|
-
|
|
|
|
505 - CHIP COLLECTOR
MAF-204325.A6
204325
|
-
|
|
|
|
506 - ADAPTER FOR ROUTER BIT
MAF-201575.A3
201575
|
£32.99
|
£39.59
|
|
|
507 - TEMPLATE GUIDE
MAF-038971.A7
038971
|
-
|
|
|
|
509 - SINGLE-END SPANNER
MAF-093012.A4
093012
|
-
|
|
|
|
510 - COLLET
MAF-093256.A2
093256
|
£36.66
|
£43.99
|
|
|
515 - CARRYING CASE MAFELL-MAX
MAF-095043.A6
095043
|
-
|
|
|
|
515.1 - LATCH
MAF-095074.A3
095074
|
-
|
|
|
|
516 - PLASTIC TRAY FOR MAFELL-MAX
MAF-095155.A5
095155
|
-
|
|
|
