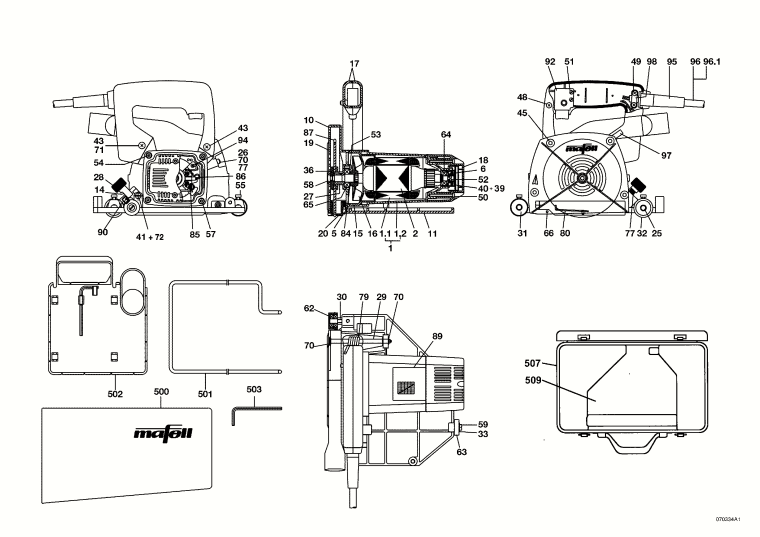

1 - MOTOR CASING WITH INDUCTOR
MAF-084542.A0
084542
|
-
|
|
|
|
1.1 - INDUCTOR WITH COIL
MAF-084540.A0
084540
|
£87.14
|
£104.57
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-202045.A0
202045
|
-
|
|
|
|
2 - ARMATURE, BALANCED
MAF-088142.A
088142
|
-
|
|
|
|
5 - CUTTING DEPTH ADJUSTMENT, CPL.
MAF-037831.A
037831
|
-
|
|
|
|
6 - TACHOMETER CARRIER
MAF-038975.A14
038975
|
£20.14
|
£24.17
|
|
|
10 - PROTECTIVE COVER
MAF-202261.A
202261
|
-
|
|
|
|
11 - BASE PLATE
MAF-202273.A
202273
|
-
|
|
|
|
14 - INDICATOR
MAF-202263.A
202263
|
-
|
|
|
|
15 - AIR CONDUCTING RING
MAF-037803.A
037803
|
-
|
|
|
|
16 - FAN
MAF-032675.A0
032675
|
-
|
|
|
|
17 - HANDLE SHELLS (PAIR)
MAF-038413.A
038413
|
-
|
|
|
|
18 - MOTOR COVER
MAF-039220.A0
039220
|
-
|
|
|
|
19 - COVER
MAF-039289.A
039289
|
-
|
|
|
|
20 - GUARD
MAF-037823.A
037823
|
-
|
|
|
|
25 - ARBOR, LONG
MAF-202270.A
202270
|
-
|
|
|
|
26 - RETAINING BOLT
MAF-037817.A
037817
|
-
|
|
|
|
27 - FLANGE, REAR
MAF-037813.A
037813
|
-
|
|
|
|
28 - ADJUSTING SCREW
MAF-202262.A
202262
|
-
|
|
|
|
29 - ARBOR FOR LOWERING
MAF-037816.A
037816
|
-
|
|
|
|
30 - ARBOR, SHORT
MAF-202259.A
202259
|
-
|
|
|
|
31 - FRONT GUIDE ROLLER
MAF-202267.A
202267
|
-
|
|
|
|
32 - GUIDE ROLLER R 2
MAF-202266.A
202266
|
-
|
|
|
|
33 - BUSH
MAF-037818.A
037818
|
-
|
|
|
|
36 - FLANGE, FRONT
MAF-037826.A
037826
|
-
|
|
|
|
39 - SETTING WHEEL
MAF-203729.A0
203729
|
-
|
|
|
|
40 - CONTROL MODULE
MAF-076484.A
076484
|
-
|
|
|
|
41 - THREADED PIN
MAF-005248.A1
005248
|
-
|
|
|
|
43 - OVAL-HEAD SCREW
MAF-055102.A1
055102
|
-
|
|
|
|
45 - FLAT-HEAD SCREW
MAF-005372.A2
005372
|
£1.98
|
£2.38
|
|
|
48 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A24
055061
|
£1.71
|
£2.05
|
|
|
49 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A31
055062
|
-
|
|
|
|
50 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055194.A1
055194
|
-
|
|
|
|
51 - OVAL-HEAD SCREW
MAF-055143.A0
055143
|
-
|
|
|
|
52 - CYLINDER-HEAD SCREW
MAF-005505.A3
005505
|
-
|
|
|
|
53 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055091.A2
055091
|
-
|
|
|
|
54 - OVAL-HEAD SCREW
MAF-055115.A1
055115
|
-
|
|
|
|
55 - CYLINDER-HEAD SCREW
MAF-055022.A2
055022
|
-
|
|
|
|
57 - OVAL-HEAD SCREW
MAF-055069.A8
055069
|
£2.16
|
£2.59
|
|
|
58 - CYLINDER-HEAD SCREW
MAF-055147.A1
055147
|
-
|
|
|
|
59 - CYLINDER-HEAD SCREW
MAF-055024.A0
055024
|
-
|
|
|
|
62 - GROOVED BALL BEARING
MAF-006292.A2
006292
|
£12.47
|
£14.96
|
|
|
63 - GROOVED BALL BEARING
MAF-006234.A5
006234
|
£14.68
|
£17.62
|
|
|
64 - GROOVED BALL BEARING
MAF-006282.A15
006282
|
£14.68
|
£17.62
|
|
|
65 - GROOVED BALL BEARING
MAF-006280.A7
006280
|
£13.65
|
£16.38
|
|
|
66 - SPRING DOWEL SLEEVE
MAF-005833.A0
005833
|
-
|
|
|
|
70 - LOCKING WASHER
MAF-061106.A0
061106
|
£2.28
|
£2.74
|
|
|
71 - INSERTION NUT
MAF-029513.A1
029513
|
-
|
|
|
|
72 - HEXAGONAL NUT
MAF-005901.A
005901
|
-
|
|
|
|
77 - PRESSURE SPRING
MAF-066043.A48
066043
|
£3.04
|
£3.65
|
|
|
79 - TORSION SPRING
MAF-037819.A
037819
|
-
|
|
|
|
80 - BENDING SPRING
MAF-037827.A
037827
|
-
|
|
|
|
84 - SHIM RING
MAF-006120.A1
006120
|
-
|
|
|
|
85 - BRUSH HOLDER
MAF-063160.A0
063160
|
£10.07
|
£12.08
|
|
|
86 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063164.A0
063164
|
£12.41
|
£14.89
|
|
|
87 - GROOVE-CUTTING BLADE
MAF-091794.A
091794
|
-
|
|
|
|
89 - SPEED DIAGRAM
MAF-077072.A
077072
|
-
|
|
|
|
90 - SKALE
MAF-077073.A
077073
|
-
|
|
|
|
92 - 2-POLE SWITCH WITH LOCKING BUTTON
MAF-087518.A0
087518
|
£23.41
|
£28.09
|
|
|
94 - COIL CHOKE, CPL.
MAF-087766.A0
087766
|
-
|
|
|
|
95 - CABLE PROTECTING SLEEVE
MAF-086065.A3
086065
|
£3.46
|
£4.15
|
|
|
96 - MAINS CABLE 10 M (32.8 FT.)
MAF-087604.A
087604
|
-
|
|
|
|
97 - PROTECTIVE TUBE
MAF-034779.A0
034779
|
-
|
|
|
|
98 - CABLE CLAMP
MAF-029584.A18
029584
|
-
|
|
|
|
500 - PART NAME NOT AVAILABLE
MAF-202272.A
202272
|
-
|
|
|
|
501 - FRAME
MAF-202271.A
202271
|
-
|
|
|
|
502 - PART NAME NOT AVAILABLE
MAF-202269.A
202269
|
-
|
|
|
|
503 - ALLEN KEY
MAF-093074.A7
093074
|
£2.95
|
£3.54
|
|
|
507 - CARRYING CASE
MAF-095034.A
095034
|
-
|
|
|
|
509 - TRAY FOR CARRYING CASE
MAF-095040.A
095040
|
-
|
|
|
