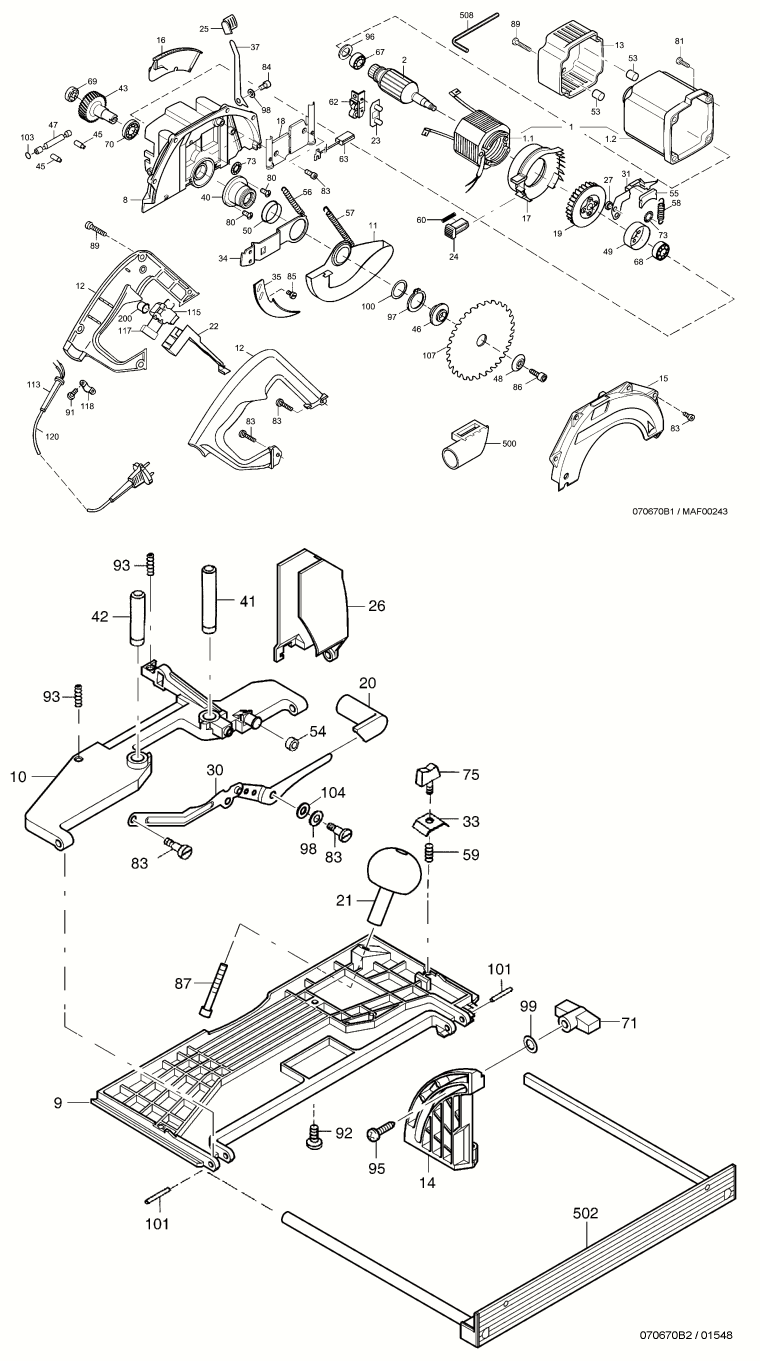

1 - MOTOR CASING WITH INDUCTOR
MAF-084482.A3
084482
|
-
|
|
|
|
1.1 - INDUCTOR WITH COIL
MAF-084504.A1
084504
|
-
|
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-203460.A1
203460
|
-
|
|
|
|
2 - ARMATURE, BALANCED
MAF-088138.A1
088138
|
£242.48
|
£290.98
|
|
|
8 - GEAR CASING
MAF-202331.A5
202331
|
-
|
|
|
|
9 - BASE PLATE
MAF-202333.A3
202333
|
-
|
|
|
|
10 - TILTING SUPPORT
MAF-202335.A6
202335
|
-
|
|
|
|
11 - PROTECTIVE COVER
MAF-202753.A0
202753
|
-
|
|
|
|
12 - HANDLE SHELLS (PAIR)
MAF-202741.A14
202741
|
-
|
|
|
|
13 - MOTOR COVER
MAF-203119.A2
203119
|
-
|
|
|
|
14 - SEGMENT FOR TILTING
MAF-201856.A6
201856
|
-
|
|
|
|
15 - PROTECTIVE COVER
MAF-202756.A0
202756
|
-
|
|
|
|
16 - SKALE
MAF-202757.A0
202757
|
-
|
|
|
|
17 - AIR CONDUCTING RING
MAF-202346.A5
202346
|
-
|
|
|
|
18 - COVER
MAF-201453.A3
201453
|
-
|
|
|
|
19 - FAN
MAF-202348.A10
202348
|
-
|
|
|
|
20 - PLUNGE LEVER HANDLE
MAF-202344.A13
202344
|
£5.94
|
£7.13
|
|
|
21 - MUSHROOM-SHAPED HANDLE
MAF-034730.A4
034730
|
-
|
|
|
|
22 - SWITCH TRIGGER
MAF-202343.A2
202343
|
-
|
|
|
|
23 - INSULATING PLATE
MAF-202357.A8
202357
|
-
|
|
|
|
24 - LOCKING BOLT
MAF-202202.A5
202202
|
-
|
|
|
|
25 - CAP
MAF-202345.A21
202345
|
£5.74
|
£6.89
|
|
|
26 - PROTECTIVE DISK
MAF-202470.A6
202470
|
-
|
|
|
|
27 - WASHER
MAF-202374.A4
202374
|
-
|
|
|
|
30 - LEVER JOINT
MAF-203122.A2
203122
|
-
|
|
|
|
31 - BRAKE LEVER
MAF-202347.A25
202347
|
£6.25
|
£7.50
|
|
|
33 - CLAMPING CLAWS
MAF-200050.A45
200050
|
£4.32
|
£5.18
|
|
|
34 - RIVING KNIFE/SPLITTER SUPPORT
MAF-202465.A7
202465
|
£18.73
|
£22.48
|
|
|
35 - RIVING KNIFE/SPLITTER
MAF-202755.A2
202755
|
£17.99
|
£21.59
|
|
|
37 - CLAMPING LEVER
MAF-202375.A1
202375
|
-
|
|
|
|
40 - BEARING COVER
MAF-202349.A0
202349
|
-
|
|
|
|
41 - GUIDE COLUMN, LONG
MAF-202359.A5
202359
|
-
|
|
|
|
42 - GUIDE COLUMN, SHORT
MAF-202360.A2
202360
|
-
|
|
|
|
43 - SAW SHAFT
MAF-202466.A2
202466
|
-
|
|
|
|
45 - PRESSURE BOLT
MAF-200034.A15
200034
|
-
|
|
|
|
46 - FLANGE, REAR
MAF-202352.A11
202352
|
-
|
|
|
|
47 - ECCENTRIC ARBOR
MAF-202365.A5
202365
|
-
|
|
|
|
48 - FLANGE DISK
MAF-202351.A11
202351
|
-
|
|
|
|
49 - BRAKE DRUM
MAF-202353.A9
202353
|
-
|
|
|
|
50 - SLEEVE
MAF-202380.A1
202380
|
-
|
|
|
|
53 - PRESSURE BIT
MAF-202378.A48
202378
|
-
|
|
|
|
54 - STOP BUFFER
MAF-034209.A45
034209
|
-
|
|
|
|
55 - BRAKE LINING
MAF-202362.A6
202362
|
-
|
|
|
|
56 - RETRACTING SPRING
MAF-066090.A39
066090
|
-
|
|
|
|
57 - RETRACTING SPRING
MAF-066134.A5
066134
|
£5.44
|
£6.53
|
|
|
58 - RETRACTING SPRING
MAF-066092.A48
066092
|
-
|
|
|
|
59 - PRESSURE SPRING
MAF-066043.A170
066043
|
£3.04
|
£3.65
|
|
|
60 - PRESSURE SPRING
MAF-066053.A27
066053
|
£2.54
|
£3.05
|
|
|
62 - BRUSH HOLDER
MAF-063148.A67
063148
|
£10.30
|
£12.36
|
|
|
63 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063147.A36
063147
|
£14.72
|
£17.67
|
|
|
67 - GROOVED BALL BEARING
MAF-062073.A77
062073
|
£14.28
|
£17.14
|
|
|
68 - GROOVED BALL BEARING
MAF-006268.A25
006268
|
£15.30
|
£18.36
|
|
|
69 - GROOVED BALL BEARING
MAF-006282.A99
006282
|
£14.68
|
£17.62
|
|
|
70 - GROOVED BALL BEARING
MAF-006231.A11
006231
|
£13.65
|
£16.38
|
|
|
71 - WING NUT
MAF-007996.A27
007996
|
-
|
|
|
|
73 - LOCKING WASHER
MAF-061069.A69
061069
|
£1.49
|
£1.79
|
|
|
75 - WING SCREW
MAF-079070.A21
079070
|
-
|
|
|
|
80 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055188.A36
055188
|
-
|
|
|
|
81 - SELF-TAPPING SCREW
MAF-055230.A82
055230
|
-
|
|
|
|
83 - SELF-TAPPING SCREW
MAF-055232.A69
055232
|
£1.68
|
£2.02
|
|
|
84 - CYLINDER-HEAD SCREW
MAF-055055.A21
055055
|
-
|
|
|
|
85 - CYLINDER-HEAD SCREW
MAF-055234.A30
055234
|
£1.19
|
£1.43
|
|
|
86 - CYLINDER-HEAD SCREW
MAF-055236.A3
055236
|
£2.62
|
£3.15
|
|
|
87 - TRUSS-HEAD SCREW
MAF-005796.A4
005796
|
-
|
|
|
|
89 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A238
055061
|
£1.71
|
£2.05
|
|
|
91 - SELF-TAPPING OVAL-HEAD SCREW
MAF-055062.A81
055062
|
-
|
|
|
|
92 - FLAT-HEAD SCREW
MAF-055223.A9
055223
|
-
|
|
|
|
93 - THREADED PIN
MAF-005284.A81
005284
|
-
|
|
|
|
95 - TRUSS-HEAD SCREW
MAF-005718.A21
005718
|
-
|
|
|
|
96 - COMPENSATING DISK
MAF-006671.A7
006671
|
£2.04
|
£2.45
|
|
|
97 - RETAINING RING
MAF-061098.A4
061098
|
-
|
|
|
|
98 - WASHER
MAF-061013.A113
061013
|
-
|
|
|
|
99 - WASHER
MAF-006101.A124
006101
|
£1.54
|
£1.85
|
|
|
100 - SHIM RING
MAF-006127.A3
006127
|
-
|
|
|
|
101 - SPIRAL DOWEL SLEEVE
MAF-058089.A6
058089
|
-
|
|
|
|
103 - SEALING RING
MAF-065042.A16
065042
|
£1.63
|
£1.96
|
|
|
104 - CUP SPRING
MAF-066016.A18
066016
|
-
|
|
|
|
107 - TCT SAW BLADE
MAF-092541.A1
092541
|
£61.41
|
£73.69
|
|
|
113 - CABLE PROTECTING SLEEVE
MAF-086064.A102
086064
|
£3.37
|
£4.04
|
|
|
115 - 2-POLE SWITCH WITH LOCK-OFF BUTTON
MAF-087828.A13
087828
|
£21.78
|
£26.14
|
|
|
117 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-076973.A21
076973
|
-
|
|
|
|
118 - CABLE CLAMP
MAF-029584.A124
029584
|
-
|
|
|
|
120 - MAINS CABLE 4 M (13.1 FT)
MAF-087323.A49
087323
|
£39.41
|
£47.29
|
|
|
500 - HOSE CONNECTOR
MAF-200042.A19
200042
|
£14.96
|
£17.95
|
|
|
502 - PARALLEL GUIDE FENCE
MAF-202363.A2
202363
|
-
|
|
|
|
508 - ALLEN KEY
MAF-093034.A68
093034
|
-
|
|
|
