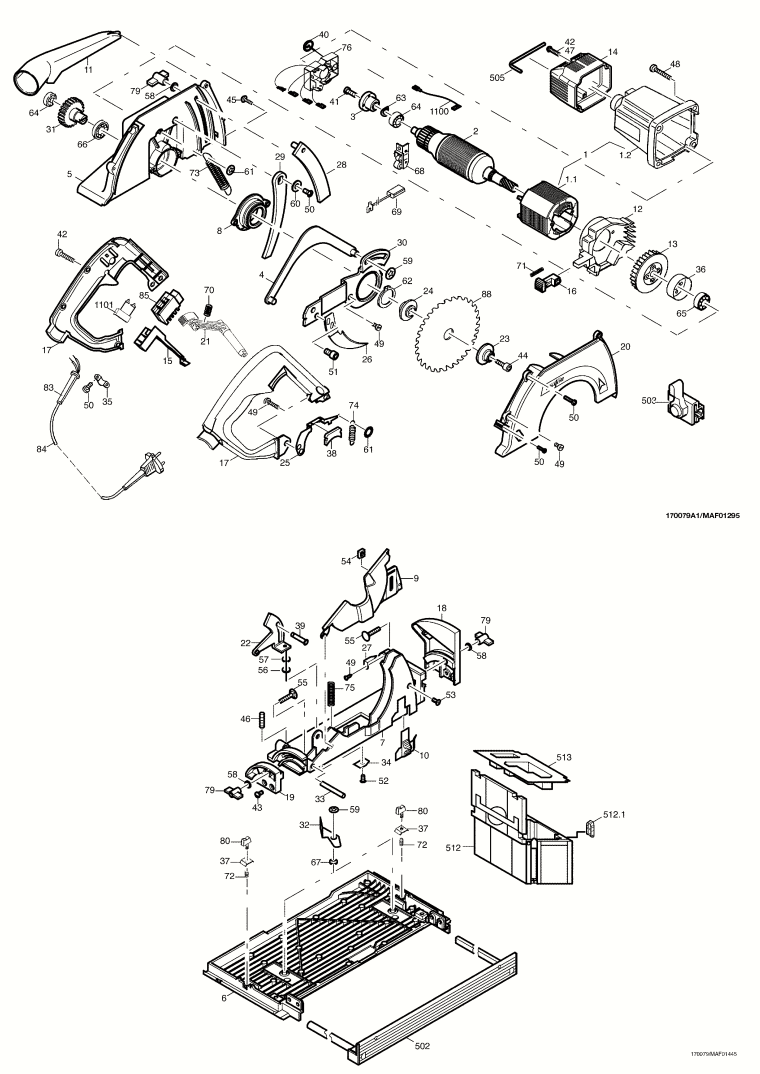

1 - MOTOR CASING WITH INDUCTOR
MAF-084542.A4
084542
|
-
|
|
|
|
1.1 - INDUCTOR WITH COIL
MAF-084540.A23
084540
|
£87.14
|
£104.57
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-202045.A24
202045
|
-
|
|
|
|
2 - ARMATURE, BALANCED
MAF-088150.A15
088150
|
£135.58
|
£162.69
|
|
|
4 - GUIDE PIECE
MAF-202857.A13
202857
|
-
|
|
|
|
5 - GEAR CASING
MAF-203645.A3
203645
|
-
|
|
|
|
6 - BASE PLATE
MAF-202847.A3
202847
|
-
|
|
|
|
7 - PROTECTIVE COVER
MAF-203647.A3
203647
|
-
|
|
|
|
8 - GEAR CASING COVER
MAF-202851.A12
202851
|
-
|
|
|
|
9 - COVER
MAF-203641.A3
203641
|
-
|
|
|
|
10 - SLIDING COVER
MAF-203642.A3
203642
|
-
|
|
|
|
11 - CHIP COLLECTOR
MAF-203643.A11
203643
|
-
|
|
|
|
12 - AIR CONDUCTING RING
MAF-200013.A10
200013
|
-
|
|
|
|
13 - FAN
MAF-200015.A20
200015
|
£7.85
|
£9.42
|
|
|
14 - MOTOR COVER
MAF-200183.A14
200183
|
-
|
|
|
|
15 - SWITCH TRIGGER
MAF-201434.A17
201434
|
-
|
|
|
|
16 - LOCKING BOLT
MAF-202436.A14
202436
|
-
|
|
|
|
17 - HANDLE SHELLS (PAIR)
MAF-202853.A3
202853
|
-
|
|
|
|
18 - PIVOTING BEARING
MAF-202854.A0
202854
|
-
|
|
|
|
19 - PIVOTING BEARING
MAF-202855.A4
202855
|
-
|
|
|
|
20 - PROTECTIVE COVER
MAF-203592.A1
203592
|
-
|
|
|
|
21 - LOCKING LEVER
MAF-202861.A5
202861
|
-
|
|
|
|
22 - SEGMENT FOR TILTING
MAF-203076.A0
203076
|
-
|
|
|
|
23 - FLANGE, FRONT
MAF-203648.A11
203648
|
-
|
|
|
|
24 - FLANGE, REAR
MAF-200038.A12
200038
|
-
|
|
|
|
25 - BRAKE LEVER
MAF-202347.A21
202347
|
£6.25
|
£7.50
|
|
|
26 - RIVING KNIFE/SPLITTER
MAF-202580.A29
202580
|
£10.26
|
£12.31
|
|
|
27 - INDICATOR
MAF-202866.A1
202866
|
-
|
|
|
|
28 - DEPTH STOP
MAF-203639.A2
203639
|
-
|
|
|
|
29 - SUPPORTING LEVER
MAF-202859.A11
202859
|
-
|
|
|
|
30 - RIVING KNIFE/SPLITTER SUPPORT
MAF-202862.A9
202862
|
-
|
|
|
|
31 - SAW SHAFT
MAF-203649.A11
203649
|
-
|
|
|
|
32 - ROTARY HANDLE
MAF-202864.A2
202864
|
-
|
|
|
|
33 - CYLINDRICAL PIN
MAF-058190.A3
058190
|
-
|
|
|
|
34 - REINFORCEMENT
MAF-203077.A0
203077
|
-
|
|
|
|
35 - CABLE CLAMP
MAF-029584.A154
029584
|
-
|
|
|
|
36 - BRAKE DRUM
MAF-201452.A27
201452
|
£13.66
|
£16.39
|
|
|
37 - CLAMPING CLAWS
MAF-200050.A35
200050
|
£4.32
|
£5.18
|
|
|
38 - BRAKE LINING
MAF-202429.A36
202429
|
-
|
|
|
|
39 - BOLT
MAF-203075.A2
203075
|
-
|
|
|
|
42 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A169
055061
|
£1.71
|
£2.05
|
|
|
43 - OVAL-HEAD SCREW
MAF-055093.A13
055093
|
-
|
|
|
|
44 - CYLINDER-HEAD SCREW
MAF-055096.A43
055096
|
£2.11
|
£2.53
|
|
|
45 - SELF-TAPPING SCREW
MAF-055240.A3
055240
|
-
|
|
|
|
46 - THREADED PIN
MAF-005279.A23
005279
|
-
|
|
|
|
48 - SELF-TAPPING SCREW
MAF-055230.A88
055230
|
-
|
|
|
|
49 - SELF-TAPPING SCREW
MAF-055232.A44
055232
|
£1.68
|
£2.02
|
|
|
50 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A110
055233
|
£1.71
|
£2.05
|
|
|
51 - CYLINDER-HEAD SCREW
MAF-055242.A11
055242
|
-
|
|
|
|
52 - FLAT-HEAD SCREW
MAF-005372.A16
005372
|
£1.98
|
£2.38
|
|
|
53 - FLAT-HEAD SCREW
MAF-005367.A7
005367
|
-
|
|
|
|
54 - SQUARE NUT
MAF-005961.A10
005961
|
-
|
|
|
|
55 - TRUSS-HEAD SCREW
MAF-005755.A3
005755
|
-
|
|
|
|
56 - SHIM RING
MAF-006136.A5
006136
|
-
|
|
|
|
57 - SHIM RING
MAF-061177.A8
061177
|
-
|
|
|
|
58 - WASHER
MAF-006101.A103
006101
|
£1.54
|
£1.85
|
|
|
59 - LOCKING WASHER
MAF-061005.A13
061005
|
-
|
|
|
|
60 - WASHER
MAF-061013.A78
061013
|
-
|
|
|
|
61 - LOCKING WASHER
MAF-061069.A76
061069
|
£1.49
|
£1.79
|
|
|
62 - RETAINING RING
MAF-061138.A38
061138
|
£2.29
|
£2.75
|
|
|
63 - FEDERSCHEIBE
MAF-061132.A42
061132
|
-
|
|
|
|
64 - GROOVED BALL BEARING
MAF-006282.A72
006282
|
£14.68
|
£17.62
|
|
|
65 - GROOVED BALL BEARING
MAF-006288.A42
006288
|
£8.82
|
£10.58
|
|
|
66 - GROOVED BALL BEARING
MAF-062065.A18
062065
|
£34.87
|
£41.84
|
|
|
67 - CUP SPRING
MAF-006664.A14
006664
|
£1.98
|
£2.38
|
|
|
68 - BRUSH HOLDER
MAF-063160.A55
063160
|
£10.07
|
£12.08
|
|
|
69 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063164.A46
063164
|
£12.41
|
£14.89
|
|
|
70 - PRESSURE SPRING
MAF-066053.A45
066053
|
£2.54
|
£3.05
|
|
|
71 - PRESSURE SPRING
MAF-006657.A27
006657
|
-
|
|
|
|
72 - PRESSURE SPRING
MAF-066043.A178
066043
|
£3.04
|
£3.65
|
|
|
73 - RETRACTING SPRING
MAF-066090.A30
066090
|
-
|
|
|
|
74 - RETRACTING SPRING
MAF-066092.A41
066092
|
£4.98
|
£5.97
|
|
|
75 - PRESSURE SPRING
MAF-006620.A3
006620
|
-
|
|
|
|
79 - WING NUT
MAF-007996.A16
007996
|
-
|
|
|
|
80 - WING SCREW
MAF-079070.A31
079070
|
-
|
|
|
|
83 - CABLE PROTECTING SLEEVE
MAF-086064.A84
086064
|
£3.37
|
£4.04
|
|
|
84 - MAINS CABLE 4 M (13.1 FT)
MAF-087323.A71
087323
|
£39.41
|
£47.29
|
|
|
85 - 2-POLE SWITCH
MAF-087838.A4
087838
|
-
|
|
|
|
88 - TCT SAW BLADE
MAF-092552.A11
092552
|
£27.49
|
£32.99
|
|
|
502 - PARALLEL GUIDE FENCE
MAF-201436.A17
201436
|
£50.20
|
£60.24
|
|
|
503 - GUIDE FENCE F-RS
MAF-202867.A0
202867
|
£20.16
|
£24.19
|
|
|
505 - ALLEN KEY
MAF-093034.A59
093034
|
-
|
|
|
|
512 - CARRYING CASE MAFELL-MAX
MAF-095043.A20
095043
|
-
|
|
|
|
512.1 - LATCH
MAF-095074.A43
095074
|
-
|
|
|
|
513 - PLASTIC TRAY
MAF-095053.A3
095053
|
-
|
|
|
|
1100 - CONNECTING CABLE
MAF-085155.A1
085155
|
-
|
|
|
|
1101 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-076973.A20
076973
|
-
|
|
|
