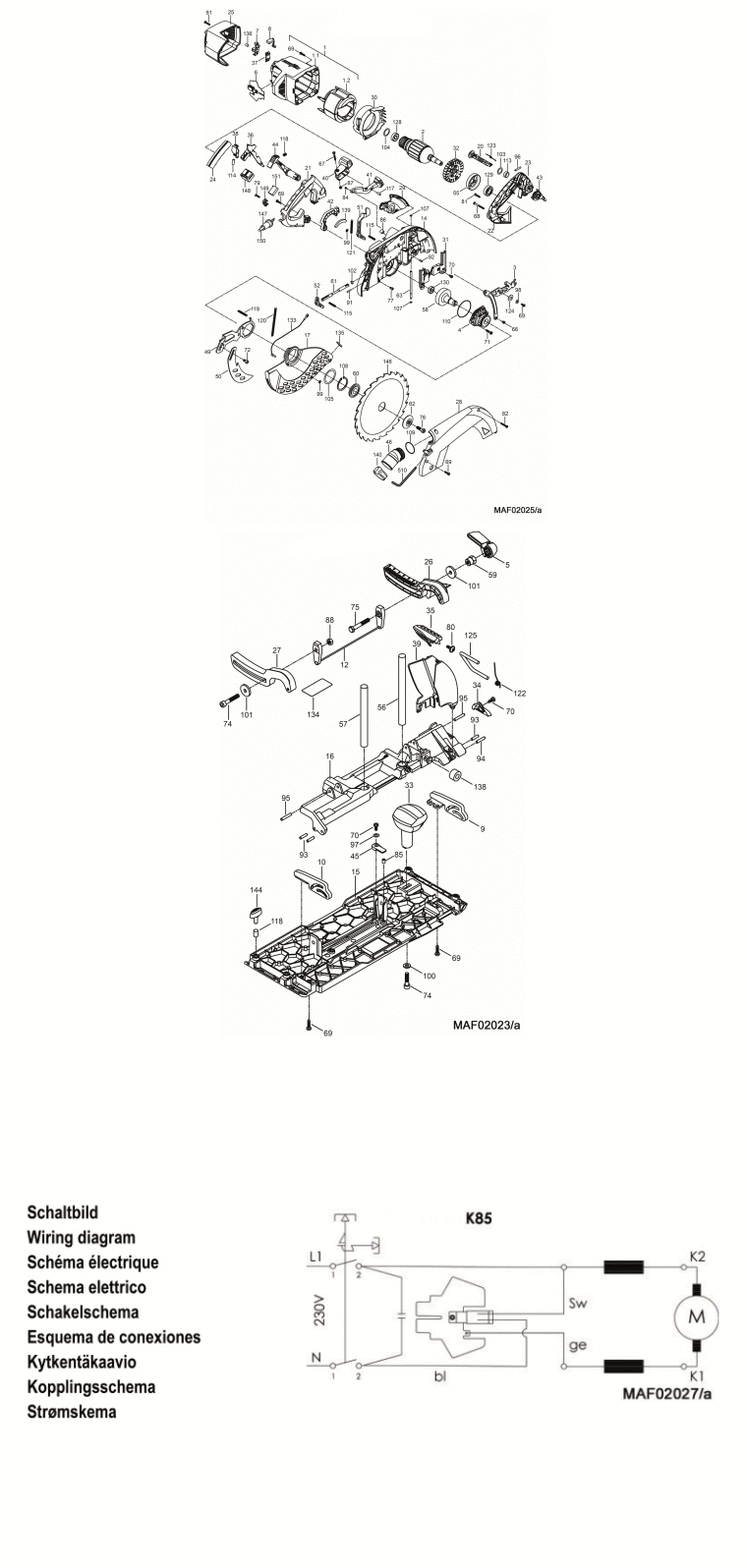

1 - MOTOR CASING WITH INDUCTOR
MAF-084652.A4
084652
|
-
|
|
|
|
1.1 - MOTOR CASING
MAF-205160.A5
205160
|
-
|
|
|
|
1.2 - INDUCTOR
MAF-084654.A4
084654
|
-
|
|
|
|
2 - ARMATURE BALANCED
MAF-088222.A5
088222
|
-
|
|
|
|
3 - LEVER JOINT
MAF-205143.A3
205143
|
-
|
|
|
|
4 - BEARING COVER
MAF-205147.A3
205147
|
-
|
|
|
|
5 - TENSIONING LEVER
MAF-205298.A4
205298
|
-
|
|
|
|
6 - CONTROL MODULE
MAF-077666.A0
077666
|
-
|
|
|
|
7 - BRUSH HOLDER
MAF-063148.A78
063148
|
£10.30
|
£12.36
|
|
|
8 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063176.A9
063176
|
£16.56
|
£19.87
|
|
|
9 - SEGMENT FOR TILTING
MAF-205148.A4
205148
|
-
|
|
|
|
10 - SEGMENT FOR TILTING
MAF-205149.A3
205149
|
-
|
|
|
|
12 - CLAMPING UNIT
MAF-205291.A3
205291
|
-
|
|
|
|
14 - GEAR CASING
MAF-205130.A5
205130
|
-
|
|
|
|
15 - BASE PLATE
MAF-205125.A0
205125
|
-
|
|
|
|
16 - TILTING SUPPORT
MAF-205128.A3
205128
|
-
|
|
|
|
17 - PROTECTIVE COVER
MAF-205139.A5
205139
|
£75.02
|
£90.02
|
|
|
20 - PUSH-BUTTON
MAF-205161.A3
205161
|
-
|
|
|
|
21 - HANDLE SHELL
MAF-205178.A5
205178
|
-
|
|
|
|
22 - HANDLE SHELL
MAF-205179.A3
205179
|
-
|
|
|
|
23 - HANDLE SHELL COVER
MAF-204513.A26
204513
|
£11.76
|
£14.11
|
|
|
24 - HANDLE INSERT
MAF-203877.A29
203877
|
£19.14
|
£22.97
|
|
|
25 - MOTOR COVER
MAF-205165.A0
205165
|
-
|
|
|
|
26 - SWIVEL RAIL
MAF-205167.A3
205167
|
-
|
|
|
|
27 - SWIVEL RAIL
MAF-205296.A4
205296
|
-
|
|
|
|
28 - PROTECTIVE COVER
MAF-205146.A1
205146
|
-
|
|
|
|
29 - DEPTH SETTING
MAF-205151.A5
205151
|
-
|
|
|
|
30 - AIR CONDUCTING RING
MAF-205162.A5
205162
|
-
|
|
|
|
31 - COVER
MAF-205169.A5
205169
|
-
|
|
|
|
32 - FAN
MAF-205164.A3
205164
|
-
|
|
|
|
33 - HANDLE
MAF-205308.A11
205308
|
£14.92
|
£17.91
|
|
|
34 - PANEL
MAF-205155.A3
205155
|
-
|
|
|
|
35 - LEVER
MAF-205171.A3
205171
|
-
|
|
|
|
36 - SWITCH TRIGGER
MAF-205154.A3
205154
|
-
|
|
|
|
37 - INSULATING PLATE
MAF-202357.A5
202357
|
-
|
|
|
|
38 - LOCKING LEVER
MAF-206382.A3
206382
|
-
|
|
|
|
39 - PROTECTIVE DISK
MAF-205168.A4
205168
|
-
|
|
|
|
40 - PLUNGE LEVER HANDLE
MAF-205156.A5
205156
|
-
|
|
|
|
41 - PUSH-BUTTON
MAF-205180.A3
205180
|
-
|
|
|
|
42 - BRAKE LEVER
MAF-205142.A3
205142
|
-
|
|
|
|
43 - LOCKING LEVER
MAF-205158.A10
205158
|
-
|
|
|
|
44 - LOCK-OFF BUTTON
MAF-204510.A21
204510
|
£11.48
|
£13.77
|
|
|
45 - INDICATOR
MAF-205292.A5
205292
|
-
|
|
|
|
46 - HOSE CONNECTOR
MAF-205290.A11
205290
|
£18.18
|
£21.82
|
|
|
49 - RIVING KNIFE/SPLITTER SUPPORT
MAF-205138.A4
205138
|
-
|
|
|
|
50 - RIVING KNIFE/SPLITTER
MAF-205141.A4
205141
|
-
|
|
|
|
51 - CLAMPING LEVER
MAF-205152.A5
205152
|
-
|
|
|
|
52 - RATCHET
MAF-205175.A3
205175
|
-
|
|
|
|
55 - BRAKE DRUM
MAF-202353.A3
202353
|
-
|
|
|
|
56 - GUIDE COLUMN
MAF-205173.A4
205173
|
-
|
|
|
|
57 - GUIDE COLUMN
MAF-205174.A4
205174
|
-
|
|
|
|
58 - SAW SHAFT
MAF-205132.A5
205132
|
-
|
|
|
|
59 - SHOULDER NUT
MAF-205294.A10
205294
|
-
|
|
|
|
60 - FLANGE, REAR
MAF-202352.A6
202352
|
-
|
|
|
|
61 - SHAFT AXLE
MAF-205172.A3
205172
|
-
|
|
|
|
62 - FLANGE DISK
MAF-202351.A4
202351
|
-
|
|
|
|
63 - STOP PLATE
MAF-205153.A10
205153
|
-
|
|
|
|
66 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055111.A24
055111
|
-
|
|
|
|
67 - OVAL-HEAD SCREW
MAF-055258.A13
055258
|
£1.65
|
£1.98
|
|
|
68 - OVAL-HEAD SCREW
MAF-055257.A26
055257
|
-
|
|
|
|
69 - SELF-TAPPING SCREW
MAF-055230.A68
055230
|
-
|
|
|
|
70 - SELF-TAPPING SCREW
MAF-055232.A57
055232
|
£1.68
|
£2.02
|
|
|
71 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055269.A3
055269
|
-
|
|
|
|
72 - CYLINDER-HEAD SCREW
MAF-055234.A35
055234
|
£1.19
|
£1.43
|
|
|
74 - CYLINDER-HEAD SCREW
MAF-055113.A10
055113
|
£2.64
|
£3.17
|
|
|
75 - HEXAGON-HEAD SCREW
MAF-056031.A12
056031
|
-
|
|
|
|
76 - CYLINDER-HEAD SCREW
MAF-055236.A8
055236
|
£2.62
|
£3.15
|
|
|
77 - CYLINDER-HEAD SCREW
MAF-055055.A37
055055
|
-
|
|
|
|
79 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055246.A15
055246
|
-
|
|
|
|
80 - OVAL-HEAD SCREW
MAF-055264.A19
055264
|
-
|
|
|
|
81 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A213
055061
|
£1.71
|
£2.05
|
|
|
82 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055139.A25
055139
|
-
|
|
|
|
84 - THREADED PIN
MAF-052011.A31
052011
|
-
|
|
|
|
85 - THREADED PIN
MAF-005284.A95
005284
|
-
|
|
|
|
86 - THREADED PIN
MAF-005210.A3
005210
|
-
|
|
|
|
87 - LOCKING NUT
MAF-005986.A19
005986
|
-
|
|
|
|
88 - HEXAGON SAFETY NUT
MAF-059017.A12
059017
|
-
|
|
|
|
91 - CYLINDRICAL PIN
MAF-058019.A8
058019
|
-
|
|
|
|
92 - SPRING DOWEL SLEEVE
MAF-058229.A10
058229
|
-
|
|
|
|
93 - CYLINDRICAL PIN
MAF-058046.A22
058046
|
£2.83
|
£3.40
|
|
|
94 - CYLINDRICAL PIN
MAF-058228.A13
058228
|
£2.27
|
£2.72
|
|
|
95 - CYLINDRICAL PIN
MAF-058225.A4
058225
|
-
|
|
|
|
96 - RIBBED PIN
MAF-058219.A22
058219
|
-
|
|
|
|
97 - CUP SPRING
MAF-066165.A10
066165
|
-
|
|
|
|
98 - WASHER
MAF-061013.A104
061013
|
-
|
|
|
|
99 - LOCKING WASHER
MAF-061069.A74
061069
|
£1.49
|
£1.79
|
|
|
100 - WASHER
MAF-006101.A141
006101
|
£1.54
|
£1.85
|
|
|
101 - WASHER
MAF-034208.A16
034208
|
-
|
|
|
|
102 - LOCKING WASHER
MAF-061135.A28
061135
|
-
|
|
|
|
103 - SHIM RING
MAF-006160.A56
006160
|
£1.65
|
£1.98
|
|
|
104 - COMPENSATING DISK
MAF-006671.A14
006671
|
£2.04
|
£2.45
|
|
|
105 - SHIM RING
MAF-006127.A12
006127
|
-
|
|
|
|
107 - SNAP RING
MAF-061160.A11
061160
|
-
|
|
|
|
108 - RETAINING RING
MAF-061133.A5
061133
|
£3.29
|
£3.95
|
|
|
109 - SEALING RING
MAF-078173.A23
078173
|
-
|
|
|
|
110 - SEALING RING
MAF-065064.A4
065064
|
-
|
|
|
|
113 - PRESSURE SPRING
MAF-066096.A34
066096
|
£4.25
|
£5.10
|
|
|
114 - PRESSURE SPRING
MAF-006645.A15
006645
|
-
|
|
|
|
115 - PRESSURE SPRING
MAF-066177.A5
066177
|
-
|
|
|
|
117 - PRESSURE SPRING
MAF-006684.A5
006684
|
-
|
|
|
|
118 - PRESSURE SPRING
MAF-066043.A155
066043
|
£3.04
|
£3.65
|
|
|
119 - RETRACTING SPRING
MAF-066090.A28
066090
|
-
|
|
|
|
120 - RETRACTING SPRING
MAF-066134.A7
066134
|
£5.44
|
£6.53
|
|
|
121 - RETRACTING SPRING
MAF-066092.A28
066092
|
£4.98
|
£5.97
|
|
|
122 - LEG SPRING
MAF-066167.A5
066167
|
-
|
|
|
|
123 - LEG SPRING
MAF-066174.A5
066174
|
-
|
|
|
|
124 - CUP SPRING
MAF-066016.A15
066016
|
-
|
|
|
|
125 - FRAME
MAF-205144.A3
205144
|
-
|
|
|
|
128 - GROOVED BALL BEARING
MAF-062073.A101
062073
|
£14.28
|
£17.14
|
|
|
129 - GROOVED BALL BEARING
MAF-006268.A34
006268
|
£15.30
|
£18.36
|
|
|
130 - GROOVED BALL BEARING
MAF-006282.A77
006282
|
£14.68
|
£17.62
|
|
|
133 - BOWDEN CABLE
MAF-205286.A4
205286
|
£11.55
|
£13.86
|
|
|
134 - LABEL SELECTION OF SAW BLADES
MAF-205297.A3
205297
|
-
|
|
|
|
135 - RUBBER BUFFER
MAF-205289.A3
205289
|
-
|
|
|
|
136 - PRESSURE BIT
MAF-202378.A45
202378
|
-
|
|
|
|
138 - STOP BUFFER
MAF-034209.A57
034209
|
-
|
|
|
|
139 - BRAKE LINING
MAF-205176.A4
205176
|
-
|
|
|
|
140 - HOOK-AND-LOOP FASTENER BELT
MAF-205049.A25
205049
|
£5.39
|
£6.47
|
|
|
144 - WING SCREW
MAF-079091.A9
079091
|
-
|
|
|
|
146 - TCT SAW BLADE
MAF-092590.A3
092590
|
-
|
|
|
|
147 - CABLE PROTECTING SLEEVE
MAF-086064.A99
086064
|
£3.37
|
£4.04
|
|
|
148 - 2-POLE SWITCH WITH LOCK-OFF BUTTON
MAF-087862.A4
087862
|
-
|
|
|
|
149 - CABLE CLAMP
MAF-205672.A3
205672
|
-
|
|
|
|
150 - MAINS CABLE WITH PLUG
MAF-087888.A3
087888
|
-
|
|
|
|
151 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-087855.A0
087855
|
-
|
|
|
|
510 - ALLEN KEY
MAF-093034.A67
093034
|
-
|
|
|
