Mafell 925310 Portable Band Saw Z 4 Ec Spare Parts

Home Details Reviews Delivery

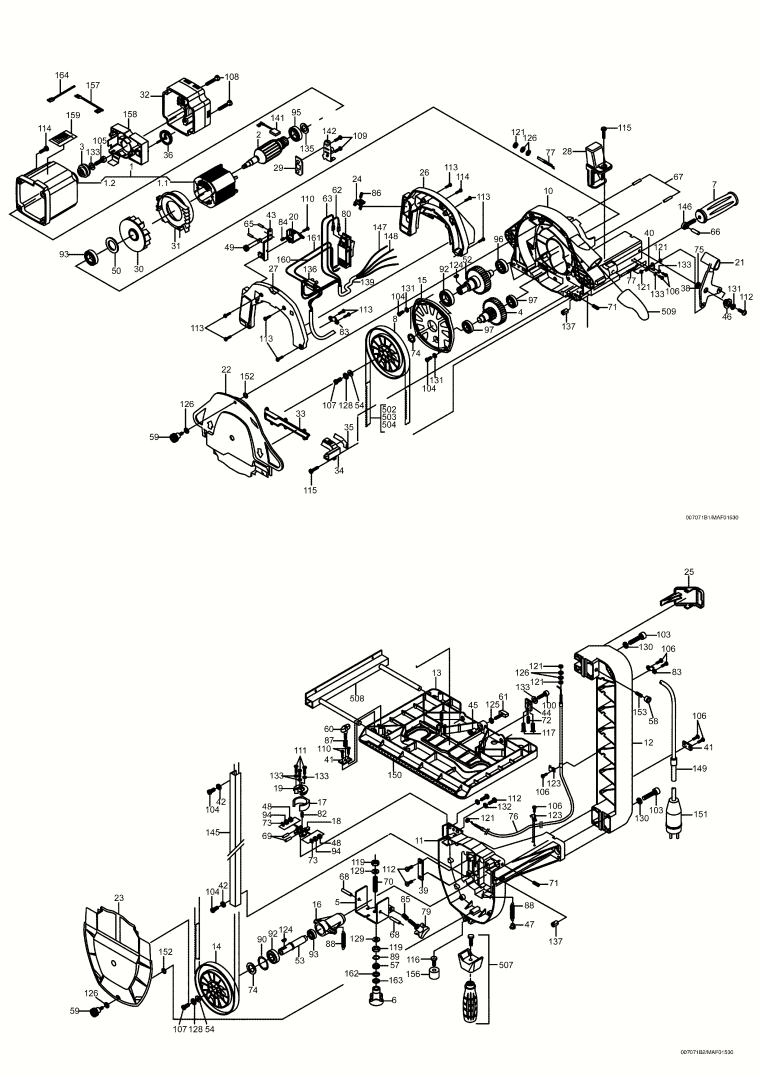

An exploded drawing and spare parts listing for the Mafell 925310 Portable Band Saw Z 4 Ec

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR 230 V MAF-084596.A0 084596	-
1.1 - INDUCTOR 230 V MAF-084590.A2 084590	£130.67	£156.80
1.2 - MOTOR CASING, EMPTY MAF-204223.A4 204223	-
2 - ARMATURE, BALANCED MAF-088189.A2 088189	£252.14	£302.57
3 - TACHOMETER CARRIER MAF-038975.A46 038975	£20.14	£24.17
4 - PART NAME NOT AVAILABLE MAF-203346.A3 203346	-
5 - CLAMPING SUPPORT, CPL. MAF-038339.A6 038339	-
6 - STAR-SHAPED HANDLE MAF-039082.A2 039082	£103.12	£123.75
7 - HANDLE MAF-203824.A2 203824	-
8 - PART NAME NOT AVAILABLE MAF-203827.A2 203827	£193.58	£232.29
10 - CASING MAF-203717.A2 203717	-
11 - PART NAME NOT AVAILABLE MAF-203829.A4 203829	-
12 - PART NAME NOT AVAILABLE MAF-203344.A0 203344	-
13 - PART NAME NOT AVAILABLE MAF-203833.A0 203833	-
14 - PART NAME NOT AVAILABLE MAF-038319.A6 038319	-
15 - BEARING COVER MAF-203721.A0 203721	-
16 - SHAFT BEARING MAF-038323.A6 038323	-
17 - SUPPORT FOR TILTING DEVICE MAF-038325.A5 038325	£75.34	£90.41
18 - BALL BEARING SUPPORT MAF-038327.A2 038327	£50.76	£60.91
19 - SUPPORTING PIECE MAF-038329.A3 038329	£10.00	£12.00
20 - PUSH-BUTTON MAF-203821.A0 203821	-
21 - PLUNGE LEVER HANDLE MAF-203176.A2 203176	-
22 - PART NAME NOT AVAILABLE MAF-203731.A0 203731	-
23 - COVER, LOWER MAF-038345.A2 038345	£31.97	£38.36
24 - PART NAME NOT AVAILABLE MAF-203825.A1 203825	-
25 - PART NAME NOT AVAILABLE MAF-203822.A0 203822	-
26 - PART NAME NOT AVAILABLE MAF-203723.A1 203723	-
27 - PART NAME NOT AVAILABLE MAF-203724.A0 203724	-
28 - PART NAME NOT AVAILABLE MAF-203726.A1 203726	-
29 - PAD MAF-201872.A89 201872	-
30 - FAN MAF-202348.A4 202348	-
31 - AIR CONDUCTING RING MAF-203738.A3 203738	-
32 - MOTOR COVER MAF-203713.A3 203713	-
33 - PART NAME NOT AVAILABLE MAF-203725.A0 203725	-
34 - PART NAME NOT AVAILABLE MAF-203747.A2 203747	-
35 - PART NAME NOT AVAILABLE MAF-203748.A3 203748	-
36 - SETTING WHEEL MAF-203729.A43 203729	-
38 - LEVER MAF-203719.A0 203719	-
39 - GUIDE PLATE MAF-038331.A6 038331	-
40 - HOLDING ANGLE MAF-038348.A3 038348	-
41 - CLAMPING PLATE MAF-033933.A9 033933	-
42 - CLAMPING DISK MAF-038364.A2 038364	£4.11	£4.93
43 - BRAKE LEVER MAF-203820.A2 203820	-
44 - PART NAME NOT AVAILABLE MAF-203739.A0 203739	-
45 - THREADED BUSHING MAF-038350.A2 038350	-
46 - BEARING BUSH MAF-203728.A0 203728	-
47 - BOLT MAF-203815.A1 203815	-
48 - SPACER SLEEVE MAF-039514.A1 039514	£6.82	£8.18
49 - PART NAME NOT AVAILABLE MAF-203818.A2 203818	-
50 - PART NAME NOT AVAILABLE MAF-203780.A1 203780	-
52 - PART NAME NOT AVAILABLE MAF-203727.A0 203727	-
53 - WHEEL SHAFT MAF-038332.A3 038332	-
54 - CLAMPING DISK MAF-038356.A6 038356	-
57 - WASHER MAF-203730.A0 203730	-
58 - PART NAME NOT AVAILABLE MAF-203809.A2 203809	-
59 - PART NAME NOT AVAILABLE MAF-065051.A2 065051	£7.24	£8.69
60 - WING SCREW MAF-079080.A20 079080	£7.70	£9.24
61 - WING SCREW MAF-079026.A13 079026	-
62 - PART NAME NOT AVAILABLE MAF-085168.A3 085168	-
63 - PART NAME NOT AVAILABLE MAF-085174.A2 085174	-
65 - CYLINDRICAL PIN MAF-058209.A1 058209	-
66 - PART NAME NOT AVAILABLE MAF-055255.A0 055255	-
67 - CYLINDRICAL PIN MAF-058005.A10 058005	£2.88	£3.45
68 - CYLINDRICAL PIN MAF-058052.A6 058052	-
69 - CYLINDRICAL PIN MAF-058145.A1 058145	£2.42	£2.90
70 - THREADED PIN MAF-005295.A1 005295	-
71 - THREADED PIN MAF-005284.A71 005284	-
72 - THREADED PIN MAF-005274.A19 005274	-
73 - SHIM RING MAF-061049.A8 061049	£1.72	£2.07
74 - SHIM RING MAF-061141.A8 061141	-
75 - SHIM RING MAF-061080.A6 061080	-
76 - PART NAME NOT AVAILABLE MAF-203741.A1 203741	-
77 - PART NAME NOT AVAILABLE MAF-203742.A5 203742	-
79 - STAR-SHAPED HANDLE SCREW MAF-079043.A4 079043	-
80 - PART NAME NOT AVAILABLE MAF-087869.A1 087869	-
82 - PART NAME NOT AVAILABLE MAF-038340.A2 038340	£7.51	£9.01
83 - CABLE CLAMP MAF-029584.A134 029584	-
84 - PRESSURE SPRING MAF-066154.A26 066154	-
85 - PRESSURE SPRING MAF-066056.A5 066056	-
86 - PRESSURE SPRING MAF-066053.A20 066053	£2.54	£3.05
87 - PRESSURE SPRING MAF-066043.A159 066043	£3.04	£3.65
88 - PART NAME NOT AVAILABLE MAF-066153.A4 066153	-
89 - RETAINING RING MAF-006194.A6 006194	-
90 - RETAINING RING MAF-061008.A9 061008	-
92 - GROOVED BALL BEARING MAF-062018.A44 062018	£26.06	£31.27
93 - GROOVED BALL BEARING MAF-006268.A32 006268	£15.30	£18.36
94 - GROOVED BALL BEARING MAF-062010.A26 062010	£14.52	£17.42
95 - GROOVED BALL BEARING MAF-062073.A72 062073	£14.28	£17.14
96 - GROOVED BALL BEARING MAF-006269.A10 006269	-
97 - GROOVED BALL BEARING MAF-006280.A58 006280	£13.65	£16.38
100 - CYLINDER-HEAD SCREW MAF-055198.A1 055198	-
103 - CYLINDER-HEAD SCREW MAF-055074.A20 055074	£2.12	£2.55
104 - CYLINDER-HEAD SCREW MAF-005531.A14 005531	£2.76	£3.31
105 - CYLINDER-HEAD SCREW MAF-055108.A21 055108	£1.28	£1.54
106 - OVAL-HEAD SCREW MAF-055068.A24 055068	-
107 - FLAT-HEAD SCREW MAF-005349.A6 005349	-
108 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A210 055061	£1.71	£2.05
109 - COUNTER-SUNK OVAL-HEAD SCREW MAF-053020.A110 053020	£2.01	£2.41
110 - OVAL-HEAD SCREW MAF-055114.A19 055114	-
111 - OVAL-HEAD SCREW MAF-055069.A42 055069	£2.16	£2.59
112 - OVAL-HEAD SCREW MAF-055101.A61 055101	£2.04	£2.45
113 - CYLINDRICAL OVAL-HEAD SCREW MAF-055233.A105 055233	£1.71	£2.05
114 - SELF-TAPPING SCREW MAF-055230.A85 055230	-
115 - SELF-TAPPING SCREW MAF-055232.A48 055232	£1.68	£2.02
116 - HEXAGON-HEAD SCREW MAF-056026.A2 056026	£2.00	£2.40
117 - FLAT-HEAD SCREW MAF-053026.A2 053026	-
119 - HEXAGONAL NUT MAF-005924.A38 005924	£1.67	£2.00
121 - HEXAGONAL NUT MAF-005911.A27 005911	-
123 - CLAMP MAF-086063.A2 086063	-
124 - WOODRUFF KEY MAF-007805.A11 007805	£2.59	£3.11
125 - WASHER MAF-006102.A94 006102	-
126 - WASHER MAF-006101.A101 006101	£1.54	£1.85
128 - TOOTHED WASHER MAF-006118.A2 006118	-
129 - LOCKING WASHER MAF-006183.A27 006183	-
130 - LOCKING WASHER MAF-006114.A39 006114	-
131 - LOCKING WASHER MAF-006113.A41 006113	£1.92	£2.31
132 - SPLIT SPRING LOCK WASHER MAF-061036.A2 061036	-
133 - LOCKING WASHER MAF-006184.A78 006184	£1.50	£1.80
135 - COMPENSATING DISK MAF-006671.A16 006671	£2.04	£2.45
136 - TERMINAL STRIP 2-POL. MAF-087872.A2 087872	-
137 - PART NAME NOT AVAILABLE MAF-203816.A0 203816	-
139 - PROTECTIVE TUBE MAF-201250.A15 201250	-
141 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063176.A17 063176	£16.56	£19.87
142 - BRUSH HOLDER MAF-063148.A60 063148	£10.30	£12.36
145 - PART NAME NOT AVAILABLE MAF-203823.A0 203823	-
146 - THREADED EYE-BOLT MAF-057018.A8 057018	-
147 - CONNECTING CABLE MAF-085169.A0 085169	-
148 - CONNECTING CABLE MAF-085170.A3 085170	-
149 - CABLE PROTECTING SLEEVE MAF-086064.A109 086064	£3.37	£4.04
150 - SKALE MAF-203734.A0 203734	£10.21	£12.25
151 - MAINS CABLE 10 M (32.8 FT.) MAF-087863.A3 087863	-
152 - SEALING RING MAF-065004.A61 065004	£1.63	£1.96
153 - PART NAME NOT AVAILABLE MAF-052013.A1 052013	-
156 - RUBBER BUFFER MAF-077047.A3 077047	£16.23	£19.48
157 - CONNECTING CABLE MAF-085133.A7 085133	-
158 - CONTROL MODULE MAF-077635.A2 077635	£120.16	£144.19
159 - SPEED DIAGRAM MAF-077630.A0 077630	-
160 - PART NAME NOT AVAILABLE MAF-085137.A0 085137	-
161 - PART NAME NOT AVAILABLE MAF-085138.A1 085138	-
162 - WASHER MAF-062050.A5 062050	-
163 - AXIAL WASHER MAF-062081.A2 062081	-
164 - CABLE BINDER MAF-076492.A14 076492	-
502 - BAND SAW BLADES, 10 PIECES MAF-092348.A1 092348	£21.99	£26.39
503 - BAND SAW BLADES, 10 PIECES MAF-092349.A0 092349	£21.99	£26.39
504 - BAND SAW BLADES, 10 PIECES MAF-092350.A1 092350	£31.16	£37.39
507 - HANDLE MAF-204038.A3 204038	-
508 - PARALLEL GUIDE FENCE MAF-039386.A0 039386	£72.60	£87.12
509 - PART NAME NOT AVAILABLE MAF-078178.A2 078178	-

Attribute Name	Value
Brand	Mafell
