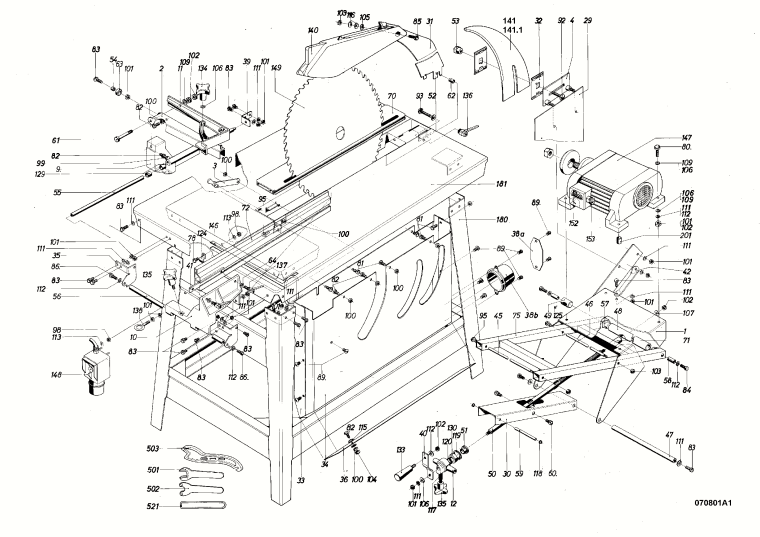

1 - MOTOR SUPPORT, CPL.
MAF-038729.A2
038729
|
-
|
|
|
|
2 - PIVOTING ARM
MAF-038730.A0
038730
|
-
|
|
|
|
3 - LOCKING LEVER
MAF-038743.A2
038743
|
-
|
|
|
|
4 - CHAIN BAR, CPL.
MAF-038715.A2
038715
|
-
|
|
|
|
9 - SUPPORT FENCE GUIDE W
MAF-038732.A2
038732
|
-
|
|
|
|
10 - SUPPORT FENCE GUIDE P
MAF-039235.A1
039235
|
-
|
|
|
|
11 - CROSS AND MITRE CUT FENCE
MAF-028627.A2
028627
|
-
|
|
|
|
12 - PIVOTING BEARING
MAF-038704.A2
038704
|
-
|
|
|
|
29 - GUARD PLATE
MAF-038745.A1
038745
|
-
|
|
|
|
30 - SUPPORT
MAF-038746.A1
038746
|
-
|
|
|
|
31 - SAW GUARD SUPPORT
MAF-038762.A1
038762
|
-
|
|
|
|
32 - GUIDE PLATE
MAF-036644.A3
036644
|
-
|
|
|
|
33 - PART NAME NOT AVAILABLE
MAF-038749.A0
038749
|
-
|
|
|
|
34 - PART NAME NOT AVAILABLE
MAF-038750.A2
038750
|
-
|
|
|
|
35 - HOLDING ANGLE
MAF-038756.A2
038756
|
-
|
|
|
|
36 - LOCKING PLATE
MAF-038707.A1
038707
|
-
|
|
|
|
38A - COVERING PLATE
MAF-039241.A1
039241
|
-
|
|
|
|
38B - HOSE CONNECTOR
MAF-038702.A0
038702
|
-
|
|
|
|
39 - HOLDING ANGLE
MAF-038733.A0
038733
|
-
|
|
|
|
40 - CRANK ARM
MAF-034834.A3
034834
|
-
|
|
|
|
41 - LEDGE
MAF-039233.A1
039233
|
-
|
|
|
|
42 - STRUT
MAF-039002.A0
039002
|
-
|
|
|
|
45 - STRUT
MAF-038719.A0
038719
|
-
|
|
|
|
46 - STRUT
MAF-038718.A1
038718
|
-
|
|
|
|
47 - ROD
MAF-038763.A2
038763
|
-
|
|
|
|
48 - TUBE
MAF-038725.A0
038725
|
-
|
|
|
|
49 - INTERMEDIATE PIECE
MAF-038717.A1
038717
|
-
|
|
|
|
50 - SPINDLE
MAF-038701.A1
038701
|
-
|
|
|
|
51 - BUSH
MAF-038713.A0
038713
|
-
|
|
|
|
52 - WASHER
MAF-035426.A4
035426
|
-
|
|
|
|
53 - NUT
MAF-038722.A0
038722
|
-
|
|
|
|
54 - SLEEVE
MAF-038721.A0
038721
|
-
|
|
|
|
55 - GUIDE BAR
MAF-200332.A0
200332
|
-
|
|
|
|
56 - GUIDE BAR
MAF-038755.A2
038755
|
-
|
|
|
|
57 - MOUNTING DISK
MAF-031225.A0
031225
|
-
|
|
|
|
58 - GUIDE SLEEVE
MAF-031223.A2
031223
|
-
|
|
|
|
59 - BOLT
MAF-038754.A2
038754
|
-
|
|
|
|
60 - SHOULDER SCREW
MAF-038752.A2
038752
|
-
|
|
|
|
61 - ARBOR
MAF-039278.A2
039278
|
-
|
|
|
|
62 - SLEEVE
MAF-038764.A2
038764
|
-
|
|
|
|
63 - ROLLER
MAF-037626.A2
037626
|
-
|
|
|
|
64 - WASHER
MAF-061108.A1
061108
|
-
|
|
|
|
70 - TABLE INSERT
MAF-038712.A0
038712
|
-
|
|
|
|
71 - SPACER TUBE
MAF-039279.A2
039279
|
-
|
|
|
|
72 - GUIDE FENCE EXTENSION
MAF-039239.A1
039239
|
-
|
|
|
|
75 - ROCKER
MAF-038726.A2
038726
|
-
|
|
|
|
78 - HEXAGON-HEAD SCREW
MAF-005677.A0
005677
|
£1.32
|
£1.58
|
|
|
80 - HEXAGON-HEAD SCREW
MAF-005628.A3
005628
|
-
|
|
|
|
81 - HEXAGON-HEAD SCREW
MAF-005632.A6
005632
|
-
|
|
|
|
82 - HEXAGON-HEAD SCREW
MAF-005697.A1
005697
|
-
|
|
|
|
83 - HEXAGON-HEAD SCREW
MAF-005645.A7
005645
|
-
|
|
|
|
84 - HEXAGON-HEAD SCREW
MAF-005670.A1
005670
|
-
|
|
|
|
85 - HEXAGON-HEAD SCREW
MAF-005609.A4
005609
|
-
|
|
|
|
86 - HEXAGON-HEAD SCREW
MAF-005650.A0
005650
|
-
|
|
|
|
89 - SELF-TAPPING SCREW
MAF-055120.A1
055120
|
-
|
|
|
|
92 - TRUSS-HEAD SCREW
MAF-057006.A1
057006
|
-
|
|
|
|
93 - TRUSS-HEAD SCREW
MAF-005723.A1
005723
|
-
|
|
|
|
95 - SPIRAL-SHAPED SCREW
MAF-055135.A2
055135
|
-
|
|
|
|
98 - HEXAGONAL NUT
MAF-005915.A1
005915
|
-
|
|
|
|
99 - HEXAGONAL NUT
MAF-005911.A10
005911
|
-
|
|
|
|
100 - HEXAGONAL NUT
MAF-005939.A8
005939
|
-
|
|
|
|
101 - HEXAGONAL NUT
MAF-005920.A25
005920
|
-
|
|
|
|
102 - HEXAGONAL NUT
MAF-005924.A23
005924
|
£1.67
|
£2.00
|
|
|
103 - LOCKING NUT
MAF-005983.A3
005983
|
-
|
|
|
|
104 - CAP NUT
MAF-005934.A1
005934
|
-
|
|
|
|
105 - WASHER
MAF-006104.A8
006104
|
-
|
|
|
|
106 - WASHER
MAF-006102.A24
006102
|
-
|
|
|
|
107 - WASHER
MAF-061088.A3
061088
|
-
|
|
|
|
109 - WASHER
MAF-006130.A6
006130
|
-
|
|
|
|
111 - LOCKING WASHER
MAF-006114.A0
006114
|
-
|
|
|
|
112 - LOCKING WASHER
MAF-006183.A3
006183
|
-
|
|
|
|
113 - LOCKING WASHER
MAF-006179.A6
006179
|
£1.53
|
£1.84
|
|
|
115 - CUP SPRING
MAF-006675.A4
006675
|
£2.41
|
£2.89
|
|
|
116 - CUP SPRING
MAF-006681.A4
006681
|
-
|
|
|
|
117 - PRESSURE SPRING
MAF-066073.A2
066073
|
-
|
|
|
|
118 - RETAINING RING
MAF-006173.A8
006173
|
-
|
|
|
|
119 - RETAINING RING
MAF-061008.A2
061008
|
-
|
|
|
|
120 - RETAINING RING
MAF-007163.A8
007163
|
-
|
|
|
|
124 - FIXING CLIP
MAF-008668.A1
008668
|
-
|
|
|
|
125 - RIBBED NAIL
MAF-005892.A2
005892
|
-
|
|
|
|
129 - SLIDING BEARING
MAF-062056.A1
062056
|
-
|
|
|
|
130 - GROOVED BALL BEARING
MAF-062018.A6
062018
|
£26.06
|
£31.27
|
|
|
133 - CYLINDRICAL HANDLE
MAF-079045.A0
079045
|
-
|
|
|
|
134 - STAR-SHAPED HANDLE
MAF-079046.A0
079046
|
-
|
|
|
|
135 - STAR-SHAPED HANDLE SCREW
MAF-079047.A1
079047
|
-
|
|
|
|
136 - CLAMPING LEVER
MAF-007196.A1
007196
|
-
|
|
|
|
137 - CLAMPING LEVER
MAF-071000.A2
071000
|
-
|
|
|
|
138 - EYE BOLT
MAF-038175.A1
038175
|
-
|
|
|
|
140 - PROTECTIVE COVER
MAF-035410.A3
035410
|
-
|
|
|
|
141 - RIVING KNIFE/SPLITTER
MAF-034845.A1
034845
|
-
|
|
|
|
141.1 - RIVING KNIFE/SPLITTER
MAF-037088.A
037088
|
-
|
|
|
|
146 - SKALE
MAF-077600.A1
077600
|
-
|
|
|
|
148 - PART NAME NOT AVAILABLE
MAF-087706.A1
087706
|
-
|
|
|
|
149 - TCT SAW BLADE
MAF-092512.A
092512
|
-
|
|
|
|
153 - SCREW-TYPE CABLE CLAMP
MAF-007828.A3
007828
|
-
|
|
|
|
180 - SUPPORTING FRAME
MAF-038709.A1
038709
|
-
|
|
|
|
181 - TABLE TOP
MAF-038751.A2
038751
|
-
|
|
|
|
201 - SPACER RING
MAF-038766.A
038766
|
-
|
|
|
|
501 - SINGLE-END SPANNER
MAF-093061.A2
093061
|
-
|
|
|
|
502 - PIN SPANNER
MAF-093248.A0
093248
|
-
|
|
|
|
503 - PUSH STICK
MAF-034901.A14
034901
|
-
|
|
|
|
521 - PIN SPANNER
MAF-093251.A4
093251
|
-
|
|
|
