Makita DDF343RY Cordless Driver Drill Spare Parts

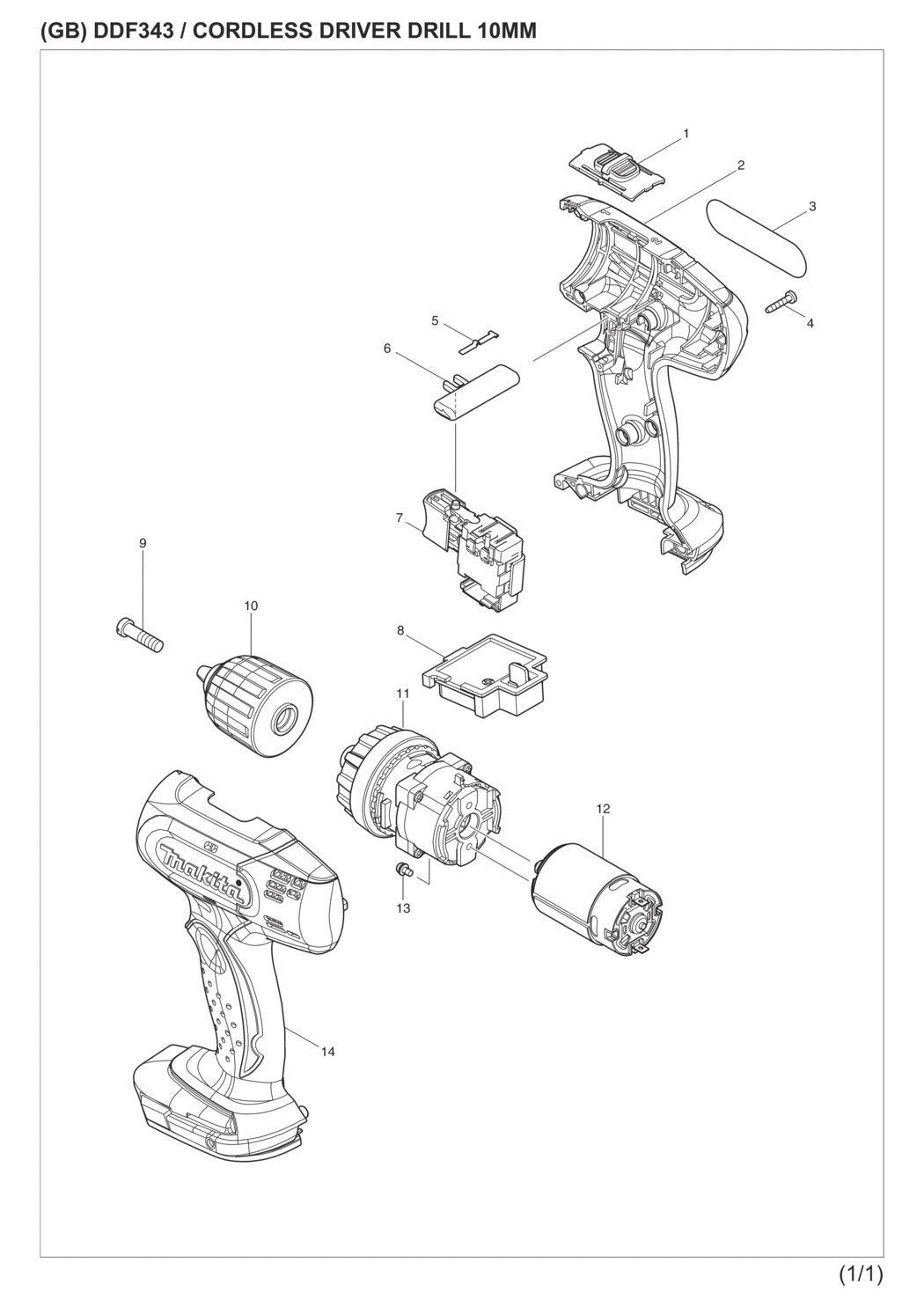

An exploded drawing and spare parts listing for the Makita DDF343RY Cordless Driver Drill

	Ex VAT	Inc VAT
1 - COMPRESSION SPRING 4 MSP-231433-0.A39 231433-0	£1.44	£1.73
1 - SPEED CHANGE LEVER ASSY DDF34 MSP-125310-5.A20 125310-5	£1.44	£1.73
2 - HOUSING SET BDF343 MSP-187722-0.A4 187722-0	£15.91	£19.09
3 - NAME PLATE DDF343 MSP-815H09-5.A2 815H09-5	£1.44	£1.73
4 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A198 266130-9	£1.44	£1.73
5 - LEAF SPRING DHP480/DDF480 MSP-232182-2.A46 232182-2	£1.44	£1.73
6 - F/R CHANGE LEVER DHP343/453 MSP-419250-0.A66 419250-0	£1.66	£1.99
7 - SWITCH DDF453/DHP453 MSP-632A24-0.A3 632A24-0	£34.28	£41.13
8 - TERMINAL DUR141/DUM166/DFS441 MSP-643854-8.A4 643854-8	£4.68	£5.62
9 - SPARE PART MSP-251468-5.A118 251468-5	£1.44	£1.73
11 - GEAR ASSY DF347D MSP-126000-3.A2 126000-3	£34.28	£41.13
12 - DC MOTOR DF347D MSP-629898-2.A2 629898-2	£15.11	£18.13
13 - PAN HD SCREW M3X6 VC3211M/ MSP-911003-8.A33 911003-8	£1.44	£1.73
14 - HOUSING SET BDF343 MSP-187722-0.A5 187722-0	£15.91	£19.09
A02 - DC18RC COMPACT CHARGER MSP-*DC18RC.A166 *DC18RC	-
A05 - HANDLE AN510/DDF453/501 MSP-419360-3.A1 419360-3	£1.44	£1.73
A05 - LATCH AN510/BDF453/BUC121/2 MSP-163455-1.A56 163455-1	£1.20	£1.44
A05 - PLASTIC CASE DDF/DHP343 MSP-158777-2.A2 158777-2	£29.36	£35.23

Attribute Name	Value
Brand	Makita
