Makita VC2211MX1 Vacuum Cleaner Spare Parts

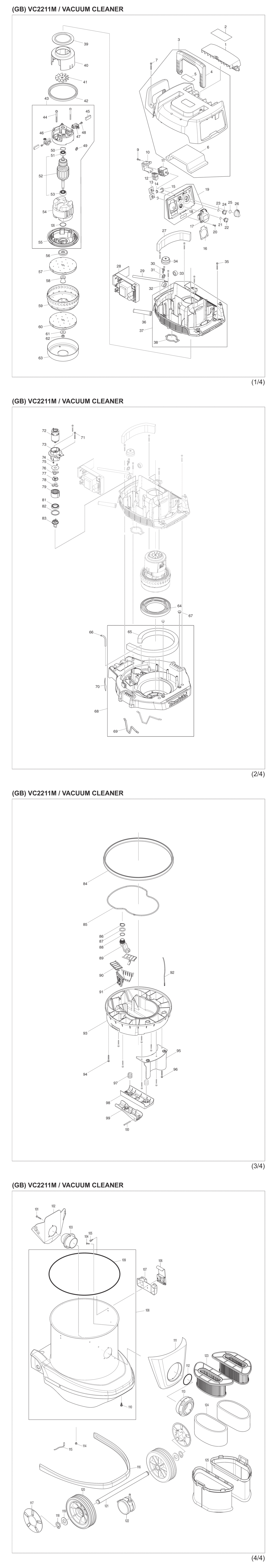

An exploded drawing and spare parts listing for the Makita VC2211MX1 Vacuum Cleaner

	Ex VAT	Inc VAT
1 - BASE HOOK VC3210L/2510/1310 MSP-452451-7.A3 452451-7	£4.52	£5.43
2 - LABEL/CAUTION VC3211M MSP-800W80-2.A1 800W80-2	£1.44	£1.73
3 - COWLING VC3211M MSP-141915-3.A2 141915-3	£57.55	£69.06
4 - GRIP VC3211M MSP-451340-3.A2 451340-3	£8.11	£9.73
5 - LABEL/CAUTION VC3211M/DVC863L MSP-891977-8.A5 891977-8	£1.44	£1.73
7 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A49 266053-1	£1.44	£1.73
9 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A281 265995-6	£1.44	£1.73
10 - SWITCH HOLDER VC3211M/3210L/2 MSP-451343-7.A2 451343-7	£1.44	£1.73
11 - SWITCH VC3210L/2510/1310L/321 MSP-650659-9.A2 650659-9	£28.51	£34.21
12 - RECEPTACLE SLEEVE VC1310/321 MSP-686023-8.A4 686023-8	£1.44	£1.73
13 - SUB CONTROLLER VC3211M MSP-620185-2.A2 620185-2	£21.17	£25.40
14 - EXT E-RING JIS JE-7 VC3211M MSP-961013-5.A16 961013-5	£1.44	£1.73
15 - EXT E-RING JIS JE-12 VC3211M MSP-961062-2.A5 961062-2	£1.44	£1.73
16 - RUBBER SHEET 240V VC3211M/131 MSP-685740-7.A0 685740-7	£1.44	£1.73
17 - OUTLET 240V VC3211M/3210L/251 MSP-655124-3.A4 655124-3	£18.72	£22.46
18 - LABEL/CAUTION VC3211M MSP-800W85-2.A2 800W85-2	£1.44	£1.73
19 - SWITCH BASE HB-M VC2211M MSP-143295-3 143295-3	£41.98	£50.37
20 - COUNTERSUNK TAPPING SCREW VC3 MSP-266640-6.A4 266640-6	£1.44	£1.73
21 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A15 213054-0	£1.44	£1.73
22 - SWITCH DIAL VC3211M/VC3210L/2 MSP-451344-5.A9 451344-5	£1.44	£1.73
23 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A16 213054-0	£1.44	£1.73
24 - SWITCH DIAL VC3211M/VC3210L/2 MSP-451344-5.A8 451344-5	£1.44	£1.73
25 - O RING 14 VC3211M/AN942/HR321 MSP-213176-6.A10 213176-6	£1.44	£1.73
26 - SWITCH LEVER VC3211M/3210L/25 MSP-451342-9.A3 451342-9	£1.44	£1.73
27 - REAR BLOCK FILTER VC3211M MSP-423450-6.A1 423450-6	£3.90	£4.68
28 - CONTROLLER 240V VC3211/VC2211 MSP-620467-2.A2 620467-2	£304.20	£365.04
29 - POWER SUPPLY CORD VC3211M MSP-692450-9.A2 692450-9	£48.58	£58.29
30 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A82 265999-8	£1.44	£1.73
31 - STRAIN RELIEF VC3211M/SMA910 MSP-687149-9.A8 687149-9	£1.44	£1.73
32 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A65 688131-1	£1.44	£1.73
33 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A66 688131-1	£1.44	£1.73
34 - BUZZER CIRCUIT VC3211M MSP-620186-0.A2 620186-0	£15.42	£18.51
35 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A48 266053-1	£1.44	£1.73
36 - CORD GUARD 12-90 VC3211M/SMA9 MSP-682575-7.A6 682575-7	£1.44	£1.73
37 - SEPARATOR VC3211M MSP-141917-9.A2 141917-9	£41.98	£50.37
38 - DC MOTOR SEAL VC3211M MSP-423462-9.A0 423462-9	£1.44	£1.73
39 - SEAL RING VC3211M MSP-423279-0.A5 423279-0	£2.65	£3.18
40 - MOTOR COVER VC3211M/3210L/251 MSP-451338-0.A3 451338-0	£2.34	£2.81
41 - FAN 62 VC3211M MSP-241512-6.A3 241512-6	£1.44	£1.73
42 - RUBBER RING 120 VC3211M/3210L MSP-424228-0.A5 424228-0	£5.62	£6.74
43 - MOTOR ASSY VC3211M/3210L/2510 MSP-125876-5.A2 125876-5	£110.00	£132.00
44 - PAN HD SCREW M5X60/EB7650TH MSP-911283-6.A3 911283-6	£1.44	£1.73
45 - CARBON BRUSH CB-173 MSP-195483-8.A3 195483-8	£10.61	£12.73
46 - ENDBELL VC3211M/VC1310L MSP-452106-4.A2 452106-4	£9.67	£11.61
47 - BRUSH HOLDER 6.5X13.5 VC3211M MSP-643610-6.A3 643610-6	£2.34	£2.81
48 - PAN HEAD SCREW M4X12 VC3211M MSP-911118-1.A19 911118-1	£1.44	£1.73
49 - BAND VC3211M/HR4110C/LF1000 MSP-687010-0.A14 687010-0	£1.44	£1.73
50 - WAVE WASHER 20 VC3211M/9403 MSP-267715-4.A2 267715-4	£1.44	£1.73
51 - BALL BEARING VC3211M/3612/C/ MSP-211092-6.A36 211092-6	£8.58	£10.30
52 - ARMATURE ASSY 240V VC3211M/25 MSP-517849-6.A4 517849-6	£50.02	£60.03
53 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A51 211087-9	£9.67	£11.61
54 - FIELD ASSY 240V VC3211M/3210L MSP-526204-1.A4 526204-1	£39.17	£47.00
54 - RECEPTACLE DCO180/VC1310L MSP-654304-8.A4 654304-8	£1.44	£1.73
55 - BASE VC3211./VC3210L/2510/131 MSP-454480-6.A1 454480-6	£12.48	£14.98
56 - FLANGE VC3211M MSP-316795-8.A2 316795-8	£1.44	£1.73
57 - FAN 125 VC3211M/3210L/2510/13 MSP-241910-4.A2 241910-4	£3.59	£4.31
58 - SPACER VC3211M/3210L/2510/131 MSP-325747-8.A0 325747-8	£2.02	£2.43
59 - RETURN VANE VC3211M/3210L/251 MSP-346114-4.A0 346114-4	£6.08	£7.30
60 - FAN 125 VC3211M/3210L/2510/13 MSP-241910-4.A3 241910-4	£3.59	£4.31
61 - FLAT WASHER 10 VC3211M MSP-316799-0.A3 316799-0	£2.97	£3.56
62 - HEX HALFNUT M8 VC3211M MSP-931403-6.A11 931403-6	£1.44	£1.73
63 - FAN COVER VC3211M/VC3210L/251 MSP-346115-2.A5 346115-2	£2.97	£3.56
64 - SUPPORT RING VC3211M MSP-424229-8.A1 424229-8	£4.68	£5.62
65 - BAND DAMPER VC3211M MSP-423451-4.A2 423451-4	£6.08	£7.30
68 - TANK COVER VC3211M MSP-141916-1.A2 141916-1	£66.02	£79.23
69 - VALVE SEAL VC3211M MSP-423455-6.A2 423455-6	£1.44	£1.73
71 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A55 266053-1	£1.44	£1.73
72 - DC MOTOR VC3211M MSP-629981-5.A0 629981-5	£9.67	£11.61
73 - GEAR CASE VC3211M MSP-454207-4.A3 454207-4	£3.90	£4.68
74 - PAN HD SCREW M3X6 VC3211M/ MSP-911003-8.A30 911003-8	£1.44	£1.73
75 - FLAT WASHER 12 VC3211M/4602/0 MSP-267067-3.A0 267067-3	£1.44	£1.73
76 - SPUR GEAR 15 VC3211M/6222DW MSP-226283-6.A0 226283-6	£1.44	£1.73
77 - SPUR GEAR 9 6222DW VC3211M MSP-153228-0.A0 153228-0	£8.42	£10.11
78 - SPUR GEAR 15 6222DW VC3211M MSP-226284-4.A4 226284-4	£1.44	£1.73
79 - INTERNAL GEAR 42 6222DW VC321 MSP-226285-2.A0 226285-2	£14.35	£17.22
81 - BALL BEARING VC3211M/BHR162/ MSP-211375-4.A42 211375-4	£19.58	£23.50
82 - FLAT WASHER 34 VC3211M MSP-267464-3.A0 267464-3	£1.44	£1.73
83 - SPINDLE ASSEMBLY VC3211M MSP-135554-9.A0 135554-9	£5.78	£6.93
84 - RUBBER RING VC3211M/C MSP-424543-2.A4 424543-2	£27.50	£33.00
85 - SEAL RING VC3211M MSP-424544-0.A0 424544-0	£3.28	£3.93
86 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A20 961060-6	£1.44	£1.73
87 - SHIM WASHER 20 VC3211M/9079F MSP-267041-1.A2 267041-1	£1.44	£1.73
88 - O RING 20 VC3211M/HR3000C/690 MSP-213304-3.A3 213304-3	£1.44	£1.73
89 - CAM VC3211M MSP-454208-2.A0 454208-2	£4.06	£4.87
90 - OUTER VALVE VC3211M MSP-141919-5.A4 141919-5	£3.28	£3.93
91 - INNER VALVE VC3211M MSP-141918-7.A0 141918-7	£3.74	£4.49
93 - INNER COVER VC3211M MSP-454204-0.A0 454204-0	£50.02	£60.03
94 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A3 266053-1	£1.44	£1.73
95 - PROTECTOR VC3211M MSP-454209-0.A4 454209-0	£15.26	£18.31
96 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A2 266053-1	£1.44	£1.73
97 - COMPRESSION SPRING 20 VC3211M MSP-234273-5.A5 234273-5	£1.44	£1.73
98 - LOCK PLATE VC3211M MSP-454215-5.A4 454215-5	£4.21	£5.05
99 - LOCK LEVER VC3211M MSP-454214-7.A0 454214-7	£4.37	£5.24
100 - PIN 4 VC3211M MSP-268292-9.A4 268292-9	£1.44	£1.73
101 - TAPPING SCREW 4X28 VC3211M/95 MSP-266257-5.A22 266257-5	£1.44	£1.73
102 - HOLDER PLATE VC3211M MSP-417587-9.A4 417587-9	£1.44	£1.73
103 - HOLDER VC3211M MSP-451455-6.A0 451455-6	£1.44	£1.73
104 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A108 266192-7	£1.44	£1.73
105 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A119 266192-7	£1.44	£1.73
106 - HOOK VC3211M/VC3210L/2510/131 MSP-168537-4.A8 168537-4	£13.88	£16.66
108 - TANK SET VC2211M/VC2211 MSP-188828-7.A1 188828-7	£122.78	£147.33
109 - RUBBER RING T VC3211M MSP-424346-4.A4 424346-4	£6.40	£7.68
110 - PAN HEAD SCREW M4X12 VC3211M MSP-911118-1.A34 911118-1	£1.44	£1.73
111 - INLET COVER VC3211M MSP-451546-3.A0 451546-3	£4.68	£5.62
112 - O RING 56 VC3211/HR3500/DVC863 MSP-213655-4.A0 213655-4	£1.44	£1.73
113 - INLET VC3211M MSP-451454-8.A4 451454-8	£7.49	£8.99
114 - PAN HD SCREW M4X6 VC3211M MSP-911103-4.A3 911103-4	£1.44	£1.73
115 - EARTH LINE 120 VC3211M/DVC861 MSP-649150-2.A2 649150-2	£3.90	£4.68
117 - WHEEL CAP VC3211M MSP-451643-5.A0 451643-5	£1.44	£1.73
118 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A21 961060-6	£1.44	£1.73
119 - FLAT WASHER 20 VC3211M/GA9020 MSP-267299-2.A0 267299-2	£1.44	£1.73
120 - CASTER 170 VC3211M MSP-451642-7.A4 451642-7	£26.92	£32.31
121 - JOINT PIPE 20-350 VC3211M MSP-331888-0.A4 331888-0	£4.52	£5.43
122 - CASTER 75 VC3211M MSP-168547-1.A4 168547-1	£10.77	£12.92
123 - POWDER FILTER M VC3211M MSP-141875-9.A0 141875-9	£26.64	£31.97
124 - DAMPER VC3211M MSP-423452-2.A0 423452-2	£6.71	£8.05
125 - PRE-FILTER SET VC3211M/VC2211 MSP-196253-8.A4 196253-8	£12.41	£14.89
126 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A14 213406-5	£1.44	£1.73
A01 - HOSE 28-3.5 SET VC13 MSP-195433-3.A3 195433-3	£57.94	£69.53
A02 - FRONT CUFF 22 VC3211/1310/2211 MSP-417765-1.A0 417765-1	£1.20	£1.44
A01-1 - HOSE 28-3.5 SET VC13 MSP-195433-3.A4 195433-3	£57.94	£69.53
A01-1 - STOPPER 195433-3/195434-1 MSP-417586-1.A5 417586-1	£2.73	£3.28
A01-1 - SLEEVE 195433-3/DVC863L MSP-417662-1.A8 417662-1	£6.10	£7.32
A01-1 - FRONT CUFF 38 DVC340/BDVC350 MSP-417766-9.A8 417766-9	£2.62	£3.15
A01-1 - CUFFS LOCK 195433-3/195434-1 MSP-417191-4.A11 417191-4	£8.52	£10.22
A03 - FRONT CUFF 24 VC3211/1310/2211 MSP-424379-9.A7 424379-9	£2.80	£3.36
A04 - BELT HOOK VC3211M/VC2211 MSP-141873-3.A3 141873-3	£2.48	£2.97
A05 - HOSE BAND VC3211M/VC2211 MSP-166116-2.A0 166116-2	£1.20	£1.44
A06 - POLY BAG SET VC3211M/VC2211 MSP-195440-6.A3 195440-6	£7.72	£9.27
A07 - CAP VC3211M/VC2211 MSP-424545-8.A4 424545-8	£7.02	£8.42
A08 - TF SCREW 4X16 TRILOBULAR MSP-265871-4.A5 265871-4	£1.44	£1.73
A08 - BRUSH VC3211M/VC2211/DVC861L MSP-743328-0.A4 743328-0	£17.13	£20.56
A08 - NOZZLE ASSY 404/VC3211M/VC2211 MSP-122512-4.A0 122512-4	£18.69	£22.43
A09 - HOSE 38-2.5 SET VC3211M MSP-195434-1.A8 195434-1	£57.94	£69.53
A09-1 - HOSE 38-2.5 SET VC3211M MSP-195434-1.A11 195434-1	£57.94	£69.53
A09-1 - STOPPER 195433-3/195434-1 MSP-417586-1.A4 417586-1	£2.73	£3.28
A10 - STRAIGHT PIPE SET VC3211M/1310 MSP-192563-1.A0 192563-1	£10.97	£13.16
A09-1 - CUFFS LOCK 195433-3/195434-1 MSP-417191-4.A10 417191-4	£8.52	£10.22
A09-1 - SLEEVE 195434-1/DVC863L MSP-417306-3.A2 417306-3	£4.02	£4.82
A11 - BENT PIPE SET VC3211M/VC1310 MSP-192562-3.A6 192562-3	£14.22	£17.06
A12 - CORNER NOZZLE VC3211M/VC1310/ MSP-410306-2.A5 410306-2	£2.08	£2.50
A14 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A48 911138-5	£1.44	£1.73
