Makita HM1304B Demolition Hammer Spare Parts

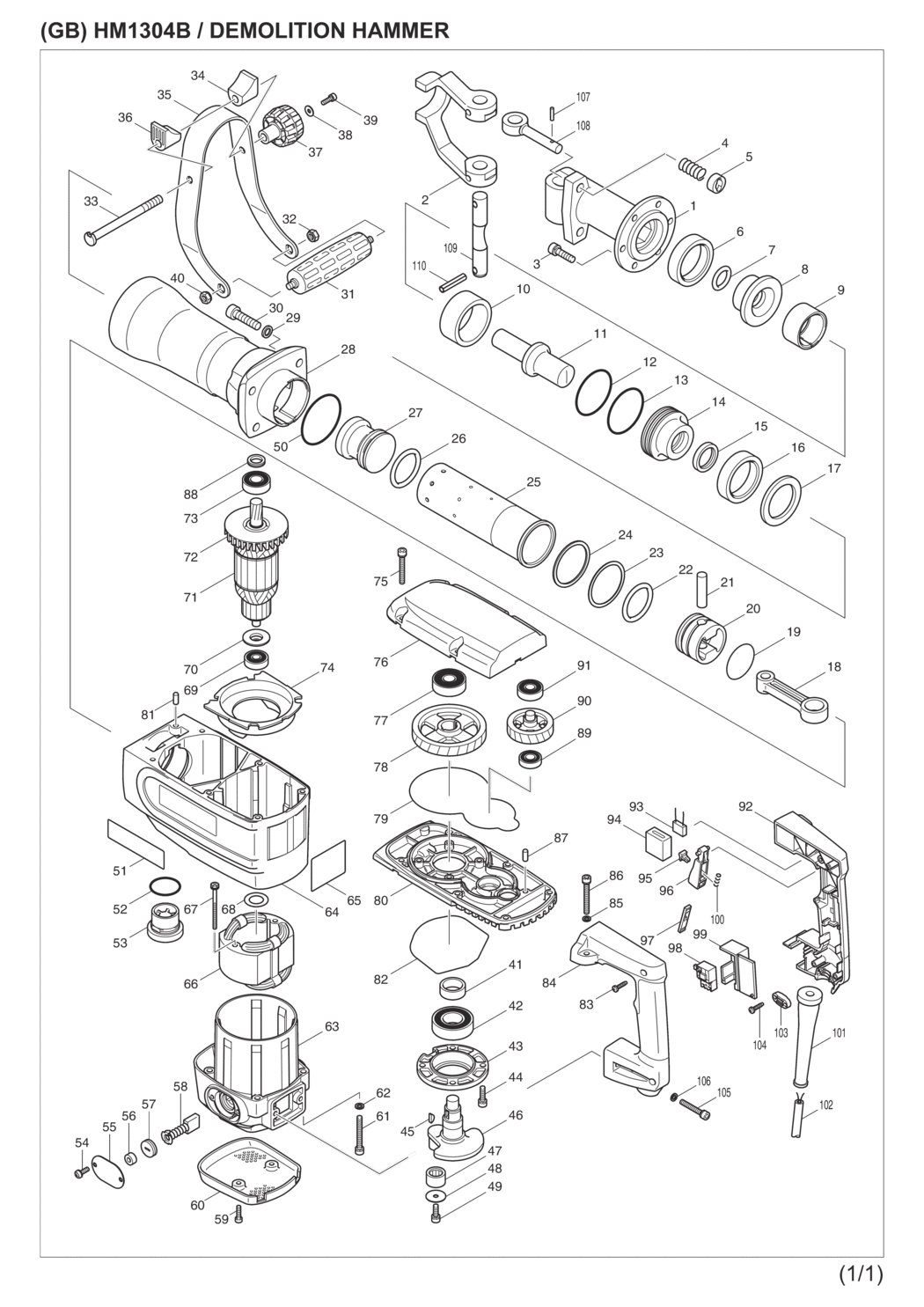

An exploded drawing and spare parts listing for the Makita HM1304B Demolition Hammer

	Ex VAT	Inc VAT
1 - TOOL HOLDER HM1304B MSP-324345-5 324345-5	£164.64	£197.57
2 - TOOL RETAINER HM1303B/1304B MSP-322478-0.A2 322478-0	£244.92	£293.90
3 - HEX SOCKET HD BOLT M8X30 MSP-266010-9.A2 266010-9	£1.44	£1.73
4 - COMPRESSION SPRING 12 HM1317C MSP-233083-7.A1 233083-7	£2.02	£2.43
5 - RETAINER RING HM1317CB/4B/181 MSP-322560-5.A1 322560-5	£16.70	£20.04
6 - URETHAN RING 48 HM1304 MSP-262098-7.A2 262098-7	£15.13	£18.16
7 - O RING 24 HM1304/B MSP-213388-1.A0 213388-1	£3.74	£4.49
8 - TOOL GUIDE HM1304B MSP-324346-3 324346-3	£20.30	£24.36
9 - IDLER HM1304 MSP-324166-5.A0 324166-5	£18.72	£22.46
10 - RUBBER RING 52 HM1304 MSP-262099-5.A0 262099-5	£4.83	£5.80
11 - IMPACT BOLT HM1304B MSP-324347-1 324347-1	£30.96	£37.15
12 - O RING 61 HM1800/HM1304B MSP-213721-7.A2 213721-7	£7.80	£9.36
12-1 - SEAL RING HM1304 MSP-421975-4.A0 421975-4	£12.17	£14.60
13 - O RING 61 HM1800/HM1304B MSP-213721-7.A3 213721-7	£7.80	£9.36
14-1 - SEAL HOLDER HM1304 MSP-324738-6.A1 324738-6	£29.38	£35.25
15 - X RING 30 HM1304/B MSP-213443-9.A1 213443-9	£13.88	£16.66
16 - URETHAN RING 48 HM1304 MSP-262098-7.A3 262098-7	£15.13	£18.16
17 - FLAT WASHER 48 HM1304 MSP-267232-4.A0 267232-4	£12.48	£14.98
18 - CONNECTING ROD HM1304 MSP-317448-2.A0 317448-2	£32.69	£39.23
19 - O RING 47 HM1304/B MSP-213617-2.A1 213617-2	£1.44	£1.73
20 - PISTON HM1304 MSP-317447-4.A1 317447-4	£29.38	£35.25
21 - PIN 12 HM1304 MSP-268066-8.A1 268066-8	£4.68	£5.62
22 - O RING 44 HM1304/B MSP-213572-8.A0 213572-8	£4.06	£4.87
23 - FLAT WASHER 55 HM1304 MSP-267233-2.A1 267233-2	£3.28	£3.93
24 - NYLON WASHER 55 HM1304 MSP-261121-5.A1 261121-5	£1.44	£1.73
25 - CYLINDER LINER 54 HM1304 MSP-331600-8.A1 331600-8	£84.29	£101.15
26 - O RING 44 HM1304/B MSP-213572-8.A1 213572-8	£4.06	£4.87
27 - STRIKER HM1304 MSP-324102-1.A1 324102-1	£25.20	£30.24
28 - BARREL HM1304 MSP-317444-0.A0 317444-0	£125.75	£150.90
29 - FLAT WASHER 10 HM1304/LF1000 MSP-941252-3.A0 941252-3	£1.44	£1.73
30 - HEX SOCKET HD BOLT M10X40 MSP-266276-1.A0 266276-1	£1.44	£1.73
31 - GRIP 37 HM1304 MSP-273518-6.A1 273518-6	£11.08	£13.29
32 - SELF-LOCKING NUT M8-13 HM1304 MSP-252005-8.A3 252005-8	£1.44	£1.73
33 - SET BOLT M10 X122 HM1304 MSP-266298-1.A1 266298-1	£6.55	£7.86
34 - HANDLE BASE HM1303/B/HM1304 MSP-416228-4.A3 416228-4	£1.44	£1.73
35 - SIDE HANDLE HM1304 MSP-345279-9.A0 345279-9	£18.72	£22.46
36 - HANDLE BASE HM1303/B/HM1304 MSP-416228-4.A2 416228-4	£1.44	£1.73
37 - WING NUT M10 HM1303/B/1304B MSP-252633-9.A2 252633-9	£4.99	£5.99
38 - WASHER 5 HM1317C/CB/KP0810C/K MSP-253194-2.A15 253194-2	£1.44	£1.73
39 - CAP HD SCREW M5X16 HM1200 MSP-922221-3.A0 922221-3	£1.44	£1.73
40 - SELF-LOCKING NUT M8-13 HM1304 MSP-252005-8.A2 252005-8	£1.44	£1.73
41 - RING 25 HM1303/1303B/1304 MSP-257196-0.A2 257196-0	£2.50	£3.00
42 - BALL BEARING 6205LLU HM1317CC MSP-211373-8.A3 211373-8	£11.86	£14.23
43 - BEARING BOX HM1303/B/1304 MSP-316730-6.A2 316730-6	£6.71	£8.05
44 - CAP SCREW M6X22 MSP-265366-7.A2 265366-7	£1.44	£1.73
45 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A21 254001-2	£1.44	£1.73
46 - CRANK SHAFT HM1304 MSP-324100-5.A0 324100-5	£44.88	£53.86
47 - NEEDLE BEARING 1715 HM1304 MSP-212261-2.A1 212261-2	£6.40	£7.68
48 - LARGE WASHER 6 9741 MSP-253196-8.A5 253196-8	£1.44	£1.73
49 - CAP HD SCREW M6X18 MSP-922326-9.A1 922326-9	£1.44	£1.73
50 - O RING 67 GA7050/GA9050/ MSP-213720-9.A7 213720-9	£1.44	£1.73
51 - LABEL/MAKITA 5103RHM1303B MSP-819084-5.A5 819084-5	£1.44	£1.73
52 - O RING 36 AN510/HR2010/HM1202 MSP-213510-0.A10 213510-0	£1.44	£1.73
53 - CRANK CAP HM1304/HR5001C MSP-416561-4.A2 416561-4	£4.68	£5.62
54 - PAN HD SCREW M5X16 W/WASHER MSP-911221-8.A0 911221-8	£1.44	£1.73
55 - HOLDER CAP PLATE HM1304 MSP-345278-1.A1 345278-1	£1.44	£1.73
56 - RUBBER RING 6 HM1400/1304 MSP-262003-4.A7 262003-4	£1.44	£1.73
57 - BRUSH HOLDER CAP 7-18 GA7050/ MSP-643700-5.A25 643700-5	£1.44	£1.73
58 - CARBON BRUSH CB-204/M9001 MSP-191957-7.A2 191957-7	£14.82	£17.78
59 - CAP HD SCREW M5X18 BST220/1 MSP-922227-1.A0 922227-1	£1.44	£1.73
60 - REAR COVER HM1304 MSP-345319-3.A0 345319-3	£12.01	£14.41
61 - CAP HD SCREW M6X50 HM0810 MSP-922371-4.A2 922371-4	£1.44	£1.73
62 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A92 941151-9	£1.44	£1.73
63 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A12 213406-5	£1.44	£1.73
63 - SET RING HM1303/HM1304 MSP-414665-6.A0 414665-6	£1.44	£1.73
63 - BRUSH HOLDER HM1303/1304 MSP-643711-0.A1 643711-0	£8.89	£10.67
63 - MOTOR HOUSING HM1304/B MSP-153438-9.A0 153438-9	£55.97	£67.16
64-1 - CRANK HOUSING HM1304/B MSP-317623-0.A1 317623-0	£108.61	£130.33
65 - NAME PLATE HM1304B MSP-850406-0 850406-0	£1.44	£1.73
66 - FIELD 110V HM1304 MSP-626121-6.A0 626121-6	£43.60	£52.32
67 - HEX HD SCREW M5X65 MSP-265428-1.A0 265428-1	£1.44	£1.73
68 - BLUE NARROW WASHER 18 6905B MSP-253794-8.A0 253794-8	£1.44	£1.73
69 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A2 211087-9	£9.67	£11.61
70 - INSULATION WASHER HM1200K/HM1 MSP-681635-2.A9 681635-2	£1.44	£1.73
71 - ARMATURE ASSY 110V HM1304 MSP-516861-3.A0 516861-3	£123.94	£148.73
72 - FAN 80 HM1304/B MSP-241870-0.A1 241870-0	£8.89	£10.67
73 - BALL BEARING 6202DDW BO3710/1 MSP-211228-7.A0 211228-7	£10.14	£12.17
74 - BAFFLE PLATE HM1304 MSP-418000-0.A1 418000-0	£2.65	£3.18
75 - HEX SOCKET HD BOLT M6X45 MSP-266310-7.A1 266310-7	£1.44	£1.73
76 - GEAR HOUSING COVER HM1304 MSP-317446-6.A0 317446-6	£35.86	£43.03
77 - BALL BEARING 6302 HM1400K/HM1 MSP-211214-8.A3 211214-8	£10.77	£12.92
78 - HELICAL GEAR 57 HM1303/B MSP-226450-3.A0 226450-3	£32.69	£39.23
79 - SEAL RING B HM1304 MSP-421780-9.A1 421780-9	£3.74	£4.49
80 - GEAR HOUSING HM1304 MSP-317445-8.A1 317445-8	£43.30	£51.96
81 - PIN 6 HM1303B/HM1304/JN1600 MSP-256111-1.A6 256111-1	£1.44	£1.73
82 - SEAL RING A HM1304 MSP-421779-4.A0 421779-4	£2.50	£3.00
83 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A805 265995-6	£1.44	£1.73
84 - HANDLE SET HM1304/B MSP-183546-2.A3 183546-2	£27.65	£33.18
85 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A21 941152-7	£1.44	£1.73
86 - CAP HD SCREW M6X50 HM0810 MSP-922371-4.A1 922371-4	£1.44	£1.73
87 - PIN 6 HM1303B/HM1304/JN1600 MSP-256111-1.A5 256111-1	£1.44	£1.73
88 - SEAL HM1400/HM1303B/1304/B MSP-331212-7.A0 331212-7	£4.06	£4.87
89 - BALL BEARING 6001 HM1300B/510 MSP-211104-5.A4 211104-5	£9.20	£11.04
90 - HELICAL GEAR 34 HM1303/B/1304 MSP-226449-8.A2 226449-8	£30.96	£37.15
91 - BALL BEARING 6201 HM1400K/HM1 MSP-211109-5.A4 211109-5	£7.18	£8.61
92 - HANDLE SET HM1304/B MSP-183546-2.A2 183546-2	£27.65	£33.18
93 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A94 645141-1	£3.21	£3.85
94 - SPONGE SHEET RP1110C/8406/362 MSP-685722-9.A2 685722-9	£1.44	£1.73
95 - LOCK BUTTON HM1303/B/HM1304 MSP-415805-9.A0 415805-9	£1.44	£1.73
96 - SWITCH LEVER HM1304 MSP-417544-7.A0 417544-7	£2.81	£3.37
97 - LOCK PLATE HM1303/B/HM1304 MSP-415806-7.A2 415806-7	£1.44	£1.73
98-1 - SWITCH C3PA-1112 8406C MSP-650677-7.A2 650677-7	£12.48	£14.98
98 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A3 651922-3	£15.42	£18.51
99 - SWITCH BOX HM1304 MSP-421778-6.A0 421778-6	£2.81	£3.37
100 - COMPRESSION SPRING 3 HM1303B/ MSP-231457-6.A5 231457-6	£1.44	£1.73
101 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A15 682560-0	£2.34	£2.81
102 - POWER SUPPLY CORD PC5000/01C MSP-695237-8.A5 695237-8	£32.69	£39.23
103 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A78 687053-2	£1.44	£1.73
104 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A806 265995-6	£1.44	£1.73
105 - CAP HD SCREW M6X40 HR5211C MSP-922361-7.A4 922361-7	£1.44	£1.73
106 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A22 941152-7	£1.44	£1.73
107 - PIN 4 HM1317CB/HM1303B/HR3000 MSP-256219-1.A4 256219-1	£1.44	£1.73
108 - TOOL RETAINER HM1317CB/HM1800 MSP-322477-2.A3 322477-2	£37.44	£44.93
109 - TOOL RETAINER SHAFT HM1303B/0 MSP-322550-8.A1 322550-8	£34.28	£41.13
110 - TENSION PIN 8-40 DIN 1481 HM1 MSP-951272-9.A2 951272-9	£1.44	£1.73
A01 - STEEL CARRYING CASE HM1304B MSP-183598-3 183598-3	£70.61	£84.73
A01 - LABEL/MAKITA LOGO MSP-819140-1.A21 819140-1	£5.78	£6.93
A01-1 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A11 163467-4	£1.47	£1.76
E01 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A129 654091-9	£1.44	£1.73
