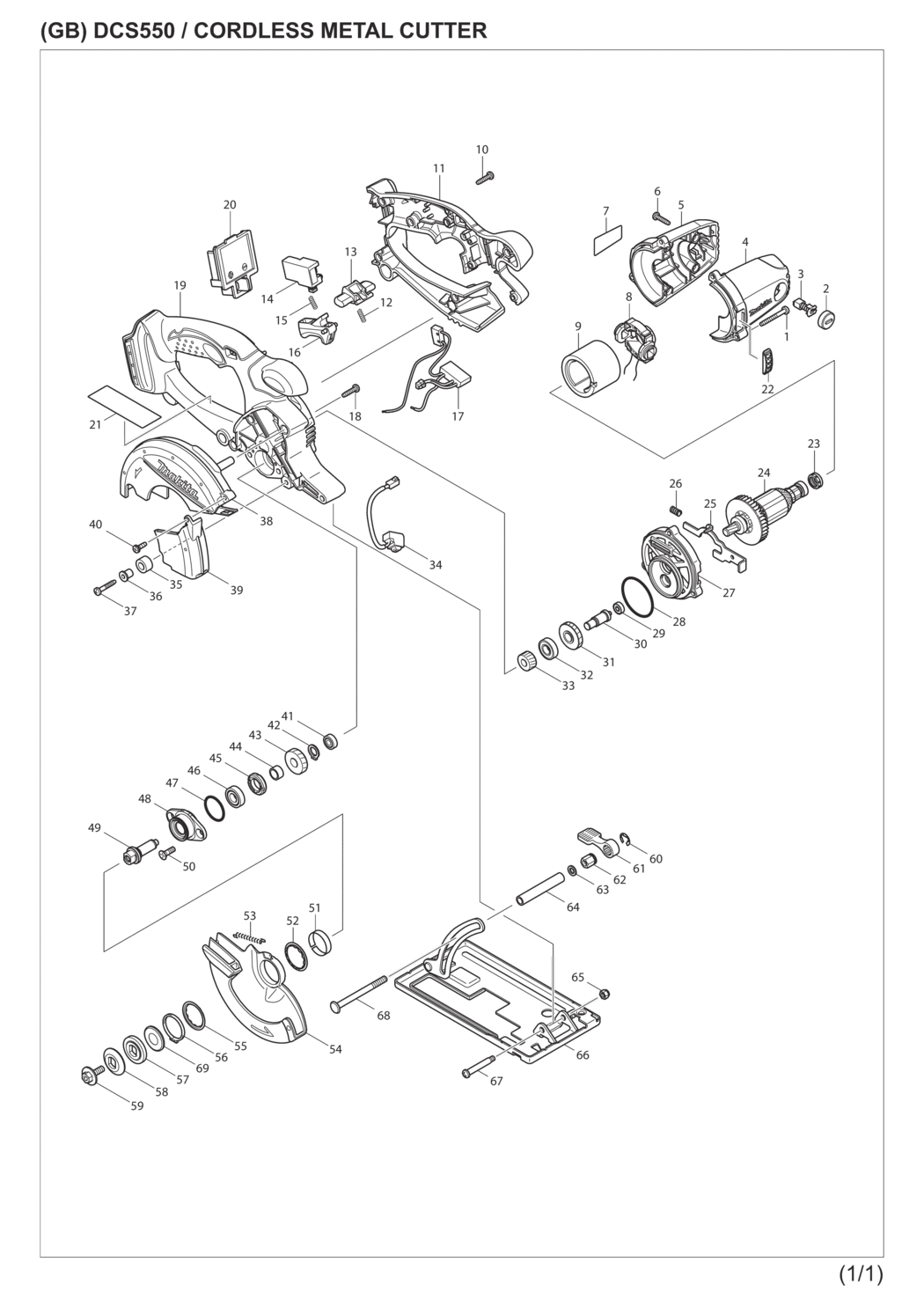

An exploded drawing and spare parts listing for the Makita DCS550RFE Cordless Metal Cutter
Ex VAT Inc VAT
1 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A17 266053-1 £1.44 £1.73
2 - HOLDER CAP 6347D/BSS500/BSS50 MSP-643807-7.A0 643807-7 £1.54 £1.85
3 - CARBON BRUSH SET CB-430 MSP-191971-3.A68 191971-3 £5.78 £6.93
4 - HOUSING SET BCS550/BSS500/501 MSP-188209-5.A5 188209-5 £11.86 £14.23
5 - HOUSING SET BCS550/BSS500/501 MSP-188209-5.A10 188209-5 £11.86 £14.23
6 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A745 265995-6 £1.44 £1.73
7 - NAME PLATE DCS550 MSP-815P08-5.A2 815P08-5 £1.44 £1.73
8 - ENDBELL BCS550/BSS500/50 MSP-638925-4.A3 638925-4 £4.52 £5.43
9 - YOKE UNIT DPB180/CS550/BSS500 MSP-638420-4.A0 638420-4 £30.96 £37.15
10 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A744 265995-6 £1.44 £1.73
11 - *HANDLE L BCS550/BSS500/BSS501 MSP-453426-9.A6 453426-9 £21.60 £25.92
12 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A75 231469-9 £1.44 £1.73
13 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A19 419664-3 £1.44 £1.73
14 - SWITCH TG72BD BUC122/BSS501 MSP-651956-6.A0 651956-6 £14.51 £17.41
15 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A76 231469-9 £1.44 £1.73
16 - SWITCH LEVER BHS630/DCS550/DK MSP-419665-1.A10 419665-1 £1.44 £1.73
17 - CONTROLLER BSS500/BSS501/BCS5 MSP-620260-4.A3 620260-4 £41.62 £49.94
18 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A743 265995-6 £1.44 £1.73
19 - *HANDLE R BCS550/BSS501 MSP-453154-6.A1 453154-6 £25.06 £30.07
20 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A128 644808-8 £4.28 £5.14
22 - FAN GUARD BCS550 MSP-419609-1.A2 419609-1 £1.44 £1.73
23 - RUBBER RING 13 BPJ140/BPJ180 MSP-421977-0.A13 421977-0 £1.44 £1.73
24 - ARMATURE BCS550 MSP-619290-0.A1 619290-0 £53.86 £64.63
25 - SHAFT LOCK DCS550/BSS500/501 MSP-345643-4.A3 345643-4 £1.44 £1.73
26 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A9 233117-6 £1.44 £1.73
27 - GEAR HOUSING BCS550/BSS500/50 MSP-419656-2.A0 419656-2 £3.90 £4.68
28 - O RING 44 HS6100/7100/BSS500 MSP-213560-5.A7 213560-5 £1.44 £1.73
29 - BALL BEARING 604ZZ CC300D/BCS MSP-210036-3.A15 210036-3 £3.74 £4.49
30 - GEAR SHAFT BCS550/BSS500/501 MSP-324729-7.A7 324729-7 £1.44 £1.73
31 - HELICAL GEAR 27 BCS550 MSP-227752-0.A2 227752-0 £5.62 £6.74
32 - BALL BEARING 6900ZZ BCS550 MSP-210080-0.A3 210080-0 £6.08 £7.30
33 - HELICAL GEAR 15 BCS550/BSS500 MSP-226635-1.A7 226635-1 £5.46 £6.55
34 - LED CIRCUIT BCS550/BSS500-501 MSP-631550-0.A5 631550-0 £10.14 £12.17
35 - RUBBER SLEEVE 6 BCS550/BSS500 MSP-262566-0.A1 262566-0 £1.44 £1.73
36 - SLEEVE 4 DCS550/BSS500/BSS501 MSP-262563-6.A6 262563-6 £1.44 £1.73
37 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A43 265999-8 £1.44 £1.73
38 - BLADE CASE BCS550 MSP-419662-7.A1 419662-7 £9.98 £11.98
39 - BLADE COVER BCS550 MSP-419663-5.A1 419663-5 £4.06 £4.87
40 - PT SCREW 4X12 BUR181/BUR141 MSP-266020-6.A7 266020-6 £1.44 £1.73
41 - BALL BEARING 696ZZ GA4541/BU MSP-210006-2.A19 210006-2 £3.28 £3.93
42 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A45 961006-2 £1.44 £1.73
43 - HELICAL GEAR 23 BCS550/BSS500 MSP-226640-8.A2 226640-8 £5.46 £6.55
44 - SLEEVE 10 DCS550/BSS500/BSS50 MSP-257760-7.A6 257760-7 £1.44 £1.73
45 - BEARING RETAINER 14-23 BHS630 MSP-285847-5.A19 285847-5 £4.68 £5.62
46 - BALL BEARING 6900DDW BHS630 MSP-210069-8.A5 210069-8 £6.55 £7.86
47 - O RING 26 CC300D/HR3000/BSS50 MSP-213435-8.A14 213435-8 £1.44 £1.73
48 - BEARING BOX BCS550/BSS500-501 MSP-318087-1.A7 318087-1 £3.59 £4.31
49 - SPINDLE DCS550/DCS500/BSS501 MSP-324730-2.A0 324730-2 £3.59 £4.31
50 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A10 265034-2 £1.44 £1.73
51 - THICKNESS RING BHS630/DCS550 MSP-345470-9.A3 345470-9 £1.44 £1.73
52 - SPACER DCS550/DCS551 MSP-345739-1.A0 345739-1 £1.44 £1.73
53 - TENTION SPRING 3 DCS550/DCS55 MSP-231792-2.A3 231792-2 £2.81 £3.37
54 - SAFETY COVER DCS550 MSP-158116-6.A0 158116-6 £6.40 £7.68
55 - SPACER DCS550/DCS551 MSP-345739-1.A1 345739-1 £1.44 £1.73
56 - RETAINING RING WR-26 (EXT) MSP-257938-2.A0 257938-2 £1.44 £1.73
57 - INNER FLANGE 30 BCS550/BSS500 MSP-224391-7.A3 224391-7 £1.44 £1.73
58 - OUTER FLANGE 30 BCS550/BSS500 MSP-224404-4.A8 224404-4 £3.28 £3.93
59 - HEX SOCKET HD BOLT M6X18 BHS6 MSP-266458-5.A10 266458-5 £1.44 £1.73
60 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A55 961014-3 £1.44 £1.73
61 - LEVER 40 BSS500/BSS501/3901/ MSP-272229-0.A7 272229-0 £4.52 £5.43
62 - HEX NUT M6 BPJ140/180/BSS500/ MSP-252159-1.A15 252159-1 £2.34 £2.81
63 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A58 941151-9 £1.44 £1.73
64 - PIPE 6 BCS550/BSS500/BSS501 MSP-331733-9.A0 331733-9 £1.44 £1.73
65 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A26 252103-8 £1.58 £1.89
66 - BASE BCS550 MSP-163471-3.A2 163471-3 £10.14 £12.17
67 - SHOULDER SCREW M5 CC300D/BSS5 MSP-265056-2.A16 265056-2 £1.44 £1.73
68 - FLAT H SQ NECK BOLT M6X75 BCS MSP-266405-6.A3 266405-6 £1.44 £1.73
69 - CUP WASHER 13 BCS550/DCS551 MSP-267802-9.A0 267802-9 £2.18 £2.62
A01 - SAFETY GOGGLE BCS550.DCS551 MSP-192219-6.A0 192219-6 £2.55 £3.06
A02 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A2 783203-8 £1.20 £1.44
A03 - DC18RC COMPACT CHARGER MSP-***DC18RC.A119 ***DC18RC -
A04 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A89 194204-5 £42.91 £51.49
A04-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A120 194204-5 £42.91 £51.49
A05 - PLASTIC CASE DCS550/DSS500-501 MSP-141485-2.A2 141485-2 £21.09 £25.31
A06 - PLASTIC CASE DCS550RFE MSP-803T40-5 803T40-5 £10.20 £12.24
A07 - TCT BLADE MCCS13630E BCS550 MSP-B-10615.A0 B-10615 £32.44 £38.93
A08 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A150 450128-8 £1.20 £1.44
E01 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A37 688131-1 £1.44 £1.73
E02 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A51 688161-2 £1.44 £1.73
