Makita JS1660 Straight Shear Spare Parts

Makita JS1660 Straight Shear Spare Parts

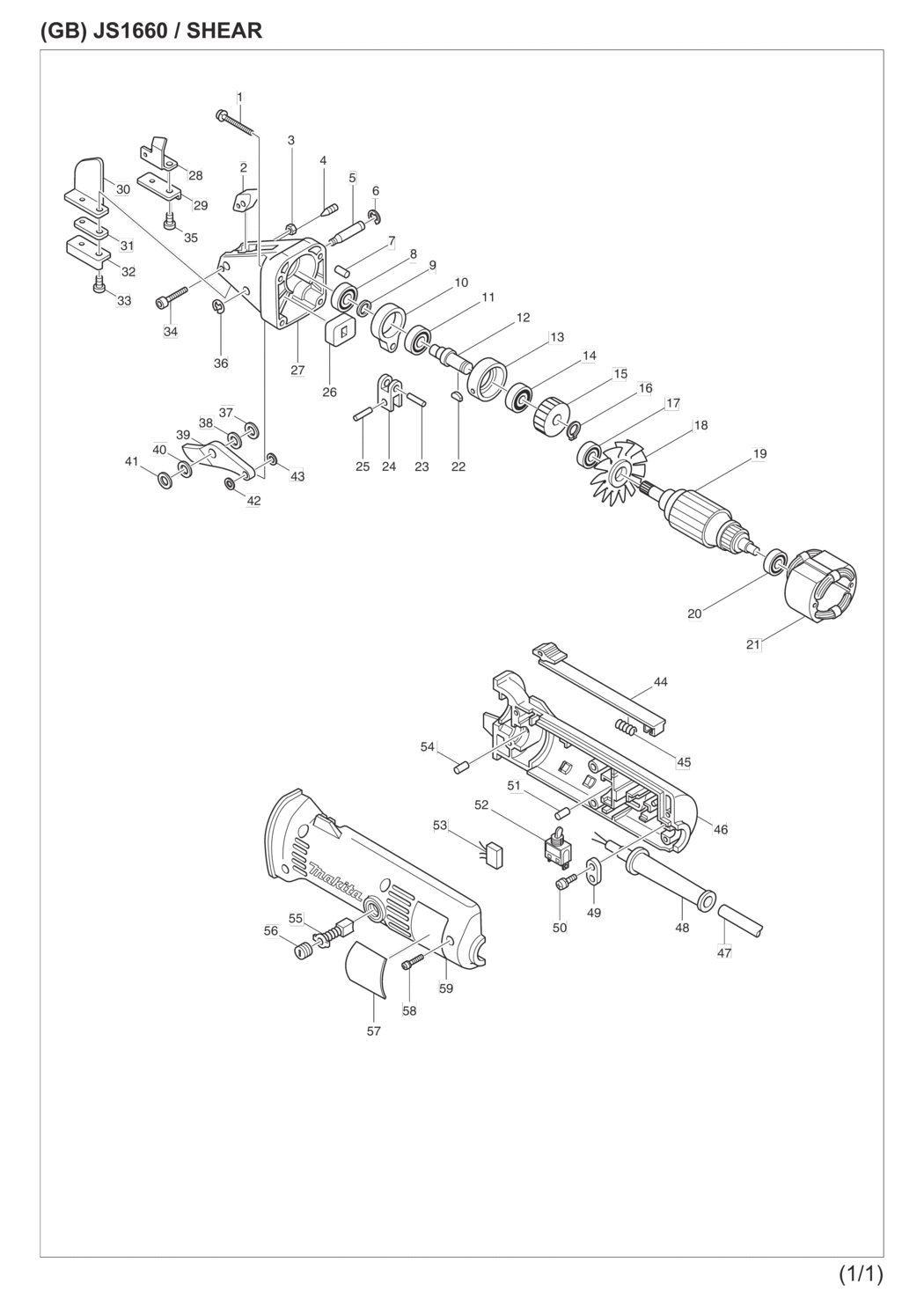

An exploded drawing and spare parts listing for the Makita JS1660 Straight Shear
Ex VAT Inc VAT
1 - PAN HD SCREW M4X35 W/SP WASHE MSP-911161-0.A0 911161-0 £1.44 £1.73
2-1 - BLOCK DJS160/161 MSP-325727-4.A3 325727-4 £11.08 £13.29
3 - SELF-LOCKING NUT M4-7 JS1660 MSP-252083-8.A3 252083-8 £1.44 £1.73
4-1 - SET SCREW(CONE POINT)M5X12 MSP-265901-1.A0 265901-1 £3.59 £4.31
5 - PIN 7 JS1660/DJS160/161 MSP-256733-7.A1 256733-7 £2.50 £3.00
6 - EXT E-RING JIS JE-6 MSP-961012-7.A31 961012-7 £1.44 £1.73
7 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A125 263002-9 £1.44 £1.73
8-1 - BALL BEARING 627LLB 4324 MSP-210025-8.A10 210025-8 £2.65 £3.18
9 - WASHER 7 HR160D/DA4000LR MSP-253133-2.A7 253133-2 £1.44 £1.73
10 - ROD JS1660/DJS160/161 MSP-331273-7.A3 331273-7 £15.26 £18.31
11 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A27 211061-7 £8.73 £10.48
12 - CRANKSHAFT JS1660 MSP-321850-3.A1 321850-3 £12.01 £14.41
13 - BUSH JS1660 MSP-315819-7.A0 315819-7 £6.71 £8.05
14-1 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A28 211061-7 £8.73 £10.48
14 - BALL BEARING 6000LBCM/2A MSP-211063-3.A2 211063-3 £10.77 £12.92
15 - HELICAL GEAR 44 JS1660 MSP-221743-3.A0 221743-3 £12.79 £15.35
16 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A38 961006-2 £1.44 £1.73
17 - BALL BEARING 608LB 9217SPC/90 MSP-211033-2.A43 211033-2 £5.78 £6.93
18 - FAN 52 3705/906 MSP-241100-9.A0 241100-9 £3.59 £4.31
19D - ARMATURE ASSY 240V JS1660 MSP-511529-6.A0 511529-6 £50.02 £60.03
19A - ARMATURE ASSY 110V JS1660 MSP-511526-2.A1 511526-2 £53.07 £63.68
20-1 - BALL BEARING 627LLB 4324 MSP-210025-8.A11 210025-8 £2.65 £3.18
21A - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A109 654501-6 £1.44 £1.73
21A - TERMINAL RING FOR FIELD CB-9/ MSP-654018-9.A15 654018-9 £1.44 £1.73
21F - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A108 654501-6 £1.44 £1.73
21A - FIELD ASSY 110V JS1660 MSP-521526-4.A1 521526-4 £25.20 £30.24
21F - TERMINAL RING FOR FIELD CB-9/ MSP-654018-9.A14 654018-9 £1.44 £1.73
22 - WOODRUFF KEY 3-7 5093D/DJS160 MSP-254031-3.A0 254031-3 £1.44 £1.73
24-1 - LINK JS1660/DJS160/161 MSP-331329-6.A1 331329-6 £12.48 £14.98
26 - DUST COVER JS1600/DJS160/161 MSP-423118-4.A3 423118-4 £1.44 £1.73
27 - CRANK HOUSING JS1660 MSP-157817-3.A0 157817-3 £44.88 £53.86
27 - PIN 3 6702D/DS4010 MSP-256180-2.A4 256180-2 £1.44 £1.73
28 - SLIP PLATE R JS1660 MSP-343479-5.A1 343479-5 £1.44 £1.73
29-1 - SIDE BLADE SET JS1600/DJS160 MSP-792533-6.A4 792533-6 £37.49 £44.99
29 - SIDE BLADE SET JS1600/DJS160 MSP-792533-6.A7 792533-6 £37.49 £44.99
30 - SLIP PLATE L JS1660/DJS160/16 MSP-343480-0.A0 343480-0 £1.44 £1.73
31 - SPACER JS1660/DJS160/161 MSP-343481-8.A5 343481-8 £1.44 £1.73
32 - SIDE BLADE SET JS1600/DJS160 MSP-792533-6.A5 792533-6 £37.49 £44.99
32-1 - SIDE BLADE SET JS1600/DJS160 MSP-792533-6.A6 792533-6 £37.49 £44.99
33 - FLAT HD SCREW M5X10 MSP-251951-2.A0 251951-2 £1.44 £1.73
34 - CAP HD SCREW M4X25 MSP-922147-9.A5 922147-9 £1.44 £1.73
35 - FLAT HD SCREW M5X10 MSP-251951-2.A1 251951-2 £1.44 £1.73
36 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A73 961011-9 £1.44 £1.73
37 - TEFLON WASHER 7 JS1660/DJS160 MSP-261065-9.A1 261065-9 £1.44 £1.73
38 - SHIM WASHER 7 JS1660 MSP-253338-4.A2 253338-4 £1.44 £1.73
39 - CENTRE BLADE JS1660/DJS160/161 MSP-792534-4.A0 792534-4 £45.70 £54.84
40 - SHIM WASHER 7 JS1660 MSP-253338-4.A3 253338-4 £1.44 £1.73
41 - TEFLON WASHER 7 JS1660/DJS160 MSP-261065-9.A0 261065-9 £1.44 £1.73
42 - BLUE WASHER 5 JS1660/PM7651H MSP-267010-2.A15 267010-2 £1.44 £1.73
43 - BLUE WASHER 5 JS1660/PM7651H MSP-267010-2.A23 267010-2 £1.44 £1.73
44 - SWITCH ROD JS1660 MSP-410529-2.A1 410529-2 £2.18 £2.62
45 - COMPRESSION SPRING 6 MSP-231223-1.A3 231223-1 £1.44 £1.73
46 - BRUSH HOLDER CB-14 MSP-643557-4.A2 643557-4 £2.34 £2.81
46 - HOUSING SET JS1660 MSP-181848-0.A2 181848-0 £34.28 £41.13
47B - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A93 692527-0 £29.38 £35.25
47G1 - POWER SUPPLY CORD 1.0-2-2.5 MSP-665918-8.A9 665918-8 £12.01 £14.41
48B1 - CORD GUARD 9.3-85 MT814/815 MSP-682516-3.A5 682516-3 £1.44 £1.73
49C - STRAIN RELIEF HK1820L/3601B MSP-687031-2.A1 687031-2 £1.44 £1.73
50 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A58 911133-5 £1.44 £1.73
51 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A267 263002-9 £1.44 £1.73
52-1 - SWITCH ST115A-31 3600B/9528NB MSP-651433-8.A0 651433-8 £9.98 £11.98
53C - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A22 645141-1 £3.21 £3.85
54 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A268 263002-9 £1.44 £1.73
55B - CARBON BRUSH CB-65 MSP-191628-6.A2 191628-6 £5.78 £6.93
56 - BRUSH HOLDER CAP CB-9-14-17/N MSP-643550-8.A17 643550-8 £1.44 £1.73
57 - NAME PLATE JS1660 MSP-855949-7 855949-7 £1.44 £1.73
58 - PAN HEAD SCREW M4X30 W/CP WAS MSP-911158-9.A12 911158-9 £1.44 £1.73
59 - HOUSING SET JS1660 MSP-181848-0.A3 181848-0 £34.28 £41.13
59 - BRUSH HOLDER CB-14 MSP-643557-4.A1 643557-4 £2.34 £2.81
400 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A29 783201-2 £1.20 £1.44
401 - WRENCH HOLDER 3.4 JS1602/JS500 MSP-410048-8.A9 410048-8 £1.20 £1.44
402 - THICKNESS GAUGE JS1660/DJS160 MSP-762013-6.A0 762013-6 £2.55 £3.06
