Makita BC231UDWB Cordless Brushcutter Spare Parts

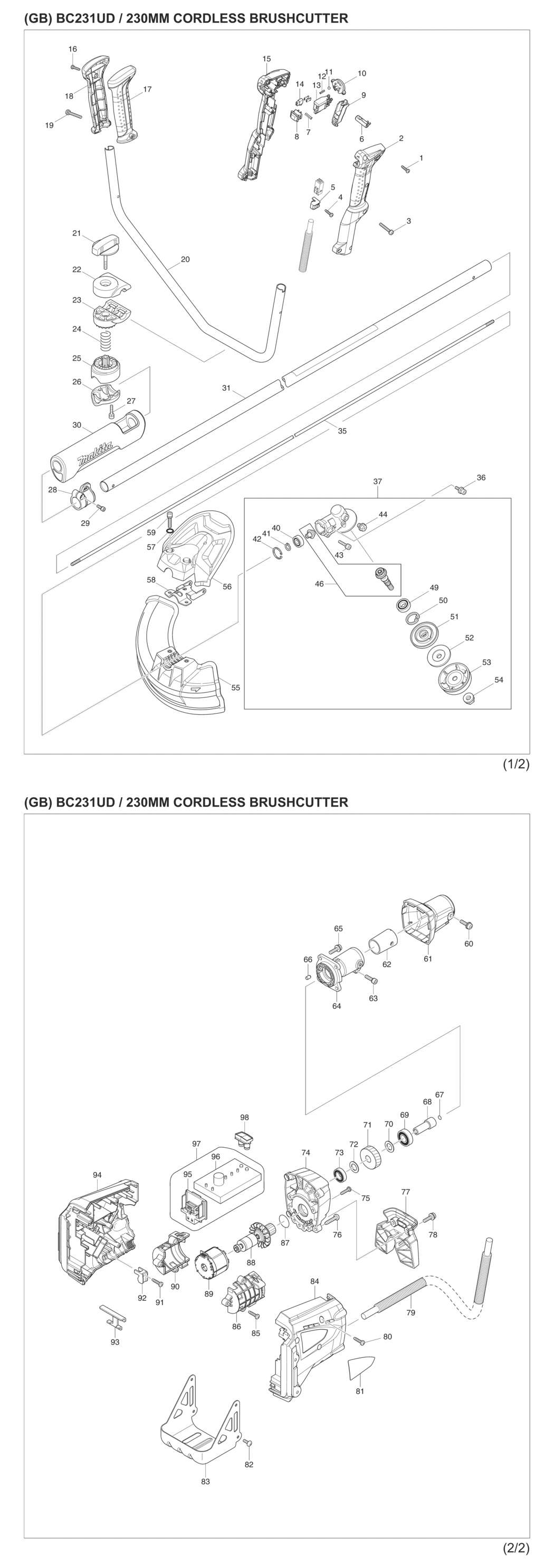

An exploded drawing and spare parts listing for the Makita BC231UDWB Cordless Brushcutter

	Ex VAT	Inc VAT
1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A60 265995-6	£1.44	£1.73
2 - MAIN GRIP SET BBC231U MSP-188839-2.A7 188839-2	£59.92	£71.91
3 - PAN HD SCREW M5X35 W/SP WASHE MSP-911256-9.A7 911256-9	£1.44	£1.73
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A61 265995-6	£1.44	£1.73
5 - STRAIN RELIEF BBC231URD/BUR36 MSP-687261-5.A1 687261-5	£1.44	£1.73
6 - LOCK OFF BUTTON BBC231U MSP-451571-4.A2 451571-4	£5.92	£7.11
7-1 - COMPRESSION SPING 4 BC231UD MSP-234079-1.A4 234079-1	£1.44	£1.73
7 - COMPRESSION SPING 4 CL106D MSP-231473-8.A24 231473-8	£1.44	£1.73
8 - SWITCH SLE6A2-33 BBC231U/300L MSP-651533-4.A0 651533-4	£5.15	£6.18
10 - INDICATOR BBC231U MSP-451574-8.A2 451574-8	£6.08	£7.30
11 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A9 216018-3	£1.44	£1.73
12 - COMPRESSION SPRING 2 6835 MSP-233211-4.A5 233211-4	£1.44	£1.73
13 - SWITCH TGR3-2 BBC231U MSP-650629-8.A0 650629-8	£19.58	£23.50
14 - RECEPTACLE SLEEVE BBC231URD MSP-686015-7.A3 686015-7	£1.44	£1.73
15 - MAIN GRIP SET BBC231U MSP-188839-2.A6 188839-2	£59.92	£71.91
16 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A62 265995-6	£1.44	£1.73
17 - GRIP SET BBC231U/EM2651LH MSP-188659-4.A1 188659-4	£6.55	£7.86
18 - GRIP SET BBC231U/EM2651LH MSP-188659-4.A10 188659-4	£6.55	£7.86
19 - PAN HD SCREW M5X35 W/SP WASHE MSP-911256-9.A6 911256-9	£1.44	£1.73
20 - HANDLE BBC231URD/EM2651LH MSP-331862-8.A2 331862-8	£15.70	£18.84
21-1 - KNOB 57 EBH341U/BBC231URD/EM2 MSP-168796-0.A9 168796-0	£4.83	£5.80
22 - HANDLE CLAMP EM2651LH MSP-318429-9.A4 318429-9	£5.46	£6.55
23 - HANDLE COVER BBC231URD MSP-318428-1.A1 318428-1	£5.15	£6.18
24 - COMPRESSION SPRING 20 HR160DW MSP-233202-5.A3 233202-5	£1.44	£1.73
25 - PIPE HOLDER BBC231URD/EM2651 MSP-318427-3.A4 318427-3	£5.92	£7.11
26 - PIPE CLAMP BBC231URD/EM2651LH MSP-318426-5.A1 318426-5	£2.81	£3.37
27 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A5 922241-7	£1.44	£1.73
28 - HANGER BBC231U/BBC300L/BUX360 MSP-168478-4.A0 168478-4	£6.24	£7.49
29 - HEX BOLT M5X18 DUR188L MSP-922228-9.A6 922228-9	£1.44	£1.73
30 - CUSHION BBC231U/DUR365U MSP-424463-0.A2 424463-0	£15.26	£18.31
31 - LABEL/CAUTION BBC231URD MSP-810558-9.A3 810558-9	£1.44	£1.73
31 - LABEL/MAKITA LOGO ER2650LHKR MSP-819312-8.A17 819312-8	£1.44	£1.73
35 - SHAFT BBC231U/BBC300L MSP-325812-3.A3 325812-3	£40.75	£48.90
36 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A0 922218-2	£1.44	£1.73
40 - BALL BEARING 609ZZ EBH253L/BB MSP-210049-4.A5 210049-4	£4.21	£5.05
41-1 - PUTER SNAP RING RBC260L/U/RBL MSP-257986-1.A5 257986-1	£4.21	£5.05
41 - EXT DIN 471 CIRCLIP-9 BGA450 MSP-961005-4.A37 961005-4	£1.44	£1.73
42 - RETAINING RING R-24 AN620 MSP-962103-7.A24 962103-7	£1.44	£1.73
43 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A6 922241-7	£1.44	£1.73
44 - HEX BOLT M8X10 EBH253L/EBH341 MSP-265590-2.A0 265590-2	£1.44	£1.73
46 - *CUTTER SHAFT SET EBH253L/BBC MSP-188902-1.A2 188902-1	£63.50	£76.20
46-1 - CUTTER SHAFT SET EBH253L/BBC2 MSP-183A00-2.A4 183A00-2	£40.61	£48.73
49 - BALL BEARING 6001LLU EBH253L MSP-210115-7.A0 210115-7	£9.20	£11.04
50 - INTERNAL RETAINING RING-28 MSP-962106-1.A21 962106-1	£1.44	£1.73
51 - RECIEVE WASHER EBH253L/BBC231 MSP-331861-0.A8 331861-0	£12.95	£15.54
52 - CLAMP WASHER BBC231URD/ELM265 MSP-346084-7.A5 346084-7	£1.44	£1.73
53 - CUP EBH253L/EBH341L&U/BBC231U MSP-168526-9.A17 168526-9	£5.15	£6.18
54 - HEX NUT M10-17 EBH251U.BBC231 MSP-264025-0.A19 264025-0	£3.28	£3.93
55 - PROTECTOR BBC231U/BBC300L MSP-451566-7.A2 451566-7	£38.30	£45.96
56 - PROTECTOR COVER BBC231U/300L MSP-451565-9.A3 451565-9	£24.48	£29.38
57 - O RING 11 HR2000/6835DWA/6833 MSP-213105-9.A14 213105-9	£1.58	£1.89
58 - PROTECTOR CLAMP EBH253L/BBC23 MSP-346073-2.A7 346073-2	£1.44	£1.73
59 - CAP HD SCREW M6X30 HM1810 MSP-922353-6.A20 922353-6	£1.44	£1.73
60 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A83 911233-1	£1.44	£1.73
61 - PIPE BRACKET COVER BBC231U MSP-451578-0.A0 451578-0	£14.35	£17.22
62 - PIPE RUBBER BBC231U/BBC300L/B MSP-424307-4.A1 424307-4	£2.34	£2.81
63 - CAP HD SCREW M5X20 EBH341U MSP-922231-0.A0 922231-0	£1.44	£1.73
64 - PIPE BRACKET BBC231U/BBC300L MSP-318560-1.A12 318560-1	£41.98	£50.37
65 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A82 911233-1	£1.44	£1.73
66 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A90 263002-9	£1.44	£1.73
67 - *O-RING 6 AN711/BO3710/11/BBC2 MSP-213045-1.A15 213045-1	£1.44	£1.73
68 - SPINDLE HUB BBC231U/BBC300L/B MSP-325811-5.A0 325811-5	£19.58	£23.50
69 - BALL BEARING 6001ZZ/EN4951SH MSP-211148-5.A9 211148-5	£5.92	£7.11
70 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A31 253744-3	£1.44	£1.73
71 - HELICAL GEAR 33 BBC231U/300L/ MSP-227720-3.A7 227720-3	£23.62	£28.34
72 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A30 253744-3	£1.44	£1.73
73 - BALL BEARING 6901ZZ/BUR360/BU MSP-211150-8.A13 211150-8	£4.83	£5.80
74 - GEAR BOX BBC231U/BBC300L/BUR3 MSP-318559-6.A5 318559-6	£55.97	£67.16
75 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A621 265995-6	£1.44	£1.73
76 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A28 266041-8	£1.44	£1.73
77 - STAND BBC231U/BBC300L/BUX360 MSP-451572-2.A0 451572-2	£5.18	£6.21
78 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A81 911233-1	£1.44	£1.73
79 - POWER SUPPLY CORD UNIT BBC231 MSP-699045-9.A0 699045-9	£29.38	£35.25
80 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A620 265995-6	£1.44	£1.73
82 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A34 251314-2	£1.44	£1.73
83 - BATTERY GUARD BBC231U/BBC300L MSP-346194-0.A16 346194-0	£38.30	£45.96
84 - *HOUSING SET DBC231U/DBC300L/ MSP-188836-8.A0 188836-8	£50.02	£60.03
85 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A619 265995-6	£1.44	£1.73
86 - MOTOR HOUSING SET BBC231U/300 MSP-188838-4.A33 188838-4	£18.72	£22.46
87 - O RING 22 BBC231/UX360/DUX60 MSP-213961-7.A0 213961-7	£1.44	£1.73
88 - ROTOR BBC231U/BBC300L/BUR360/ MSP-619254-4.A10 619254-4	£120.08	£144.09
89 - STATOR BBC231U/BBC300L/BUX360 MSP-629880-1.A13 629880-1	£89.97	£107.96
90 - MOTOR HOUSING SET BBC231U/300 MSP-188838-4.A32 188838-4	£18.72	£22.46
91 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A618 265995-6	£1.44	£1.73
92 - STRAIN RELIEF BBC231URD/BUR36 MSP-687261-5.A40 687261-5	£1.44	£1.73
93 - SUPPORT PLATE BUH550RD/BUB360 MSP-346039-2.A24 346039-2	£1.44	£1.73
94 - *HOUSING SET DBC231U/DBC300L/ MSP-188836-8.A1 188836-8	£50.02	£60.03
95 - TERMINAL UK360D/BUB360Z/BBC23 MSP-643849-1.A19 643849-1	£6.08	£7.30
97 - *CONTROLLER BBC231U/300L MSP-631941-5.A5 631941-5	£210.84	£253.01
98 - INDICATION PLATE CO BBC231/30 MSP-140285-7.A4 140285-7	£9.82	£11.79
A01 - BAND ASSY EBH341U/BBC231URD MSP-122906-3.A4 122906-3	£27.42	£32.91
A01 - HOOK FOR 122906-3 MSP-140400-3.A7 140400-3	£3.94	£4.73
A02 - PROTECTOR EXTENSION CO BBC231U MSP-140583-9.A3 140583-9	£12.21	£14.65
A02 - LABEL/INDICATION MSP-891041-5.A4 891041-5	£1.44	£1.73
A03 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A617 265995-6	£1.44	£1.73
A04 - CUTTER BBC231URD MSP-346280-7.A0 346280-7	£1.20	£1.44
A05 - *TOOL COVER BBC251/DUR361/EBH MSP-450573-7.A1 450573-7	£1.20	£1.44
A06 - SOCKET WRENCH 17 14/12N/4110C MSP-782210-8.A16 782210-8	£4.07	£4.88
A07 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A97 783202-0	£1.20	£1.44
A08 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A15 783217-7	£1.20	£1.44
A09 - ACCESSORY BAG ER2650LH/EBH34 MSP-831304-7.A9 831304-7	£2.32	£2.78
A10 - STAR BLADE 230-4T C23/C26 MSP-B-14118.A5 B-14118	£16.30	£19.56
A11 - DC36WA MSP-*DC36WA.A0 *DC36WA	-
A12 - BATTERY BL3622A MSP-195410-5.A1 195410-5	£375.43	£450.52
A12-1 - BATTERY BL3622A MSP-195410-5.A6 195410-5	£375.43	£450.52
