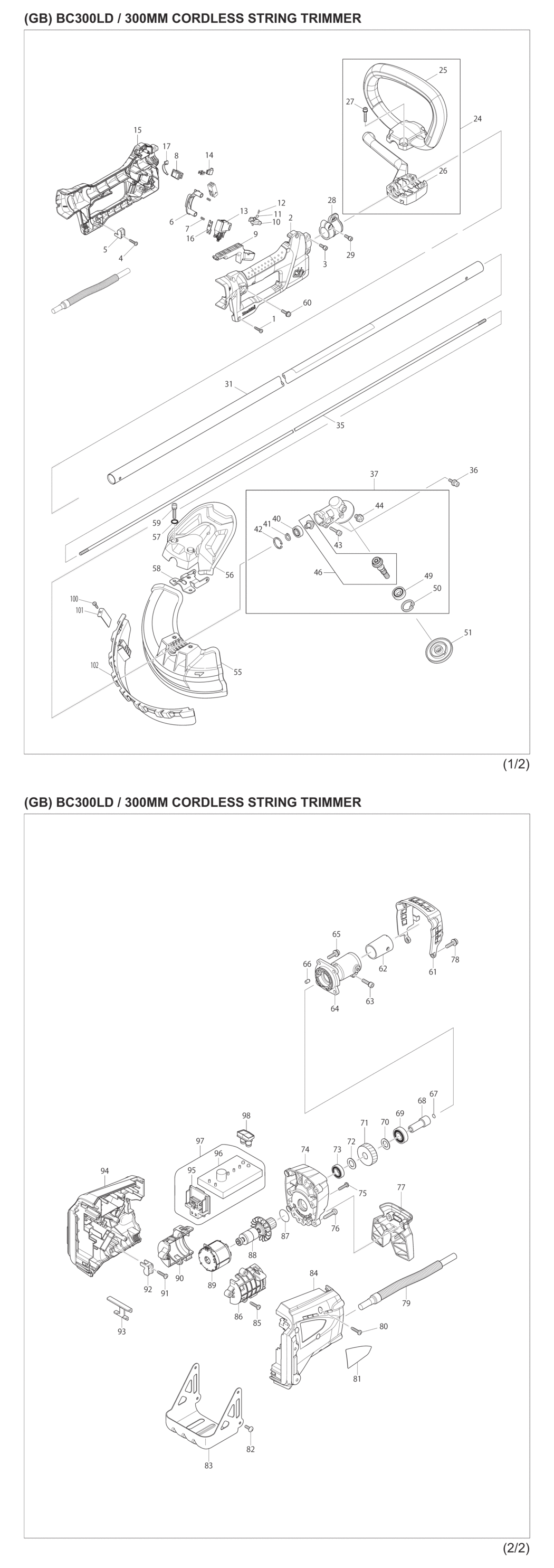

An exploded drawing and spare parts listing for the Makita BC300LDZ Cordless String Trimmer
Ex VAT Inc VAT
1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A634 265995-6 £1.44 £1.73
2 - GRIP SET BC300LD/BUX360 MSP-188841-5.A0 188841-5 £114.28 £137.14
3 - HEX BOLT M5X18 DUR188L MSP-922228-9.A26 922228-9 £1.44 £1.73
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A389 265995-6 £1.44 £1.73
5 - STRAIN RELIEF BBC231URD/BUR36 MSP-687261-5.A11 687261-5 £1.44 £1.73
6 - LOCK OFF BUTTON BC300LD/BUR36 MSP-451983-1.A12 451983-1 £23.62 £28.34
7 - COMPRESSION SPRING 4 GN900SE/ MSP-233054-4.A10 233054-4 £1.44 £1.73
8 - SWITCH SLE6A2-33 BBC231U/300L MSP-651533-4.A8 651533-4 £5.15 £6.18
9 - SWITCH LEVER BC300LD/BUR360/B MSP-451984-9.A0 451984-9 £32.69 £39.23
10 - INDICATOR BC300LD/BUR360/BUX3 MSP-451986-5.A0 451986-5 £19.58 £23.50
11 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A48 216018-3 £1.44 £1.73
12 - COMPRESSION SPRING 2 6835 MSP-233211-4.A13 233211-4 £1.44 £1.73
13 - SWITCH TGR3-3 BC300LD/BUR360/ MSP-650630-3.A0 650630-3 £21.89 £26.27
14 - RECEPTACLE SLEEVE BBC231URD MSP-686015-7.A9 686015-7 £1.44 £1.73
15 - GRIP SET BC300LD/BUX360 MSP-188841-5.A1 188841-5 £114.28 £137.14
16 - LINK PLATE BC300LD/BUR360/BUX MSP-451982-3.A0 451982-3 £12.95 £15.54
17 - LEAD COVER BC300LD/BUR360/BUX MSP-451985-7.A13 451985-7 £18.72 £22.46
24 - HANDLE ASSY BC300LD/EBH252/EM MSP-195215-3.A1 195215-3 £14.35 £17.22
24 - SCREWDRIVER EBH253L MSP-783014-1.A2 783014-1 £1.54 £1.85
25 - LOOP HANDLE 24 BC300LD MSP-451598-4.A0 451598-4 £10.61 £12.73
26 - HANDLE CLAMP 24 BC300LD MSP-451599-2.A2 451599-2 £3.74 £4.49
27 - PAN HD SCREW M5X30 W/CP WASHE MSP-911253-5.A18 911253-5 £1.44 £1.73
28 - HANGER BBC231U/BBC300L/BUX360 MSP-168478-4.A8 168478-4 £6.24 £7.49
29 - HEX BOLT M5X18 DUR188L MSP-922228-9.A25 922228-9 £1.44 £1.73
31-1 - LABEL/CAUTION EM2651LHEBH253 MSP-808723-2.A11 808723-2 £1.44 £1.73
31-1 - LABEL/MAKITA LOGO ER2650LHKR MSP-819312-8.A21 819312-8 £1.44 £1.73
31-1 - LABEL/CAUTION BBC231URD MSP-810558-9.A4 810558-9 £1.44 £1.73
31-1 - SHAFT PIPE CO BBC231U/BBC300L MSP-141889-8.A1 141889-8 £63.38 £76.05
35 - SHAFT BBC231U/BBC300L MSP-325812-3.A2 325812-3 £40.75 £48.90
36 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A23 922218-2 £1.44 £1.73
37-1 - CLAMP WASHER BBC231URD/ELM265 MSP-346084-7.A12 346084-7 £1.44 £1.73
37-2 - CLAMP WASHER BBC231URD/ELM265 MSP-346084-7.A15 346084-7 £1.44 £1.73
37-2 - HEX NUT M10-17 EBH251U.BBC231 MSP-264025-0.A10 264025-0 £3.28 £3.93
37-2 - CUP EBH253L/EBH341L&U/BBC231U MSP-168526-9.A20 168526-9 £5.15 £6.18
37-1 - CUP EBH253L/EBH341L&U/BBC231U MSP-168526-9.A21 168526-9 £5.15 £6.18
37-1 - HEX NUT M10-17 EBH251U.BBC231 MSP-264025-0.A9 264025-0 £3.28 £3.93
40 - BALL BEARING 609ZZ EBH253L/BB MSP-210049-4.A10 210049-4 £4.21 £5.05
41-1 - PUTER SNAP RING RBC260L/U/RBL MSP-257986-1.A2 257986-1 £4.21 £5.05
41 - EXT DIN 471 CIRCLIP-9 BGA450 MSP-961005-4.A44 961005-4 £1.44 £1.73
42 - RETAINING RING R-24 AN620 MSP-962103-7.A13 962103-7 £1.44 £1.73
43 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A11 922241-7 £1.44 £1.73
44 - HEX BOLT M8X10 EBH253L/EBH341 MSP-265590-2.A6 265590-2 £1.44 £1.73
46 - *CUTTER SHAFT SET EBH253L/BBC MSP-188902-1.A3 188902-1 £63.50 £76.20
46-1 - CUTTER SHAFT SET EBH253L/BBC2 MSP-183A00-2.A0 183A00-2 £40.61 £48.73
49 - BALL BEARING 6001LLU EBH253L MSP-210115-7.A4 210115-7 £9.20 £11.04
50 - INTERNAL RETAINING RING-28 MSP-962106-1.A12 962106-1 £1.44 £1.73
51-1 - RECIEVE WASHER EBH253L/BBC231 MSP-331861-0.A5 331861-0 £12.95 £15.54
55 - PROTECTOR BBC231U/BBC300L MSP-451566-7.A3 451566-7 £38.30 £45.96
56 - PROTECTOR COVER BBC231U/300L MSP-451565-9.A2 451565-9 £24.48 £29.38
57 - O RING 11 HR2000/6835DWA/6833 MSP-213105-9.A3 213105-9 £1.58 £1.89
58 - PROTECTOR CLAMP EBH253L/BBC23 MSP-346073-2.A2 346073-2 £1.44 £1.73
59 - CAP HD SCREW M6X30 HM1810 MSP-922353-6.A17 922353-6 £1.44 £1.73
60 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A24 911233-1 £1.44 £1.73
61 - GEAR BOX COVER BC300LD/BUR360 MSP-451981-5.A12 451981-5 £50.02 £60.03
62 - PIPE RUBBER BBC231U/BBC300L/B MSP-424307-4.A14 424307-4 £2.34 £2.81
63 - CAP HD SCREW M5X20 EBH341U MSP-922231-0.A26 922231-0 £1.44 £1.73
64 - PIPE BRACKET BBC231U/BBC300L MSP-318560-1.A7 318560-1 £41.98 £50.37
65 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A25 911233-1 £1.44 £1.73
66 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A401 263002-9 £1.44 £1.73
67 - *O-RING 6 AN711/BO3710/11/BBC2 MSP-213045-1.A5 213045-1 £1.44 £1.73
68 - SPINDLE HUB BBC231U/BBC300L/B MSP-325811-5.A12 325811-5 £19.58 £23.50
69 - BALL BEARING 6001ZZ/EN4951SH MSP-211148-5.A14 211148-5 £5.92 £7.11
70 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A104 253744-3 £1.44 £1.73
71 - HELICAL GEAR 33 BBC231U/300L/ MSP-227720-3.A12 227720-3 £23.62 £28.34
72 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A103 253744-3 £1.44 £1.73
73 - BALL BEARING 6901ZZ/BUR360/BU MSP-211150-8.A9 211150-8 £4.83 £5.80
74 - GEAR BOX BBC231U/BBC300L/BUR3 MSP-318559-6.A10 318559-6 £55.97 £67.16
75 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A393 265995-6 £1.44 £1.73
76 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A46 266041-8 £1.44 £1.73
77 - STAND BBC231U/BBC300L/BUX360 MSP-451572-2.A10 451572-2 £5.18 £6.21
78 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A26 911233-1 £1.44 £1.73
79 - POWER SUPPLY CORD UNIT BUR360 MSP-699047-5.A0 699047-5 £21.17 £25.40
80 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A391 265995-6 £1.44 £1.73
81 - NAME PLATE BC300LD MSP-869531-6.A1 869531-6 £1.44 £1.73
82 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A123 251314-2 £1.44 £1.73
83 - BATTERY GUARD BBC231U/BBC300L MSP-346194-0.A3 346194-0 £38.30 £45.96
84 - *HOUSING SET DBC231U/DBC300L/ MSP-188836-8.A18 188836-8 £50.02 £60.03
85 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A392 265995-6 £1.44 £1.73
86 - MOTOR HOUSING SET BBC231U/300 MSP-188838-4.A16 188838-4 £18.72 £22.46
87 - O RING 22 BBC231/UX360/DUX60 MSP-213961-7.A38 213961-7 £1.44 £1.73
88 - ROTOR BBC231U/BBC300L/BUR360/ MSP-619254-4.A4 619254-4 £120.08 £144.09
89 - STATOR BBC231U/BBC300L/BUX360 MSP-629880-1.A6 629880-1 £89.97 £107.96
90 - MOTOR HOUSING SET BBC231U/300 MSP-188838-4.A15 188838-4 £18.72 £22.46
91 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A394 265995-6 £1.44 £1.73
92 - STRAIN RELIEF BBC231URD/BUR36 MSP-687261-5.A13 687261-5 £1.44 £1.73
93 - SUPPORT PLATE BUH550RD/BUB360 MSP-346039-2.A12 346039-2 £1.44 £1.73
94 - *HOUSING SET DBC231U/DBC300L/ MSP-188836-8.A17 188836-8 £50.02 £60.03
95 - TERMINAL UK360D/BUB360Z/BBC23 MSP-643849-1.A7 643849-1 £6.08 £7.30
97 - *CONTROLLER BBC231U/300L MSP-631941-5.A11 631941-5 £210.84 £253.01
98 - INDICATION PLATE CO BBC231/30 MSP-140285-7.A8 140285-7 £9.82 £11.79
100 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A395 265995-6 £1.44 £1.73
101 - CUTTER BBC231URD MSP-346280-7.A4 346280-7 £1.20 £1.44
102 - PROTECTOR EXTENSION CO BBC231U MSP-140583-9.A2 140583-9 £12.21 £14.65
102 - LABEL/INDICATION MSP-891041-5.A0 891041-5 £1.44 £1.73
103 - SPACER EBH252L/BUX360/CS246.4 MSP-451601-1.A0 451601-1 £2.65 £3.18
A01 - CUTTER ASSY SET BC300LD MSP-195149-0.A0 195149-0 £27.04 £32.45
A01 - COVER ER2650LH/ER2550/BC300LD MSP-453227-5.A2 453227-5 £9.67 £11.61
A01 - EYE LET ER2650LH/BC300LD/ER25 MSP-318816-2.A0 318816-2 £1.85 £2.22
A01 - NUT M10 BC300LD MSP-318815-4.A1 318815-4 £11.23 £13.48
A01 - BOBBIN ER2650LH/ER2550/BC300LD MSP-453228-3.A0 453228-3 £4.87 £5.84
A01 - COMPRESSION SPRING 13 ER2650L MSP-234229-8.A0 234229-8 £7.80 £9.36
A01 - HOUSING BC300LD MSP-141181-2.A1 141181-2 £21.89 £26.27
A02 - BAND ASSY DUR365/AT1827H/MS248 MSP-125516-5.A26 125516-5 £3.48 £4.17
A06 - SOCKET WRENCH 17 14/12N/4110C MSP-782210-8.A3 782210-8 £4.07 £4.88
A07 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A10 783202-0 £1.20 £1.44
A08 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A30 783217-7 £1.20 £1.44
A09 - ACCESSORY BAG ER2650LH/EBH34 MSP-831304-7.A32 831304-7 £2.32 £2.78
