Makita EH5000W Petrol Hedge Trimmer Spare Parts

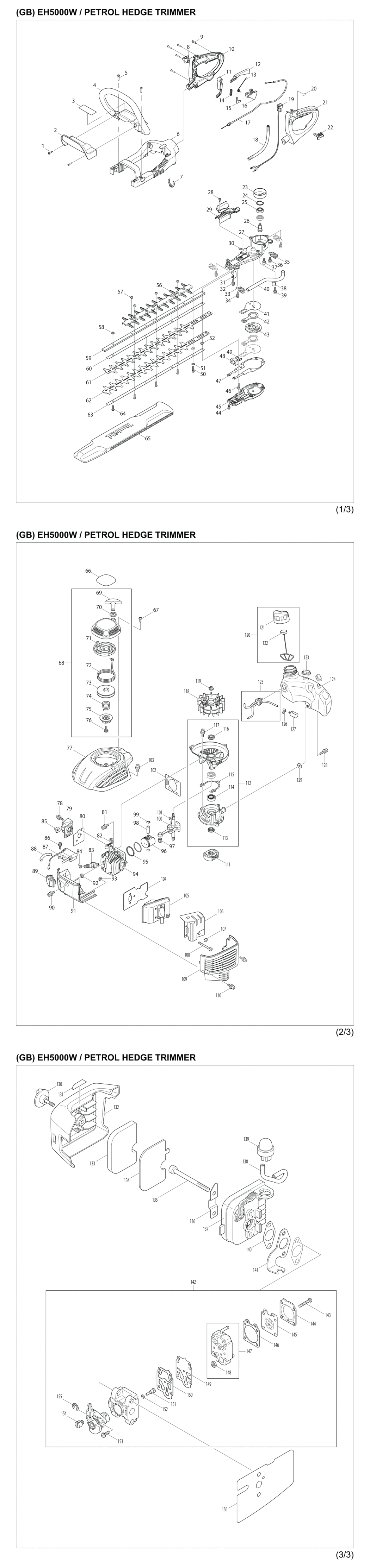

An exploded drawing and spare parts listing for the Makita EH5000W Petrol Hedge Trimmer

	Ex VAT	Inc VAT
1 - PT SCREW 4X20 TRILOBULAR 6833 MSP-266045-0.A37 266045-0	£1.44	£1.73
2 - GUARD EH5000W/6000W/7500W MSP-452322-8.A2 452322-8	£12.95	£15.54
4 - LOOP HANDLE EH5/6/7500/HT2360D MSP-452321-0.A0 452321-0	£34.28	£41.13
5 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A32 266041-8	£1.44	£1.73
6 - HANDLE BASE EH5000/6000/7500 MSP-452319-7.A2 452319-7	£20.30	£24.36
8 - LOCK LEVER B EH5000/6000/7500 MSP-452316-3.A0 452316-3	£2.18	£2.62
9 - PT SCREW 4X20 TRILOBULAR 6833 MSP-266045-0.A36 266045-0	£1.44	£1.73
11 - STOPPER EH5000/6000/7500W MSP-452314-7.A2 452314-7	£2.97	£3.56
17 - CONTROL CABLE EH5000W/6000W/7 MSP-168625-7.A2 168625-7	-
19 - SWITCH ASSY EH5/6/7500/HT2360D MSP-125858-7.A2 125858-7	£41.23	£49.48
21-1 - LEVER CASE SET EH5/6/7500W MSP-187049-8.A0 187049-8	£26.07	£31.28
23 - CLUTCH DRUM EH7500/HT2360D MSP-168567-5.A3 168567-5	£19.58	£23.50
24-1 - INTERNAL RETAINING RING-28 MSP-962106-1.A3 962106-1	£1.44	£1.73
25-1 - BALL BEARING 6001LLU HR3000C MSP-211138-8.A5 211138-8	£4.37	£5.24
25 - BALL BEARING EH7500/HT2360D MSP-0600129780.A0 0600129780	£11.39	£13.67
27 - GEAR CASE EH7500/HT2360D MSP-141033-7.A0 141033-7	£56.89	£68.27
28-1 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A26 922212-4	£1.44	£1.73
29 - BAFFLE PLATE EH7500/HT2360D MSP-451865-7.A3 451865-7	£4.06	£4.87
30 - GREASE NIPPLE EH7500/HT2360D MSP-243107-1.A3 243107-1	£1.44	£1.73
31 - CLAMP EH7500/HT2360D MSP-346253-0.A0 346253-0	£2.02	£2.43
32-1 - HEX BOLT M5X12 BHX2501/EBH253 MSP-922213-2.A4 922213-2	£1.44	£1.73
33 - COMPRESSION SPRING 15/HT2360D MSP-234224-8.A0 234224-8	£9.98	£11.98
34 - *SOCKET HD BOLT EH7500/HT2360D MSP-922224-7.A6 922224-7	£1.44	£1.73
35 - COMPRESSION SPRING 15 EH7500 MSP-234202-8.A3 234202-8	£7.18	£8.61
36 - *SOCKET HD BOLT EH7500/HT2360D MSP-922224-7.A7 922224-7	£1.44	£1.73
37-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A28 266787-6	£1.44	£1.73
38 - CLAMP EH7500/HT2360D MSP-346252-2.A3 346252-2	£1.44	£1.73
39-1 - HEX BOLT M5X12 BHX2501/EBH253 MSP-922213-2.A5 922213-2	£1.44	£1.73
40 - PIPE EH7500/HT2360D MSP-331896-1.A3 331896-1	£8.11	£9.73
41 - FRICTION PLATE EH7500/HT2360D MSP-346255-6.A3 346255-6	£4.52	£5.43
42 - CONNECTING ROD EH7500/EN4951S MSP-346251-4.A0 346251-4	£11.86	£14.23
43 - SPUR GEAR 43 EH7500/EN4951SH MSP-227248-1.A2 227248-1	£28.51	£34.21
43-1 - SPUR GEAR 43 EH7500/EN4951SH MSP-227248-1.A9 227248-1	£28.51	£34.21
44 - HEX SOCKET BOLT M4X16 EH7500 MSP-922128-3.A16 922128-3	£1.44	£1.73
45 - GEAR CASE COVER EH7500/HT2360D MSP-318610-2.A0 318610-2	£19.58	£23.50
46 - HEX SOCKET HD BOLT M5X22 EH75 MSP-922237-8.A0 922237-8	£1.44	£1.73
47 - GEAR CASE GASKET EH7500 MSP-413137-8.A0 413137-8	£4.68	£5.62
48 - SEAL EH7500/EN4951SH/HT2360D MSP-443159-4.A4 443159-4	£7.18	£8.61
49 - HOLDER EH7500/EN4951SH/HT2360D MSP-346256-4.A0 346256-4	£4.06	£4.87
50 - HEX SOCKET HD BOLT M5X22 EH75 MSP-922237-8.A1 922237-8	£1.44	£1.73
51-1 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A27 941101-4	£1.44	£1.73
51 - WASHER EH7500/HT2360D MSP-0031105003.A3 0031105003	£1.44	£1.73
52 - SLEEVE 5 EH5000W/EN4951SH MSP-313211-1.A0 313211-1	£4.37	£5.24
56-1 - BLADE GUARD EN4950H/EH5000W/6 MSP-454672-7.A2 454672-7	£7.96	£9.55
57 - BINDING HEAD SCREW M5X12S MSP-915211-3.A10 915211-3	£1.44	£1.73
58 - *HEX LOCK NUT M6-10 EH7500 MSP-264089-4.A6 264089-4	£2.58	£3.10
58-1 - HEX LOCK NUT M6-10 EN4950H/51 MSP-264089-4.A3 264089-4	£2.58	£3.10
59-1 - *GUIDE BAR EH5000 MSP-326771-4 326771-4	£18.92	£22.71
59-2 - GUIDE BAR EN4950H/51SG EH5000W MSP-332058-4.A0 332058-4	£24.97	£29.96
60 - *PLATE EH5000W MSP-346364-1.A1 346364-1	£7.64	£9.17
60-1 - PLATE EN4950H/EN4951SH EH5000W MSP-346665-7.A2 346665-7	£4.16	£4.99
61-1 - SHEAR BLADE EN4951SH EH5000W MSP-725187-4.A3 725187-4	£28.92	£34.70
61 - *SHEAR BLADE EH5000W MSP-725169-6.A0 725169-6	£54.23	£65.08
62 - *SHEAR BLADE EH5000W MSP-725169-6.A1 725169-6	£54.23	£65.08
62-1 - SHEAR BLADE EN4951SH EH5000W MSP-725187-4.A2 725187-4	£28.92	£34.70
63-1 - PLATE EN4950H/EN4951SH EH5000W MSP-346665-7.A3 346665-7	£4.16	£4.99
63 - *PLATE EH5000W MSP-346364-1.A0 346364-1	£7.64	£9.17
64 - *SOCKET BUTTON HD BOLT EH7500 MSP-266743-6.A8 266743-6	£1.44	£1.73
64-1 - HS BUTTON HD BOLT M6X20 EN495 MSP-266824-6.A5 266824-6	£1.44	£1.73
65-1 - BLADE COVER EN4950H/EN4951SH MSP-454279-9.A1 454279-9	£4.25	£5.10
67 - TAPPING SCREW M4X14 EH7500 MSP-0150049860.A3 0150049860	£1.44	£1.73
68 - RECOIL STARTER ASSY EH7500 MSP-125753-1.A3 125753-1	£48.58	£58.29
69-1 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A21 424319-7	£2.34	£2.81
70-1 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A12 424359-5	£1.44	£1.73
70 - *DAMPER EH7500/RPT250/HTR5600 MSP-5255001040.A6 5255001040	£3.74	£4.49
71-1 - SPRIAL SPRING ER2650LH/EM2651 MSP-232258-5.A0 232258-5	£9.98	£11.98
72 - STARTER ROPE EH7500/HT2360D MSP-444028-2.A3 444028-2	£4.21	£5.05
73 - REEL EH7500/HT2360D MSP-452402-0.A0 452402-0	£14.35	£17.22
74 - DAMPER SPRING EH7500/HT2360D MSP-233991-2.A0 233991-2	£9.82	£11.79
75 - CAM PLATE EH7500/HT2360D MSP-452403-8.A3 452403-8	£11.70	£14.04
76-1 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A17 266585-8	£1.44	£1.73
77 - BLOWER HOUSING EH7500 MSP-452948-6.A3 452948-6	£18.72	£22.46
78 - *SOCKET HD BOLT M5 X 18 EH750 MSP-0119059450.A0 0119059450	£2.18	£2.62
78-1 - SOCKET HEAD BOLT M5X45 RBC230 MSP-266760-6.A13 266760-6	£1.44	£1.73
79 - INSULATOR EH7500/HT2360D MSP-451911-6.A3 451911-6	£9.05	£10.86
80 - INSULATOR GASKET EH7500 MSP-346268-7.A0 346268-7	£2.02	£2.43
81-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A27 266787-6	£1.44	£1.73
83-1 - SPARK PLUG CMR6A EB7650TH MSP-168401-9.A14 168401-9	£7.49	£8.99
84-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A35 324891-8	£1.44	£1.73
86-1 - HS H BOLT M4X20 BHX2501/EBH34 MSP-922138-0.A0 922138-0	£2.97	£3.56
87 - IGNITION COIL EH7500/HT2360D MSP-168684-1.A3 168684-1	£64.89	£77.87
88 - *TUBE EH7500/MH2556/RPT250 MSP-0851069920.A3 0851069920	£1.44	£1.73
89 - PLUG CAP ER2650/2651/EN4951 MSP-424302-4.A15 424302-4	£2.81	£3.37
90-1 - SOCKET HEAD BOLT M5X45 RBC230 MSP-266760-6.A14 266760-6	£1.44	£1.73
91 - CYLINER COVER EH7500/HT2360D MSP-451860-7.A3 451860-7	£5.92	£7.11
92 - SPACER EH7500/RBC3101/HTR560 MSP-5503503001.A9 5503503001	£2.34	£2.81
93-2 - SQUARE NUT M5-8 GN420C/HT2360D MSP-264050-1.A4 264050-1	£1.44	£1.73
94-1 - CYLINDER EH7500/HT2360D MSP-141381-4.A3 141381-4	£46.99	£56.39
95-1 - PISTON RING EH7500/DBC260/RBC MSP-257334-4.A3 257334-4	£2.34	£2.81
96-1 - PISTON EH7500/RBC260L/U/DBC26 MSP-318858-6.A0 318858-6	£10.92	£13.10
97-1 - NEEDLE ROLLER BEARING EH7500 MSP-212702-8.A0 212702-8	£7.96	£9.55
98-1 - PISTON PIN EH7500/HT2360D MSP-256543-2.A3 256543-2	£1.44	£1.73
99-1 - CLIP EH7500/RBC260L/U/DBC260 MSP-234243-4.A0 234243-4	£1.44	£1.73
100 - CRANKSHAFT EH7500/HT2360D MSP-140429-9.A0 140429-9	£43.60	£52.32
101-1 - WOOD RUFF KEY EH7500/HT2360D MSP-254041-0.A0 254041-0	£1.20	£1.44
102 - CYLINDER GASKET EH7500/HT2360 MSP-346267-9.A3 346267-9	£2.18	£2.62
103-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A29 266787-6	£1.44	£1.73
104 - MUFFLER GASKET EH7500/HT2360D MSP-346260-3.A3 346260-3	£4.21	£5.05
105-1 - MUFFLER HT2360D MSP-161555-1.A0 161555-1	£52.67	£63.20
106 - MUFFLER COVER EH7500/HT2360D MSP-346343-9.A0 346343-9	£9.36	£11.23
107 - SCREW M5X6 EH7500/EM4251/4340 MSP-0140059962.A1 0140059962	£1.44	£1.73
108-1 - SOCKET HEAD BOLT EH7500/HTR56 MSP-266754-1.A0 266754-1	£1.44	£1.73
109 - MUFFLER COVER EH7500/HT2360D MSP-451861-5.A0 451861-5	£7.80	£9.36
110-1 - SOCKET HEAD BOLT M5X45 RBC230 MSP-266760-6.A12 266760-6	£1.44	£1.73
111-1 - CLUTCH EH7500/HT2360D MSP-141150-3.A0 141150-3	£40.75	£48.90
112 - CRANKCASE ASSY EH7500/HT2360D MSP-5231016000.A3 5231016000	£112.77	£135.32
113-1 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A17 213148-1	£2.81	£3.37
113-2 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A7 213769-9	£3.59	£4.31
114-1 - *BALL BEARING 6000 EH7500/260 MSP-210086-8.A4 210086-8	£11.70	£14.04
114-2 - BALL BEARING 6000 2414NB/LC12 MSP-211064-1.A17 211064-1	£2.34	£2.81
115 - CRANKCASE GASKET EH7500 MSP-413139-4.A1 413139-4	£1.44	£1.73
116-1 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A12 213148-1	£2.81	£3.37
116-2 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A15 213769-9	£3.59	£4.31
117-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A16 266787-6	£1.44	£1.73
118 - FLYWHEEL ASSY EH7500/HT2360D MSP-126046-9.A3 126046-9	£32.69	£39.23
120 - FUEL TANK CAP ASSY EH7500 MSP-125770-1.A1 125770-1	£21.17	£25.40
123 - BUFFER RUBBER ER2650LH/DBC260 MSP-424080-6.A12 424080-6	£1.44	£1.73
125 - TUBE EH7500/HT2360D MSP-168568-3.A2 168568-3	£7.80	£9.36
126-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A20 345920-4	£1.44	£1.73
127-1 - FUEL FILTER EM2651LH/ER2650LH MSP-163518-3.A17 163518-3	£3.88	£4.65
130 - THUMB SCREW M4 EH7500/ER2650L MSP-265791-2.A9 265791-2	£1.44	£1.73
131 - LABEL/CHOKE INDICATION EH7500 MSP-819818-6.A2 819818-6	£3.59	£4.31
132 - AIR CLEANER COVER EH7500 MSP-451859-2.A3 451859-2	£5.78	£6.93
133 - AIR FILTER EH7500/HT2360D MSP-443157-8.A1 443157-8	£1.23	£1.48
134 - AIR FILTER EH7500/HT2360D MSP-443158-6.A2 443158-6	£1.54	£1.85
135-1 - HS BUTTON HD BOLT M5X60 ER265 MSP-266618-9.A7 266618-9	£1.44	£1.73
136-2 - PLATE ER2550/EBH341U/BHX2501 MSP-346647-9.A2 346647-9	£6.08	£7.30
136-1 - PLATE EBH341U MSP-345919-9.A2 345919-9	£1.44	£1.73
137 - AIR CLEANER PLATE ASSY EH7500 MSP-126029-9.A0 126029-9	£10.61	£12.73
138 - TUBE EH7500/HT2360D MSP-412097-1.A2 412097-1	£1.44	£1.73
139-1 - PRIMER PUMP DCS230T/EA32/EA36 MSP-168398-2.A14 168398-2	£4.52	£5.43
140-1 - GASKET/CARBURETOR EH7500/DBC2 MSP-413158-0.A1 413158-0	£1.44	£1.73
141 - CABLE BRACKET EH7500/HT2360D MSP-346334-0.A2 346334-0	£3.28	£3.93
142 - CARBURETOR EH7500/HT2360D MSP-168569-1.A1 168569-1	£75.60	£90.72
143-2 - SCREW DCS230T/EB7650TH/PM7651 MSP-WJ00096325.A5 WJ00096325	£2.34	£2.81
144-2 - COVER-METERING DIAPHRAGM EB76 MSP-WJ00021158.A11 WJ00021158	£2.18	£2.62
145-1 - METERING DIAPHRAGM ER2650LH MSP-168620-7.A18 168620-7	£18.72	£22.47
146-1 - GASKET EH7500/PB250/RST250/RB MSP-442183-4.A2 442183-4	£3.74	£4.49
147 - BODY ASSEMBLY PUMP EH7500 MSP-140661-5.A2 140661-5	£41.98	£50.37
148-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A14 WJ00014070	£1.44	£1.73
149-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A9 DA00001144	£14.21	£17.05
150-1 - PUMP GASKET ER2650LH/BHX2501 MSP-442155-9.A1 442155-9	£2.97	£3.56
151 - JET EH7500/HT2360D MSP-326005-5.A1 326005-5	£15.26	£18.31
152-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A1 213538-8	£3.59	£4.31
153-1 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A26 266581-6	£1.44	£1.73
153-2 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A9 WJ00096364	£2.34	£2.81
154-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A18 325922-6	£5.46	£6.55
155-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A21 257964-1	£2.81	£3.37
156 - CARBURETOR GASKET EH7500 MSP-413147-5.A2 413147-5	£2.18	£2.62
157 - CAP EH AND HT MODELS/HT2360D MSP-286284-6.A4 286284-6	£1.44	£1.73
158-1 - CAP EH AND HT MODELS/HT2360D MSP-286284-6.A5 286284-6	£1.44	£1.73
159 - LABEL/DATE CODE ER2650LHER25 MSP-801D19-4.A2 801D19-4	£1.44	£1.73
A01 - *TOOL SET EH5000W/6000W/7500W MSP-195259-3.A1 195259-3	£5.33	£6.40
A01-1 - BOX DRIVER 10-16 ER2650LH/ER25 MSP-782233-6.A7 782233-6	£3.48	£4.17
A05 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A8 783223-2	£1.20	£1.44

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita EH5000W Petrol Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Makita EH5000W Petrol Hedge Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Makita EH5000W Petrol Hedge Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
