Makita EM2651UH Petrol Brushcutter Spare Parts

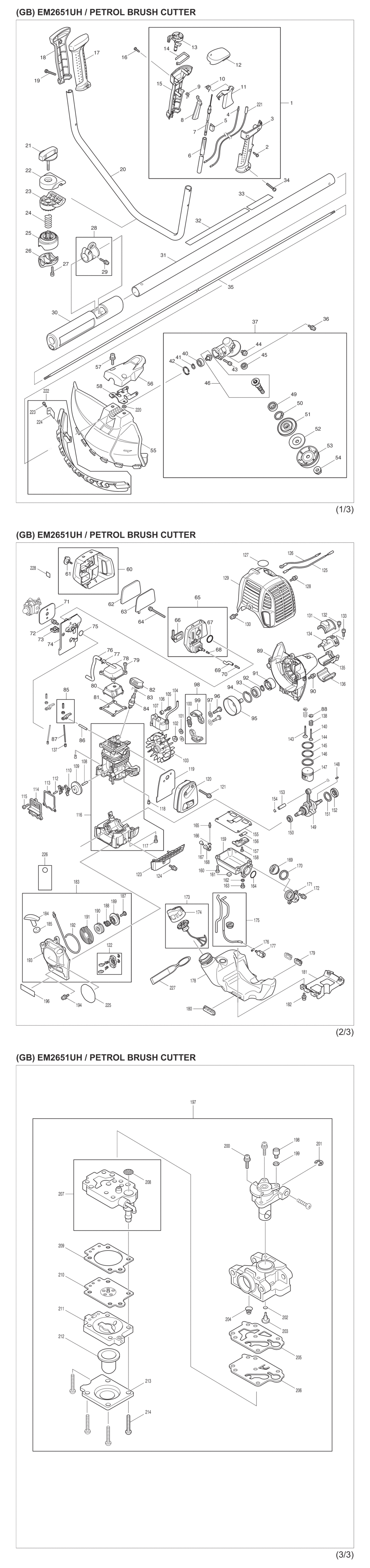

An exploded drawing and spare parts listing for the Makita EM2651UH Petrol Brushcutter

	Ex VAT	Inc VAT
1 - CONTROL LEVER ASSY EM2651 MSP-125775-1 125775-1	£30.24	£36.29
2 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A301 266326-2	£1.44	£1.73
3-1 - LEVER CASE SET EBH253U/EM2651 MSP-183A10-9.A2 183A10-9	£8.42	£10.11
4 - LEAD UNIT EM2651L MSP-638705-8 638705-8	£1.44	£1.73
5 - CABLE HOLDER EBH341U MSP-451081-1.A0 451081-1	£1.44	£1.73
6 - CORRUGATE TUBE EM2651L MSP-452005-0 452005-0	£3.74	£4.49
7 - CONTROL CABLE EM2651L MSP-168570-6 168570-6	£4.21	£5.05
8 - LOCK OFF LEVER EBH341U/EM2561 MSP-451083-7.A0 451083-7	£1.44	£1.73
9 - TORSION SPRING 7 ER2650LH/ER2 MSP-233541-3.A4 233541-3	£1.44	£1.73
10 - TORSION SPRING 11 ER2650LH/ER MSP-233540-5.A14 233540-5	£1.44	£1.73
11 - THROTTLE LEVER EBH341U/ELM265 MSP-451084-5.A4 451084-5	£1.44	£1.73
12-1 - SWITCH COVER EBH341U/ELM2651L MSP-455722-1.A2 455722-1	£1.44	£1.73
12 - *SWITCH COVER EBH341U/ELM2651 MSP-451085-3.A0 451085-3	£2.02	£2.43
13 - SWITCH LEVERZ EBH341U/ELM2651 MSP-451082-9.A2 451082-9	£1.44	£1.73
14 - LEAF SPRING ER2650LH/ER2550 MSP-232251-9.A3 232251-9	£1.44	£1.73
15-1 - LEVER CASE SET EBH253U/EM2651 MSP-183A10-9.A3 183A10-9	£8.42	£10.11
16 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A300 266326-2	£1.44	£1.73
17 - GRIP SET BBC231U/EM2651LH MSP-188659-4.A5 188659-4	£6.55	£7.86
18 - GRIP SET BBC231U/EM2651LH MSP-188659-4.A6 188659-4	£6.55	£7.86
19 - PAN HD SCREW M5X35 W/SP WASHE MSP-911256-9.A13 911256-9	£1.44	£1.73
20 - HANDLE BBC231URD/EM2651LH MSP-331862-8.A1 331862-8	£15.70	£18.84
21-1 - KNOB 57 EBH341U/BBC231URD/EM2 MSP-168796-0.A1 168796-0	£4.83	£5.80
22 - HANDLE CLAMP EM2651LH MSP-318429-9.A0 318429-9	£5.46	£6.55
23 - HANDLE COVER BBC231URD MSP-318428-1.A5 318428-1	£5.15	£6.18
24 - COMPRESSION SPRING 20 HR160DW MSP-233202-5.A0 233202-5	£1.44	£1.73
25 - PIPE HOLDER BBC231URD/EM2651 MSP-318427-3.A0 318427-3	£5.92	£7.11
26 - PIPE CLAMP BBC231URD/EM2651LH MSP-318426-5.A5 318426-5	£2.81	£3.37
27 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A21 922241-7	£1.44	£1.73
28 - HANGER SET EBH253/EM2651/CS246 MSP-195143-2.A5 195143-2	£4.21	£5.05
29 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A97 911233-1	£1.44	£1.73
30 - CUSHION EM2651L MSP-422045-2 422045-2	£32.69	£39.23
31 - SHAFT PIPE EM2651L MSP-140431-2.A1 140431-2	£44.35	£53.22
32 - LABEL/CAUTION MSP-891174-6 891174-6	£1.44	£1.73
33 - LABEL/MAKITA LOGO ER2650LHKR MSP-819312-8.A9 819312-8	£1.44	£1.73
34 - PAN HD SCREW M5X35 W/SP WASHE MSP-911256-9.A12 911256-9	£1.44	£1.73
35-1 - SHAFT EBH253L/EM2651/EM2511 MSP-327056-1.A6 327056-1	£9.00	£10.80
36-1 - CAP HD SCREW M5X10 JS1600 MSP-922206-9.A19 922206-9	£1.44	£1.73
36 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A49 922218-2	£1.44	£1.73
40 - BALL BEARING 609ZZ EBH253L/BB MSP-210049-4.A15 210049-4	£4.21	£5.05
41-1 - PUTER SNAP RING RBC260L/U/RBL MSP-257986-1.A11 257986-1	£4.21	£5.05
41 - EXT DIN 471 CIRCLIP-9 BGA450 MSP-961005-4.A6 961005-4	£1.44	£1.73
42 - RETAINING RING R-24 AN620 MSP-962103-7.A9 962103-7	£1.44	£1.73
43 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A20 922241-7	£1.44	£1.73
44 - HEX BOLT M8X10 EBH253L/EBH341 MSP-265590-2.A13 265590-2	£1.44	£1.73
46-2 - CUTTER SHAFT SET EBH253L/BBC2 MSP-183A00-2.A11 183A00-2	£40.61	£48.73
46-1 - *CUTTER SHAFT SET EBH253L/BBC MSP-188902-1.A8 188902-1	£63.50	£76.20
49 - BALL BEARING 6001LLU EBH253L MSP-210115-7.A9 210115-7	£9.20	£11.04
50 - INTERNAL RETAINING RING-28 MSP-962106-1.A2 962106-1	£1.44	£1.73
51 - RECIEVE WASHER EBH253L/BBC231 MSP-331861-0.A1 331861-0	£12.95	£15.54
52 - CLAMP WASHER BBC231URD/ELM265 MSP-346084-7.A1 346084-7	£1.44	£1.73
53 - CUP EBH253L/EBH341L&U/BBC231U MSP-168526-9.A5 168526-9	£5.15	£6.18
54 - HEX NUT M10-17 EBH251U.BBC231 MSP-264025-0.A1 264025-0	£3.28	£3.93
55 - PROTECTOR EBH253/EM2651/EM2511 MSP-452260-4.A0 452260-4	£7.72	£9.27
56 - PROTECTOR COVER EBH253L MSP-451097-6.A0 451097-6	£2.65	£3.18
57 - HEX SOCKET HD BOLT M6X30 BUR3 MSP-266579-3.A1 266579-3	£1.44	£1.73
57-1 - HSH BOLT M6X25 EM2511/EM2654 MSP-266280-0.A4 266280-0	£1.44	£1.73
58-1 - PROTECTOR CLAMP 24 EM2511LH MSP-347012-5.A0 347012-5	£1.44	£1.73
58 - PROTECTOR CLAMP EBH253L/BBC23 MSP-346073-2.A5 346073-2	£1.44	£1.73
60-2 - CLEANER COVER ASSY ER2650LH MSP-123499-3.A5 123499-3	£5.46	£6.55
61 - THUMB SCREW M4 EH7500/ER2650L MSP-265791-2.A1 265791-2	£1.44	£1.73
62 - AIR CLEANER ELEMENT ER2550 MSP-443141-3.A2 443141-3	-
62-1 - AIR CLEANER ELEMENT EBH/ELM/MS MSP-443171-4.A7 443171-4	£3.01	£3.61
63-1 - AIR CLEANER ELEMENT EBH/ELM/MS MSP-443169-1.A7 443169-1	£7.96	£9.55
63 - AIR CLEANER ELEMENT ER2550 MSP-443140-5.A7 443140-5	£2.29	£2.75
64 - HEX S HD BOLT M5X60 MSP-266601-6.A0 266601-6	£1.44	£1.73
64-1 - HS BUTTON HD BOLT M5X60 ER265 MSP-266618-9.A0 266618-9	£1.44	£1.73
65-3 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A57 266007-8	£1.44	£1.73
65-3 - CLEANER PLATE ASSY ER2650LH MSP-123501-2.A3 123501-2	£39.31	£47.17
65-2 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A56 266007-8	£1.44	£1.73
66-2 - SEPARATOR PLATE ER2650/EN4951 MSP-162346-3.A6 162346-3	£9.67	£11.61
67 - O RING 15 ER2550/BHX2501/EBH MSP-213540-1.A12 213540-1	£1.44	£1.73
68-1 - CHECK VALVE ER2550/EBH251L MSP-424316-3.A24 424316-3	£4.06	£4.87
68 - CHECK VALVE ER2550/EBH251L MSP-424316-3.A25 424316-3	£4.06	£4.87
69-1 - PIPE ER2650LH/EY2650H/EN4951S MSP-422099-9.A8 422099-9	£5.92	£7.11
70 - JOINT PIPE ER2650LH/EM2651LH MSP-325665-0.A8 325665-0	£1.44	£1.73
71 - CARBURETOR GASKET ER2650/MS248 MSP-442153-3.A5 442153-3	£1.44	£1.73
72-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A26 266787-6	£1.44	£1.73
72 - HEX BOLT M5X18 DUR188L MSP-922228-9.A46 922228-9	£1.44	£1.73
73 - CLAMP ER2650/EM2651/EN4951 MSP-451825-9.A9 451825-9	£1.44	£1.73
74 - INSULATOR ER2650/EM2651/MS248 MSP-451729-5.A7 451729-5	£2.81	£3.37
75 - O-RING 12 ER2650/EM2651/MS248 MSP-213547-7.A4 213547-7	£1.44	£1.73
76-1 - BREATHER PIPE EX2650LH/EY2650 MSP-422109-2.A3 422109-2	£7.02	£8.42
77 - HOSE CLAMP ER2550/2650/EM2511 MSP-345918-1.A1 345918-1	£1.44	£1.73
78-1 - ROCKER COVER OUTER ER2650LH MSP-318745-9.A5 318745-9	£3.74	£4.49
79-1 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A42 922222-1	£1.44	£1.73
80-2 - ROCKER COVER INNER ER2650LH MSP-453860-3.A0 453860-3	£1.44	£1.73
81 - ROCKER COVER GASKET ER2650LH MSP-162304-9.A4 162304-9	£1.44	£1.73
82 - PLUG CAP ER2650/2651/EN4951 MSP-424302-4.A14 424302-4	£2.81	£3.37
83 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A38 324891-8	£1.44	£1.73
84 - SPARK PLUG ER2650LH/EBH341L&U MSP-168534-0.A9 168534-0	£9.36	£11.23
85 - ROCKET ARM ASSY ER2550LH/EM26 MSP-125554-7.A13 125554-7	£4.68	£5.62
86 - PIN 5 ER2650LH/2704/EBH/BHX25 MSP-256200-2.A3 256200-2	£1.44	£1.73
87 - ROD 2.5 ER2650/EM2651/EN4951 MSP-256865-0.A1 256865-0	£1.44	£1.73
88 - SPRING RETAINER ER2650L/EBH25 MSP-325668-4.A11 325668-4	£1.44	£1.73
89 - CLUTCH CASE ER2650LH/EM2651LH MSP-451735-0.A7 451735-0	£10.30	£12.36
89-1 - CUTTER CASE EM2654LH MSP-143823-4.A0 143823-4	£24.77	£29.72
90 - HEX BOLT M5X18 DUR188L MSP-922228-9.A47 922228-9	£1.44	£1.73
91 - SPACER ER2650LH/EM2651LH/EBH2 MSP-450569-8.A4 450569-8	£1.44	£1.73
91-1 - SPACER ER2650LH/EM2651LH/EBH2 MSP-450569-8.A23 450569-8	£1.44	£1.73
92 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A73 961052-5	£1.44	£1.73
93 - BALL BEARING 6201LLU ER2650LH MSP-210111-5.A13 210111-5	£5.46	£6.55
93-1 - BALL BEARING 6201LLU ER2650LH MSP-210111-5.A14 210111-5	£5.46	£6.55
94 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A0 962151-6	£1.44	£1.73
95-1 - CLUTCH DRUM EBH252U/ MSP-168809-7.A3 168809-7	£7.96	£9.55
96-1 - SHOULDER HEX BOLT M6X25EM2651 MSP-266864-4.A3 266864-4	£1.44	£1.73
97 - WASHER 8 ER2650LH/EBH253U/ER2 MSP-267817-6.A15 267817-6	£1.44	£1.73
98-1 - CLUTCH ASSY ER2650LH/EY2650H MSP-126135-0.A3 126135-0	£20.30	£24.36
98 - *CLUTCH ASSY ER2550/EM2651LH MSP-125518-1.A1 125518-1	£13.10	£15.72
99-1 - CLUTCH SHOE EN4951SH/CS246.4 MSP-161332-1.A6 161332-1	£5.62	£6.74
100-1 - TENSION SPRING 7 ER2650/CS246 MSP-231881-3.A5 231881-3	£3.74	£4.49
101 - WASHER 6 ER2650/EBH253/EN4951 MSP-267812-6.A13 267812-6	£1.44	£1.73
102 - SPRING HEX NUT M8-13/EY2650H MSP-264039-9.A5 264039-9	£1.44	£1.73
102-1 - SPRING HEX NUT M8-13/EY2650H MSP-264039-9.A18 264039-9	£1.44	£1.73
103 - FLYWHEEL EM2651/ER2650/EN4951 MSP-318569-3.A0 318569-3	£19.58	£23.50
104 - TUBE EM2651LH/ER2650LH/EY2650H MSP-444021-6.A6 444021-6	£1.20	£1.44
105 - HEX SOCKET HD BOLT M4X2 EM265 MSP-266602-4.A8 266602-4	£1.44	£1.73
106 - SPACER EM2651/ER2650/EN4951 MSP-452049-0.A4 452049-0	£1.44	£1.73
107-1 - IGNITION COIL EM2653/EM2654/MS MSP-161483-0.A0 161483-0	£46.99	£56.39
107 - IGNITION COIL ER2650/EN4951 MSP-168559-4.A1 168559-4	£34.99	£41.99
108 - PIN 5 ER2650/EBH/BHX/EM2511 MSP-268238-5.A14 268238-5	£1.44	£1.73
109 - CAM GEAR ASSY EM2651LH/ER2650 MSP-125552-1.A11 125552-1	£12.32	£14.79
110 - CAM LIFTER ER2650LH/EM2651LH MSP-313169-4.A4 313169-4	£3.59	£4.31
112 - PIN 4 ER2650LH/EBH/BHX2501 MSP-268239-3.A5 268239-3	£1.44	£1.73
113 - CAM GEAR COVER GASKET ER2650L MSP-162274-2.A4 162274-2	£2.18	£2.62
114 - CAMGEAR COVERER2550/ER2650LH MSP-318443-5.A7 318443-5	£4.21	£5.05
115-1 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A41 922222-1	£1.44	£1.73
116-1 - CYLINDER BLOCK ASSY ER2650LH MSP-135478-9.A5 135478-9	£140.04	£168.05
116-2 - CYLINDER BLOCK ASSY ER2650LH MSP-135478-9.A12 135478-9	£140.04	£168.05
117-1 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A40 922222-1	£1.44	£1.73
118 - CHECK VALVE ER2650LH/EBH251L MSP-424201-0.A4 424201-0	£1.44	£1.73
119-1 - MUFFLER GASKET ER2650/EN4951 MSP-346331-6.A5 346331-6	£5.15	£6.18
120 - EXHAUST MUFFLER ER2650LH/EM MSP-168554-4.A7 168554-4	£8.89	£10.67
121 - HEX SOCKET HD BOLT M5X40 BHX2 MSP-266440-4.A1 266440-4	£1.44	£1.73
122 - PULLEY EM2651/EBH253L/EM2511 MSP-168471-8.A0 168471-8	£8.42	£10.11
123 - MUFFLER PLATE EM2651LH/ER2650 MSP-451731-8.A2 451731-8	£1.44	£1.73
124-1 - CAP HD SCREW M5X10 JS1600 MSP-922206-9.A21 922206-9	£1.44	£1.73
124 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A47 922218-2	£1.44	£1.73
125 - LEAD UNIT EM2651/ER2650/MS248 MSP-638707-4.A2 638707-4	£1.44	£1.73
126 - LEAD UNIT EM2651/ER2650/MS248 MSP-638708-2.A6 638708-2	£4.06	£4.87
127 - LABEL/4 STROKE INDICATION EBH MSP-808633-3.A1 808633-3	£1.44	£1.73
128-1 - CAP HD SCREW M5X10 JS1600 MSP-922206-9.A20 922206-9	£1.44	£1.73
128 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A48 922218-2	£1.44	£1.73
129-1 - CYLINER COVER EM2651LH/ER2650 MSP-453266-5.A4 453266-5	£7.18	£8.61
130 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A46 922218-2	£1.44	£1.73
130-1 - CAP HD SCREW M5X10 JS1600 MSP-922206-9.A22 922206-9	£1.44	£1.73
131 - BUFFER RUBBER ER2650LH/RBC260 MSP-424082-2.A3 424082-2	£1.44	£1.73
132 - HS HEAD BOLT M5X12 EM2651LH MSP-922211-6.A9 922211-6	£1.44	£1.73
133 - HEX SOCKET HD BOLT M5X18 EBH2 MSP-922226-3.A38 922226-3	£1.44	£1.73
134 - PIPE HOLDER ER2650LH/RBC260L/ MSP-318249-1.A2 318249-1	£3.28	£3.93
135 - PIPE HOLDER ER2650LH/RBC260L/ MSP-318250-6.A6 318250-6	£3.59	£4.31
136 - BUFFER RUBBER ER2650LH/EM2651 MSP-424083-0.A5 424083-0	£1.44	£1.73
137 - SPACKER ER2650/EM2651/EN4951 MSP-424200-2.A13 424200-2	£1.44	£1.73
138 - COMPRESSION SPRING 9 ER2550 MSP-234108-0.A11 234108-0	£1.44	£1.73
140 - *EXHAUST VALVE ER2650LH/EM265 MSP-325669-2.A3 325669-2	-
140-1 - EXHAUST VALVE ER2650LH/EM2651 MSP-326366-3.A9 326366-3	£1.44	£1.73
143-1 - INTAKE VALVE ER2650LH/BHX2501 MSP-326367-1.A5 326367-1	£4.68	£5.62
144-1 - PISTON RING SET EN4951/CS246.4 MSP-195145-8.A5 195145-8	£15.91	£19.09
147 - PISTON ER2650/EM2651//EN4951 MSP-318441-9.A4 318441-9	£7.80	£9.36
148 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A19 254040-2	£4.06	£4.87
149-1 - *CRANK SHAFT ASSY ER2650LH/EM MSP-135481-0.A1 135481-0	£82.91	£99.49
149-3 - *CRANK SHAFT ASSY EN4950/4951 MSP-126359-8.A2 126359-8	£56.50	£67.80
149-4 - CRANK SHAFT ASSY EM2654LH MSP-123774-7.A4 123774-7	£44.19	£53.03
150 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A23 213148-1	£2.81	£3.37
150-1 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A28 213148-1	£2.81	£3.37
150-2 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A9 213769-9	£3.59	£4.31
151 - FLAT WASHER 23 ER2650LH/EM265 MSP-267400-9.A13 267400-9	£1.44	£1.73
151-1 - FLAT WASHER 23 ER2650LH/EM265 MSP-267400-9.A16 267400-9	£1.44	£1.73
152-2 - OIL SEAL 12 EM2653/EM2654/MS MSP-213089-1.A1 213089-1	£3.90	£4.68
152 - OIL SEAL 12 BHX2500 2501 MSP-213147-3.A14 213147-3	£2.34	£2.81
152-1 - OIL SEAL 12 BHX2500 2501 MSP-213147-3.A17 213147-3	£2.34	£2.81
153 - PISTON PINT ER2650LH/EM2651LH MSP-257781-9.A2 257781-9	£1.44	£1.73
154 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A26 233976-8	£1.44	£1.73
155-1 - *OIL CASE GASKET EM2561 MSP-162345-5.A9 162345-5	£3.70	£4.44
155-2 - OIL CASE GASKET ER2650/EN4951 MSP-162345-5.A8 162345-5	£3.70	£4.44
156 - LEAD VALVE ER2650LH/EM2651LH MSP-346083-9.A9 346083-9	£2.02	£2.43
157-1 - RETAINER PLATE ER2650/EN4951 MSP-318910-0.A4 318910-0	£2.02	£2.43
158-1 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A18 922112-8	£1.44	£1.73
159 - OIL CASE EM2651/ER2650/EN4951 MSP-318588-9.A4 318588-9	£24.48	£29.38
160-1 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A27 922222-1	£1.44	£1.73
161 - DAMPER EM2651/ER2650/EN4951 MSP-424344-8.A7 424344-8	£1.44	£1.73
162 - GASKET EM2651/ER2650/EN4951 MSP-346305-7.A8 346305-7	£1.44	£1.73
163 - HEX BOLT M6X8 EM2651LH/ER2650 MSP-266611-3.A11 266611-3	£1.44	£1.73
164 - O-RING 20 EM2651/ER2650/MS248 MSP-213548-5.A9 213548-5	£1.44	£1.73
165-1 - JOINT PIPE ER2650LH/EM2651LH MSP-325665-0.A21 325665-0	£1.44	£1.73
166-1 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A32 282020-8	£1.44	£1.73
166 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A39 282020-8	£1.44	£1.73
167-1 - OIL WEIGHT ER2650LH/EBH253L MSP-325666-8.A18 325666-8	£1.44	£1.73
167 - OIL WEIGHT ER2650LH/EBH253L MSP-325666-8.A19 325666-8	£1.44	£1.73
168-1 - OIL TUBE ASSY EM4350R/CS246.4 MSP-125805-8.A3 125805-8	£6.24	£7.49
168-1 - OIL TUBE EM2651LH/ER2650/MS248 MSP-424301-6.A10 424301-6	£2.08	£2.50
168 - OIL TUBE EM2651LH/ER2650/MS248 MSP-424301-6.A19 424301-6	£2.08	£2.50
169 - OIL CAP ER2650/EM2651/EN4951 MSP-452047-4.A13 452047-4	£2.57	£3.08
170 - GASKET ER2650LH/EM2651LH/BHX2 MSP-424343-0.A7 424343-0	£1.44	£1.73
171 - OIL PIPE ER2650LH/EM2651/MS248 MSP-452048-2.A0 452048-2	£1.80	£2.16
172 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A38 922218-2	£1.44	£1.73
172-1 - CAP HD SCREW M5X10 JS1600 MSP-922206-9.A9 922206-9	£1.44	£1.73
173 - FUEL TANK CAP ASSY ER2650LH MSP-125728-0.A7 125728-0	£14.20	£17.04
175-1 - TUBE ER26050/EM2651/MS248 MSP-168755-4.A4 168755-4	£6.40	£7.68
176 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A6 282020-8	£1.44	£1.73
177 - FUEL FILTER EM2651LH/ER2650LH MSP-163518-3.A9 163518-3	£3.88	£4.65
178 - FUEL TANK EM2651/ER2650/MS248 MSP-451736-8.A2 451736-8	£11.70	£14.04
179 - BUFFER RUBBER ER2650LH/DBC260 MSP-424080-6.A4 424080-6	£1.44	£1.73
180 - BUFFER RUBBER ER2650LH/RBX260 MSP-424081-4.A7 424081-4	£1.44	£1.73
181 - TANK GUARD EM2651/ER2650/MS248 MSP-451737-6.A6 451737-6	£1.44	£1.73
182-1 - CAP HD SCREW M5X10 JS1600 MSP-922206-9.A8 922206-9	£1.44	£1.73
182 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A39 922218-2	£1.44	£1.73
183 - RECOIL STARTER SET EM2651LH MSP-195309-4.A1 195309-4	£53.07	£63.68
184 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A15 424319-7	£2.34	£2.81
185 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A15 424359-5	£1.44	£1.73
187 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A24 266585-8	£1.44	£1.73
188 - DAMPER SRPING EM2651/EM2654 MSP-233578-0.A2 233578-0	£6.75	£8.10
189 - CAM PLATE EM2651/EM2654 MSP-452275-1.A1 452275-1	£4.21	£5.05
190 - REEL EM2651LH/EM2654 MSP-452274-3.A0 452274-3	£8.42	£10.11
191 - SPRIAL SPRING ER2650LH/EM2651 MSP-232258-5.A10 232258-5	£9.98	£11.98
192 - STARTER ROPE EM2651/EM2654 MSP-444024-0.A6 444024-0	£1.44	£1.73
193 - STARTER CASE EM2651L/EM2654 MSP-451732-6.A1 451732-6	£39.17	£47.00
194 - HSH BOLT M5X16 BHX2501/EBH251 MSP-922223-9.A9 922223-9	£1.44	£1.73
196 - LABEL/MAKITA LOGO ER2650LH MSP-816565-0.A6 816565-0	£1.44	£1.73
197-1 - CARBRETTOR EX2650/EY2650/MS248 MSP-168762-7.A4 168762-7	£69.30	£83.16
198 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A15 325922-6	£5.46	£6.55
199 - WASHER ER2650LH/BHX2501/ER25 MSP-413140-9.A24 413140-9	£1.44	£1.73
200-1 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A23 WJ00096364	£2.34	£2.81
200 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A12 266581-6	£1.44	£1.73
201 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A28 257964-1	£2.81	£3.37
202 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A22 213538-8	£3.59	£4.31
203 - JET ER2650/EY2650/EN4951/MS248 MSP-325985-2.A8 325985-2	£8.73	£10.48
204 - CONICAL SPRING 5-9ER2650 MSP-234183-6.A24 234183-6	£3.28	£3.93
205 - PUMP GASKET ER2650LH/BHX2501 MSP-442155-9.A13 442155-9	£2.97	£3.56
206-1 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A17 DA00001144	£14.21	£17.05
207 - PUMP BODY ER2650LH/EBH253L/34 MSP-140437-0.A9 140437-0	£28.51	£34.21
207-1 - PUMP BODY EX2650/EY2650/MS248 MSP-141737-1.A6 141737-1	£24.48	£29.38
208-1 - INLET SCREEN EN4950SH/EY2650H MSP-352021-1.A8 352021-1	£2.02	£2.43
209 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A11 442154-1	£3.59	£4.31
210 - METERING DIAPHRAGM ER2650LH MSP-168620-7.A11 168620-7	£18.72	£22.47
211 - CAM GEAR COVER GASKET ER2650L MSP-140438-8.A0 140438-8	£2.18	£2.62
212 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A10 424314-7	£4.83	£5.80
213 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A4 346270-0	£4.83	£5.80
214 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A18 266582-4	£1.44	£1.73
220 - WASHER BUR360/EM2651LH/EBH253 MSP-413143-3.A1 413143-3	£1.44	£1.73
221 - LEAD UNIT EM2651LH MSP-638706-6 638706-6	£1.44	£1.73
222 - PROTECTOR EXTENSION ASSY EBH MSP-135398-7.A2 135398-7	£4.32	£5.19
223 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A451 266326-2	£1.44	£1.73
224-1 - CUTTER EM2511/EM2654/EM2511 MSP-347050-7.A3 347050-7	£1.44	£1.73
224 - CUTTER EM2651LH/EBH253L/EM400M MSP-346074-0.A2 346074-0	-
225 - NAME PLATE EM2651LH MSP-891177-0 891177-0	£1.44	£1.73
226 - CAUTION TAG ER2650/2550/CS246 MSP-819430-2.A8 819430-2	£1.44	£1.73
227 - CAUTION PLATE ER2650LH/EM2651 MSP-810455-9.A11 810455-9	£1.44	£1.73
228-1 - LABEL/INDICATION EX2650/CS246 MSP-800F73-7.A0 800F73-7	£1.44	£1.73
229 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A46 941152-7	£1.44	£1.73
230 - FELT EM MODELS/EN4951SH/EM2511 MSP-443170-6.A1 443170-6	£3.74	£4.49
231 - SEPARATOR MESH ER2650/EN4951 MSP-352020-3.A1 352020-3	£4.83	£5.80
232 - SEPARATOR CASE ER2650/EN4951 MSP-453865-3.A8 453865-3	£2.97	£3.56
234 - LABEL/DATE CODE ER2650LHER25 MSP-801D19-4.A18 801D19-4	£1.44	£1.73
235-1 - SHORT BLOCK ASSY EM2651/ER265 MSP-135668-4.A0 135668-4	£157.08	£188.50
235 - *SHORT BLOCK ASSY EM2651/ER26 MSP-135599-7.A0 135599-7	£171.24	£205.49
A01 - BAND ASSY EBH341U/BBC231URD MSP-122906-3.A7 122906-3	£27.42	£32.91
A01 - HOOK FOR 122906-3 MSP-140400-3.A4 140400-3	£3.94	£4.73
A02 - OIL BOTTLE EBH252/EM2651/MS245 MSP-242072-1.A4 242072-1	£3.09	£3.71
A03 - BOX DRIVER 16-17 EBH253L/2651 MSP-783013-3.A8 783013-3	£2.93	£3.52
A04 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A0 783217-7	£1.20	£1.44
A05 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A22 783223-2	£1.20	£1.44
A04-2 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A1 783217-7	£1.20	£1.44
A06 - ACCESSORY BAG ER2650LH/EBH34 MSP-831304-7.A19 831304-7	£2.32	£2.78
A05-1 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A60 783202-0	£1.20	£1.44
A07 - TOOL COVER EBH341U/2651/4350 MSP-451252-0.A1 451252-0	£4.68	£5.62
A08 - NYLON HEAD SET EM2511/EM2654 MSP-196324-1.A2 196324-1	£20.82	£24.99
A09 - TRI BLADE EBH341R/EM2651L/BBC MSP-195298-3 195298-3	£19.32	£23.18
A10-1 - OIL SET EBH252/EM2651/EN4950 MSP-197007-6.A8 197007-6	£4.32	£5.19
E01 - TAPPING SCREW 4X12 ER2650LH MSP-266427-6.A14 266427-6	£1.44	£1.73
E02 - CHOKE PLATE ER2650LH/EY2650H MSP-452219-1.A5 452219-1	£1.44	£1.73
E03 - CHOKE LEVER ER2650LH/EY2650H MSP-452220-6.A3 452220-6	£2.18	£2.62
E05 - *LABEL/ENGINE EM2651LHEM2651U MSP-801P53-6.A1 801P53-6	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita EM2651UH Petrol Brushcutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
