Makita EY2650H25H Telescopic Petrol Pole Saw Spare Parts

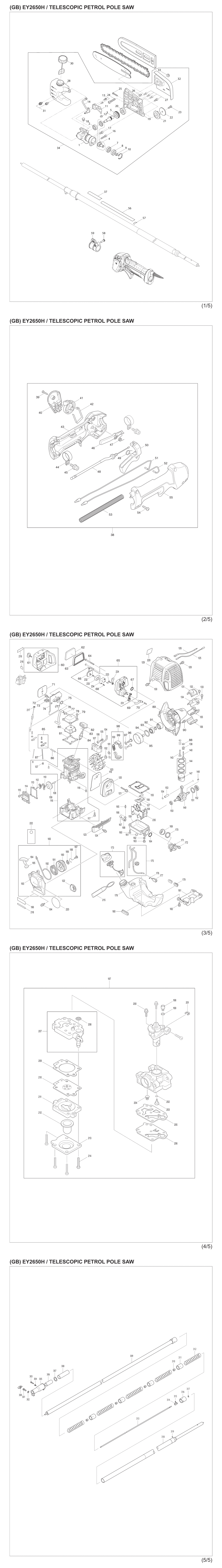

An exploded drawing and spare parts listing for the Makita EY2650H25H Telescopic Petrol Pole Saw

	Ex VAT	Inc VAT
1 - *GEAR CASE A EY2650H MSP-XTM0000029 XTM0000029	£39.87	£47.84
2 - BALL BEARING 608 EY2650H MSP-XTM0000002 XTM0000002	£5.15	£6.18
3 - *GEAR SHAFT EY2650H MSP-XTM0000003 XTM0000003	£29.95	£35.94
4 - *BEVEL GEAR SET EY2650H MSP-XTM0000004 XTM0000004	£42.72	£51.26
5 - WORM WHEEL EY2650H MSP-XTM0000005 XTM0000005	£9.82	£11.79
7 - BALL BEARING 609 EY2650H MSP-XTM0000006 XTM0000006	£5.92	£7.11
8 - BALL BEARING 609Z EY2650H MSP-XTM0000007 XTM0000007	£6.55	£7.86
9 - EXT DIN 471 CIRCLIP-9 BGA450 MSP-961005-4.A5 961005-4	£1.44	£1.73
10 - RETAINING RING R-24 AN620 MSP-962103-7.A8 962103-7	£1.44	£1.73
11-1 - OIL PUMP EY2650H MSP-XTM0000025 XTM0000025	£26.07	£31.28
12 - SEAL EY2650H MSP-XTM0000009 XTM0000009	£1.44	£1.73
13 - PAN HEAD SCREW M4X10 BO3710/1 MSP-911111-5.A17 911111-5	£1.46	£1.75
14 - OIL PIPE ASS'Y EY2650H MSP-XTM0000010 XTM0000010	£9.82	£11.79
16 - CAP HD SCREW M5X25 GN900 HR35 MSP-922242-5.A4 922242-5	£1.44	£1.73
17 - CAP HD SCREW M5X10 JS1600 MSP-922207-7.A0 922207-7	£1.44	£1.73
18 - H.S.H BOLT M6X8 EY2650H MSP-XTM0000011 XTM0000011	£1.44	£1.73
19-2 - GEAR CASE B EY2650H MSP-XTM0000027 XTM0000027	£36.43	£43.72
20 - BALL BEARING 6001DDW EY2650H MSP-XTM0000013 XTM0000013	£14.67	£17.60
21 - SPROCKET EY2650H MSP-XTM0000014 XTM0000014	£6.55	£7.86
23 - HS B HD SCREW M6X15 EY2650H MSP-XTM0000016 XTM0000016	£1.44	£1.73
24 - HSH BOLT M6X30 EY2650H/EB7650 MSP-922352-8.A2 922352-8	£1.44	£1.73
25 - ADJUSTER SCREW M4X25 EY2650H MSP-XTM0000017 XTM0000017	£1.44	£1.73
26 - ADJUSTER EY2650H MSP-XTM0000018 XTM0000018	£2.34	£2.81
27 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A28 922212-4	£1.44	£1.73
28 - OIL TANK ASS'Y EY2650H MSP-XTM0000019 XTM0000019	£21.60	£25.92
30 - TANK CAP ASS'Y EY2650H MSP-XTM0000020 XTM0000020	£8.58	£10.30
31 - HSH BOLT M5X12SW EY2650H MSP-XTM0000021 XTM0000021	£1.44	£1.73
32 - CHAIN COVER EY2650H MSP-XTM0000022 XTM0000022	£6.80	£8.16
33 - FLANGE NUT M6 EY2650H MSP-XTM0000023 XTM0000023	£1.44	£1.73
34 - LABEL/INDICATION EY2650H MSP-803K89-1.A0 803K89-1	£1.44	£1.73
34-1 - LABEL/INDICATION EY2650H MSP-803K89-1.A1 803K89-1	£1.44	£1.73
34 - *POLE SAW HEAD EY2650H MSP-142615-8 142615-8	£121.67	£146.00
37 - LABEL/MAKITA LOGO ER2650LHKR MSP-819312-8.A8 819312-8	£1.44	£1.73
38 - CONTROL LEVER ASSY EY2650/EN4 MSP-126488-7.A4 126488-7	£29.09	£34.91
39 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A282 266130-9	£1.44	£1.73
40 - SWITCH COVER ER2650LH/ER2550 MSP-451595-0.A5 451595-0	£1.44	£1.73
41 - SWITCH LEVER ER2650LH/ER2550 MSP-451594-2.A7 451594-2	£1.44	£1.73
42 - LEAF SPRING ER2650LH/ER2550 MSP-232251-9.A2 232251-9	£1.44	£1.73
43 - LEVER CASE SET ER2650LH/ER255 MSP-188832-6.A2 188832-6	£12.48	£14.98
44 - CLAMP 24 ER2650/ER2550/EN4951 MSP-346248-3.A1 346248-3	£1.44	£1.73
45 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A52 922218-2	£1.44	£1.73
46 - LOCK LEVER ER2650/ER2550/CS246 MSP-451593-4.A4 451593-4	£1.44	£1.73
47 - TORSION SPRING 7 ER2650LH/ER2 MSP-233541-3.A0 233541-3	£1.44	£1.73
48 - CONTROL CABLE ER260LH/EY2650H MSP-168571-4.A1 168571-4	£3.28	£3.93
49 - TORSION SPRING 11 ER2650LH/ER MSP-233540-5.A17 233540-5	£1.44	£1.73
50 - THROTTLE LEVER EY2650H/EN4951 MSP-455313-8.A7 455313-8	£2.65	£3.18
51 - LEAD UNIT ER2650/EY2650H/CS246 MSP-638714-7.A5 638714-7	£1.44	£1.73
52 - LEAD UNIT ER260/EY2650/EN4951 MSP-638713-9.A2 638713-9	£1.44	£1.73
53 - CORRUGATE TUBE ER2650/EN4951 MSP-452071-7.A2 452071-7	£2.02	£2.43
54 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A291 266326-2	£1.44	£1.73
55 - LEVER CASE SET ER2650LH/ER255 MSP-188832-6.A3 188832-6	£12.48	£14.98
56 - LABEL/CAUTION EY2650H MSP-803K81-7 803K81-7	£1.44	£1.73
57 - LABEL/DATE CODE ER2650LHER25 MSP-801D19-4.A12 801D19-4	£1.44	£1.73
58 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A96 911233-1	£1.44	£1.73
59 - HANGER BBC231U/BBC300L/BUX360 MSP-168478-4.A14 168478-4	£6.24	£7.49
60-1 - CLEANER COVER ASSY ER2650LH MSP-123499-3.A6 123499-3	£5.46	£6.55
61 - THUMB SCREW M4 EH7500/ER2650L MSP-265791-2.A4 265791-2	£1.44	£1.73
62 - AIR CLEANER ELEMENT EBH/ELM/MS MSP-443171-4.A6 443171-4	£3.01	£3.61
63 - AIR CLEANER ELEMENT EBH/ELM/MS MSP-443169-1.A5 443169-1	£7.96	£9.55
64 - HS BUTTON HD BOLT M5X60 ER265 MSP-266618-9.A2 266618-9	£1.44	£1.73
65-1 - CLEANER PLATE ASSY ER2650LH MSP-123501-2.A2 123501-2	£39.31	£47.17
66 - SEPARATOR PLATE ER2650/EN4951 MSP-162346-3.A5 162346-3	£9.67	£11.61
67 - O RING 15 ER2550/BHX2501/EBH MSP-213540-1.A14 213540-1	£1.44	£1.73
68 - CHECK VALVE ER2550/EBH251L MSP-424316-3.A3 424316-3	£4.06	£4.87
69 - PIPE ER2650LH/EY2650H/EN4951S MSP-422099-9.A9 422099-9	£5.92	£7.11
70 - JOINT PIPE ER2650LH/EM2651LH MSP-325665-0.A12 325665-0	£1.44	£1.73
71 - CARBURETOR GASKET ER2650/MS248 MSP-442153-3.A7 442153-3	£1.44	£1.73
72 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A31 266787-6	£1.44	£1.73
73 - CLAMP ER2650/EM2651/EN4951 MSP-451825-9.A10 451825-9	£1.44	£1.73
74 - INSULATOR ER2650/EM2651/MS248 MSP-451729-5.A4 451729-5	£2.81	£3.37
75 - O-RING 12 ER2650/EM2651/MS248 MSP-213547-7.A2 213547-7	£1.44	£1.73
76 - BREATHER PIPE EX2650LH/EY2650 MSP-422109-2.A2 422109-2	£7.02	£8.42
77 - HOSE CLAMP ER2550/2650/EM2511 MSP-345918-1.A3 345918-1	£1.44	£1.73
78 - ROCKER COVER OUTER ER2650LH MSP-318745-9.A7 318745-9	£3.74	£4.49
79 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A38 922222-1	£1.44	£1.73
80 - ROCKER COVER INNER ER2650LH MSP-453860-3.A2 453860-3	£1.44	£1.73
81 - ROCKER COVER GASKET ER2650LH MSP-162304-9.A3 162304-9	£1.44	£1.73
82 - PLUG CAP ER2650/2651/EN4951 MSP-424302-4.A12 424302-4	£2.81	£3.37
83 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A32 324891-8	£1.44	£1.73
84 - SPARK PLUG ER2650LH/EBH341L&U MSP-168534-0.A12 168534-0	£9.36	£11.23
85 - ROCKET ARM ASSY ER2550LH/EM26 MSP-125554-7.A12 125554-7	£4.68	£5.62
86 - PIN 5 ER2650LH/2704/EBH/BHX25 MSP-256200-2.A5 256200-2	£1.44	£1.73
87 - ROD 2.5 ER2650/EM2651/EN4951 MSP-256865-0.A2 256865-0	£1.44	£1.73
88 - SPRING RETAINER ER2650L/EBH25 MSP-325668-4.A10 325668-4	£1.44	£1.73
89 - CLUTCH CASE ER2650LH/EM2651LH MSP-451735-0.A6 451735-0	£10.30	£12.36
90 - HEX BOLT M5X18 DUR188L MSP-922228-9.A31 922228-9	£1.44	£1.73
91 - SPACER ER2650LH/EM2651LH/EBH2 MSP-450569-8.A2 450569-8	£1.44	£1.73
92 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A121 961052-5	£1.44	£1.73
93 - BALL BEARING 6201LLU ER2650LH MSP-210111-5.A1 210111-5	£5.46	£6.55
94 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A33 962151-6	£1.44	£1.73
95 - CLUTCH DRUM EY2650H MSP-165747-4 165747-4	£15.98	£19.18
96 - SHOULDER HEX BOLT M6X25EM2651 MSP-266864-4.A2 266864-4	£1.44	£1.73
97 - WASHER 8 ER2650LH/EBH253U/ER2 MSP-267817-6.A10 267817-6	£1.44	£1.73
98 - CLUTCH ASSY ER2650LH/EY2650H MSP-126135-0.A0 126135-0	£20.30	£24.36
99-1 - CLUTCH SHOE EN4951SH/CS246.4 MSP-161332-1.A10 161332-1	£5.62	£6.74
100 - TENSION SPRING 7 ER2650/CS246 MSP-231881-3.A1 231881-3	£3.74	£4.49
101 - WASHER 6 ER2650/EBH253/EN4951 MSP-267812-6.A8 267812-6	£1.44	£1.73
102 - SPRING HEX NUT M8-13/EY2650H MSP-264039-9.A2 264039-9	£1.44	£1.73
103 - FLYWHEEL EM2651/ER2650/EN4951 MSP-318569-3.A4 318569-3	£19.58	£23.50
104 - TUBE EM2651LH/ER2650LH/EY2650H MSP-444021-6.A12 444021-6	£1.20	£1.44
105 - HEX SOCKET HD BOLT M4X2 EM265 MSP-266602-4.A7 266602-4	£1.44	£1.73
106 - SPACER EM2651/ER2650/EN4951 MSP-452049-0.A10 452049-0	£1.44	£1.73
107 - IGNITION COIL ER2650/EN4951 MSP-168559-4.A4 168559-4	£34.99	£41.99
108 - PIN 5 ER2650/EBH/BHX/EM2511 MSP-268238-5.A9 268238-5	£1.44	£1.73
109 - CAM GEAR ASSY EM2651LH/ER2650 MSP-125552-1.A9 125552-1	£12.32	£14.79
110 - CAM LIFTER ER2650LH/EM2651LH MSP-313169-4.A6 313169-4	£3.59	£4.31
112 - PIN 4 ER2650LH/EBH/BHX2501 MSP-268239-3.A8 268239-3	£1.44	£1.73
113 - CAM GEAR COVER GASKET ER2650L MSP-162274-2.A0 162274-2	£2.18	£2.62
114 - CAMGEAR COVERER2550/ER2650LH MSP-318443-5.A1 318443-5	£4.21	£5.05
115 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A20 922222-1	£1.44	£1.73
116 - CYLINDER BLOCK ASSY ER2650LH MSP-135478-9.A0 135478-9	£140.04	£168.05
117 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A19 922222-1	£1.44	£1.73
118 - CHECK VALVE ER2650LH/EBH251L MSP-424201-0.A8 424201-0	£1.44	£1.73
119 - MUFFLER GASKET ER2650/EN4951 MSP-346331-6.A4 346331-6	£5.15	£6.18
120 - EXHAUST MUFFLER ER2650LH/EM MSP-168554-4.A4 168554-4	£8.89	£10.67
121 - HEX SOCKET HD BOLT M5X40 BHX2 MSP-266440-4.A8 266440-4	£1.44	£1.73
122 - PULLEY ER2550/BHX2501/ER2650L MSP-168483-1.A3 168483-1	£1.44	£1.73
123 - MUFFLER PLATE EM2651LH/ER2650 MSP-451731-8.A1 451731-8	£1.44	£1.73
124 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A35 922218-2	£1.44	£1.73
125 - LEAD UNIT EM2651/ER2650/MS248 MSP-638707-4.A0 638707-4	£1.44	£1.73
126 - LEAD UNIT EM2651/ER2650/MS248 MSP-638708-2.A8 638708-2	£4.06	£4.87
128 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A33 922218-2	£1.44	£1.73
129 - CYLINER COVER EM2651LH/ER2650 MSP-453266-5.A6 453266-5	£7.18	£8.61
130 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A34 922218-2	£1.44	£1.73
131 - BUFFER RUBBER ER2650LH/RBC260 MSP-424082-2.A5 424082-2	£1.44	£1.73
132 - HS HEAD BOLT M5X12 EM2651LH MSP-922211-6.A2 922211-6	£1.44	£1.73
133 - HEX SOCKET HD BOLT M5X18 EBH2 MSP-922226-3.A15 922226-3	£1.44	£1.73
134 - PIPE HOLDER ER2650LH/RBC260L/ MSP-318249-1.A8 318249-1	£3.28	£3.93
135 - PIPE HOLDER ER2650LH/RBC260L/ MSP-318250-6.A0 318250-6	£3.59	£4.31
136 - BUFFER RUBBER ER2650LH/EM2651 MSP-424083-0.A3 424083-0	£1.44	£1.73
137 - SPACKER ER2650/EM2651/EN4951 MSP-424200-2.A10 424200-2	£1.44	£1.73
138 - COMPRESSION SPRING 9 ER2550 MSP-234108-0.A13 234108-0	£1.44	£1.73
140-1 - EXHAUST VALVE ER2650LH/EM2651 MSP-326366-3.A13 326366-3	£1.44	£1.73
140 - *EXHAUST VALVE ER2650LH/EM265 MSP-325669-2.A1 325669-2	-
143-1 - INTAKE VALVE ER2650LH/BHX2501 MSP-326367-1.A1 326367-1	£4.68	£5.62
144 - PISTON RING SET EN4951/CS246.4 MSP-195145-8.A12 195145-8	£15.91	£19.09
147 - PISTON ER2650/EM2651//EN4951 MSP-318441-9.A2 318441-9	£7.80	£9.36
148 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A10 254040-2	£4.06	£4.87
149 - *CRANK SHAFT ASSY EN4950/4951 MSP-126359-8.A8 126359-8	£56.50	£67.80
149-1 - CRANK SHAFT ASSY EM2654LH MSP-123774-7.A3 123774-7	£44.19	£53.03
150-1 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A1 213769-9	£3.59	£4.31
150 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A20 213148-1	£2.81	£3.37
151 - FLAT WASHER 23 ER2650LH/EM265 MSP-267400-9.A0 267400-9	£1.44	£1.73
152 - OIL SEAL 12 BHX2500 2501 MSP-213147-3.A2 213147-3	£2.34	£2.81
152-1 - OIL SEAL 12 EM2653/EM2654/MS MSP-213089-1.A7 213089-1	£3.90	£4.68
153 - PISTON PINT ER2650LH/EM2651LH MSP-257781-9.A8 257781-9	£1.44	£1.73
154 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A25 233976-8	£1.44	£1.73
155 - OIL CASE GASKET ER2650/EN4951 MSP-162345-5.A7 162345-5	£3.70	£4.44
156 - LEAD VALVE ER2650LH/EM2651LH MSP-346083-9.A13 346083-9	£2.02	£2.43
157 - RETAINER PLATE ER2650/EN4951 MSP-318910-0.A3 318910-0	£2.02	£2.43
158 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A21 922112-8	£1.44	£1.73
159 - OIL CASE EM2651/ER2650/EN4951 MSP-318588-9.A2 318588-9	£24.48	£29.38
160 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A21 922222-1	£1.44	£1.73
161 - DAMPER EM2651/ER2650/EN4951 MSP-424344-8.A15 424344-8	£1.44	£1.73
162 - GASKET EM2651/ER2650/EN4951 MSP-346305-7.A9 346305-7	£1.44	£1.73
163 - HEX BOLT M6X8 EM2651LH/ER2650 MSP-266611-3.A8 266611-3	£1.44	£1.73
164 - O-RING 20 EM2651/ER2650/MS248 MSP-213548-5.A8 213548-5	£1.44	£1.73
165 - JOINT PIPE ER2650LH/EM2651LH MSP-325665-0.A16 325665-0	£1.44	£1.73
166-1 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A34 282020-8	£1.44	£1.73
166 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A37 282020-8	£1.44	£1.73
167 - OIL WEIGHT ER2650LH/EBH253L MSP-325666-8.A17 325666-8	£1.44	£1.73
167-1 - OIL WEIGHT ER2650LH/EBH253L MSP-325666-8.A20 325666-8	£1.44	£1.73
168-1 - OIL TUBE ASSY EM4350R/CS246.4 MSP-125805-8.A1 125805-8	£6.24	£7.49
168 - OIL TUBE EM2651LH/ER2650/MS248 MSP-424301-6.A8 424301-6	£2.08	£2.50
168-1 - OIL TUBE EM2651LH/ER2650/MS248 MSP-424301-6.A21 424301-6	£2.08	£2.50
169 - OIL CAP ER2650/EM2651/EN4951 MSP-452047-4.A11 452047-4	£2.57	£3.08
170 - GASKET ER2650LH/EM2651LH/BHX2 MSP-424343-0.A5 424343-0	£1.44	£1.73
171 - OIL PIPE ER2650LH/EM2651/MS248 MSP-452048-2.A1 452048-2	£1.80	£2.16
172 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A36 922218-2	£1.44	£1.73
173 - FUEL TANK CAP ASSY ER2650LH MSP-125728-0.A5 125728-0	£14.20	£17.04
175 - TUBE ER26050/EM2651/MS248 MSP-168755-4.A2 168755-4	£6.40	£7.68
176 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A1 282020-8	£1.44	£1.73
177 - FUEL FILTER EM2651LH/ER2650LH MSP-163518-3.A8 163518-3	£3.88	£4.65
178 - FUEL TANK EM2651/ER2650/MS248 MSP-451736-8.A1 451736-8	£11.70	£14.04
179 - BUFFER RUBBER ER2650LH/DBC260 MSP-424080-6.A5 424080-6	£1.44	£1.73
180 - BUFFER RUBBER ER2650LH/RBX260 MSP-424081-4.A5 424081-4	£1.44	£1.73
181 - TANK GUARD EM2651/ER2650/MS248 MSP-451737-6.A7 451737-6	£1.44	£1.73
182 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A37 922218-2	£1.44	£1.73
183 - RECOIL STARTER SET ER2650LH MSP-195308-6.A0 195308-6	£40.03	£48.04
184 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A17 424319-7	£2.34	£2.81
185 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A13 424359-5	£1.44	£1.73
187 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A22 266585-8	£1.44	£1.73
188 - SWING ARM ER2650/ER2550/CS246 MSP-325923-4.A9 325923-4	£1.44	£1.73
189 - COLLAR ER2650LH/ER2550/EY2650 MSP-451938-6.A0 451938-6	£1.44	£1.73
190 - REEL ER2550/BHX2501/ER2650LH MSP-451937-8.A10 451937-8	£5.46	£6.55
191 - SPRIAL SPRING ER2650LH/EM2651 MSP-232258-5.A9 232258-5	£9.98	£11.98
192 - STARTER ROPE ER2650LH/EY2650H MSP-444023-2.A0 444023-2	£10.14	£12.17
193 - STARTER CASE ER2650LH/EY2650H MSP-451733-4.A0 451733-4	£26.92	£32.31
194 - HSH BOLT M5X16 BHX2501/EBH251 MSP-922223-9.A16 922223-9	£1.44	£1.73
196 - LABEL/MAKITA LOGO ER2650LH MSP-816565-0.A8 816565-0	£1.44	£1.73
197 - CARBRETTOR EX2650/EY2650/MS248 MSP-168762-7.A6 168762-7	£69.30	£83.16
198 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A12 325922-6	£5.46	£6.55
199 - WASHER ER2650LH/BHX2501/ER25 MSP-413140-9.A22 413140-9	£1.44	£1.73
200 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A10 266581-6	£1.44	£1.73
200-1 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A26 WJ00096364	£2.34	£2.81
201 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A24 257964-1	£2.81	£3.37
202 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A21 213538-8	£3.59	£4.31
203 - JET ER2650/EY2650/EN4951/MS248 MSP-325985-2.A7 325985-2	£8.73	£10.48
204 - CONICAL SPRING 5-9ER2650 MSP-234183-6.A18 234183-6	£3.28	£3.93
205 - PUMP GASKET ER2650LH/BHX2501 MSP-442155-9.A16 442155-9	£2.97	£3.56
206-1 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A27 DA00001144	£14.21	£17.05
207 - PUMP BODY EX2650/EY2650/MS248 MSP-141737-1.A8 141737-1	£24.48	£29.38
208 - INLET SCREEN EN4950SH/EY2650H MSP-352021-1.A6 352021-1	£2.02	£2.43
209 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A9 442154-1	£3.59	£4.31
210 - METERING DIAPHRAGM ER2650LH MSP-168620-7.A8 168620-7	£18.72	£22.47
211 - CAM GEAR COVER GASKET ER2650L MSP-140438-8.A4 140438-8	£2.18	£2.62
212 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A9 424314-7	£4.83	£5.80
213 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A3 346270-0	£4.83	£5.80
214 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A20 266582-4	£1.44	£1.73
215 - CAUTION PLATE ER2650LH/EM2651 MSP-810455-9.A9 810455-9	£1.44	£1.73
216 - LABEL/INDICATION EX2650/CS246 MSP-800F73-7.A1 800F73-7	£1.44	£1.73
217 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A34 941151-9	£1.44	£1.73
218 - LABEL/SERIAL NO ER2650/CS246.4 MSP-816567-6.A0 816567-6	£1.44	£1.73
220 - LABEL/MODEL NO. EY2650H MSP-803K90-6 803K90-6	£1.44	£1.73
222 - CAUTION TAG ER2650/2550/CS246 MSP-819430-2.A2 819430-2	£1.44	£1.73
223 - TAPPING SCREW 4X12 ER2650LH MSP-266427-6.A16 266427-6	£1.44	£1.73
224 - CHOKE PLATE ER2650LH/EY2650H MSP-452219-1.A6 452219-1	£1.44	£1.73
229 - *LABEL/ENGINE EM2651LHEM2651U MSP-801P53-6.A2 801P53-6	£1.44	£1.73
231 - CHOKE LEVER ER2650LH/EY2650H MSP-452220-6.A2 452220-6	£2.18	£2.62
232 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A43 266007-8	£1.44	£1.73
233 - SEPARATOR MESH ER2650/EN4951 MSP-352020-3.A3 352020-3	£4.83	£5.80
234 - SEPARATOR CASE ER2650/EN4951 MSP-453865-3.A4 453865-3	£2.97	£3.56
236-1 - SHORT BLOCK ASSY EM2651/ER265 MSP-135668-4.A1 135668-4	£157.08	£188.50
236 - *SHORT BLOCK ASSY EM2651/ER26 MSP-135599-7.A2 135599-7	£171.24	£205.49
300 - KNOB EY2650H MSP-TF6116068B TF6116068B	£2.34	£2.81
301 - HEX. BOLT EY2650H MSP-TF119F0840 TF119F0840	£3.74	£4.49
302 - FLAT WASHER EY2650H MSP-TF411M0800 TF411M0800	£2.18	£2.62
303 - HEX. SOCKET HEAD BOLT M6X25 MSP-TF120S0625 TF120S0625	£2.34	£2.81
304 - HEX. SOCKET HEAD BOLT M5X10 MSP-TF120S0510 TF120S0510	£2.18	£2.62
305 - SLIDE HOLDER EY2650H MSP-TF2616001A TF2616001A	£13.58	£16.29
306 - SLEEVE EY2650H MSP-TF6126008A TF6126008A	£2.97	£3.56
307 - SLIDE HOLDER WASHER EY2650H MSP-TF3651008A TF3651008A	£2.65	£3.18
308 - CUSHION TUBE EY2650H MSP-TF6362070A TF6362070A	£7.64	£9.17
309 - MAIN PIPE ASSY EY2650H MSP-TF3312328A.A0 TF3312328A	£123.68	£148.41
309-1 - MAIN PIPE ASSY EY2650H MSP-TF3312328A.A1 TF3312328A	£123.68	£148.41
310 - DRIVE BUSH EY2650H MSP-TF6126009A TF6126009A	£2.65	£3.18
311 - BUSH HOLDER EY2650H MSP-TF6126010A.A0 TF6126010A	£9.05	£10.86
312 - SPRING EY2650H MSP-TF5313012A TF5313012A	£7.02	£8.42
313 - DRIVE SHAFT EY2650H MSP-TF4117027A TF4117027A	£78.88	£94.65
314 - SET COLLAR EY2650H MSP-TF4613005B TF4613005B	£5.15	£6.18
315 - HEX. SOCKET HEAD SET SCREW MSP-TF290Q0506 TF290Q0506	£2.18	£2.62
316 - BUSH HOLDER EY2650H MSP-TF6126010A.A1 TF6126010A	£9.05	£10.86
317 - SNAP RING(S-12) EY2650H MSP-TF480J1200 TF480J1200	£1.44	£1.73
318-1 - GUIDE PIPE ASSY EY2650H MSP-TF3318145B TF3318145B	£140.40	£168.48
319 - SCREW EY2650H MSP-TF244F0408 TF244F0408	£2.18	£2.62
320 - CAP EH AND HT MODELS/HT2360D MSP-286284-6.A1 286284-6	£1.44	£1.73
A01 - BAND ASSY DUR365/AT1827H/MS248 MSP-125516-5.A0 125516-5	£3.48	£4.17
A02 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A40 195246-2	£2.55	£3.06
A04 - ACCESSORY BAG ER2650LH/EBH34 MSP-831304-7.A15 831304-7	£2.32	£2.78
A03-1 - OIL SET EBH252/EM2651/EN4950 MSP-197007-6.A9 197007-6	£4.32	£5.19
A05 - BOX DRIVER 10-16 ER2650LH/ER25 MSP-782233-6.A5 782233-6	£3.48	£4.17
A06 - MINUS DRIVER EY2650H MSP-783020-6 783020-6	£1.20	£1.44
A07 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A26 783223-2	£1.20	£1.44
A08 - GUIDE BAR 10 EY2650H MSP-165695-7 165695-7	£12.98	£15.57
A09 - GUIDE BAR CASE BUC250/EY2650H MSP-452093-7.A2 452093-7	£4.50	£5.40
A10 - SAW CHAIN SET EY2650H MSP-196142-7 196142-7	£14.58	£17.50

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita EY2650H25H Telescopic Petrol Pole Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Makita EY2650H25H Telescopic Petrol Pole Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Makita EY2650H25H Telescopic Petrol Pole Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
