Makita UC250DWB Cordless Chain Saw Spare Parts

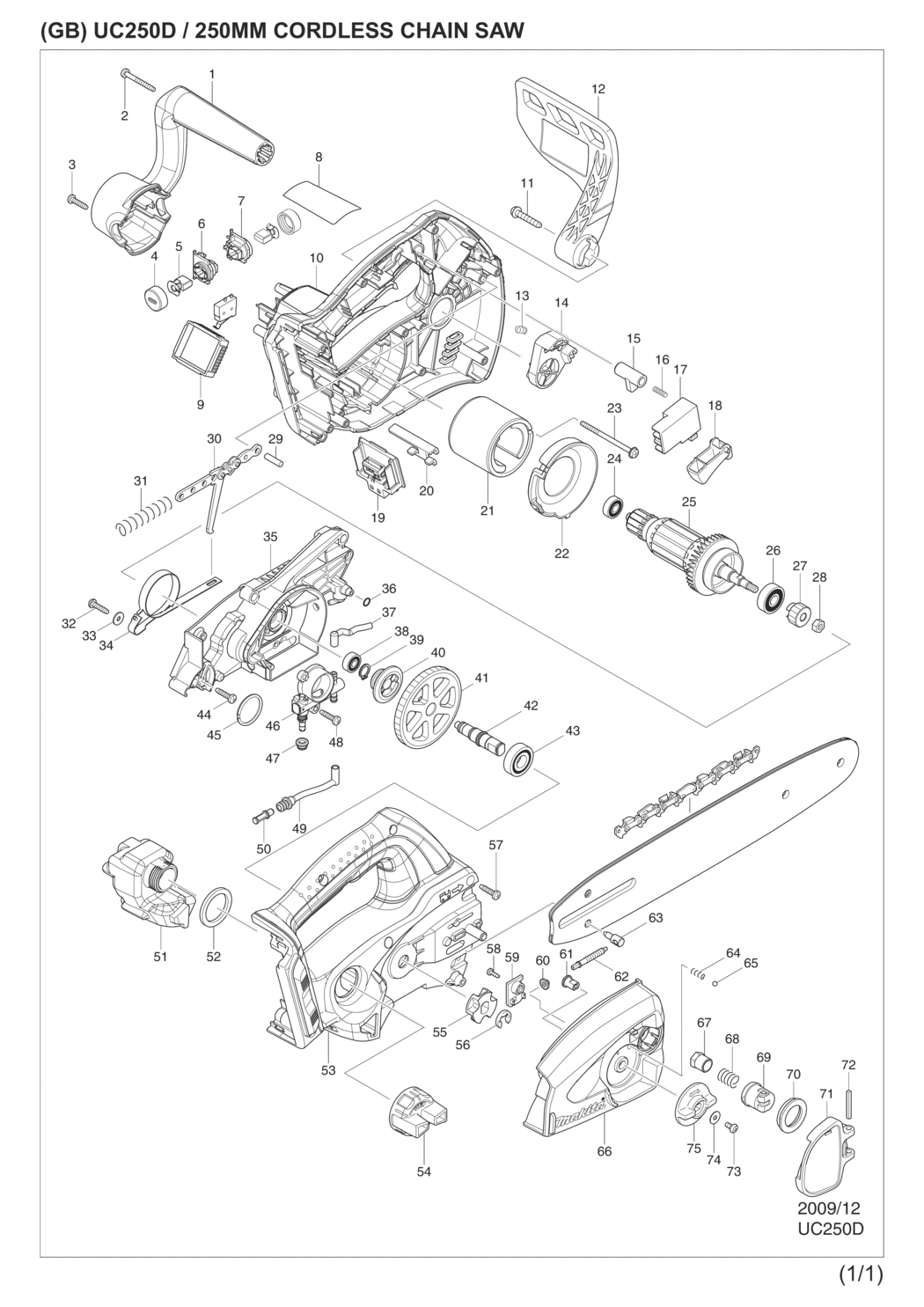

An exploded drawing and spare parts listing for the Makita UC250DWB Cordless Chain Saw

	Ex VAT	Inc VAT
1 - FRONT HANDLE BUC250RD/DUC252 MSP-451972-6.A2 451972-6	£25.20	£30.24
5 - CARBON BRUSH CB-442 BUH550RD/ MSP-194928-3.A12 194928-3	£8.27	£9.92
9 - CONTROLLER BUC250RD MSP-631971-6.A0 631971-6	£52.28	£62.73
11 - PT SCREW 5X30 9015B/UC3530A MSP-266173-1.A10 266173-1	£1.44	£1.73
12-1 - LABEL/CAUTION BUB250RD MSP-800A01-2.A0 800A01-2	£2.50	£3.00
13 - COMPRESSION SPRING 6 DCS230T MSP-231298-0.A2 231298-0	£1.44	£1.73
25 - ARMATURE 36V BUC250/DUC252 MSP-519268-2.A1 519268-2	£80.01	£96.01
26 - BALL BEARING VC3211M/3612/C/ MSP-211092-6.A5 211092-6	£8.58	£10.30
28 - HEX NUT M6 BUC250/GA4034/9553 MSP-252186-8.A38 252186-8	£1.44	£1.73
47 - GROMMET DCS230T/BUC250/EK7650 MSP-421875-8.A3 421875-8	£1.44	£1.73
49 - *CONNECTOR BUC250RD/DUC252 MSP-422057-5.A1 422057-5	£3.59	£4.31
51 - OIL TANK BUC250RD MSP-451974-2.A1 451974-2	£11.36	£13.63
53-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A603 263005-3	£1.44	£1.73
54 - TANK CAP BUC121/122/250 MSP-140L60-3.A3 140L60-3	£8.27	£9.92
55 - SPROCKET UC4020A/3520A/BUC250 MSP-221526-1.A2 221526-1	£2.50	£3.00
74 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A17 253874-0	£1.44	£1.73
A04-1 - SAW CHAIN SET DCS230T/DUC252 MSP-196205-9.A3 196205-9	£20.82	£24.99
E01 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A28 688131-1	£1.44	£1.73

Attribute Name	Value
Brand	Makita
