Makita UC4030A Chain Saw Spare Parts

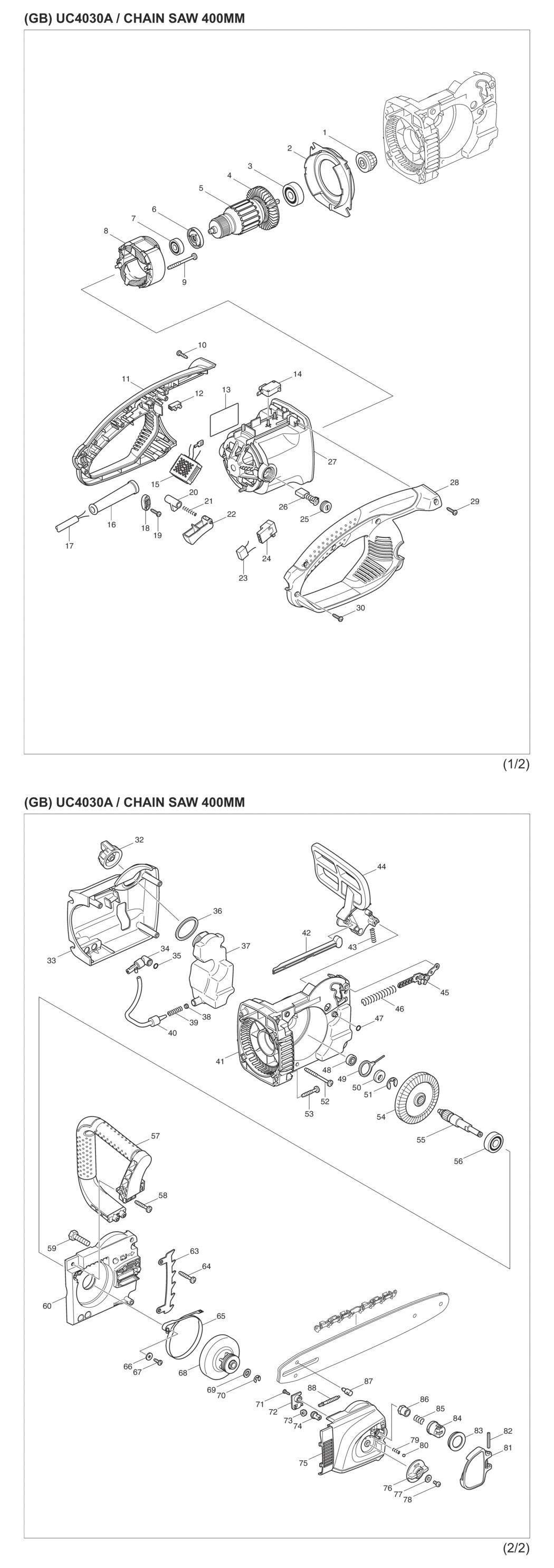

An exploded drawing and spare parts listing for the Makita UC4030A Chain Saw

	Ex VAT	Inc VAT
1 - STRAIGHT BEVEL GEAR 14 UC3530 MSP-226743-8.A1 226743-8	£5.15	£6.18
2 - BAFFLE PLATE UC3530A/4030A MSP-419410-4.A0 419410-4	£1.44	£1.73
3 - BALL BEARING 6301LLBCM/2A 960 MSP-211111-8.A2 211111-8	£11.08	£13.29
4 - FAN 80 LS1019/LS1019L/UC3530A MSP-240001-8.A4 240001-8	£4.06	£4.87
5 - ARMATURE 110V UC3530A/4030A MSP-616966-0.A1 616966-0	£39.17	£47.00
5 - ARMATURE 240V UC3530A/4030A MSP-616969-4.A1 616969-4	£39.17	£47.00
6 - RESIN WASHER UC3530A/4030A MSP-681666-1.A5 681666-1	£1.44	£1.73
6-1 - RESIN WASHER UC3530A/4030A MSP-681666-1.A10 681666-1	£1.44	£1.73
7 - BALL BEARING 629ZZ UC3530A MSP-211057-8.A1 211057-8	£4.99	£5.99
8 - FIELD 110V UC3530A MSP-639529-5.A1 639529-5	£32.69	£39.23
8 - FIELD 240V UC3530A/4030A MSP-639530-0.A1 639530-0	£41.23	£49.48
9 - PT SCREW 5X55 UC3530A/KP0810 MSP-266095-5.A19 266095-5	£1.44	£1.73
10 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A295 265995-6	£1.44	£1.73
11 - LABEL/CAUTION UC3530A4030A MSP-810198-3.A0 810198-3	£1.44	£1.73
11 - HANDLE SET UC3530A/4030A MSP-188818-0.A0 188818-0	£24.48	£29.38
12 - TERMINAL BLOCK HS7100/KP0800 MSP-654532-5.A22 654532-5	£3.74	£4.49
13 - NAME PLATE UC4030A MSP-867113-8 867113-8	£1.44	£1.73
14 - SWITCH SD-006-BB2AA-AA UC4020 MSP-650577-1.A7 650577-1	£1.44	£1.73
15 - CONTROLLER 110V UC3530A MSP-631720-1.A0 631720-1	£51.61	£61.93
15 - CONTROLLER 240V UC3530A/4030A MSP-631719-6.A1 631719-6	£40.75	£48.90
16 - CORD GUARD 10-90 110V GA7050 MSP-682574-9.A6 682574-9	£1.44	£1.73
17 - POWER SUPPLY CORD UC4020A/352 MSP-692548-2.A1 692548-2	£40.03	£48.04
17 - POWER SUPPLY CORD 1.5-2-10.0 MSP-695245-9.A0 695245-9	£69.93	£83.92
18 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A89 687124-5	£1.44	£1.73
19 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A294 265995-6	£1.44	£1.73
20 - LOCK OFF BUTTON DUC252/UC3520 MSP-416178-3.A0 416178-3	£1.44	£1.73
21 - COMPRESSION SPRING 4 UC4020A MSP-233173-6.A8 233173-6	£1.44	£1.73
22 - SWITCH LEVER UC3530A4030A MSP-419411-2.A1 419411-2	£1.44	£1.73
23 - NOISE SUPPRESSOR UC3530A/9565 MSP-645238-6.A1 645238-6	£1.44	£1.73
23 - NOISE SUPPRESSOR UC3530A/BO37 MSP-645239-4.A5 645239-4	£1.44	£1.73
24 - SWITCH TG70B UC3530A/5903R MSP-651923-1.A1 651923-1	£18.72	£22.46
25 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A45 643650-4	£1.44	£1.73
25-1 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A48 643650-4	£1.44	£1.73
26 - CARBON BRUSH CB-153 (CB-22)/9 MSP-181044-0.A27 181044-0	£5.42	£6.50
27 - BRUSH HOLDER CB-5 6.5=13.5 MSP-643653-8.A32 643653-8	£3.74	£4.49
27 - MOTOR HOUSING UC3530A/40 MSP-154867-9.A1 154867-9	£30.96	£37.15
28 - HANDLE SET UC3530A/4030A MSP-188818-0.A1 188818-0	£24.48	£29.38
28 - LABEL/CAUTION UC3530A4030A MSP-810198-3.A1 810198-3	£1.44	£1.73
29 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1205 265995-6	£1.44	£1.73
30 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1244 265995-6	£1.44	£1.73
32 - TANK CAP UC3530A/4030A MSP-154870-0.A1 154870-0	£3.28	£3.93
34-1 - OIL PUMP UC3530A/4030A MSP-142002-1.A0 142002-1	£2.18	£2.62
35 - O RING 6 AN942/UC3520A/UC3530 MSP-213039-6.A6 213039-6	£1.44	£1.73
36 - SPONGE SEAL UC3530A MSP-421959-2.A1 421959-2	£1.44	£1.73
37 - OIL TANK UC3530A/4030A MSP-419407-3.A0 419407-3	£6.71	£8.05
38 - CAP UC3530A/DCS230T/4030A MSP-416274-7.A3 416274-7	£1.44	£1.73
39 - SPRING DSC230/EA2140/PS220/UC3 MSP-231975-4.A1 231975-4	£1.44	£1.73
40 - OIL TUBE UC3530A/4030A MSP-421958-4.A0 421958-4	£1.44	£1.73
41 - GEAR HOUSING UC3530A/4030A MSP-419408-1.A1 419408-1	£14.51	£17.41
42 - ROD UC3530A/4030A MSP-419413-8.A0 419413-8	£1.44	£1.73
43 - COMPRESSION SPRING 6 UC3530A MSP-233174-4.A0 233174-4	£1.44	£1.73
44 - FRONT HAND GUARD UC3530A/4030 MSP-451130-4.A0 451130-4	£6.55	£7.86
45 - LINK PLATE UC3530A/4030A MSP-158044-5.A1 158044-5	£6.71	£8.05
46 - COMPRESSION SPRING 9 UC3530A MSP-234005-0.A1 234005-0	£1.44	£1.73
47 - O RING 6 AN942/UC3520A/UC3530 MSP-213039-6.A5 213039-6	£1.44	£1.73
48 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A88 211012-0	£13.88	£16.66
49 - CRANK UC4020A/UC3520/3530A/40 MSP-450230-7.A1 450230-7	£1.44	£1.73
50 - CAM UC4020A/UC3520A/UC3530A/4 MSP-417405-1.A2 417405-1	£1.44	£1.73
51 - RETAINING RING E UC3530A MSP-259034-2.A0 259034-2	£1.44	£1.73
52 - PT SCREW 5X55 UC3530A/KP0810 MSP-266095-5.A18 266095-5	£1.44	£1.73
52-1 - PT SCREW 5X60 HS7100/HM1317C MSP-266044-2.A35 266044-2	£2.34	£2.81
53 - PT SCREW 5X30 9015B/UC3530A MSP-266173-1.A18 266173-1	£1.44	£1.73
54 - STRAIGHT BEVEL GEAR 43 UC3530 MSP-226741-2.A0 226741-2	£4.37	£5.24
55 - SPINDLE UC3530A/4030A MSP-324662-3.A1 324662-3	£15.91	£19.09
56 - BALL BEARING 6201ZZ UC3530A MSP-211107-9.A3 211107-9	£9.05	£10.86
57-1 - FRONT HANDLE UC3530A/4030A MSP-455487-5.A0 455487-5	£15.29	£18.35
58 - PT SCREW 5X30 9015B/UC3530A MSP-266173-1.A20 266173-1	£1.44	£1.73
59 - HEX HD SCREW M8X30 UC3530A/LS MSP-921452-1.A3 921452-1	£1.44	£1.73
60 - BEARING HOUSING UC3530A/4030A MSP-318013-0.A0 318013-0	£10.30	£12.36
63 - SPIKE BUMPER UC4020A/UC3520A MSP-345651-5.A2 345651-5	£1.44	£1.73
64 - PT SCREW 5X30 9015B/UC3530A MSP-266173-1.A19 266173-1	£1.44	£1.73
65 - BRAKE BAND UC3530A/UC4030A MSP-168426-3.A0 168426-3	£5.46	£6.55
66 - FLAT WASHER 4 UC3530A/DCS230T MSP-267195-4.A14 267195-4	£1.44	£1.73
67 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A83 266026-4	£1.44	£1.73
68-1 - BRAKE DRUM ASSY UC3551A/UC4051 MSP-123886-6.A1 123886-6	£26.35	£31.62
69 - THIN WASHER 8 HR5212C/UC3530A MSP-253215-0.A16 253215-0	£1.44	£1.73
70 - RETAINING RING E EA3500/3501 MSP-259033-4.A4 259033-4	£1.44	£1.73
71 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A35 266007-8	£1.44	£1.73
72 - COVER UC4020A/3520/3530A/4030 MSP-419241-1.A3 419241-1	£1.66	£1.99
73 - SPIRAL BEVEL GEAR 14 UC4020A MSP-227496-2.A0 227496-2	£3.74	£4.49
74 - SPIRAL BEVEL GEAR 14 UC4020A MSP-227495-4.A4 227495-4	£4.52	£5.43
75 - SPROCKET COVER UC3530A MSP-154869-5.A0 154869-5	£9.05	£10.86
76 - DIAL 40 UC4020A/3520/3530A/40 MSP-419233-0.A1 419233-0	£1.44	£1.73
77 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A3 253874-0	£1.44	£1.73
78 - BINDING HD SCREW M4 PS32TLC MSP-915106-0.A4 915106-0	£1.44	£1.73
79 - COMPRESSION SPRING 4 UC4020A MSP-233033-2.A2 233033-2	£1.44	£1.73
80 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A42 216008-6	£1.44	£1.73
81 - LEVER UC4020A/3520A MSP-154763-1.A0 154763-1	£1.44	£1.73
82 - SPRING PIN 4-28 2012NB/UC3530 MSP-951122-8.A5 951122-8	£1.44	£1.73
83-1 - CUP WASHER 20 UC4020A/3520/30 MSP-453061-3.A0 453061-3	£1.44	£1.73
84 - LEVER HOLDER UC4020A/3520/353 MSP-317977-5.A5 317977-5	£1.44	£1.73
85 - COMPRESSION SPRING 8 PS32TLC MSP-231025-5.A2 231025-5	£1.44	£1.73
86 - HEX NUT M8-13 UC4020A/3520/30 MSP-252168-0.A5 252168-0	£1.44	£1.73
87 - ADJUST PIN UC4020A/3520/3530A MSP-324621-7.A0 324621-7	£1.44	£1.73
88 - ADJUST SCREW UC4020A/UC3520A MSP-324620-9.A5 324620-9	£1.44	£1.73
89-1 - SPROCKET COVER SET UC3530A MSP-187088-8.A1 187088-8	£17.13	£20.56
90 - *LEVER SET UC3530A MSP-188859-6.A1 188859-6	£4.37	£5.24
91-1 - OIL PUMP SET UC MSP-187573-1.A0 187573-1	£3.59	£4.31
A01 - CHAIN COVER UC4030A/EA3500/01 MSP-419560-5.A0 419560-5	£7.22	£8.66
A02 - HOOK UH45/55/5580/65 MSP-158024-1.A0 158024-1	£1.44	£1.73
A03 - GUIDE BAR UC4020A/4030A MSP-165202-6.A3 165202-6	£15.82	£18.99
A03-1 - GUIDE BAR UC4020A/4030A MSP-165202-6.A4 165202-6	£15.82	£18.99
A05-1 - SAW CHAIN 40CM MSP-196213-0 196213-0	£20.48	£24.57
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A248 654091-9	£1.44	£1.73
