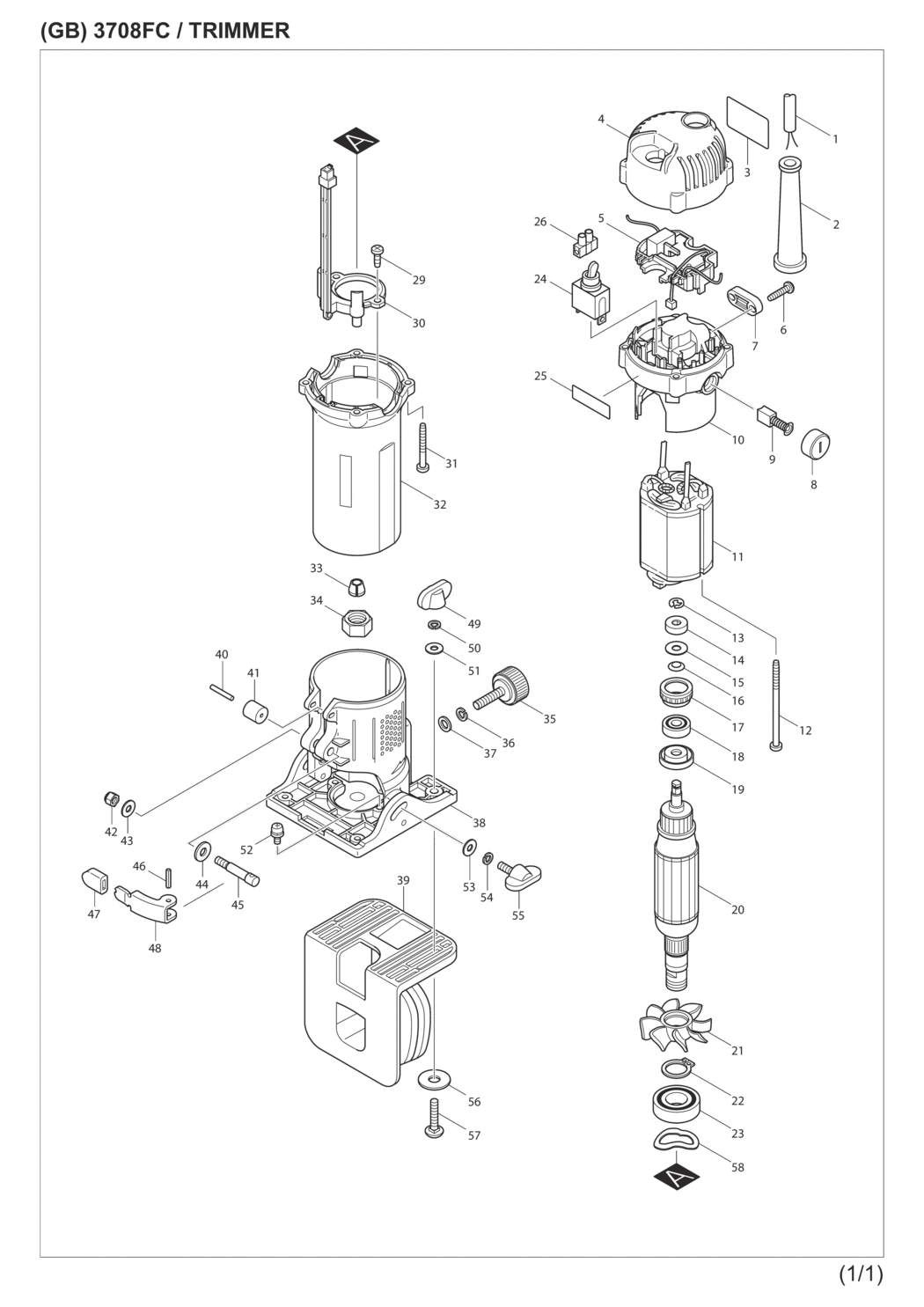

An exploded drawing and spare parts listing for the Makita 3708FC Trimmer
Ex VAT Inc VAT
1 - POWER SUPPLY CORD 1.0-2-2.5 MSP-692021-2.A19 692021-2 £9.05 £10.86
1 - POWER SUPPLY CORD 1.00-2-2.5 MSP-663926-3.A24 663926-3 £12.17 £14.60
2 - CORD GUARD 8-85 3707/N1923B MSP-682502-4.A29 682502-4 £1.58 £1.90
3 - NAME PLATE 3708FC MSP-853541-3 853541-3 £1.44 £1.73
4 - REAR COVER 3707F/3708F MSP-417747-3.A0 417747-3 £4.52 £5.43
5 - CONTROLLER 110V 3707FC/3708F MSP-631486-3.A0 631486-3 £53.07 £63.68
5 - CONTROLLER 240V 3707FC/3708FC MSP-631487-1.A1 631487-1 £53.07 £63.68
6 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A25 265995-6 £1.44 £1.73
7 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A52 687063-9 £1.44 £1.73
8 - BRUSH HOLDER CAP TD0101F/3707 MSP-643928-5.A9 643928-5 £1.44 £1.73
9 - CARBON BRUSH CB-411 TD0101F/S MSP-191940-4.A34 191940-4 £6.40 £7.68
9-1 - CARBON BRUSH CB-411 TD0101F/S MSP-191940-4.A35 191940-4 £6.40 £7.68
10 - BRUSH HOLDER 6X9 TD0101F/370 MSP-643981-1.A3 643981-1 £4.83 £5.80
10 - MOTOR REAR HOUSING 3707/F&08/ MSP-183417-3.A2 183417-3 £20.30 £24.36
11 - FIELD ASSY 110V 3707FC/3708F MSP-599704-4.A0 599704-4 £25.20 £30.24
11 - FIELD ASSY 240V 3707FC/3708F MSP-595064-2.A1 595064-2 £25.20 £30.24
11 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A25 654501-6 £1.44 £1.73
11 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A17 654100-4 £1.44 £1.73
12 - PT SCREW 4X70 MSP-266004-4.A5 266004-4 £1.44 £1.73
13 - SELF LOCK 6 GD0801C/811C MSP-259039-2.A20 259039-2 £1.44 £1.73
14-1 - *MAGNET SLEEVE RT0700C/TM3000C MSP-688117-5.A45 688117-5 £4.18 £5.02
14 - MAGNET SLEEVE GD0801C/GD0811 MSP-688117-5.A38 688117-5 £4.18 £5.02
14-2 - MAGNET SLEEVE GD0801C/GD0811 MSP-688117-5.A39 688117-5 £4.18 £5.02
15 - THIN WASHER 6 6791D/CS246.4 MSP-253332-6.A17 253332-6 £1.44 £1.73
16 - WAVE WASHER TM3000C/9564&65CV MSP-267756-0.A18 267756-0 £1.44 £1.73
17 - RUBBER RING 19 4305/T/3707/HP MSP-421494-0.A24 421494-0 £6.08 £7.30
18 - BALL BEARING 607DDW BO5041/3 MSP-210017-7.A0 210017-7 £4.99 £5.99
19 - INSULATION WASHER MT814/815 MSP-681636-0.A5 681636-0 £2.18 £2.62
20-1 - ARMATURE ASSY 110V 3707FC/08F MSP-518554-8.A1 518554-8 £54.65 £65.58
20-1 - ARMATURE ASSY 240V 3707FC/08F MSP-517619-3.A1 517619-3 £54.65 £65.58
21 - FAN 48 3707F/3708F MSP-240049-0.A0 240049-0 £2.65 £3.18
22 - EXT DIN 471 CIRCLIP-15 9217SP MSP-961055-9.A7 961055-9 £1.44 £1.73
23 - BALL BEARING 6002DDW GA5020/2 MSP-211236-8.A32 211236-8 £8.42 £10.11
24 - SWITCH BTM/3707F/3708F/DTM51 MSP-651423-1.A15 651423-1 £11.39 £13.67
25 - LABEL/MAKITA 6071DWGD0800C MSP-819720-3.A0 819720-3 £1.44 £1.73
26 - TERMINAL BLOCK 3707F/3708F MSP-654544-8.A4 654544-8 £1.44 £1.73
29 - +TAPPING SCREW M4X12 122291-4 MSP-251991-0.A1 251991-0 £1.44 £1.73
30 - LEAD CIRCUIT 3707F/3708F MSP-631480-5.A0 631480-5 £26.92 £32.31
31 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A10 266053-1 £1.44 £1.73
32 - LABEL/SCALE 3707F08F MSP-816274-1.A5 816274-1 £1.44 £1.73
32 - MOTOR HOUSING CO 3707F/08F MSP-153347-2.A4 153347-2 £11.86 £14.23
33-1 - COLLET CONE 6.35 3700B/3708F MSP-763608-8.A8 763608-8 £3.72 £4.46
33 - COLLET CONE 6.35 3700B/3708F MSP-763608-8.A9 763608-8 £3.72 £4.46
34 - COLLET NUT 6 3700B/906/3707 MSP-763606-2.A0 763606-2 £3.20 £3.84
35 - SCREW M6X18 1805 3700B MSP-251814-2.A0 251814-2 £1.44 £1.73
36 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A0 253428-3 £1.44 £1.73
37 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A53 941151-9 £1.44 £1.73
38-1 - BASE 3708/3708F MSP-143655-9.A1 143655-9 £41.48 £49.77
39 - TRIMMER SHOE 3708F MSP-414304-8.A0 414304-8 £10.92 £13.10
40-1 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A11 256221-4 £1.58 £1.89
40 - PIN 3 BCV01/6835DWA/BLS820/JR MSP-256158-5.A70 256158-5 £1.44 £1.73
41 - ROLLER 3707F/3708F MSP-421566-1.A4 421566-1 £1.44 £1.73
42 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A27 252103-8 £1.58 £1.89
43 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A15 941101-4 £1.44 £1.73
44 - FLAT WASHER 6 3707F/08F MSP-267214-6.A4 267214-6 £1.44 £1.73
45 - SUPPORT PIN 3707F/08F MSP-324243-3.A0 324243-3 £3.90 £4.68
46 - SPRING PIN 3-14 3707F/3708F/A MSP-951060-4.A0 951060-4 £1.58 £1.89
47 - RUBBER CAP 3707F/3708F MSP-421818-0.A4 421818-0 £1.44 £1.73
48 - LOCK LEVER 3707F/3708F MSP-345229-4.A0 345229-4 £2.50 £3.00
49 - WING NUT M5 3708F MSP-252646-0.A1 252646-0 £5.46 £6.55
50 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A57 253427-5 £1.44 £1.73
51 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A13 941101-4 £1.44 £1.73
52 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A28 911114-9 £1.44 £1.73
53 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A14 941101-4 £1.44 £1.73
54 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A56 253427-5 £1.44 £1.73
55 - BRASS WINGSCREW M5X15 MSP-265740-9.A3 265740-9 £5.78 £6.93
56 - FLAT WASHER 8 3708F MSP-267248-9.A0 267248-9 £1.44 £1.73
57 - CAP SQ NECK BOLT M5X25 3708F MSP-923241-0.A0 923241-0 £1.44 £1.73
A01-1 - TRIMMER GUIDE ASSY RT0700C/370 MSP-122703-7.A10 122703-7 £12.67 £15.20
A01-1 - TRIMMER GUIDE 3700B/3707/3707 MSP-317789-6.A6 317789-6 £1.44 £1.73
A03 - COUNTERSUNK SCREW M4X12 W/SP MSP-912116-8.A6 912116-8 £1.44 £1.73
A02-1 - THUMB SET SCREW M6X20 3707/37 MSP-265764-5.A14 265764-5 £1.44 £1.73
A04 - HOOK 3700B/3707/F/3708/F/DRT50 MSP-341136-9.A0 341136-9 £1.44 £1.73
A03-1 - COUNTERSUNK SCREW M4X12 W/SP MSP-265135-6.A19 265135-6 £1.44 £1.73
A05-1 - SLOTTED HD SHOULDER SCREW M5 MSP-251471-6.A15 251471-6 £1.44 £1.73
A06-1 - ROLLER 11 3700B/3707/F/3708/F MSP-324378-0.A10 324378-0 £1.44 £1.73
A08 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A51 941151-9 £1.44 £1.73
A07-1 - GUIDE HOLDER 3700B/3707/F/08/ MSP-317788-8.A2 317788-8 £1.44 £1.73
A09 - WAVE WASHER 6 3703/2414B/NB MSP-253903-9.A5 253903-9 £1.44 £1.73
A10 - KNUR THUMB SETSCREW M6X25 370 MSP-251815-0.A13 251815-0 £2.41 £2.89
A10-1 - KNUR THUMB SETSCREW M6X25 370 MSP-265763-7.A2 265763-7 £2.71 £3.25
A11 - TEMPLET GUIDE 3700B/3705/3707 MSP-343577-5.A13 343577-5 £3.01 £3.61
A12 - *SPANNER 10 3700B/3707/08&F MSP-781036-5.A17 781036-5 £2.88 £3.46
A13 - SPANNER 17 37B 63L 9505B/9217S MSP-781037-3.A7 781037-3 £2.48 £2.97
A12-1 - WRENCH 10 M3700 MSP-781036-5.A8 781036-5 £2.88 £3.46
A15 - STRAIGHT GUIDE 3707F/3708F MSP-343594-5.A6 343594-5 £6.95 £8.34
A16 - GUIDE PLATE 3707F/3708F MSP-343593-7.A0 343593-7 £1.78 £2.13
A17 - SQ NECK SETSCREW M6X20 BCS550 MSP-251919-8.A10 251919-8 £1.66 £1.99
A18 - WAVE WASHER 6 3703/2414B/NB MSP-253903-9.A4 253903-9 £1.44 £1.73
A19 - WING NUT M6 MSP-934301-3.A6 934301-3 £1.44 £1.73
A20 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A52 941151-9 £1.44 £1.73
E01 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A92 654091-9 £1.44 £1.73
