Makita DCO180Z Cordless Cut-Out Tool Spare Parts

Makita DCO180Z Cordless Cut-Out Tool Spare Parts

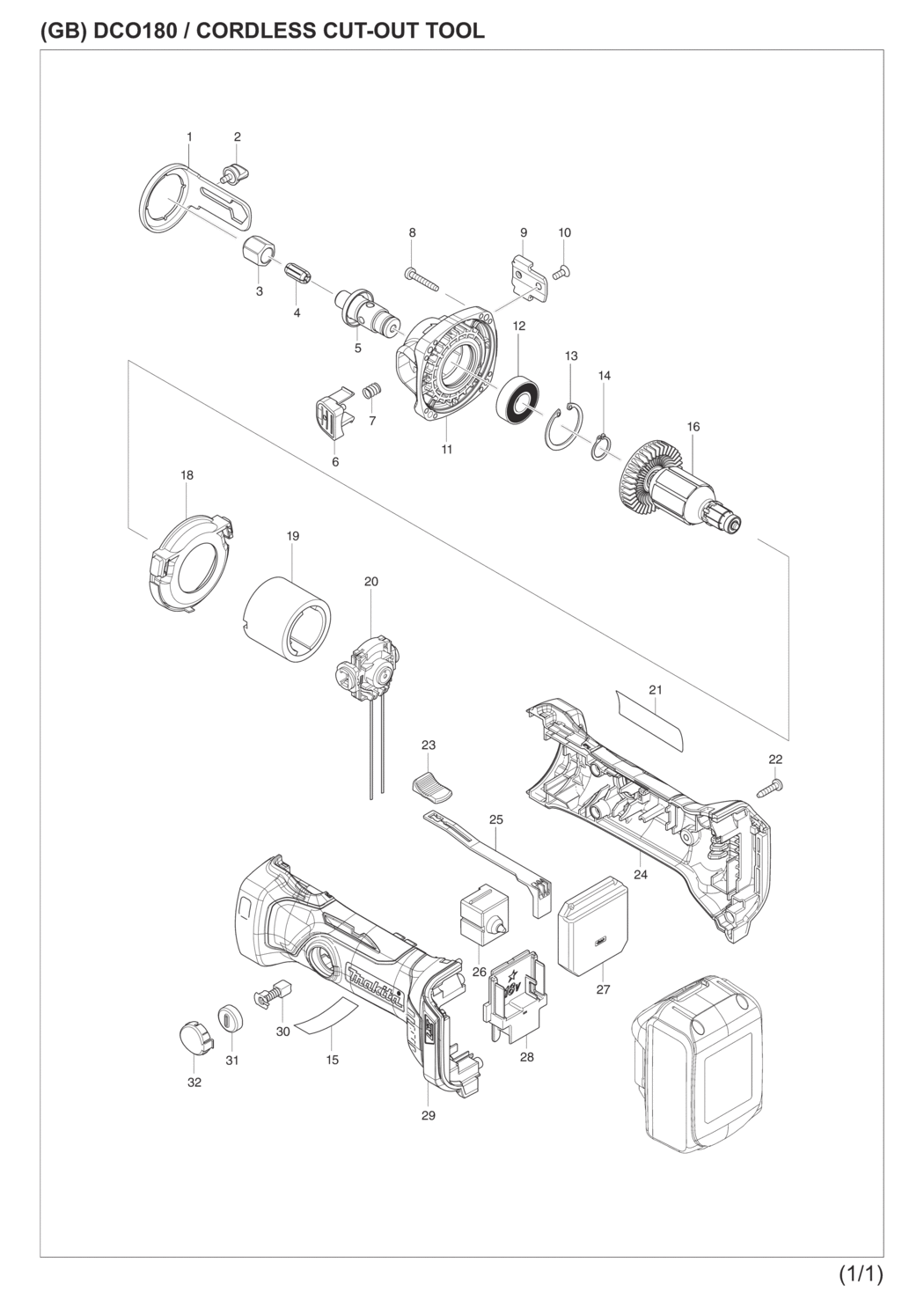

An exploded drawing and spare parts listing for the Makita DCO180Z Cordless Cut-Out Tool
Ex VAT Inc VAT
1 - SHOE PLATE DCO180 MSP-346796-2 346796-2 £4.16 £4.99
2 - THUMB SCREW M4X8 DCO180 MSP-266898-7 266898-7 £2.50 £3.00
3 - COLLET NUT DCO180 MSP-763675-3 763675-3 £2.78 £3.34
4 - COLLET CONE 3.18 DCO180 MSP-763677-9 763677-9 £10.73 £12.88
5 - SPINDLE DCO180 MSP-142656-4 142656-4 £17.42 £20.91
6 - SHAFT LOCK DCO180 MSP-455181-9 455181-9 £1.44 £1.73
7 - COMPRESSION SPRING 7 DCO180 MSP-234332-5 234332-5 £1.44 £1.73
8 - TAPPING SCREW 4X25 M9001/TD022 MSP-266374-1.A61 266374-1 £1.44 £1.73
9 - SHOE SUPPORT DCO180 MSP-346795-4 346795-4 £1.44 £1.73
10 - COUNTERSUNK SCREW M4X8/JV101D MSP-912107-9.A20 912107-9 £1.44 £1.73
11 - BEARING BOX DCO180 MSP-142655-6 142655-6 £23.90 £28.68
12 - BALL BEARING 6002DDW GA5020/2 MSP-211236-8.A21 211236-8 £8.42 £10.11
13 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A36 962151-6 £1.44 £1.73
14 - EXT DIN 471 CIRCLIP-15 9217SP MSP-961055-9.A20 961055-9 £1.44 £1.73
16 - ARMATURE DCO180 MSP-619344-3 619344-3 £25.06 £30.07
18 - BAFFLE PLATE DCO180 MSP-455182-7 455182-7 £2.65 £3.18
19 - YOKE UNIT BGA/BJN/GJS/BPJ MSP-638627-2.A8 638627-2 £26.07 £31.28
20 - ENDBELL DCO180 MSP-632C14-5 632C14-5 £3.28 £3.93
21 - NAME PLATE DCO180 MSP-815U77-6 815U77-6 £1.44 £1.73
22 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A528 266326-2 £1.44 £1.73
23 - SWITCH KNOB BPJ140/BPJ180/955 MSP-419566-3.A16 419566-3 £1.96 £2.35
24 - HOUSING SET DCO180 MSP-187871-3.A1 187871-3 £21.31 £25.57
25 - SWITCH LEVER BPJ140/180/BDG80 MSP-419519-2.A5 419519-2 £1.88 £2.25
26 - SWITCH 1246.3223 DJS160/DSC250 MSP-650579-7.A24 650579-7 £10.14 £12.17
27 - RECEPTACLE DCO180/VC1310L MSP-654304-8.A0 654304-8 £1.44 £1.73
27 - CONTROLLER DCO180 MSP-620308-2 620308-2 £62.30 £74.76
27 - RECEPTACLE SFPS-41T-187-8 MSP-654281-4 654281-4 £1.44 £1.73
27 - RECEPTACLE SFPS-61-250 MSP-654208-4.A6 654208-4 £1.44 £1.73
27 - INSULATED TERMINAL FV2-M3 MSP-654077-3.A2 654077-3 £1.44 £1.73
27 - INSULATION TERMINAL FT1.25-M3 MSP-654037-5.A2 654037-5 £1.44 £1.73
28 - TERMINAL DHP480/DDF480/DFL650 MSP-643860-3.A67 643860-3 £5.78 £6.94
29 - HOUSING SET DCO180 MSP-187871-3.A0 187871-3 £21.31 £25.57
30 - CARBON BRUSH SET CB-430 MSP-191971-3.A34 191971-3 £5.78 £6.93
31 - HOLDER CAP DUB361/BUB360/BDG MSP-643929-3.A0 643929-3 £1.44 £1.73
32 - HOLDER CAP COVER DCO180 MSP-455183-5 455183-5 £1.44 £1.73
A01 - DRYWALL GUIDE BIT SET 3.18 MSP-191G69-8.A1 191G69-8 £7.62 £9.15
E01 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A0 688165-4 £1.44 £1.73
