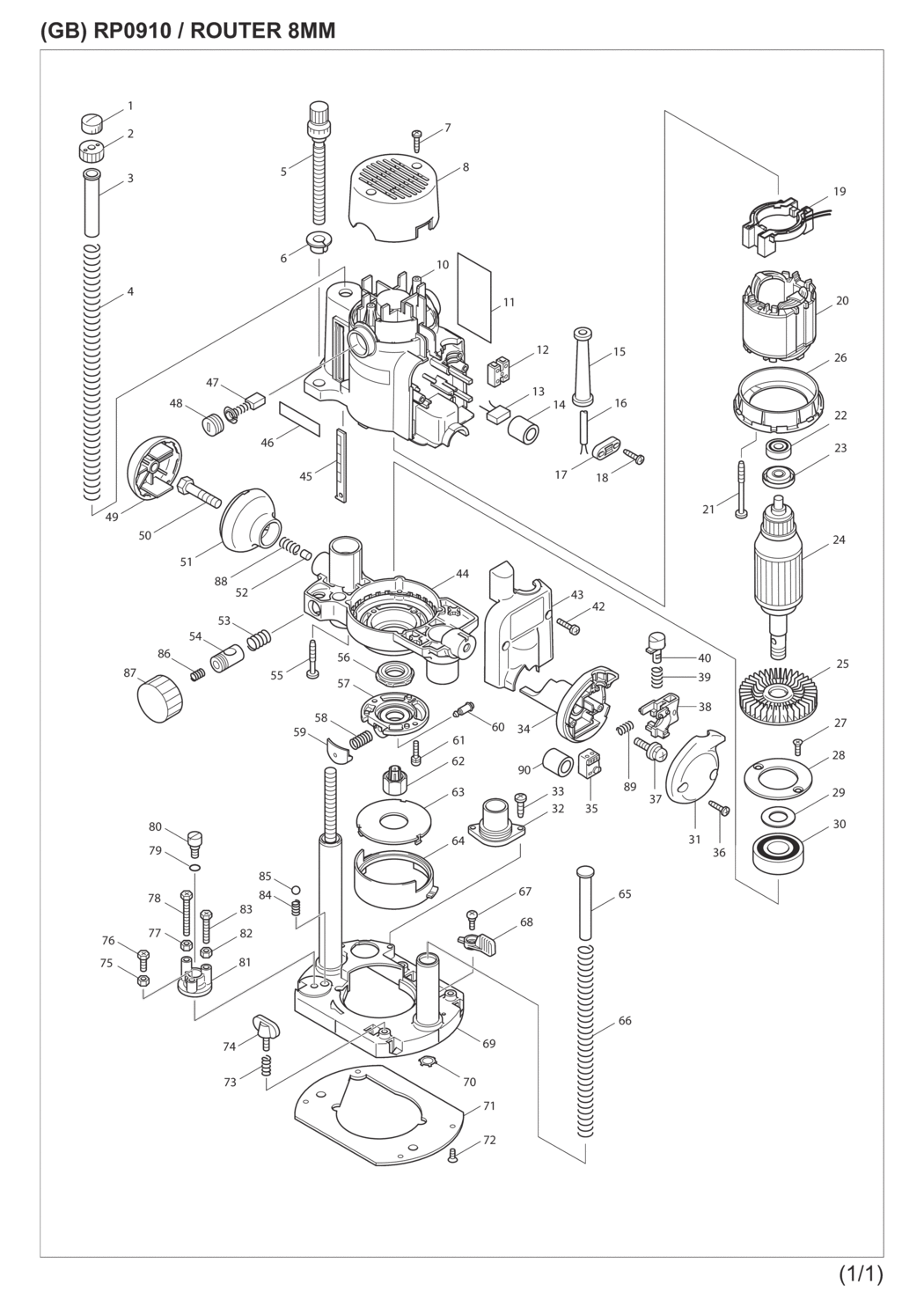

An exploded drawing and spare parts listing for the Makita RP0910 Router
Ex VAT Inc VAT
1 - WING NUT M10 RP910/1100C MSP-252643-6.A0 252643-6 £1.44 £1.73
2 - NYLON NUT M10 RP1100C/3612BR MSP-410129-8.A3 410129-8 £1.88 £2.25
3 - SILENT POLE RP910/1100C MSP-417320-9.A1 417320-9 £1.44 £1.73
4 - COMPRESSION SPRING 13 RP1100 MSP-233287-1.A1 233287-1 £1.44 £1.73
5 - THUMB SCREW M10X90 RP1100C MSP-265739-4.A0 265739-4 £14.20 £17.04
6 - DEPTH PIONTER RP910/1100C MSP-417247-3.A0 417247-3 £1.44 £1.73
7 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A534 265995-6 £1.44 £1.73
8 - REAR COVER RP910/1100C MSP-417239-2.A0 417239-2 £4.37 £5.24
10 - MOTOR HOUSING RP910/1100 MSP-152618-4.A0 152618-4 £27.65 £33.18
10 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A8 643708-9 £2.34 £2.81
11 - NAME PLATE RP0910 MSP-852318-3 852318-3 £1.44 £1.73
12 - TERMINAL BLOCK 2P UH45/55/65 MSP-654531-7.A15 654531-7 £2.18 £2.62
13B - NOISE SUPPRESSOR 110V MSP-645253-0.A21 645253-0 £4.99 £5.99
15A1 - CORD GUARD 10 GD0801C/GD0811C MSP-682566-8.A17 682566-8 £1.60 £1.92
16A2 - POWER SUPPLY CORD 1.0-2-4.0 MSP-665940-5.A30 665940-5 £12.95 £15.54
16F1 - POWER SUPPLY CORD 1.0-2-4.0 MSP-692502-6.A67 692502-6 £15.75 £18.90
17A2 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A62 687052-4 £1.44 £1.73
17B - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A101 687063-9 £1.44 £1.73
17A1 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A134 687063-9 £1.44 £1.73
17A - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A42 687053-2 £1.44 £1.73
17B1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A63 687052-4 £1.44 £1.73
18 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A535 265995-6 £1.44 £1.73
19 - SUPPORT RP0910 MSP-638001-4 638001-4 £4.37 £5.24
20A - FIELD ASSY 240V RP0910 MSP-634368-8 634368-8 £16.28 £19.53
20 - FIELD ASSY 110V RP0910 MSP-634366-2 634366-2 £16.28 £19.53
21 - PT SCREW 5X55 UC3530A/KP0810 MSP-266095-5.A14 266095-5 £1.44 £1.73
22 - BALL BEARING 608DDW GA5020 MSP-210005-4.A65 210005-4 £8.42 £10.11
23 - INSULATION WASHER HM1130 MSP-681651-4.A1 681651-4 £1.44 £1.73
24 - ARMATURE ASSY 110V RP0910 MSP-516401-7 516401-7 £69.93 £83.92
24A - ARMATURE ASSY 240V RP0910 MSP-516403-3 516403-3 £69.93 £83.92
26 - BAFFLE PLATE P1100C/0910 MSP-413078-8.A1 413078-8 £1.44 £1.73
27 - COUNTERSUNK HEAD SCREW M4X14 MSP-251295-0.A1 251295-0 £1.44 £1.73
28 - BEARING RETAINER 50 3612BR/RP MSP-285657-0.A4 285657-0 £1.44 £1.73
29 - BLUE WASHER 17 RP0900/8412DWH MSP-267114-0.A3 267114-0 £1.44 £1.73
30 - BALL BEARING 6203DDW RP0900/9 MSP-211278-2.A3 211278-2 £10.30 £12.36
31 - KNOB COVER R RP0910/1110C MSP-417251-2.A0 417251-2 £5.92 £7.11
32 - NOZZLE JOINT RP0910/1110C MSP-417256-2.A1 417256-2 £1.44 £1.73
33 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A136 266034-5 £1.44 £1.73
34 - KNOB R RP0910/1100C MSP-417250-4.A1 417250-4 £3.59 £4.31
35 - SWITCH SP115C RP1100C/UH45/63 MSP-651834-0.A1 651834-0 £10.14 £12.17
36 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A533 265995-6 £1.44 £1.73
37 - PAN HD SCREW M6X20 2414B/NB MSP-911333-7.A3 911333-7 £1.44 £1.73
38 - TRIGGER RP910/1110C MSP-417254-6.A1 417254-6 £1.44 £1.73
39 - COMPRESSION SPRING 8 UH4570/5 MSP-233288-9.A0 233288-9 £4.99 £5.99
40 - LOCK OFF BUTTON RP910/1100C MSP-417255-4.A0 417255-4 £1.44 £1.73
42 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A77 911133-5 £1.44 £1.73
43 - COVER RP910/1100C MSP-417241-5 417241-5 £4.52 £5.43
44 - MOTOR BRACKET RP910/1100 MSP-152619-2.A1 152619-2 £41.98 £50.37
45 - SCALE PLATE RP910/1100C MSP-816792-9.A0 816792-9 £2.65 £3.18
46 - LABEL/MAKITA 500 4305HR160DW MSP-819063-3.A55 819063-3 £1.44 £1.73
47 - CARBON BRUSH CB-303 MT582 MSP-191963-2.A34 191963-2 -
48 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A37 643750-0 £1.44 £1.73
48-1 - HOLDER CAP 7-11 2107F/4131 MSP-643515-0.A2 643515-0 £1.44 £1.73
49 - KNOB COVER RP910/1100C/KP312 MSP-417249-9.A0 417249-9 £6.08 £7.30
50 - HEX HD SCREW M8X35 MSP-265479-4.A1 265479-4 £1.44 £1.73
51 - KNOB RP910/1100C MSP-417248-1.A1 417248-1 £6.40 £7.68
52 - LOCK PIN RP910/1100C MSP-323856-7.A1 323856-7 £1.44 £1.73
53 - COMPRESSION SPRING 12 3600B MSP-231231-2.A8 231231-2 £1.44 £1.73
54-1 - HALF NUT RP910/1110C MSP-153476-1.A2 153476-1 £8.89 £10.67
55 - PT SCREW 5X35 HR160D MSP-266012-5.A14 266012-5 £1.44 £1.73
56 - RETAINER RP910/1100C MSP-285701-3.A1 285701-3 £4.99 £5.99
57 - RETAINER COVER RP910/1100C MSP-317365-6.A1 317365-6 £12.32 £14.79
58 - COMPRESSION SPRING 8 BGA450 MSP-233072-2.A33 233072-2 £1.71 £2.05
59 - PUSH BUTTON RP910/1100C MSP-417253-8.A0 417253-8 £1.44 £1.73
60 - PIN 4 9520NB/9522NB/9526PB MSP-256437-1.A9 256437-1 £1.44 £1.73
61 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A78 911133-5 £1.44 £1.73
62A - COLLET CONE SET RP1100C MSP-193179-5.A1 193179-5 £21.18 £25.42
62A - COLLET NUT RP1100C MSP-763652-5.A3 763652-5 £2.40 £2.88
63 - DUST GUIDE CAP RP910/1100C MSP-417246-5.A1 417246-5 £1.44 £1.73
64 - DUST GUIDE RP910/1110C MSP-417245-7.A0 417245-7 £2.34 £2.81
65 - DUST GUIDE RP910/1110C MSP-417252-0.A2 417252-0 £2.34 £2.81
66 - COMPRESSION SPRING 11 RP1110 MSP-233286-3.A0 233286-3 £1.44 £1.73
67 - SHOULDER SCREW M4 LS1019/L MSP-265028-7.A8 265028-7 £1.44 £1.73
68 - LOCK LEVER RP910/1100C MSP-417257-0.A0 417257-0 £1.44 £1.73
69 - BASE RP910/1110C MSP-152617-6.A1 152617-6 £68.54 £82.25
70 - SELF LOCK 16 RP910/1110C MSP-259037-6.A1 259037-6 £1.44 £1.73
71 - BASE PLATE RP910/1110C MSP-413079-6.A0 413079-6 £6.71 £8.05
72 - COUNTERSUNK SCREW M4X10 RP090 MSP-912112-6.A28 912112-6 £1.44 £1.73
73 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A16 231240-1 £1.44 £1.73
74 - BRASS WINGSCREW M5X15 MSP-265740-9.A2 265740-9 £5.78 £6.93
74-1 - THUMB SCREW M5X14 BHR200S MSP-265720-5.A7 265720-5 £1.44 £1.73
75 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A6 931202-6 £1.44 £1.73
76 - HEX HD SCRWE M5X16 3620 MSP-265333-2.A5 265333-2 £1.49 £1.79
76-1 - SPARE PART MSP-265586-3.A5 265586-3 £1.44 £1.73
77 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A8 931202-6 £1.44 £1.73
78 - HEX HD SCREW M5X40 MSP-265336-6.A1 265336-6 £1.44 £1.73
78-1 - SPARE PART MSP-265587-1.A6 265587-1 £1.44 £1.73
79 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A31 213030-4 £1.44 £1.73
80 - SPECIAL HD SHOULDER SCREW M6 MSP-251467-7.A2 251467-7 £2.65 £3.18
81 - STOPPER RP910/1110C MSP-315931-3.A0 315931-3 £5.46 £6.55
82 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A7 931202-6 £1.44 £1.73
83 - HEX HD SCREW M5X28 MSP-265335-8.A4 265335-8 £1.44 £1.73
83-1 - SPARE PART MSP-265587-1.A7 265587-1 £1.44 £1.73
84 - COMPRESSION SPRING 5 RP0900/M MSP-231419-4.A6 231419-4 £1.44 £1.73
85 - STEEL BALL 7.1 6906/HR160DWH- MSP-216009-4.A4 216009-4 £1.44 £1.73
86 - COMPRESSION SPRING 5 RP0900/M MSP-231419-4.A5 231419-4 £1.44 £1.73
88 - COMPRESSION SPRING 8 UH4570/5 MSP-233288-9.A1 233288-9 £4.99 £5.99
89 - COMPRESSION SPRING 7 9526PB MSP-233127-3.A9 233127-3 £1.44 £1.73
90 - SPONGE SHEET RP1110C/8406/362 MSP-685722-9.A14 685722-9 £1.44 £1.73
A01 - NOZZLE ASSY RP910/1110C MSP-122609-9.A0 122609-9 £3.40 £4.08
A02 - STRAIGHT GUIDE MT361/RP0900 MSP-164834-6.A2 164834-6 £10.82 £12.99
A03 - DUST NOZZLE ASSY RP1110C MSP-122615-4.A1 122615-4 £5.25 £6.30
A04 - TEMPLET GUIDE 12 RP910/1110C MSP-344904-9.A1 344904-9 £2.08 £2.50
A05 - SPANNER 17 37B 63L 9505B/9217S MSP-781037-3.A2 781037-3 £2.48 £2.97
A06 - WRENCH 8 RP1110C/3600B/3612BR MSP-781213-9.A4 781213-9 £2.66 £3.19
A07 - BINDING HD SCREW M4X10 RP1110 MSP-915111-7.A1 915111-7 £1.44 £1.73
E01 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A245 654091-9 £1.44 £1.73
E03 - EARTH TERMINAL RP0910 MSP-654205-0.A0 654205-0 £1.44 £1.73
E04 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A4 654501-6 £1.44 £1.73
E05 - COLLET NUT RP1100C MSP-763652-5.A2 763652-5 £2.40 £2.88
E05 - COLLET CONE 8 SET RP1100C MSP-193178-7.A1 193178-7 £18.02 £21.63
