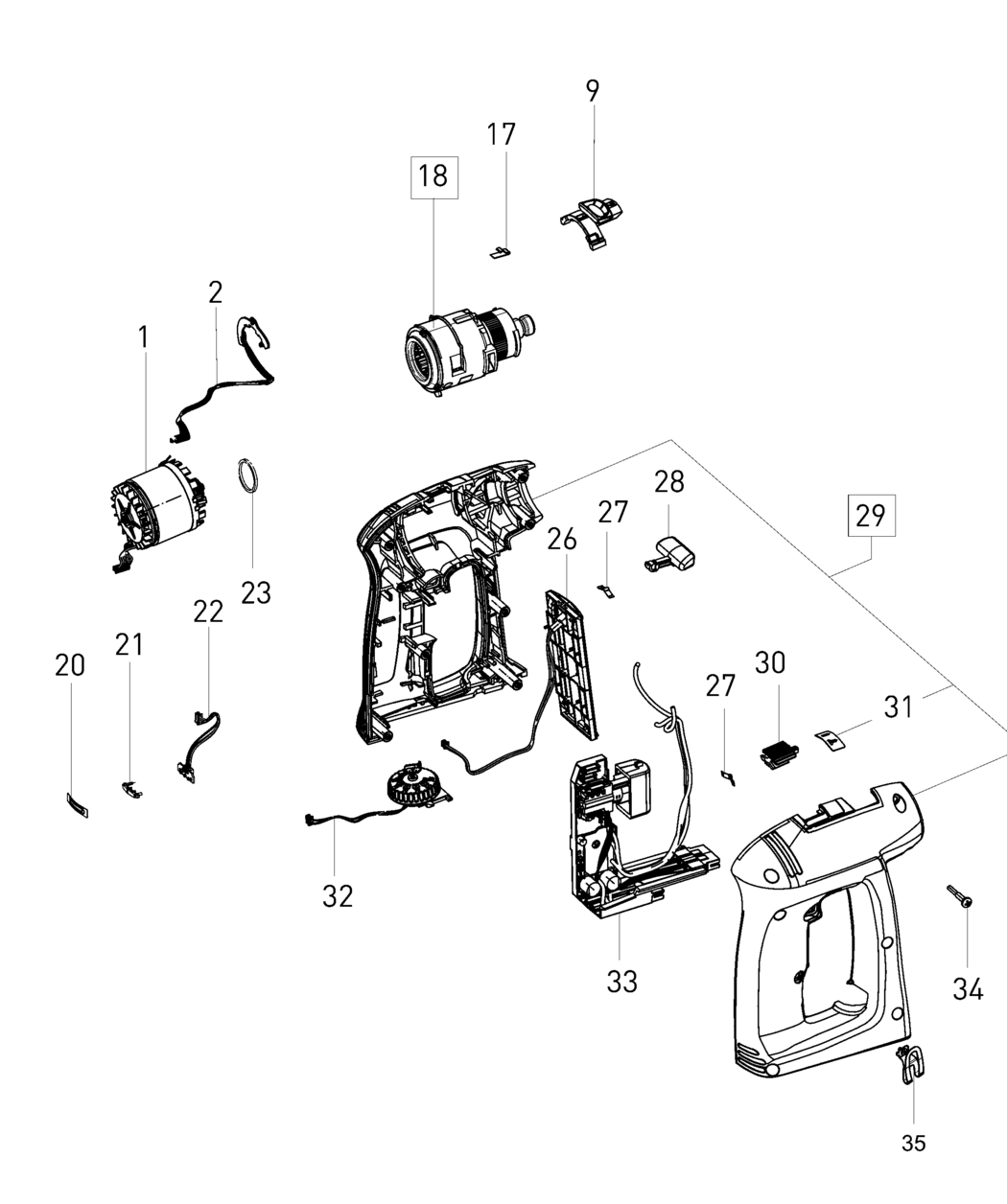

An exploded diagram and spare parts listing for the Festool C 18 Li / 10016329
Ex VAT Inc VAT
1 - MOTOR FSP-200143.A1 200143 £146.24 £175.49
2 - ELECTRONIC FSP-204985.A0 204985 £30.82 £36.98
3 - PLANET FSP-474681.A4 474681 £2.00 £2.40
4 - WASHER FSP-469888.A7 469888 £2.00 £2.40
5 - STUD FSP-494004.A11 494004 £5.68 £6.82
6 - PLANET FSP-457744.A9 457744 £2.00 £2.40
7 - STUD FSP-490459.A1 490459 £3.75 £4.50
8 - SWITCHING RING FSP-474913.A8 474913 £6.13 £7.36
9 - SLIDE FSP-494510.A0 494510 £6.50 £7.80
10 - PLANET FSP-457748.A6 457748 £2.00 £2.40
11 - STUD FSP-490460.A14 490460 £4.49 £5.39
12 - CIRCLIP FSP-206666.A4 206666 £2.00 £2.40
13 - STUD FSP-457751.A9 457751 £2.00 £2.40
14 - CYLINDER ROLLER FSP-457767.A4 457767 £2.00 £2.40
15 - COMPENSATING WASHER FSP-469816.A7 469816 £2.00 £2.40
16 - GEAR HOUSING FSP-495197.A6 495197 £38.80 £46.56
17 - SPRING FSP-466084.A12 466084 £2.00 £2.40
18 - GEAR FSP-10041074.A1 10041074 £72.35 £86.82
19 - CIRCLIP FSP-446416.A28 446416 £2.00 £2.40
20 - LABEL FSP-479814.A0 479814 £2.00 £2.40
21 - LENS FSP-702197.A1 702197 £2.00 £2.40
22 - ELECTRONIC FSP-204984.A2 204984 £22.96 £27.55
23 - SEALING RING FSP-469516.A9 469516 £2.00 £2.40
24 - RING GEAR T 18 FSP-479792.A4 479792 £9.22 £11.06
25 - SWITCHING CLIP FSP-457754.A8 457754 £2.00 £2.40
26 - INSERT FSP-496706.A0 496706 £26.01 £31.21
27 - PLATE SPRING FSP-457753.A12 457753 £2.00 £2.40
28 - DESPATCHER FSP-496707.A4 496707 £4.18 £5.02
29 - HOUSING FSP-200144.A0 200144 £38.92 £46.71
30 - SLIDE FSP-494511.A13 494511 £4.08 £4.90
31 - STICKER FSP-472017.A6 472017 £2.00 £2.40
32 - THUMBWHEEL FSP-497105.A4 497105 £37.00 £44.40
33 - ELECTRONIC FSP-200000.A0 200000 £104.41 £125.29
34 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A8 400174 £2.00 £2.40
35 - CLIP FSP-10026021.A4 10026021 £9.04 £10.85
