Makita AC310H Air Compressor Spare Parts

Home Details Reviews Delivery

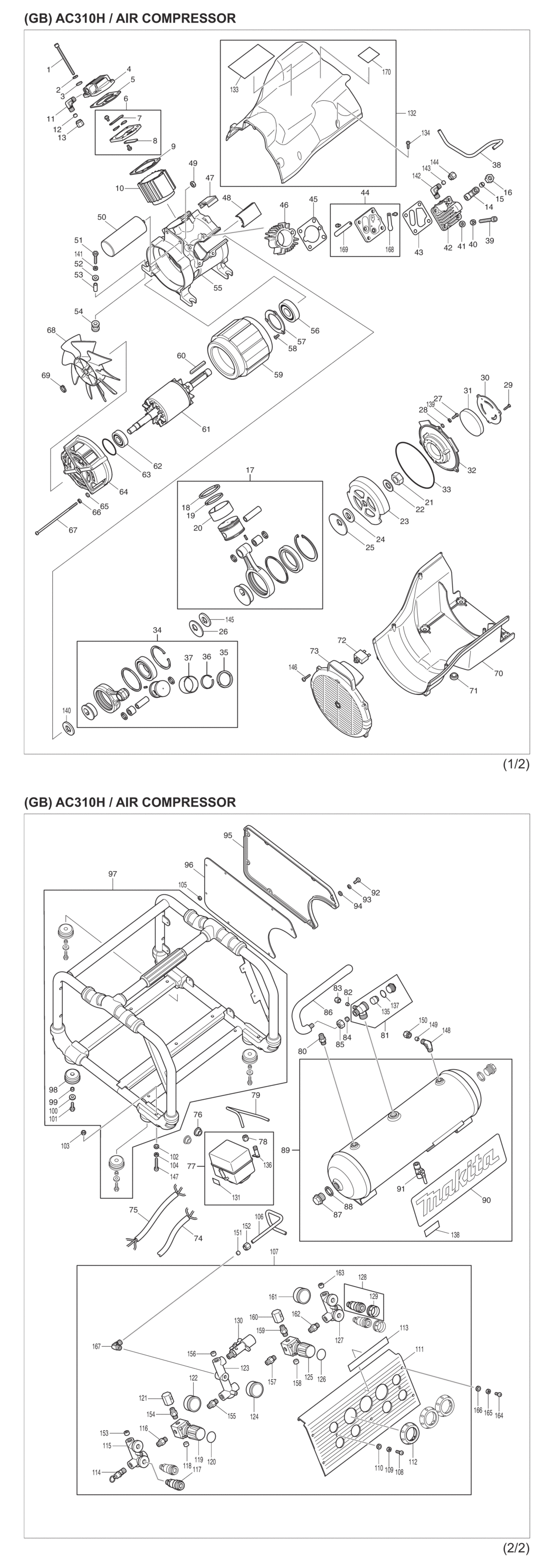

An exploded drawing and spare parts listing for the Makita AC310H Air Compressor

	Ex VAT	Inc VAT
1 - HEX SOCKET HD BOLT M6X90 AC31 MSP-HY00000213 HY00000213	£1.44	£1.73
2 - SPRING WASHER 6 AC310H MSP-HY00000214.A0 HY00000214	£1.44	£1.73
3 - FLAT WASHER 6 AC310H MSP-HY00000215.A1 HY00000215	£1.44	£1.73
4 - CYLINDER HEAD L AC310H MSP-HY00000216 HY00000216	£9.20	£11.04
5 - HEAD GASKET L AC310H MSP-HY00000217 HY00000217	£1.44	£1.73
6 - VALVE PLATE L AC310H MSP-HY00000218 HY00000218	£12.32	£14.79
7 - OUTLET VALVE AC310H MSP-HY00000219.A0 HY00000219	£2.18	£2.62
8 - INLET VALVE AC310H MSP-HY00000220.A1 HY00000220	£2.34	£2.81
9 - CYLINDER GASKET R AC310H MSP-HY00000221 HY00000221	£1.44	£1.73
10 - CYLINDER L 50HZ AC310H MSP-HY00000223 HY00000223	£13.88	£16.66
11 - ELBOW 8-R1/4 AC310H MSP-HY00000224.A0 HY00000224	£4.68	£5.62
12 - RING 8 AC310H MSP-HY00000225.A3 HY00000225	£1.44	£1.73
13 - RING NUT 8 AC310H MSP-HY00000226.A0 HY00000226	£1.44	£1.73
14 - ELBOW 10-R3/8 AC310H MSP-HY00000227 HY00000227	£5.15	£6.18
15 - RING 10 AC310H MSP-HY00000228.A0 HY00000228	£1.44	£1.73
16 - RING NUT 10 AC310H MSP-HY00000229.A1 HY00000229	£1.44	£1.73
17 - CONNECTING ROD L ASSY AC310H MSP-HY00000230 HY00000230	£124.23	£149.08
18 - SHEET RING L AC310H MSP-HY00000231 HY00000231	£37.44	£44.93
19 - LEAF SPRING R AC310H MSP-HY00000232 HY00000232	£1.44	£1.73
20 - WEARING L AC310H MSP-HY00000233 HY00000233	£19.58	£23.50
21 - HEX NUT M18 AC310H MSP-HY00000234 HY00000234	£1.44	£1.73
22 - COMPRESSION SPRING 18 AC310H MSP-HY00000235 HY00000235	£1.44	£1.73
23 - BALANCER 50HZ AC310H MSP-HY00000237 HY00000237	£11.86	£14.23
24 - SPACER AC310H MSP-HY00000238.A0 HY00000238	£1.44	£1.73
25 - CRANK SPACER L AC310H MSP-HY00000239 HY00000239	£2.34	£2.81
26 - CRANK SPACER H AC310H MSP-HY00000240 HY00000240	£1.44	£1.73
27 - PAN HD SCREW M5X16 AC310H MSP-HY00000241.A0 HY00000241	£1.44	£1.73
28 - FLAT WASHER 5 AC310H MSP-HY00000242.A4 HY00000242	£1.44	£1.73
29 - TAPPING SCREW 4X18 AC310H MSP-HY00000243.A0 HY00000243	£1.44	£1.73
30 - FILTER COVER AC310H MSP-HY00000244 HY00000244	£1.44	£1.73
31 - FILTER AC310H MSP-HY00000245 HY00000245	£1.44	£1.73
32 - CRANK CASE COVER AC310H MSP-HY00000246 HY00000246	£4.83	£5.80
33 - O RING 147 AC310H MSP-HY00000247 HY00000247	£1.44	£1.73
34 - CONNECTING ROD H ASSY AC310H MSP-HY00000248 HY00000248	£100.04	£120.05
35 - SHEET RING H AC310H MSP-HY00000249 HY00000249	£34.99	£41.99
36 - LEAF SPRING H AC310H MSP-HY00000250 HY00000250	£1.44	£1.73
37 - WEARING H AC310H MSP-HY00000251 HY00000251	£19.58	£23.50
38 - PIPE 8 AC310H MSP-HY00000252 HY00000252	£5.62	£6.74
39 - HEX SOCKET HD BOLT M8X70 AC31 MSP-HY00000253 HY00000253	£1.44	£1.73
40 - FLAT WASHER 8 AC310H MSP-HY00000254 HY00000254	£1.44	£1.73
41 - SPRING WASHER 8 AC310H MSP-HY00000255 HY00000255	£1.44	£1.73
42 - CYLINDER HEAD H AC310H MSP-HY00000256 HY00000256	£8.42	£10.11
43 - HEAD GASKET H AC310H MSP-HY00000257 HY00000257	£1.44	£1.73
44 - VALVE PLATE H AC310H MSP-HY00000258 HY00000258	£12.01	£14.41
45 - CYLINDER GASKET H AC310H MSP-HY00000259 HY00000259	£1.44	£1.73
46 - CYLINDER H 50HZ AC310H MSP-HY00000261 HY00000261	£9.98	£11.98
47 - STAFFING L AC310H MSP-HY00000262 HY00000262	£1.44	£1.73
48 - STAFFING H AC310H MSP-HY00000263 HY00000263	£1.44	£1.73
49 - HEX NUT M8 AC310H MSP-HY00000264 HY00000264	£1.44	£1.73
50 - CAPACITOR RUN ASSY AC310H MSP-HY00000266 HY00000266	£14.98	£17.97
51 - HEX SOCKET HD BOLT M6X40 AC31 MSP-HY00000267.A0 HY00000267	£1.44	£1.73
52 - FLAT WASHER 6 AC310H MSP-HY00000268 HY00000268	£1.44	£1.73
53 - SLEEVE 6 AC310H MSP-HY00000269 HY00000269	£1.44	£1.73
54 - CUSHION AC310H MSP-HY00000270 HY00000270	£1.44	£1.73
55 - CRANK CASE AC310H MSP-HY00000271 HY00000271	£52.28	£62.73
56 - BALL BEARING 6305LLB AH310H MSP-HY00000272 HY00000272	£15.44	£18.53
57 - BEARING RETAINER AC310H MSP-HY00000273 HY00000273	£1.44	£1.73
58 - COUNTERSUNK HD SCREW M5X12 AC MSP-HY00000274 HY00000274	£1.44	£1.73
59 - STATOR AC310H MSP-HY00000276 HY00000276	£172.80	£207.36
60 - KEY 6 AC310H MSP-HY00000277 HY00000277	£1.44	£1.73
61 - ROTOR AC310H MSP-HY00000278 HY00000278	£108.61	£130.33
62 - BALL BEARING 6303LLB AH310H MSP-HY00000279 HY00000279	£9.82	£11.79
63 - O RING 49 AC310H MSP-HY00000280 HY00000280	£1.44	£1.73
64 - REAR BRACKET AC310H MSP-HY00000281 HY00000281	£15.44	£18.53
65 - FLAT WASHER 5 AC310H MSP-HY00000242.A2 HY00000242	£1.44	£1.73
66 - SPRING WASHER 5 AC310H MSP-HY00000282.A0 HY00000282	£1.44	£1.73
67 - HEX BOLT M5X146 AC310H MSP-HY00000283 HY00000283	£1.44	£1.73
68 - FAN 195 AC310H MSP-HY00000284 HY00000284	£3.90	£4.68
69 - RETAINING RING 14 AC310H MSP-HY00000285 HY00000285	£1.44	£1.73
70 - MOTOR COVER B AC310H MSP-HY00000286 HY00000286	£19.58	£23.50
71 - BUSHING AC310H MSP-HY00000287 HY00000287	£1.44	£1.73
72 - THERMAL CIRCUIT BREAKER AC310 MSP-HY00000289 HY00000289	£4.06	£4.87
73 - MOTOR COVER C AC310H MSP-HY00000290 HY00000290	£7.64	£9.17
74 - POWER SUPPLY CORD AC310H MSP-HY00000293 HY00000293	£13.58	£16.29
75 - CORD AC310H MSP-HY00000295 HY00000295	£2.81	£3.37
76 - CORD CLAMP AC310H MSP-HY00000297 HY00000297	£1.44	£1.73
77 - SWITCH ASSY AC310H MSP-HY00000299 HY00000299	£141.48	£169.78
78 - RING NUT 6 AC310H MSP-HY00000300 HY00000300	£1.44	£1.73
79 - PIPE 6 AC310H MSP-HY00000301 HY00000301	£4.21	£5.05
80 - BARREL NIPPLE R1/4-25 AC310H MSP-HY00000302 HY00000302	£1.44	£1.73
81 - CHECK VALVE AC310H MSP-HY00000303 HY00000303	£11.23	£13.48
82 - RING 6 AC310H MSP-HY00000304 HY00000304	£1.44	£1.73
83 - RING NUT 6 AC310H MSP-HY00000305 HY00000305	£1.44	£1.73
84 - RING 10 AC310H MSP-HY00000228.A1 HY00000228	£1.44	£1.73
85 - RING NUT 10 AC310H MSP-HY00000229.A0 HY00000229	£1.44	£1.73
86 - PIPE 10 AC310H MSP-HY00000306 HY00000306	£12.79	£15.35
87 - PLUG 1/2 AC310H MSP-HY00000307 HY00000307	£1.44	£1.73
88 - RUBBER SEAL 20 AC310H MSP-HY00000308 HY00000308	£1.44	£1.73
89 - TANK AC310H MSP-HY00000310 HY00000310	£1124.04	£1348.85
90 - LABEL/INDICATION AC310H MSP-HY00000311 HY00000311	£1.44	£1.73
91 - DRAIN SOCKET AC310H MSP-HY00000312 HY00000312	£5.92	£7.11
92 - PAN HD SCREW M5X10 AC310H MSP-HY00000313.A0 HY00000313	£1.44	£1.73
93 - SPRING WASHER 5 AC310H MSP-HY00000282.A2 HY00000282	£1.44	£1.73
94 - FLAT WASHER 5 AC310H MSP-HY00000242.A1 HY00000242	£1.44	£1.73
95 - SIDE PANEL COVER AC310H MSP-HY00000314 HY00000314	£3.74	£4.49
96 - SIDE PANEL AC310H MSP-HY00000315 HY00000315	£12.95	£15.54
97 - FRAME AC310H MSP-HY00000316 HY00000316	£140.04	£168.05
98 - FOOT AC310H MSP-HY00000317 HY00000317	£1.44	£1.73
99 - SLEEVE 6 AC310H MSP-HY00000318 HY00000318	£1.44	£1.73
100 - FLAT WASHER 6 AC310H MSP-HY00000319 HY00000319	£1.44	£1.73
101 - HEX SOCKET HD BOLT M6X12 AC31 MSP-HY00000320 HY00000320	£1.44	£1.73
102 - FLAT WASHER 6 AC310H MSP-HY00000215.A0 HY00000215	£1.44	£1.73
103 - HEX NUT M6 AC310H MSP-HY00000321 HY00000321	£1.44	£1.73
104 - SPRING WASHER 6 AC310H MSP-HY00000214.A1 HY00000214	£1.44	£1.73
105 - HEX NUT M5 AC310H MSP-HY00000322 HY00000322	£1.44	£1.73
106 - PIPE 8 AC310H MSP-HY00000323 HY00000323	£7.02	£8.42
107 - FRONT PANEL ASSY RC1/4 AC310H MSP-HY00000325 HY00000325	£175.44	£210.53
108 - PAN HD SCREW M5X16 AC310H MSP-HY00000241.A1 HY00000241	£1.44	£1.73
109 - SPRING WASHER 5 AC310H MSP-HY00000282.A1 HY00000282	£1.44	£1.73
110 - FLAT WASHER 5 AC310H MSP-HY00000242.A0 HY00000242	£1.44	£1.73
111 - FRONT PANEL AC310H MSP-HY00000327 HY00000327	£17.86	£21.43
112 - GAUGE COVER AC310H MSP-HY00000328 HY00000328	£1.44	£1.73
113 - LABEL/INDICATION AC310H MSP-HY00000329 HY00000329	£1.44	£1.73
114 - SAFETY VALVE 10 AC310H MSP-HY00000331 HY00000331	£6.08	£7.30
115 - MANIFOLD L RC1/4 AC310H MSP-HY00000333 HY00000333	£12.79	£15.35
116 - BARREL NIPPLE R1/4-30 AC310H MSP-HY00000336.A0 HY00000336	£2.34	£2.81
117 - QUICK COUPLER L R1/4 AC310H MSP-HY00000338 HY00000338	£7.18	£8.61
118 - TAPER SCREW PLUG R1/4 AC310C MSP-HY00000340.A0 HY00000340	£1.44	£1.73
119 - REGULATOR L AC310H MSP-HY00000341 HY00000341	£43.60	£52.32
120 - LABEL/INDICATION AC310H MSP-HY00000342 HY00000342	£1.44	£1.73
121 - PRESSURE GAUGE JOINT AC310H MSP-HY00000343.A0 HY00000343	£2.34	£2.81
122 - PRESSURE GAUGE L AC310H MSP-HY00000344 HY00000344	£7.80	£9.36
123 - MANIFOLD A RC1/4 AC310H MSP-HY00000346 HY00000346	£12.95	£15.54
124 - PRESSURE GAUGE H AC310H MSP-HY00000347.A0 HY00000347	£7.80	£9.36
125 - REGULATOR H AC310H MSP-HY00000348 HY00000348	£43.60	£52.32
126 - LABEL/INDICATION AC310H MSP-HY00000349 HY00000349	£1.44	£1.73
127 - MANIFOLD H AC310H MSP-HY00000350 HY00000350	£12.79	£15.35
128 - QUICK COUPLER H R1/4 L AC310H MSP-HY00000351 HY00000351	£12.17	£14.60
129 - RUBBER SLEEVE AC310H MSP-HY00000352 HY00000352	£1.44	£1.73
130 - SAFETY VALVE 30 AC310H MSP-HY00000354 HY00000354	£191.76	£230.11
131 - LABEL/INDICATION AC310H MSP-HY00000355 HY00000355	£1.44	£1.73
132 - MOTOR COVER A AC310H MSP-HY00000357 HY00000357	£15.26	£18.31
133 - LABEL/CAUTION AC310H MSP-HY00000360 HY00000360	£1.44	£1.73
134 - TAPPING SCREW 4X18 AC310H MSP-HY00000243.A2 HY00000243	£1.44	£1.73
135 - CHECK VALVE AC310H MSP-HY00000361 HY00000361	£1.44	£1.73
136 - UNLOADING VALVE AC310H MSP-HY00000362 HY00000362	£12.17	£14.60
137 - O RING 17 AC310H MSP-HY00000363 HY00000363	£1.44	£1.73
139 - SPRING WASHER 5 AC310H MSP-HY00000282.A3 HY00000282	£1.44	£1.73
140 - SPACER AC310H MSP-HY00000238.A2 HY00000238	£1.44	£1.73
141 - SPRING WASHER 6 AC310H MSP-HY00000214.A2 HY00000214	£1.44	£1.73
142 - ELBOW 8-R1/4 AC310H MSP-HY00000224.A3 HY00000224	£4.68	£5.62
143 - RING 8 AC310H MSP-HY00000225.A0 HY00000225	£1.44	£1.73
144 - RING NUT 8 AC310H MSP-HY00000226.A3 HY00000226	£1.44	£1.73
145 - SPACER AC310H MSP-HY00000238.A1 HY00000238	£1.44	£1.73
146 - TAPPING SCREW 4X18 AC310H MSP-HY00000243.A1 HY00000243	£1.44	£1.73
147 - HEX SOCKET HD BOLT M6X40 AC31 MSP-HY00000267.A1 HY00000267	£1.44	£1.73
148 - ELBOW 8-R1/4 AC310H MSP-HY00000224.A2 HY00000224	£4.68	£5.62
149 - RING 8 AC310H MSP-HY00000225.A1 HY00000225	£1.44	£1.73
150 - RING NUT 8 AC310H MSP-HY00000226.A2 HY00000226	£1.44	£1.73
151 - RING 8 AC310H MSP-HY00000225.A2 HY00000225	£1.44	£1.73
152 - RING NUT 8 AC310H MSP-HY00000226.A1 HY00000226	£1.44	£1.73
153 - TAPER SCREW PLUG R1/4 AC310C MSP-HY00000340.A3 HY00000340	£1.44	£1.73
154 - BARREL NIPPLE R1/4-30 AC310H MSP-HY00000336.A4 HY00000336	£2.34	£2.81
155 - BARREL NIPPLE R1/4-30 AC310H MSP-HY00000336.A5 HY00000336	£2.34	£2.81
156 - TAPER SCREW PLUG R1/4 AC310C MSP-HY00000340.A1 HY00000340	£1.44	£1.73
157 - BARREL NIPPLE R1/4-30 AC310H MSP-HY00000336.A3 HY00000336	£2.34	£2.81
158 - TAPER SCREW PLUG R1/4 AC310C MSP-HY00000340.A2 HY00000340	£1.44	£1.73
159 - BARREL NIPPLE R1/4-30 AC310H MSP-HY00000336.A1 HY00000336	£2.34	£2.81
160 - PRESSURE GAUGE JOINT AC310H MSP-HY00000343.A1 HY00000343	£2.34	£2.81
161 - PRESSURE GAUGE H AC310H MSP-HY00000347.A1 HY00000347	£7.80	£9.36
162 - BARREL NIPPLE R1/4-30 AC310H MSP-HY00000336.A2 HY00000336	£2.34	£2.81
163 - TAPER SCREW PLUG R1/4 AC310C MSP-HY00000340.A4 HY00000340	£1.44	£1.73
164 - PAN HD SCREW M5X10 AC310H MSP-HY00000313.A1 HY00000313	£1.44	£1.73
165 - SPRING WASHER 5 AC310H MSP-HY00000282.A4 HY00000282	£1.44	£1.73
166 - FLAT WASHER 5 AC310H MSP-HY00000242.A3 HY00000242	£1.44	£1.73
167 - ELBOW 8-R1/4 AC310H MSP-HY00000224.A1 HY00000224	£4.68	£5.62
168 - OUTLET VALVE AC310H MSP-HY00000219.A1 HY00000219	£2.18	£2.62
169 - INLET VALVE AC310H MSP-HY00000220.A0 HY00000220	£2.34	£2.81
172 - CASTER ASSY AC310H MSP-HY00000366 HY00000366	£63.62	£76.35
172 - CASTER AC310H MSP-HY00000369 HY00000369	£34.28	£41.13

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita AC310H Air Compressor Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Makita AC310H Air Compressor Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Makita AC310H Air Compressor Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
