Makita AN610H Construction Coil Nailer Spare Parts

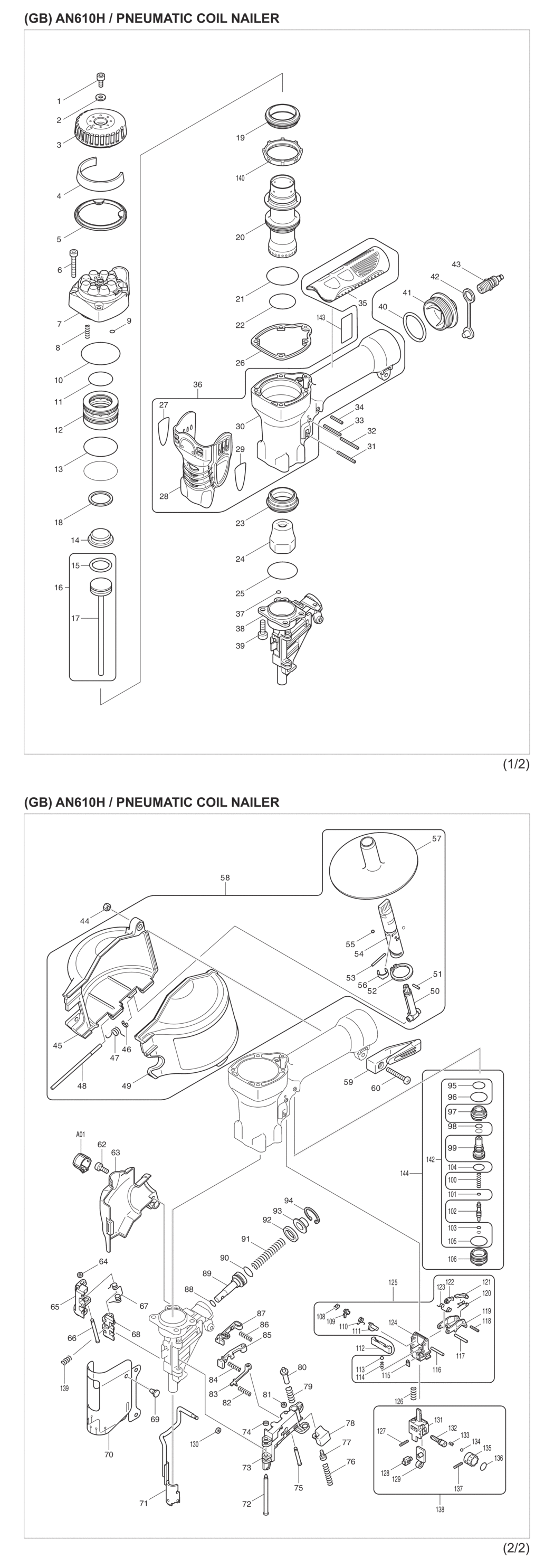

An exploded drawing and spare parts listing for the Makita AN610H Construction Coil Nailer

	Ex VAT	Inc VAT
1 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A12 922212-4	£1.44	£1.73
2 - FLAT WASHER 5 AN510/610/620/7 MSP-267343-5.A0 267343-5	£1.44	£1.73
3-1 - EXHAUST COVER AN610/620H MSP-453875-0.A0 453875-0	£4.06	£4.87
4 - FILTER AN610/620H MSP-413103-5.A1 413103-5	£17.86	£21.43
5 - COVER SEAL AN610/620H MSP-419735-6.A1 419735-6	£3.74	£4.49
6 - HEX SOCKET HEAD BOLT AN610/62 MSP-922257-2.A0 922257-2	£1.44	£1.73
7 - TOP CAP AN620 MSP-318109-7.A1 318109-7	£121.22	£145.46
8 - COMPRESSION SPRING 3 AN610/62 MSP-233484-9.A3 233484-9	£2.50	£3.00
9 - O RING 5 BTM40/50/620/711/DLS MSP-213021-5.A16 213021-5	£1.44	£1.73
10 - O RING 50 HR2210/6915DW/HR451 MSP-213604-1.A8 213604-1	£2.18	£2.62
11-1 - O RING 30 SG1250/2702/SG1251J MSP-213423-5.A4 213423-5	£1.44	£1.73
12 - HEAD VALVE AN610H/620H MSP-419736-4.A0 419736-4	£53.07	£63.68
13 - O RING 42 AN620/AN635H/AR411HR MSP-213558-2.A0 213558-2	£1.44	£1.73
14 - REAR CUSHION AN620 MSP-421983-5.A1 421983-5	£25.20	£30.24
15 - O-RING 22.5 AN620/AN635H MSP-213967-5.A0 213967-5	£10.77	£12.92
16 - DRIVER ASSY AN610H MSP-135235-5 135235-5	£221.76	£266.11
17 - DRIVER AN610H MSP-168500-7 168500-7	£215.04	£258.05
18 - FLAT WASHER 26 AN610/620H MSP-267342-7.A1 267342-7	£1.44	£1.73
19 - VALVE SEAT AN620 MSP-421981-9.A1 421981-9	£15.75	£18.90
20-1 - CYLINDER AN610/620H MSP-326758-6.A1 326758-6	£34.70	£41.64
21 - O-RING 40 AN620/AN635H/AR411HR MSP-213509-5.A4 213509-5	£1.44	£1.73
22 - O RING 34 AN620 MSP-213475-6.A1 213475-6	£1.44	£1.73
23 - CYLINDER GUIDE AN610/620H MSP-324742-5.A1 324742-5	£51.61	£61.93
24 - FRONT CUSHION AN610/620H MSP-421982-7.A0 421982-7	£21.89	£26.27
25 - O-RING 38 AN620/AN635H MSP-213528-1.A0 213528-1	£1.44	£1.73
26 - TOP CAP GASKET AN620 MSP-162246-7.A0 162246-7	£9.36	£11.23
27 - LABEL/MAKITA LOGO R AN620 MSP-819321-7.A0 819321-7	£2.34	£2.81
29 - LABEL/MAKITA LOGO L AN620 MSP-819322-5.A1 819322-5	£2.34	£2.81
31 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A6 951078-5	£1.44	£1.73
32 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A13 951078-5	£1.44	£1.73
33 - SPRING PIN 3-30 AN620 MSP-258029-2.A1 258029-2	£1.44	£1.73
36 - LABEL/INDICATION AN51061062 MSP-816919-1.A1 816919-1	£1.44	£1.73
36 - HOUSING SET AN610/620H MSP-188604-9.A0 188604-9	£278.88	£334.66
37 - O-RING 4 AN620/AN635H MSP-213970-6.A0 213970-6	£1.44	£1.73
38 - DRIVER GUIDE AN610H MSP-310250-2 310250-2	£186.36	£223.63
39 - H S HD BOLT M6X20/1219&L MSP-922332-4.A5 922332-4	£1.44	£1.73
40-1 - O RING 36 AN510/620/711 MSP-213506-1.A0 213506-1	£1.44	£1.73
41 - INLET CAP AN510/610/711/911H MSP-318108-9.A1 318108-9	£35.86	£43.03
42 - CAP 9 AN510/610/711/911/AN635H MSP-286280-4.A5 286280-4	£2.34	£2.81
43 - 1 TOUCH JOINT H22PM AN510/711 MSP-243105-5.A6 243105-5	£29.38	£35.25
44 - HEX ROCK NUT M5-8 AN610/620H MSP-264008-0.A2 264008-0	£1.44	£1.73
46 - STOP RING E-3 AN510/711/AN635H MSP-259042-3.A3 259042-3	£1.44	£1.73
47 - TORSION SPRING 8 AN610H/AN635H MSP-233504-9.A2 233504-9	£2.34	£2.81
48 - PIN 4 AN620/711/AN635H MSP-256773-5.A3 256773-5	£4.99	£5.99
49 - LABEL/MAGAZINE AN610H MSP-808231-3 808231-3	£26.92	£32.31
49 - MAGAZINE CAP AN610H MSP-158936-8 158936-8	£41.98	£50.37
50 - ADJUST SHAFT AN610H/AN620 MSP-419747-9.A1 419747-9	£2.18	£2.62
51 - PIN 2.5 AN620/AN635H MSP-268166-4.A1 268166-4	£1.44	£1.73
52 - EXT DIN 471 CIRCLIP-25/AN635H MSP-961105-0.A3 961105-0	£1.44	£1.73
53 - PIN 2.5 AN510/620/AN635H MSP-268167-2.A1 268167-2	£1.44	£1.73
54 - ADJUST SLEEVE AN610H/AN620 MSP-419746-1.A0 419746-1	£3.59	£4.31
55 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A189 216001-0	£1.59	£1.91
56 - LEAF SPRING AN610H/620/AN635H MSP-232233-1.A0 232233-1	£1.44	£1.73
57 - CHANGE PLATE AN610/620H/AN635H MSP-419745-3.A0 419745-3	£3.90	£4.68
59 - HOOK AN610H/620H MSP-419739-8.A0 419739-8	£5.62	£6.74
60-1 - PAN HD SCREW M5X35 W/CP WASHE MSP-911258-5.A2 911258-5	£1.44	£1.73
62 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A40 922212-4	£1.44	£1.73
63 - CONTACT ARM COVER AN610H MSP-450828-0 450828-0	£4.83	£5.80
64 - URETHANE RING 3 AN942/6837 MSP-262054-7.A16 262054-7	£1.44	£1.73
65 - FEEDING CLAW F AN610H MSP-310046-1.A1 310046-1	£43.60	£52.32
66 - PIN 4 AN942/AR411HR MSP-268027-8.A3 268027-8	£2.34	£2.81
67 - TORSION SPRING 6 AN620/AN635H MSP-231632-4.A1 231632-4	£5.46	£6.55
68 - FEEDING CLAW R AN610H MSP-310186-5 310186-5	£29.38	£35.25
69 - RUBBER PIN 9.5 AN510/620/711 MSP-421418-6.A3 421418-6	£1.44	£1.73
70 - COVER AN610H MSP-413127-1 413127-1	£8.73	£10.48
71 - CONTACT ARM AN610H MSP-165542-2 165542-2	£68.54	£82.25
72 - PIN 5 AN621 MSP-268025-2.A0 268025-2	£4.06	£4.87
73 - DOOR AN610H MSP-310182-3 310182-3	£44.88	£53.86
74 - URETHANE RING 3 AN942/6837 MSP-262054-7.A17 262054-7	£1.44	£1.73
75 - PIN 4 AN610H MSP-268024-4.A0 268024-4	£3.74	£4.49
76 - COMPRESSION SPRING 5 AN610H MSP-233204-1.A1 233204-1	£1.44	£1.73
77 - HEX SOCKET HD BOLT M4X10 AN9 MSP-266167-6.A1 266167-6	£1.44	£1.73
78 - LOCK LEVER AN901 MSP-310050-0.A1 310050-0	£14.67	£17.60
79 - COMPRESSION SPRING 6 AN901 MSP-233201-7.A1 233201-7	£1.44	£1.73
80 - LOCK PIN AN610H MSP-323713-9.A0 323713-9	£3.90	£4.68
81 - URETHANE RING 3 AN942/6837 MSP-262054-7.A15 262054-7	£1.44	£1.73
82 - COMPRESSON SPRING 4 4304/DUX60 MSP-233101-1.A4 233101-1	£1.44	£1.73
83 - CHECK CLAW AN610H MSP-345758-7 345758-7	£5.92	£7.11
84 - COMPRESSON SPRING 4 4304/DUX60 MSP-233101-1.A2 233101-1	£1.44	£1.73
85 - NAIL HOLDER AN610H MSP-310179-2.A0 310179-2	£11.08	£13.29
86 - COMPRESSON SPRING 4 4304/DUX60 MSP-233101-1.A3 233101-1	£1.44	£1.73
87 - ARM AN610H MSP-310184-9.A0 310184-9	£10.77	£12.92
88 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A4 213054-0	£1.44	£1.73
89 - PISTON AN610H MSP-324962-1 324962-1	£10.30	£12.36
90 - O RING 14 AN510/620/711 8406C MSP-213154-6.A6 213154-6	£1.44	£1.73
91 - COMPRESSION SPRING 9 AN620/62 MSP-233198-0.A3 233198-0	£1.44	£1.73
92 - RUBBER RING 16 AN620/AN635H MSP-262075-9.A0 262075-9	£1.44	£1.73
93 - CUP WASHER 5 AN610/620H/AN635H MSP-344452-8.A2 344452-8	£6.55	£7.86
94 - RETAINING RING R-24 AN620 MSP-962103-7.A2 962103-7	£1.44	£1.73
95 - O-RING 15 AN510/620/711/AN635H MSP-213233-0.A6 213233-0	£1.44	£1.73
96 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A16 213275-4	£1.44	£1.73
97 - TRIGGER VALVE GUIDE AN510/620 MSP-419732-2.A2 419732-2	£51.61	£61.93
98 - O-RING 7 AN510/620/711/AN635H MSP-213968-3.A1 213968-3	£2.65	£3.18
100 - COMPRESSION SPRING 4 AN510/61 MSP-233485-7.A2 233485-7	£2.65	£3.18
101 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A9 213034-6	£1.44	£1.73
101-1 - O RING 3 AN942/AN635H MSP-213044-3.A8 213044-3	£1.44	£1.73
102-1 - TRIGGER BULB STEM AN910 ETC MSP-326189-9.A1 326189-9	£8.11	£9.73
103-1 - O RING 3 AN942/AN635H/AR411HR MSP-213640-7.A0 213640-7	£4.37	£5.24
103 - O-RING 3 AN510/620/711/AN635H MSP-213979-8.A6 213979-8	£2.34	£2.81
104 - O-RING 12.5 AN510/620/711 MSP-213185-5.A5 213185-5	£1.44	£1.73
105 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A17 213275-4	£1.44	£1.73
106 - TRIGGER VALVE CASE AN510/620 MSP-331741-0.A3 331741-0	£17.86	£21.43
108 - TORSION SPRING 5 AN510/711 MSP-233501-5.A1 233501-5	£1.44	£1.73
109 - STOPPER PLATE AN510/620/711 MSP-310199-6.A3 310199-6	£7.49	£8.99
110 - TORSION SPRING 6 AR411HR MSP-233502-3.A4 233502-3	£1.44	£1.73
111-1 - LEVER AN510/620/711/AR411HR MSP-310310-0.A3 310310-0	£7.64	£9.17
112 - CHANGE ROD AN510/610/620/711/ MSP-310293-4.A1 310293-4	£18.72	£22.46
113 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A36 216024-8	£1.44	£1.73
113-1 - LOCK PIN AN911H/AR411HR MSP-326144-1.A0 326144-1	£2.50	£3.00
114 - COMPRESSION SPRING 2 AN510/61 MSP-233490-4.A0 233490-4	£1.44	£1.73
115 - SPRING COVER AN510/620/711 MSP-419743-7.A3 419743-7	£1.44	£1.73
116 - PIN 3 AN510/620/711/AR411HR MSP-268168-0.A3 268168-0	£1.44	£1.73
117 - PIN 3 AN510/620/711/AR411HR MSP-268168-0.A12 268168-0	£1.44	£1.73
118 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A8 951007-8	£1.44	£1.73
119 - TRIGGER AN510/620/711 MSP-310294-2.A4 310294-2	£33.41	£40.09
120 - TORSION SPRING 4 AN510/620/71 MSP-231699-2.A2 231699-2	£1.44	£1.73
121 - TRIP LEVER AN510/620/711 MSP-310196-2.A3 310196-2	£8.27	£9.92
122 - LEVER AN510/610/620/711/911 MSP-310198-8.A2 310198-8	£7.49	£8.99
123 - TORSION SPRING 7 AN510/711 MSP-233503-1.A1 233503-1	£3.28	£3.93
124 - TRIGGER BASE AN510/620/711 MSP-419844-1.A5 419844-1	£6.55	£7.86
125-1 - TRIGGER ASSY AN911H MSP-135494-1.A4 135494-1	£72.82	£87.39
126 - COMPRESSION SPRING 6 AN610/62 MSP-233489-9.A3 233489-9	£1.44	£1.73
127 - SPRING PIN 2 14 AG125 MSP-951010-9.A4 951010-9	£1.44	£1.73
128 - ADJUSTER PIECE AN510/610/620/ MSP-310201-5.A2 310201-5	£7.49	£8.99
129 - SLIDE PLATE AN510/620/711 MSP-345775-7.A2 345775-7	£3.74	£4.49
130 - URETHANE RING 3 AN510/711 MSP-262120-0.A0 262120-0	£1.44	£1.73
131 - UPPER YOKE AN510/620/AR411HR MSP-310234-0.A0 310234-0	£43.30	£51.96
132 - ADJUSTER SHAFT AN510/610/620/ MSP-324745-9.A3 324745-9	£2.65	£3.18
133 - COMPRESSION SPRING 2 AN510/61 MSP-233491-2.A8 233491-2	£1.44	£1.73
134 - STEEL BALL 2.3 AN610H/DUP361 MSP-216031-1.A8 216031-1	£1.44	£1.73
135 - ADJUSTER AN510/610/620/7 MSP-158747-1.A2 158747-1	£1.44	£1.73
137 - SPRING PIN 2 14 AG125 MSP-951010-9.A5 951010-9	£1.44	£1.73
139 - COMPRESSION SPRING 3 6706D MSP-233081-1.A1 233081-1	£1.44	£1.73
140 - CYLINDER STAY AN610/620H MSP-331739-7.A0 331739-7	£15.13	£18.16
141 - AIR LEAK REPAIR SET AN610H MSP-194735-4.A0 194735-4	£11.82	£14.18
143 - NAME PLATE AN610H MSP-866116-9 866116-9	£1.44	£1.73
144 - *TRIGGER VALVE ASSY AN510/610 MSP-135598-9.A2 135598-9	£98.53	£118.24
A01 - NOSE ADAPTOR AN610H MSP-421574-2 421574-2	£3.40	£4.08
A03 - OIL SUPPLY SET AN510/620/711 MSP-194381-3.A0 194381-3	£2.01	£2.41
A02-1 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A34 195246-2	£2.55	£3.06
A04 - PLASTIC CASE AN620 MSP-824490-1.A0 824490-1	£24.33	£29.20
A04 - SLIDE LATCH SET AN620/824581-8 MSP-186347-7.A13 186347-7	£1.20	£1.44
