Makita DHS680ZJ1 Cordless Circular Saw Spare Parts

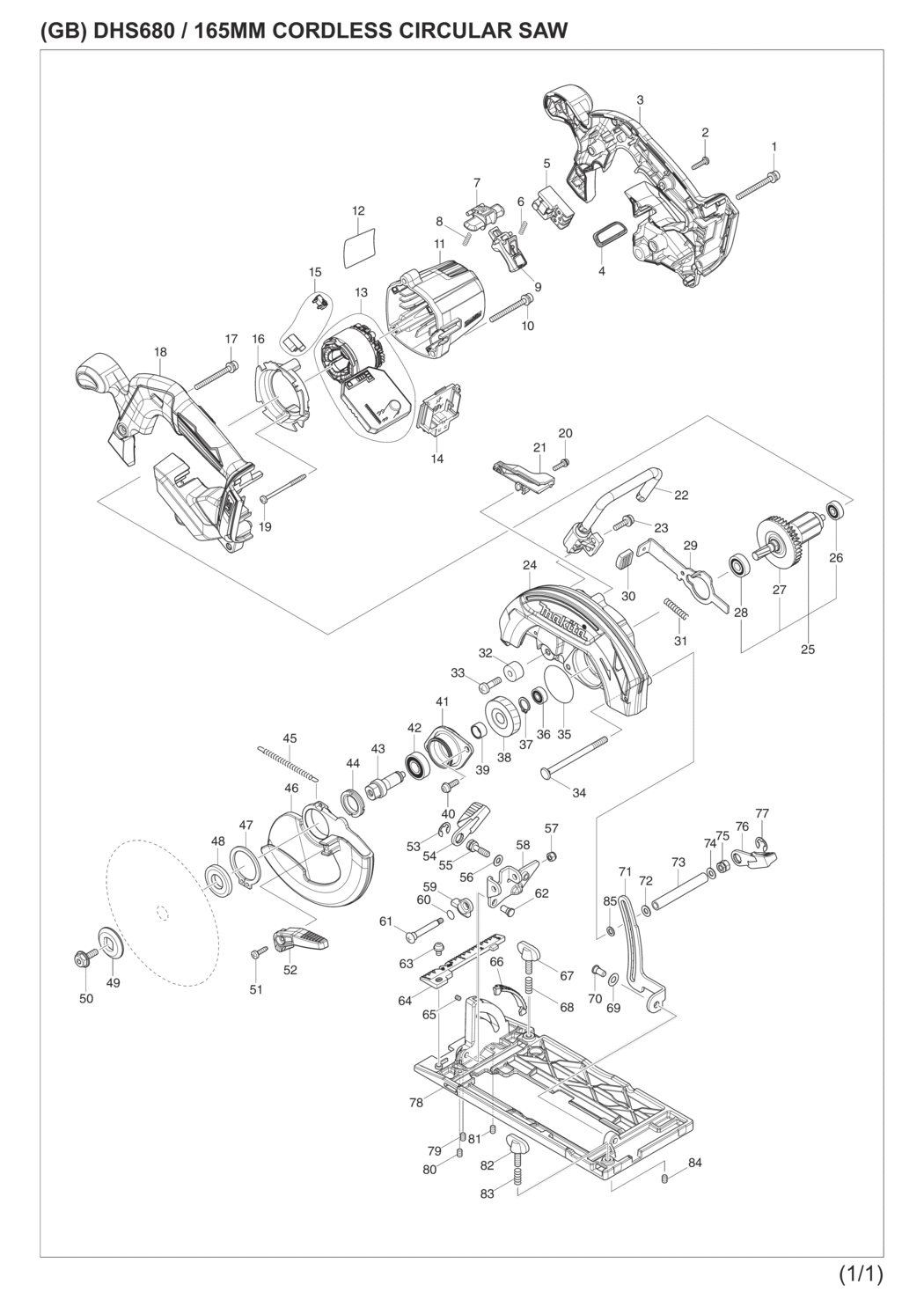

An exploded drawing and spare parts listing for the Makita DHS680ZJ1 Cordless Circular Saw

	Ex VAT	Inc VAT
1 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A37 911263-2	£1.44	£1.73
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A319 265995-6	£1.44	£1.73
3 - HANDLE SET DHS680 MSP-183A15-9.A6 183A15-9	£23.76	£28.51
3 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A118 263005-3	£1.44	£1.73
4 - INDICATION PLATE DHS680 MSP-142948-1.A2 142948-1	£1.44	£1.73
5 - SWITCH TG73BDS-2 DHS680/DCS55 MSP-650734-1.A13 650734-1	£16.70	£20.04
6 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A7 231469-9	£1.44	£1.73
7 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A8 419664-3	£1.44	£1.73
8 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A8 231469-9	£1.44	£1.73
9 - SWITCH LEVER DHS680/DCS551 MSP-455480-9.A2 455480-9	£1.44	£1.73
10 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A38 911263-2	£1.44	£1.73
11 - MOTOR HOUSING DHS680 MSP-455437-0.A0 455437-0	£5.78	£6.93
12 - NAME PLATE DHS680 MSP-850H69-0.A0 850H69-0	£1.44	£1.73
13-1 - STATOR UNIT DHS680 MSP-629348-7.A6 629348-7	£142.92	£171.50
14 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A129 644808-8	£4.28	£5.14
15 - SWITCH UNIT DHS680 MSP-632D81-6.A6 632D81-6	£18.14	£21.77
16 - BAFFLE PLATE DHS680 MSP-455440-1.A6 455440-1	£1.44	£1.73
17 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A47 911263-2	£1.44	£1.73
18 - HANDLE SET DHS680 MSP-183A15-9.A9 183A15-9	£23.76	£28.51
18 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A1011 263005-3	£1.44	£1.73
19 - PT SCREW M4X50 HR1830/SMA400 MSP-266091-3.A29 266091-3	£1.44	£1.73
20 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A129 911128-8	£1.44	£1.73
21 - DUCT DHS680 MSP-455483-3.A6 455483-3	£1.44	£1.73
22 - HOOK ASSEMBLY DHS680 MSP-123269-0.A6 123269-0	£11.23	£13.48
23 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A98 911233-1	£1.44	£1.73
24-1 - BLADE CASE DHS680 MSP-141P24-4.A6 141P24-4	£42.57	£51.08
24-1 - O RING 24 HR2430/DHR164/DHR16 MSP-213953-6.A25 213953-6	£1.44	£1.73
25 - ROTOR ASSY DHS680 MSP-519359-9.A6 519359-9	£96.01	£115.21
26 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A68 210022-4	£3.59	£4.31
27 - FAN 55 BUH550RD/DHS680 MSP-240045-8.A12 240045-8	£2.81	£3.37
28 - BALL BEARING 609LLB BHS630/68 MSP-210051-7.A8 210051-7	£7.02	£8.42
29 - SHAFT LOCK DHS680 MSP-346837-4.A6 346837-4	£1.44	£1.73
30 - *CAP HS7100/6100/SP6000/5008MB MSP-286039-9.A16 286039-9	£1.44	£1.73
31 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A43 233117-6	£1.44	£1.73
32 - RUBBER SLEEVE 6 HS6100/7100/5 MSP-262552-1.A10 262552-1	£1.44	£1.73
33 - PAN HEAD SCREW M6X20 5600D MSP-251247-1.A10 251247-1	£1.44	£1.73
34 - FLAT HD SCREW M6X90 DHS680/BS MSP-266194-3.A14 266194-3	£3.28	£3.93
35 - O RING 42 LS0714/FL/DHS680 MSP-213565-5.A8 213565-5	£1.44	£1.73
36-1 - BALL BEARING 606ZZ M8701 MSP-210137-7.A7 210137-7	£1.44	£1.73
37 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A211 961052-5	£1.44	£1.73
38 - HELICAL GEAR 50 DHS680 MSP-227794-4.A6 227794-4	£7.02	£8.42
39 - SLEEVE 12 DHS710DJ/DHS680 MSP-257349-1.A6 257349-1	£2.81	£3.37
40 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A64 911223-4	£1.44	£1.73
41 - BEARING BOX DHS680 MSP-319212-7.A6 319212-7	£5.15	£6.18
42 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A72 211131-2	£7.80	£9.36
43 - SPINDLE DHS680 MSP-326459-6.A6 326459-6	£3.59	£4.31
44 - BEARING RETAINER 19-29 BSS610 MSP-285845-9.A14 285845-9	£2.50	£3.00
45 - TENSION SPRING 4 HS6100/DHS68 MSP-231878-2.A6 231878-2	£2.00	£2.40
46 - SAFETY COVER DHS680 MSP-319211-9.A6 319211-9	£24.62	£29.55
47 - RETAINING RING S-3 DHS680/BS MSP-961152-1.A17 961152-1	£1.44	£1.73
48-1 - INNER FLANGE 35 5008MG/DSS611 MSP-224593-5.A28 224593-5	£2.56	£3.07
49 - OUTER FLANGE 35 HS6100/7100 MSP-224409-4.A26 224409-4	£2.77	£3.32
50 - HSH BOLT M6X18 DHS680 MSP-266924-2.A6 266924-2	£2.36	£2.83
51 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A202 266034-5	£1.44	£1.73
52 - LEVER 39 DHS680 MSP-272281-8.A6 272281-8	£1.44	£1.73
53 - BOW STOP RING E-8 HS6100/7100 MSP-257982-9.A23 257982-9	£1.44	£1.73
54 - LEVER 45 HS7100/DHS680/DCS551 MSP-272272-9.A15 272272-9	£3.12	£3.75
55 - HEX BOLT M6X20 DHS680 MSP-266735-5.A11 266735-5	£1.44	£1.73
56 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A185 941151-9	£1.44	£1.73
57 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A100 252103-8	£1.58	£1.89
58 - ANGULAR GUIDE DHS680 MSP-346836-6.A6 346836-6	£2.56	£3.07
59 - STOPPER BSS610/DHS680 MSP-317986-4.A10 317986-4	£3.59	£4.31
60 - O RING 9 BSR730S/DHS680 MSP-213062-1.A20 213062-1	£1.44	£1.73
61 - SPARE PART MSP-265084-7.A10 265084-7	£1.44	£1.73
62 - SHOUDER PIN 6-7 BHS630/BSS611 MSP-256480-0.A39 256480-0	£1.58	£1.89
63-1 - PAN HD SCREW M5X10 W/CP WASHE MSP-911208-0.A22 911208-0	£1.44	£1.73
64 - TOP GUIDE DHS680 MSP-455516-4 455516-4	£2.65	£3.18
65 - HSS SET SCREW M4X6 LS0714FL MSP-266318-1.A26 266318-1	£1.44	£1.73
66 - BEVEL GUIDE DHS680 MSP-455517-2.A6 455517-2	£2.02	£2.43
67 - WING SCREW M5X20 BSS500/8406C MSP-251896-4.A30 251896-4	£2.34	£2.81
68 - COMPRESSION SPRING 6 BCS500 MSP-231007-7.A28 231007-7	£1.44	£1.73
69 - WASHER 7 AN942/9030 MSP-253058-0.A7 253058-0	£1.44	£1.73
70 - SHOULDER PIN 6-7 5008MB/DHS68 MSP-256511-5.A12 256511-5	£1.66	£1.99
71 - DEPTH GUIDE DHS680 MSP-346838-2.A6 346838-2	£3.65	£4.38
73 - PIPE 6 DHS680 MSP-332126-3.A6 332126-3	£2.40	£2.88
75 - HEX NUT M6 DHS680 MSP-264103-6.A7 264103-6	£1.44	£1.73
78 - BASE DHS680 MSP-312B04-5.A6 312B04-5	£45.01	£54.01
84 - HS SET SCREW/FLAT POINT M5X8 MSP-266436-5.A30 266436-5	£1.44	£1.73
85 - NARROW WASHER 6 4300BV/9564DZ MSP-253077-6.A37 253077-6	£1.44	£1.73
A01 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A66 783203-8	£1.20	£1.44
A02 - TCT SAW BLADE 165X20X56 SP600D MSP-B-57320.A5 B-57320	£30.03	£36.04
A03 - GUIDE RULE BHS630/BSS500/BSS50 MSP-164095-8.A37 164095-8	£4.20	£5.04
A04 - DUST NOZZLE SET DHS680 MSP-196961-1.A6 196961-1	£2.79	£3.35
A05 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A127 453974-8	£1.71	£2.05
A05 - STACKING CASE TYPE 3 210MM MSP-821551-8.A36 821551-8	£39.40	£47.28
A06 - INNER TRAY DHS680 MSP-838182-6.A2 838182-6	£7.34	£8.81

Attribute Name	Value
Brand	Makita
