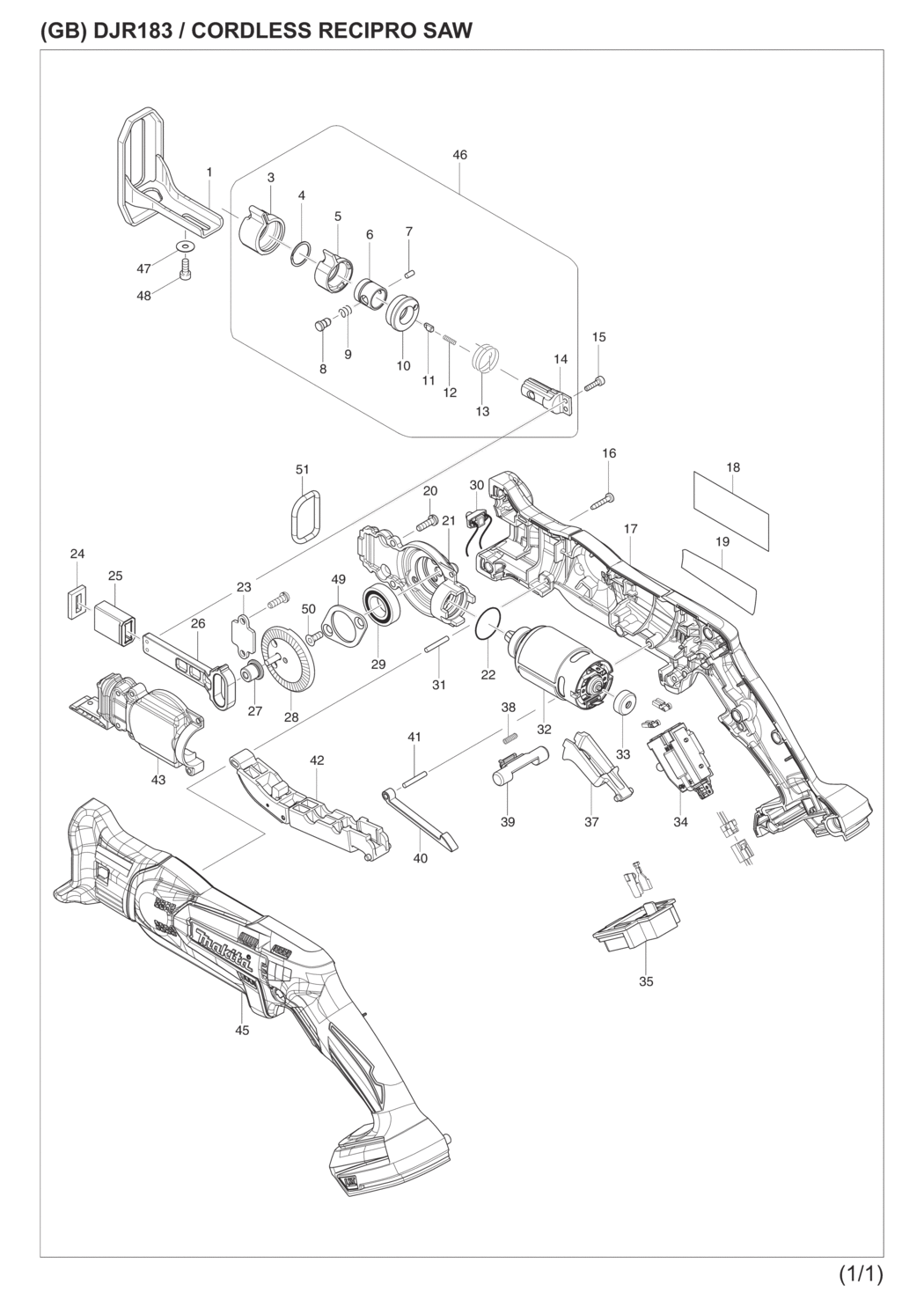

An exploded drawing and spare parts listing for the Makita DJR183Z Cordless Recipro Saw
Ex VAT Inc VAT
1 - SHOE DJR185/JR103D/JR105D MSP-165740-8.A6 165740-8 £5.62 £6.74
3 - PROTECTOR JR100D/102D/JR103D MSP-424466-4.A0 424466-4 £1.44 £1.73
4 - RETAINGIN RING EXT 16 JR100D/ MSP-257981-1.A3 257981-1 £4.52 £5.43
5 - DRIVING SLEEVE JR100D/102D MSP-310496-0.A3 310496-0 £34.28 £41.13
6 - GUIDE SLEEVE JR100D/102D MSP-331963-2.A0 331963-2 £2.97 £3.56
7 - PIN 3 BHR240/JR140D/180D/3070 MSP-268094-3.A11 268094-3 £2.50 £3.00
8 - SHOULDER PIN 5 J3060T/70CT MSP-256492-3.A0 256492-3 £1.88 £2.25
9 - COMPRESSION SPRING 6 BJR240 MSP-233345-3.A7 233345-3 £1.44 £1.73
10 - CONNECTING SLEEVE JR100D/102D MSP-453071-0.A6 453071-0 £1.44 £1.73
11 - *PUSH PIN JR100D/102D/JR103D MSP-310495-2.A3 310495-2 £16.28 £19.53
12 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A67 232472-3 £1.44 £1.73
13 - TORTION SPRING 17 JR100D/102D MSP-233594-2.A0 233594-2 £1.88 £2.25
14 - BLADE GUIDE JR100D/JR102D MSP-326113-2.A3 326113-2 £2.50 £3.00
15 - HSH BOLT M3X12 DJR183/JR103D MSP-265910-0.A10 265910-0 £1.44 £1.73
16 - TAPPING SCREW 3X16 TD126/DUM MSP-266429-2.A124 266429-2 £1.44 £1.73
17 - HOUSING SET DJR183/185 MSP-187760-2.A2 187760-2 £19.01 £22.81
17 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A122 263005-3 £1.44 £1.73
17 - SPONGE SHEET DJR183/185 MSP-423475-0.A2 423475-0 £1.44 £1.73
19 - NAME PLATE DJR183 MSP-814V98-1.A1 814V98-1 £1.44 £1.73
20 - OPAN HD SCREW M4X14 JR100D/10 MSP-266747-8.A2 266747-8 £1.44 £1.73
21 - GEAR HOUSING DJR183/185 MSP-319060-4.A0 319060-4 £9.20 £11.04
22 - O RING 22 BBC231/UX360/DUX60 MSP-213961-7.A43 213961-7 £1.44 £1.73
23 - PLATE JR100D/102D MSP-346525-3.A4 346525-3 £1.44 £1.73
24 - FELT SEAL DJR183/185 MSP-443185-3.A0 443185-3 £1.44 £1.73
25 - SLIDER GUIDE JR100D/102D MSP-313220-0.A0 313220-0 £2.50 £3.00
26 - SLIDER DJR183/JR103D MSP-313271-3.A3 313271-3 £5.92 £7.11
27 - COLLARED SLEEVE 4 DJR813/185 MSP-313270-5.A2 313270-5 £1.44 £1.73
28 - GEAR DJR183/185 MSP-142284-5.A7 142284-5 £15.44 £18.53
29 - BALL BEARING 6902ZZ 6413 JR10 MSP-211242-3.A7 211242-3 £2.65 £3.18
30 - LED CIRCUIT DJR183/185 MSP-620237-9.A0 620237-9 £7.02 £8.42
31 - PIN 3 BCV01/6835DWA/BLS820/JR MSP-256158-5.A23 256158-5 £1.44 £1.73
32 - DC MOTOR DJR183/185 MSP-629109-5.A3 629109-5 £25.20 £30.24
33 - CAP JR100D/JR102D MSP-424467-2.A13 424467-2 £1.44 £1.73
34 - SWITCH C3HY-1A-PRLMS DJR MSP-650712-1.A2 650712-1 £37.44 £44.93
35 - TERMINAL BUR181/BUM168/BTD146 MSP-643852-2.A31 643852-2 £3.90 £4.68
37 - SWITCH LEVER R JR100D/102D MSP-453072-8.A0 453072-8 £1.44 £1.73
38 - COMPRESSION SPRING 4 BHPBDF45 MSP-233438-6.A30 233438-6 £1.44 £1.73
39 - LOCK OFF LEVER R DJR183/185 MSP-454661-2.A7 454661-2 £2.02 £2.43
40 - LINK JR100D/102D MSP-313219-5.A13 313219-5 £1.44 £1.73
41 - PIN 3 BCV01/6835DWA/BLS820/JR MSP-256158-5.A22 256158-5 £1.44 £1.73
42 - SWITCH LEVER F JR100D/10 MSP-141128-6.A4 141128-6 £4.21 £5.05
43 - GEAR HOUSING COVER DJR183/185 MSP-319061-2.A6 319061-2 £7.49 £8.99
45 - HOUSING SET DJR183/185 MSP-187760-2.A1 187760-2 £19.01 £22.81
45 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A123 263005-3 £1.44 £1.73
45 - SPONGE SHEET DJR183/185 MSP-423475-0.A1 423475-0 £1.44 £1.73
46 - BLADE CLAMP ASSY JR100D/JR103D MSP-126201-3.A3 126201-3 £18.74 £22.49
47 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A9 253874-0 £1.44 £1.73
48 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A10 922112-8 £1.44 £1.73
49 - BEARING RETAINER 36 DJR183/18 MSP-285738-0.A5 285738-0 £1.44 £1.73
50 - COUNTSUNK TORX HD SCREW M4X10 MSP-265035-0.A5 265035-0 £1.44 £1.73
51 - RUBBER RING 23 DJR183/185 MSP-424597-9.A2 424597-9 £1.44 £1.73
A01 - RECIPRO BLADE 4in 6TPI METAL/N MSP-B-20432.A7 B-20432 £8.88 £10.66
A02 - RECIPRO BLADE 4in 18TPI METAL MSP-B-20404.A7 B-20404 £7.72 £9.27
A03 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A42 783201-2 £1.20 £1.44
