Makita SP6000K Plunge Cut Circular Saw Spare Parts

Home Details Reviews Delivery

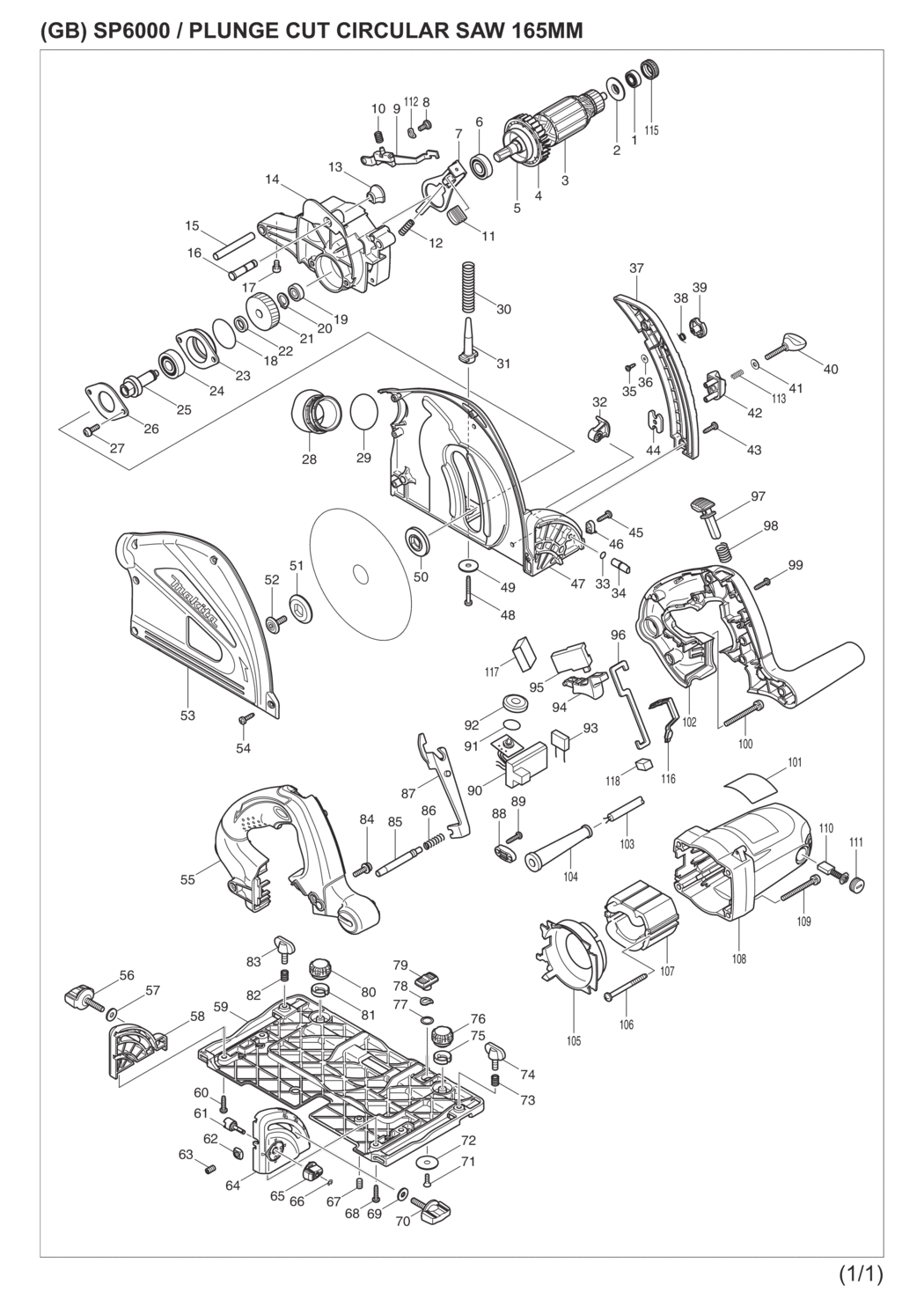

An exploded drawing and spare parts listing for the Makita SP6000K Plunge Cut Circular Saw

	Ex VAT	Inc VAT
1 - BALL BEARING 698VV TD0101F/SP MSP-210013-5.A1 210013-5	£7.02	£8.42
2 - INSULATION WASHER 4131 MSP-681634-4.A0 681634-4	£1.44	£1.73
3 - ARMATURE ASSY 110V SP6000/CA MSP-513676-9.A1 513676-9	£100.04	£120.05
3 - ARMATURE ASSY 240V SP6000 MSP-513678-5.A1 513678-5	£100.04	£120.05
4 - FAN 60 SP6000/CA5000 MSP-240091-1.A1 240091-1	£17.13	£20.56
5 - DRUM SP6000/CA5000 MSP-345767-6.A0 345767-6	£8.42	£10.11
6 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A53 211131-2	£7.80	£9.36
7 - SHAFT LOCK SP6000/CA5000 MSP-345742-2.A5 345742-2	£8.27	£9.92
8 - SHOULDER SCREW M5 JR3020 MSP-265011-4.A6 265011-4	£1.44	£1.73
9 - SHOE SP6000/CA5000 MSP-158096-6.A1 158096-6	£12.63	£15.16
10 - COMPRESSION SPRING 7 SP6000 MSP-233480-7.A1 233480-7	£1.44	£1.73
11 - *CAP HS7100/6100/SP6000/5008MB MSP-286039-9.A14 286039-9	£1.44	£1.73
12 - COMPRESSION SPRING 6 5903R MSP-233084-5.A9 233084-5	£1.44	£1.73
13-1 - CAP DSP600 CA5000/SP6000 MSP-286040-4.A4 286040-4	£2.58	£3.09
13 - *CAP SP6000/CA5000 MSP-286040-4.A8 286040-4	£2.58	£3.09
14-1 - GEAR HOUSING SP6000 MSP-144586-5.A5 144586-5	£48.44	£58.13
14-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A427 263002-9	£1.44	£1.73
14 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A440 263002-9	£1.44	£1.73
15-2 - PIN 8 SP6000/CA5000 MSP-327B66-0.A3 327B66-0	£4.38	£5.25
15 - PIN 8 SP6000/CA5000 MSP-327B66-0.A8 327B66-0	£4.38	£5.25
16 - STOPPER PIN 8 SP6000/CA5000 MSP-324708-5.A4 324708-5	£4.52	£5.43
17-1 - HEX SOCKET HD BOLT M5X10 AN50 MSP-265907-9.A7 265907-9	£1.44	£1.73
17 - HEX SOCKET HD BOLT M5X8 AG12 MSP-265913-4.A2 265913-4	£1.44	£1.73
18 - O RING 39 HK1800/CA5000 MSP-213512-6.A2 213512-6	£2.34	£2.81
19 - BALL BEARING HP1631/607LLB/43 MSP-211021-9.A58 211021-9	£8.42	£10.11
20 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A29 961052-5	£1.44	£1.73
21 - HELICAL GEAR 39 SP6000/CA5000 MSP-226637-7.A1 226637-7	£12.63	£15.16
22 - RING 12 5600NB/5621RDW/CA5000 MSP-257010-0.A1 257010-0	£1.44	£1.73
23 - BEARING BOX SP6000/CA5000 MSP-318088-9.A1 318088-9	£8.27	£9.92
24 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A47 211129-9	£10.14	£12.17
25 - SPINDLE SP6000 MSP-324707-7.A0 324707-7	£22.90	£27.48
26 - BEARING RETAINER 55 SP6000 MSP-285689-7.A4 285689-7	£1.44	£1.73
27 - PAN HD SCREW M5X16 W/WASHER MSP-911221-8.A2 911221-8	£1.44	£1.73
28 - DUST NOZZLE SP6000/CA5000 MSP-419620-3.A2 419620-3	£3.23	£3.88
29 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A29 213460-9	£2.18	£2.62
30 - COMPRESSION SPRING 11 SP6000 MSP-233479-2.A3 233479-2	£2.79	£3.35
31 - SPRING HOLDER SP6000/CA5000 MSP-419624-5.A4 419624-5	£2.50	£3.00
32 - *LEVER 20 SP6000 MSP-158095-8.A0 158095-8	£2.65	£3.18
32-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A433 263002-9	£1.44	£1.73
32 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A434 263002-9	£1.44	£1.73
33 - O RING 5 BTM40/50/620/711/DLS MSP-213021-5.A34 213021-5	£1.44	£1.73
34 - PIN 8 SP6000 MSP-324710-8.A4 324710-8	£2.34	£2.81
35 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A70 266007-8	£1.44	£1.73
36 - BLUE WASHER 3 6791D MSP-253821-1.A4 253821-1	£1.44	£1.73
37-1 - DEPTH GUIDE SP6000 MSP-457756-0.A4 457756-0	£2.81	£3.37
38 - TORSION SPRING SP6000 MSP-231665-9.A0 231665-9	£1.44	£1.73
39 - LOCK LEVER SP6000 MSP-419630-0.A1 419630-0	£2.65	£3.18
40 - WING SCREW M5X30 MSP-251867-1.A0 251867-1	£2.77	£3.32
41 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A33 941101-4	£1.44	£1.73
42 - STOPPER BLOCK SP6000 MSP-419623-7.A0 419623-7	£3.59	£4.31
43 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A68 266034-5	£1.44	£1.73
44 - NUT PLATE SP6000 MSP-345744-8.A1 345744-8	£2.40	£2.88
45 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A69 266034-5	£1.44	£1.73
46 - POSITION PLATE SP6000 MSP-419632-6.A1 419632-6	£1.44	£1.73
47-3 - BLADE CASE DSP600 MSP-140D56-6.A0 140D56-6	£55.11	£66.13
47-1 - PUSH NUT MSP-259008-3.A5 259008-3	£1.44	£1.73
47-2 - PUSH NUT MSP-259008-3.A8 259008-3	£1.44	£1.73
47-3 - PUSH NUT MSP-259008-3.A9 259008-3	£1.44	£1.73
47-2 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A1 232472-3	£1.44	£1.73
47-2 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A20 253874-0	£1.44	£1.73
47-1 - SPACER PLATE SP6000 MSP-345747-2.A4 345747-2	£4.52	£5.43
47-2 - *CAP 14 SP6000 MSP-286277-3.A2 286277-3	£2.18	£2.62
47 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A102 232472-3	£1.44	£1.73
47-1 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A103 232472-3	£1.44	£1.73
47 - PUSH NUT MSP-259008-3.A4 259008-3	£1.44	£1.73
47-3 - SPACER PLATE SP6000 MSP-345747-2.A3 345747-2	£4.52	£5.43
47 - *CAP 14 SP6000 MSP-286277-3.A3 286277-3	£2.18	£2.62
47-1 - *CAP 14 SP6000 MSP-286277-3.A4 286277-3	£2.18	£2.62
47-3 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A2 232472-3	£1.44	£1.73
47 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A34 253874-0	£1.44	£1.73
47-1 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A35 253874-0	£1.44	£1.73
47-3 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A37 253874-0	£1.44	£1.73
47 - SPACER PLATE SP6000 MSP-345747-2.A8 345747-2	£4.52	£5.43
47-2 - SPACER PLATE SP6000 MSP-345747-2.A9 345747-2	£4.52	£5.43
48 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A7 266053-1	£1.44	£1.73
49 - LARGE FLAT WSHER 6 5100BR MSP-253010-8.A12 253010-8	£1.44	£1.73
50-1 - INNER FLANGE 35 5008MG/DSS611 MSP-224593-5.A1 224593-5	£2.56	£3.07
50 - INNER FLANGE 35 SP6000/CA5000 MSP-224406-0.A1 224406-0	£15.44	£18.53
51-1 - OUTER FLANGE 35 HS6100/7100 MSP-224409-4.A11 224409-4	£2.77	£3.32
52 - HEX SOCKET HEAD BOLT M6 SP600 MSP-266403-0.A1 266403-0	£2.65	£3.18
53-1 - BLADE CASE COVER SP6000 MSP-319709-6.A0 319709-6	£45.93	£55.12
54 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A70 266034-5	£1.44	£1.73
55 - HANDLE SET SP6000/CA5000 MSP-188197-6.A5 188197-6	£37.44	£44.93
56 - THUMB SCREW M6X26 SP6000 MSP-265776-8.A9 265776-8	£2.53	£3.04
57 - FLAT WASHER 6 UK360D/SP6000 MSP-253111-2.A1 253111-2	£1.44	£1.73
58 - REAR ANGULAR GUIDE SP6000 MSP-419596-4.A0 419596-4	£7.49	£8.99
59-1 - BASE SP6000 MSP-318179-6.A1 318179-6	£78.50	£94.20
60 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A890 265995-6	£1.44	£1.73
61 - STOPPER PIN SP6000 MSP-324731-0.A4 324731-0	£6.71	£8.05
62 - SQUARE NUT M6 2107F HS7611 MSP-252157-5.A14 252157-5	£1.44	£1.73
63 - HEX S SET SCREW M6X10 5143R MSP-266085-8.A8 266085-8	£1.44	£1.73
63-1 - HEX SOCKET HEAD SET BSS500/50 MSP-266225-8.A6 266225-8	£1.44	£1.73
64 - FRONT ANGULAR GUIDE SP6000 MSP-419595-6.A4 419595-6	£9.82	£11.79
65 - *DIAL 22 SP6000 MSP-419571-0.A0 419571-0	£1.44	£1.73
66 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A88 961017-7	£1.44	£1.73
67-1 - HEX S SET SCREW M6X10 5143R MSP-266085-8.A9 266085-8	£1.44	£1.73
67 - HEX S SET SCREW M6X10 5143R MSP-266085-8.A12 266085-8	£1.44	£1.73
67-2 - HEX SOCKET HEAD SET BSS500/50 MSP-266225-8.A5 266225-8	£1.44	£1.73
68 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A891 265995-6	£1.44	£1.73
69 - FLAT WASHER 6 UK360D/SP6000 MSP-253111-2.A2 253111-2	£1.44	£1.73
70 - THUMB SCREW M6X26 SP6000 MSP-265776-8.A8 265776-8	£2.53	£3.04
71 - COUNTERSUNK SCREW M4X10 RP090 MSP-912112-6.A18 912112-6	£1.44	£1.73
72 - LOCK WASHER SP6000/CA5000 MSP-345748-0.A0 345748-0	£2.81	£3.37
73 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A9 231316-4	£1.44	£1.73
74 - WING SCREW M6X14 HS7611 MSP-265701-9.A17 265701-9	£2.18	£2.62
75 - HOLDER SP6000/CA5000 MSP-419627-9.A3 419627-9	£2.36	£2.83
76 - THUMB SCREW M4X3 SP6000 MSP-265775-0.A0 265775-0	£2.41	£2.89
77-1 - NARROW WASHER 10 SP6000 MSP-345977-5.A0 345977-5	£1.44	£1.73
77 - NARROW WASHER 10 LH1040/4602D MSP-267070-4.A2 267070-4	£1.44	£1.73
78 - WAVE WASHER 10 3600B/CA5000 MSP-253932-2.A7 253932-2	£1.57	£1.88
79 - *SLIDE LEVER SP6000/CA5000 MSP-458092-7.A0 458092-7	£1.44	£1.73
80 - THUMB SCREW M4X3 SP6000 MSP-265775-0.A1 265775-0	£2.41	£2.89
81 - HOLDER SP6000/CA5000 MSP-419627-9.A2 419627-9	£2.36	£2.83
82 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A10 231316-4	£1.44	£1.73
83 - WING SCREW M6X14 HS7611 MSP-265701-9.A16 265701-9	£2.18	£2.62
84 - CAP HD SCREW M5X20 JS3200/CA MSP-922232-8.A7 922232-8	£1.44	£1.73
85 - LOCK PIN 8 SP6000 MSP-324709-3.A0 324709-3	£5.92	£7.11
86 - COMPRESSION SPRING 7 AN504 MSP-233267-7.A10 233267-7	£1.44	£1.73
87 - LOCK PLATE SP6000/CA5000 MSP-419631-8.A0 419631-8	£2.81	£3.37
88 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A87 687053-2	£1.44	£1.73
88 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A92 687052-4	£1.44	£1.73
89 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A892 265995-6	£1.44	£1.73
90 - CONTROLLER 240V SP6000/CA5000 MSP-631729-3.A2 631729-3	£91.48	£109.77
90 - CONTROLLER 110V SP6000/CA5000 MSP-631728-5.A0 631728-5	£91.48	£109.77
91 - O RING 17 HM1317C-CB/HR2410/ MSP-213261-5.A6 213261-5	£1.44	£1.73
92 - DIAL JR3070CT/CA5000 MSP-418905-4.A0 418905-4	£1.44	£1.73
93 - NOISE SUPPRESSOR/CONDENSOR MSP-645185-1.A3 645185-1	£1.44	£1.73
93 - NOISE SUPPRESSOR 110V UH4570 MSP-645190-8.A16 645190-8	£1.44	£1.73
94 - SWITCH LEVER SP6000/CA5000 MSP-419622-9.A2 419622-9	£3.28	£3.93
95 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A7 651922-3	£15.42	£18.51
96 - LINK PLATE SP6000/CA5000 MSP-345745-6.A0 345745-6	£3.59	£4.31
97 - LOCK OFF BUTTON SP6000/CA5000 MSP-419629-5.A4 419629-5	£2.34	£2.81
98 - COMPRESSION SPRING 12 HR2420 MSP-233089-5.A4 233089-5	£1.44	£1.73
99 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A893 265995-6	£1.44	£1.73
100 - PAN HD SCREW M5X50 4157/HR240 MSP-911273-9.A8 911273-9	£1.44	£1.73
101-1 - NAME PLATE SP6000 MSP-862913-1.A1 862913-1	£1.44	£1.73
101-2 - NAME PLATE SP6000 MSP-862913-1.A2 862913-1	£1.44	£1.73
101-3 - NAME PLATE SP6000 MSP-862913-1.A5 862913-1	£1.44	£1.73
101 - NAME PLATE SP6000 MSP-862913-1.A6 862913-1	£1.44	£1.73
102 - HANDLE SET SP6000/CA5000 MSP-188197-6.A4 188197-6	£37.44	£44.93
103 - POWER SUPPLY CORD 1.0-2-4.0 MSP-692502-6.A1 692502-6	£15.75	£18.90
104 - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A16 682540-6	£1.44	£1.73
104 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A21 682505-8	£1.44	£1.73
105 - BAFFLE PLATE SP6000/CA5000 MSP-419626-1.A1 419626-1	£1.44	£1.73
106 - PT SCREW 5X60 HS7100/HM1317C MSP-266044-2.A5 266044-2	£2.34	£2.81
107 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A41 654020-2	£1.44	£1.73
107 - FIELD ASSY 240V SP6000/CA5000 MSP-525743-8.A1 525743-8	£43.60	£52.32
107 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A64 654501-6	£1.44	£1.73
107 - FIELD ASSY 110V SP6000/CA5000 MSP-525741-2.A1 525741-2	£43.60	£52.32
108 - MOTOR HOUSING COMPL SP6000 MSP-158094-0.A1 158094-0	£42.48	£50.98
108 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A14 643708-9	£2.34	£2.81
109 - PAN HD SCREW M5X50 4157/HR240 MSP-911273-9.A7 911273-9	£1.44	£1.73
110 - CARBON BRUSH CB-303 MT582 MSP-191963-2.A10 191963-2	£8.58	£10.30
111 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A7 643750-0	£1.44	£1.73
112 - WAVE WASHER 7 SP6000/CA5000 MSP-267781-1.A2 267781-1	£1.44	£1.73
113 - COMPRESSION SPRING 5 5016NB MSP-231372-4.A2 231372-4	£1.44	£1.73
114 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A0 232472-3	£1.44	£1.73
115 - RUBBER RING 19 HS7100/6100/95 MSP-421479-6.A4 421479-6	£6.71	£8.05
116 - PACKING SP6000/CA5000 MSP-424047-4.A1 424047-4	£1.44	£1.73
117 - SPONGE SP6000/CA5000 MSP-424050-5.A1 424050-5	£1.44	£1.73
118 - FELT SP6000/CA5000 MSP-443137-4.A0 443137-4	£1.44	£1.73
121 - PAN HD SCREW M3X10 DSD180 MSP-911013-5.A23 911013-5	£1.44	£1.73
122 - *O-RING 6 AN711/BO3710/11/BBC2 MSP-213045-1.A21 213045-1	£1.44	£1.73
A02 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A15 783203-8	£1.20	£1.44
A03 - HANDLE SP6000 MSP-453471-4 453471-4	£40.03	£48.04
A03 - LATCH SP6000 MSP-453472-2 453472-2	£10.92	£13.10
A03 - *PLASTIC CASE/SYSTAINER MSP-824783-6 824783-6	£65.74	£78.89
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A163 654091-9	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita SP6000K Plunge Cut Circular Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Makita SP6000K Plunge Cut Circular Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Makita SP6000K Plunge Cut Circular Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
