Metabo Work CLAMP KGT / 0910009222 11 / - Spare Parts

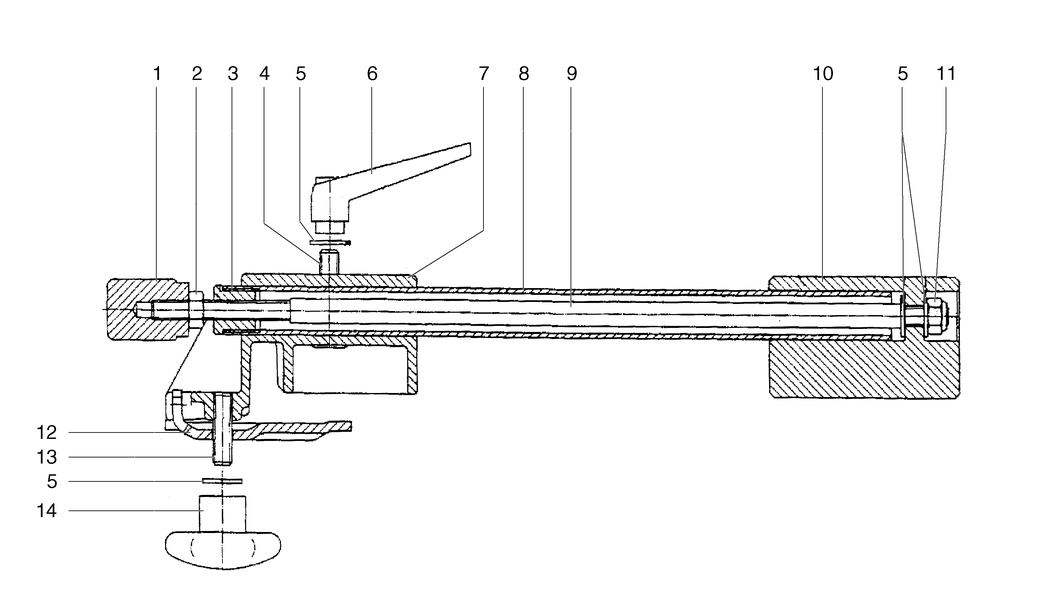

An exploded diagram and spare parts listing for the Metabo Work CLAMP KGT / 0910009222 11 / -

	Ex VAT	Inc VAT
1 - TURN HANDLE RD 25X30 MET-1385209572.A1 1385209572	-
2 - HEXAGONAL NUT MET-141131010.A29 141131010	£1.50	£1.80
3 - THREADED PIECE SW 17X18 / M 18X14 SPANNV MET-1485209561.A1 1485209561	-
4 - HEXAGON HEAD SCREW MET-141113330.A25 141113330	£3.20	£3.84
5 - WASHER MET-141151340.A22 141151340	£1.50	£1.80
6 - RATCHET LOCK LEVER FEMALE MET-7006028653.A11 7006028653	£9.62	£11.54
7 - CLAMPING PAD MET-1380209515.A1 1380209515	-
8 - SETTING TUBE DA=RD 20X2 5X280 SPANNVORRI MET-1485209545.A0 1485209545	-
9 - THREADED ROD M8X340 SPANNVORRICHTUNG MET-1485209553.A1 1485209553	-
10 - CLAMPING BODY 50X50X80 MET-1381209535.A0 1381209535	-
11 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A36 6202002305	£1.50	£1.80
12 - CLAMPING PLATE BL 2 99X60X88 KGT-SPANNVO MET-1482209528.A1 1482209528	-
13 - HEXAGON HEAD SCREW M 8X30 VERZ. MET-6103031271.A1 6103031271	£1.50	£1.80
14 - STARKNOB NUT M 8 (DIN 934) VERZINKT MET-7000028937.A42 7000028937	£3.82	£4.59

Attribute Name	Value
Brand	Metabo
