Metabo Workstand KGS / 0910003518 10 / - Spare Parts

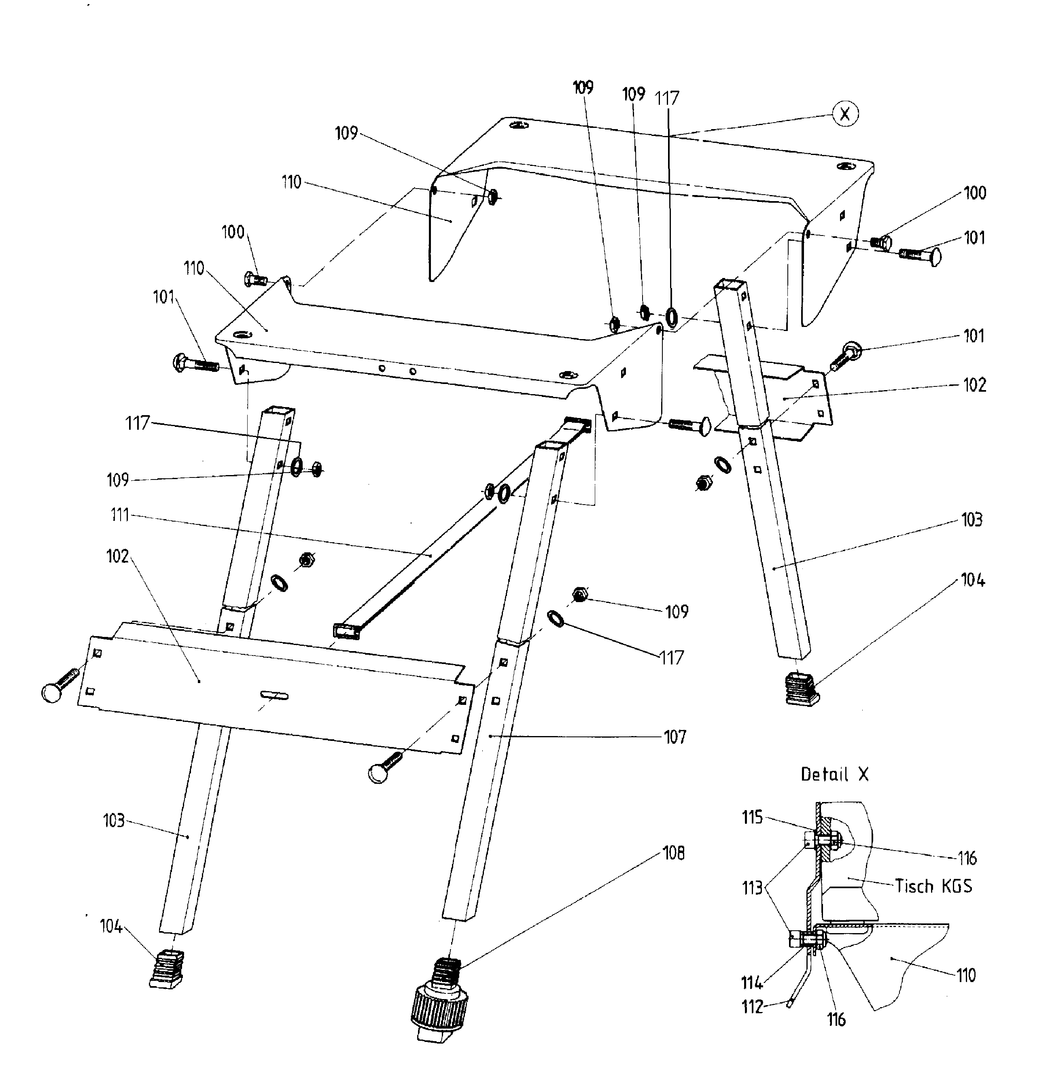

An exploded diagram and spare parts listing for the Metabo Workstand KGS / 0910003518 10 / -

	Ex VAT	Inc VAT
100 - HEX HEAD SCREW MET-6103001178.A8 6103001178	£1.50	£1.80
101 - TRUSS HEAD SCREW MET-6110059297.A14 6110059297	£1.50	£1.80
102 - STANCHION BL 2X140X502 MET-1382210057.A1 1382210057	-
103 - LEG 4KT 30X30X1 5X840 MET-1382210073.A0 1382210073	-
104 - FOOT MET-1381726173.A14 1381726173	£4.76	£5.71
107 - LEG 4KT 30X30X1 5X755 MET-1382210081.A1 1382210081	£17.95	£21.54
108 - ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR MET-2010200787.A7 2010200787	£22.61	£27.13
109 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A37 6202002305	£1.50	£1.80
110 - TABLE PANEL BL 2X220X740 MET-1392203121.A0 1392203121	-
111 - STRAP 25X550 -1 MET-4841203459.A0 4841203459	-
112 - FASTENING HOOK BL 2 00X45X124 MET-1492043555.A3 1492043555	£3.82	£4.59
113 - CAP SCREW MET-6121023081.A35 6121023081	£1.50	£1.80
114 - SPACER SLEEVE MET-6442059304.A9 6442059304	£1.50	£1.80
115 - CUP SPRING MET-141155660.A7 141155660	£1.50	£1.80
116 - HEXAGONAL LOCK NUT MET-141130650.A29 141130650	£3.20	£3.84
117 - WASHER MET-6305002486.A66 6305002486	-
