Metabo Workstand BAS380 / 0909060222 10 / - Spare Parts

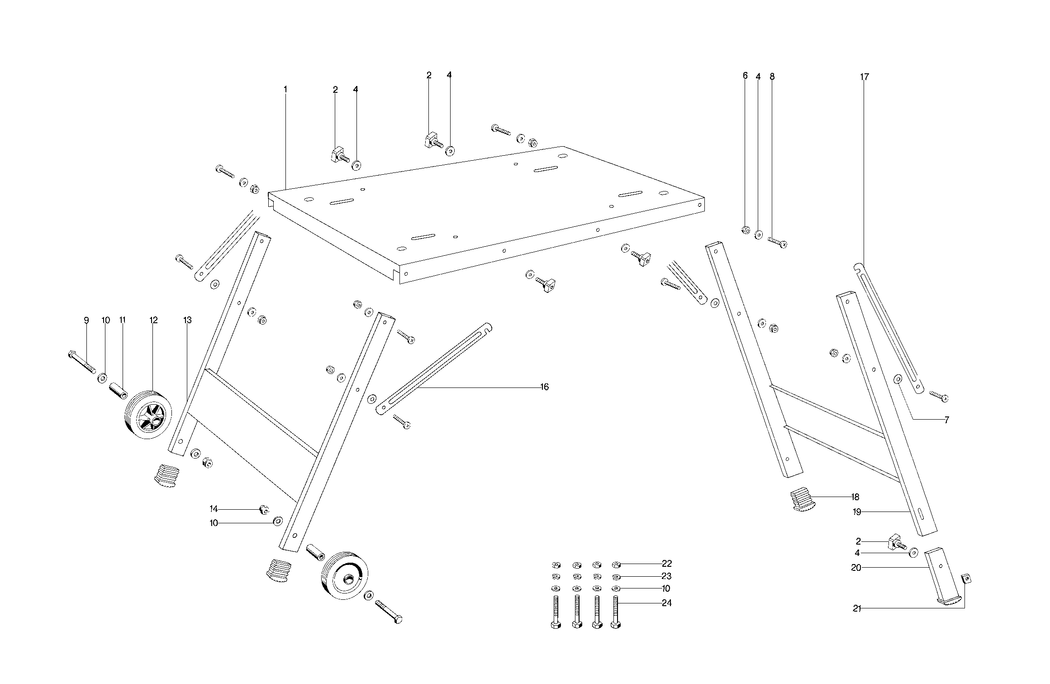

An exploded diagram and spare parts listing for the Metabo Workstand BAS380 / 0909060222 10 / -

	Ex VAT	Inc VAT
1 - TABLE PANEL UNTERGESTELL BAS380 MET-1382699722.A0 1382699722	-
2 - THUMBSCREW MET-341111630.A0 341111630	£3.20	£3.84
4 - WASHER MET-141150130.A218 141150130	£1.50	£1.80
6 - HEXAGONAL LOCK NUT MET-141130650.A104 141130650	£3.20	£3.84
7 - WAVE SPRING WASHER B 6 VERZ. MET-6302000318.A0 6302000318	-
8 - CAP SCREW MET-141113900.A11 141113900	£3.20	£3.84
10 - WASHER MET-141151340.A74 141151340	£1.50	£1.80
11 - CONICAL BUSHING UNTERGESTELL BAS380 MET-1385699731.A0 1385699731	-
12 - WHEEL SOLID RUBBER UNTERGESTELL BAS380 MET-7270699744.A0 7270699744	-
13 - BEINGRUPPE VORN UNTERGESTELL BAS380 MET-1382699757.A0 1382699757	-
14 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A115 6202002305	£1.50	£1.80
16 - STANCHION UNTERGESTELL BAS380 MET-1382699773.A0 1382699773	-
17 - STANCHION UNTERGESTELL BAS380 MET-1382699781.A0 1382699781	-
18 - FOOT UNTERGESTELL BAS380 MET-1381699796.A0 1381699796	£2.60	£3.12
19 - BEINGRUPPE HINTEN UNTERGESTELL BAS380 MET-1382699765.A0 1382699765	-
20 - ADJUSTABLE FOOT ASSEMBLY UNTERGESTELL B MET-1010699807.A0 1010699807	-
21 - GUIDE BLOCK 20X15X4 TKU/PKU MET-1482697760.A0 1482697760	£4.76	£5.71
22 - HEXAGONAL NUT MET-141131010.A37 141131010	£1.50	£1.80
24 - HEXAGON HEAD SCREW M 8X50 VERZ. MET-6103001216.A3 6103001216	£1.50	£1.80
